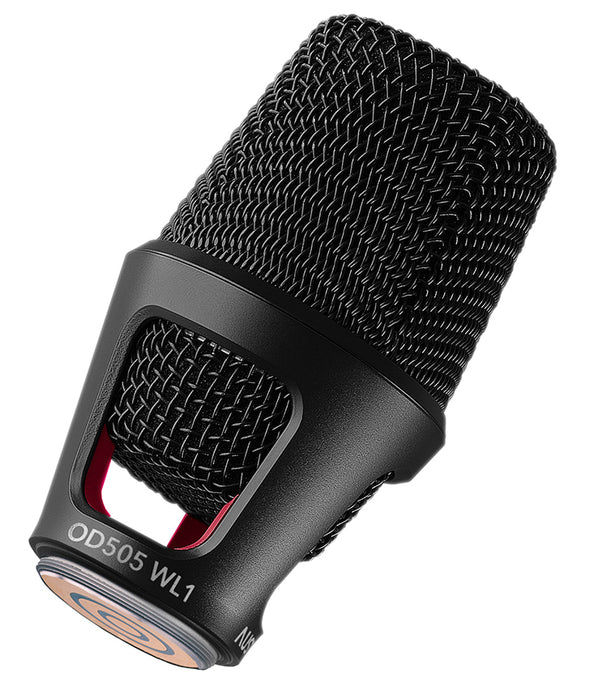

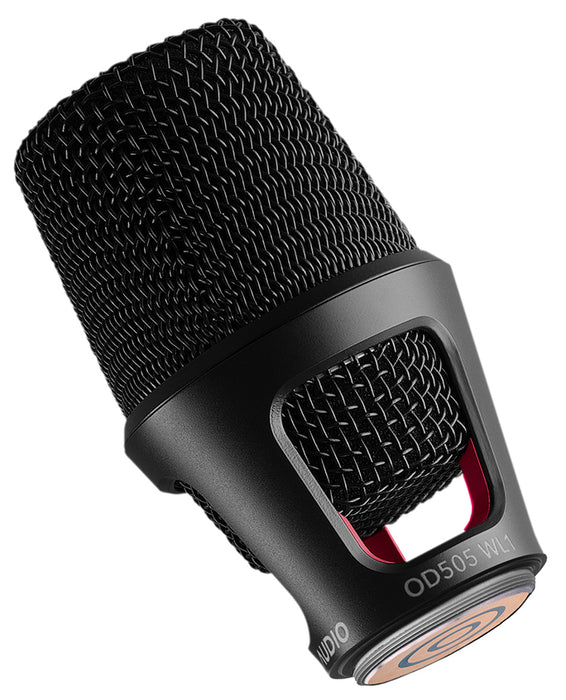

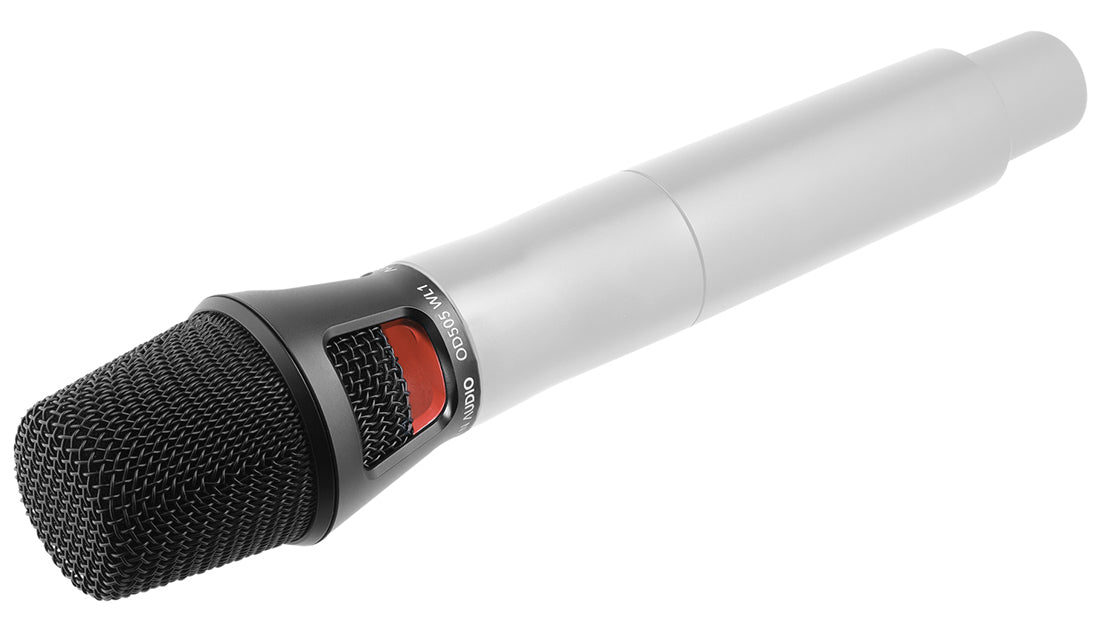

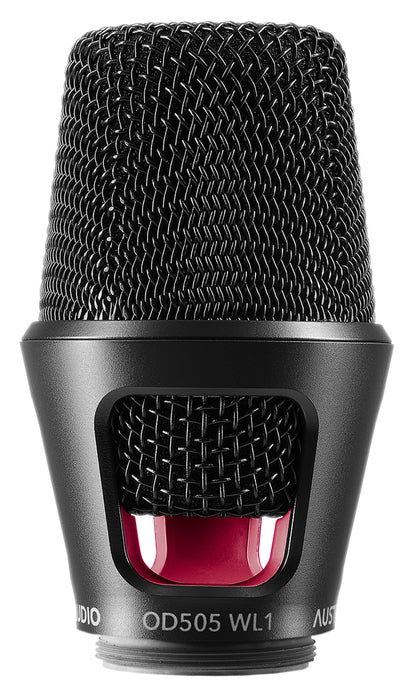

Austrian Audio OD505WL1 Active Dynamic Wireless Microphone Capsule

The best of two worlds. Wireless.
The outstanding sound of the Austrian Audio OD505 vocal microphone with active dynamic circuitry has already won over many FOH engineers, technicians and artists. The OD505 WL[KW1] 1 is the ideal solution for all those who are mobile during their performance and depend on a wireless system, but want to retain the authentic Austrian Audio sound.

The OD505 WL1 is the perfect performance partner for any artist, whether lead or backing vocals. The natural tuning and exemplary signal quality provide the perfect foundation to bring out the strengths of any voice with minimal tweaks required.

In many live situations, ambient sound is a big problem. That's why a supercardioid polar pattern was chosen for the OD505. This optimally fades out unwanted interference and focuses on the voice. Elements such as drums or other loud instruments in the immediate vicinity are not additionally amplified by the vocal microphone.

Austrian Audio's Open Acoustic sound remains present over the radio transmission.

ODC50 active dynamic capsule
State-of-the-art dual capsule design for consistent sound.

3D Pop Noise Diffusor
Specially designed, this filter effectively reduces the impact of plosives.

Directional characteristic
Supercardioid.

Specifications

Directional characteristic: Supercardioid
Frequency range: 35 Hz - 16 kHz
Sensitivity: 4.6 mV/Pa
Self noise: 26 dB SPL (A)
Max. SPL: 150 dB SPL
Load impedance: > 1 kΩ
Supply voltage: 5-10 V (< 1 mA)
Connection: Shure® / Sony / Lectrosonics®
Dimensions: 92 x 53 mm
Weight: 195 g
