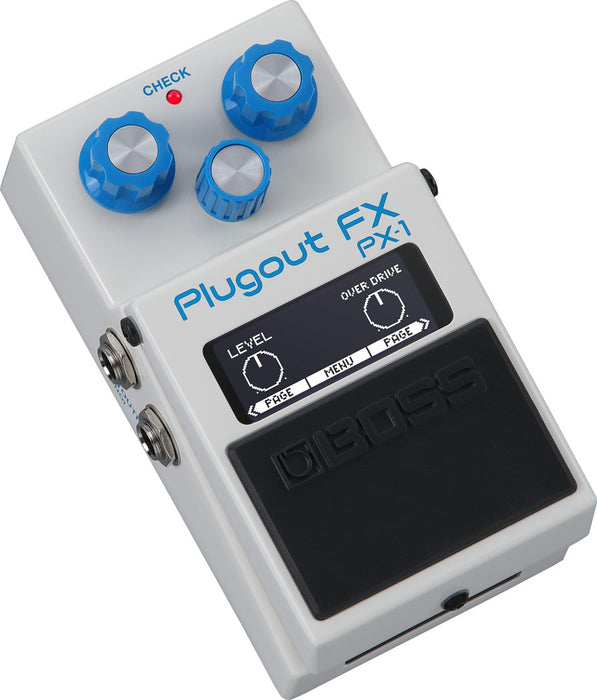

Boss PX-1 Plugout FX Pedal

The PX-1 Plugout FX is an innovative hardware platform that captures the timeless BOSS compact pedal experience in one versatile pedal. This convertible stomp holds multiple authentic effect recreations from the historic BOSS lineup, providing endless fuel for every creative journey. With the PX-1 in your setup, exploring the vast and influential world of BOSS compact pedals has never been easier.

Features

• Timeless BOSS compact pedals in an innovative hardware platform
• Instantly reconfigure the pedal to use one effect from an onboard library of up to 16 types
• Comes with 16 effects: OD-1, SP-1, PH-1, SG-1, CS-1, TW-1, SD-1, DS-1, CE-2, BF-2, PN-2, OC-2, PS-2, VB-2, DD-2, and DF-2
• Additional effects available over time with Model Pass purchases in the BOSS Effect Loader app
• Authentic tone and response, realized with powerful DSP dedicated to one effect at a time
• Stereo input and output
• Support for external control with footswitches or an expression pedal
• Tap tempo support and TRS MIDI input for MIDI clock sync
• Bluetooth® and USB-C® connectivity for loading effect models and more
• Runs on included AC adaptor or USB bus power
• BOSS five-year warranty

Specifications

Sampling & Conversion

• Sampling Frequency: 48 kHz

• AD Conversion: 24 bits + AF method

  • AF method (Adaptive Focus method): technologie propriétaire Roland & BOSS qui améliore significativement le rapport signal/bruit (S/N) des convertisseurs AD et DA

• DA Conversion: 32 bits

Inputs

• Nominal Input Level: INPUT A (MONO), INPUT B: -20 dBu

• Maximum Input Level: INPUT A (MONO), INPUT B: +7 dBu

• Input Impedance: INPUT A (MONO), INPUT B: 1 MΩ

Outputs

• Nominal Output Level: OUTPUT A (MONO), OUTPUT B: -20 dBu

• Maximum Output Level: OUTPUT A (MONO), OUTPUT B: +7 dBu

• Output Impedance: OUTPUT A (MONO), OUTPUT B: 1 kΩ

• Recommended Load Impedance: OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater

• Bypass: Buffered bypass

Controls & Indicators

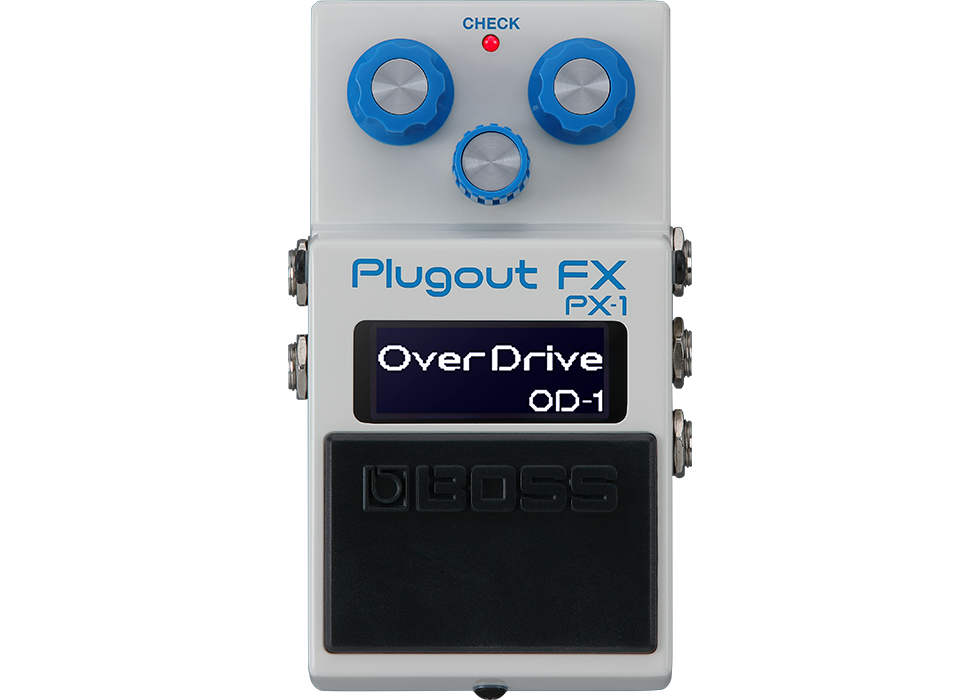

• Controls: LEFT knob, CENTER knob, RIGHT knob, Pedal switch

• Indicator: CHECK indicator

• Display: Graphic LCD (128 × 48 dots)

Connectors

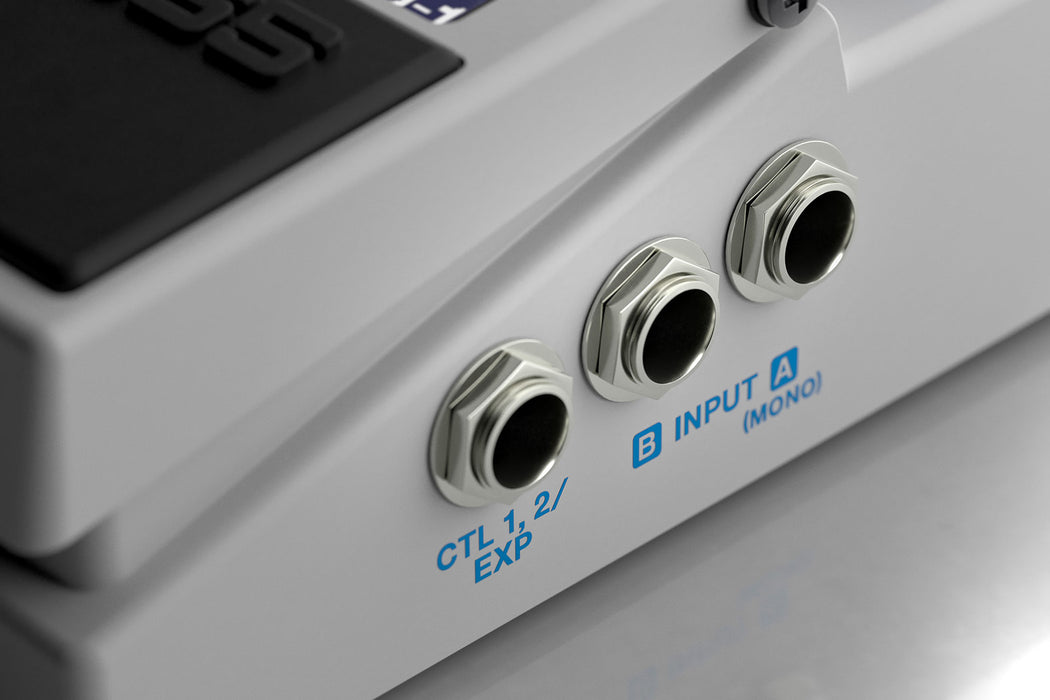

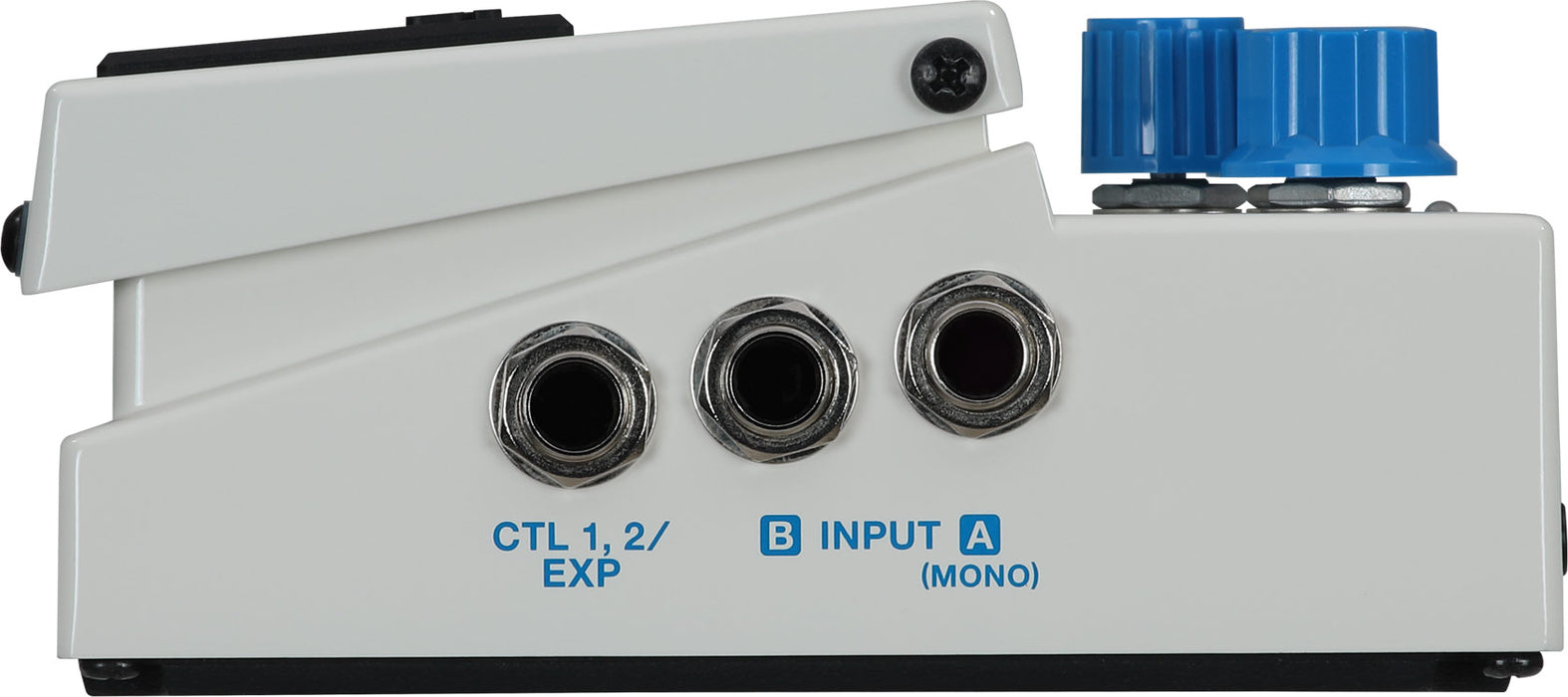

• INPUT A (MONO), INPUT B: 1/4" phone type

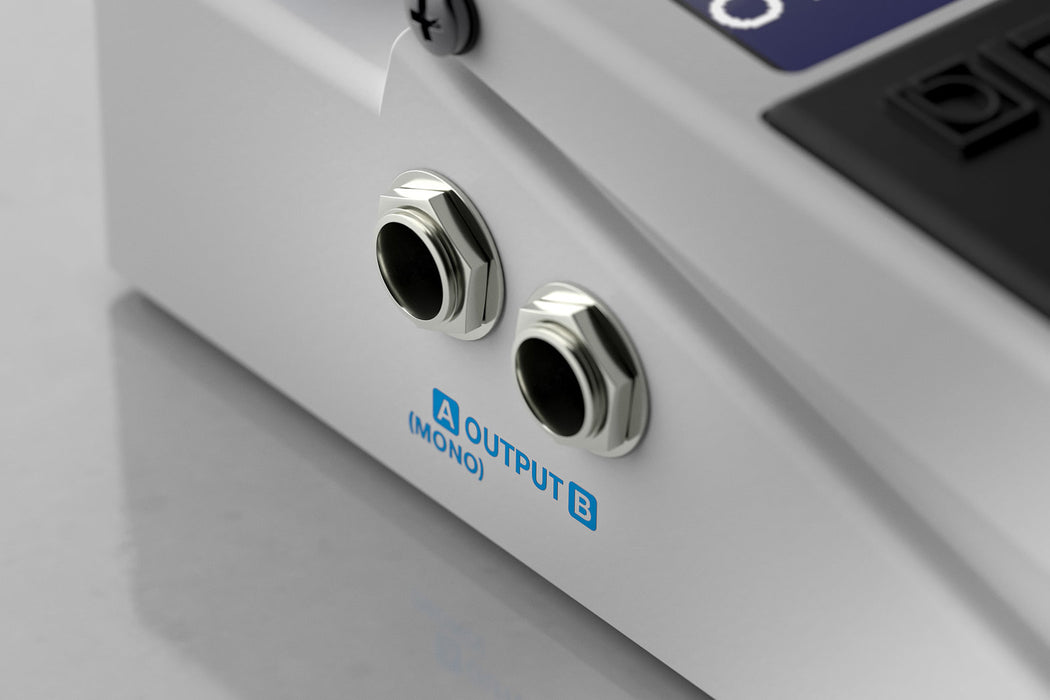

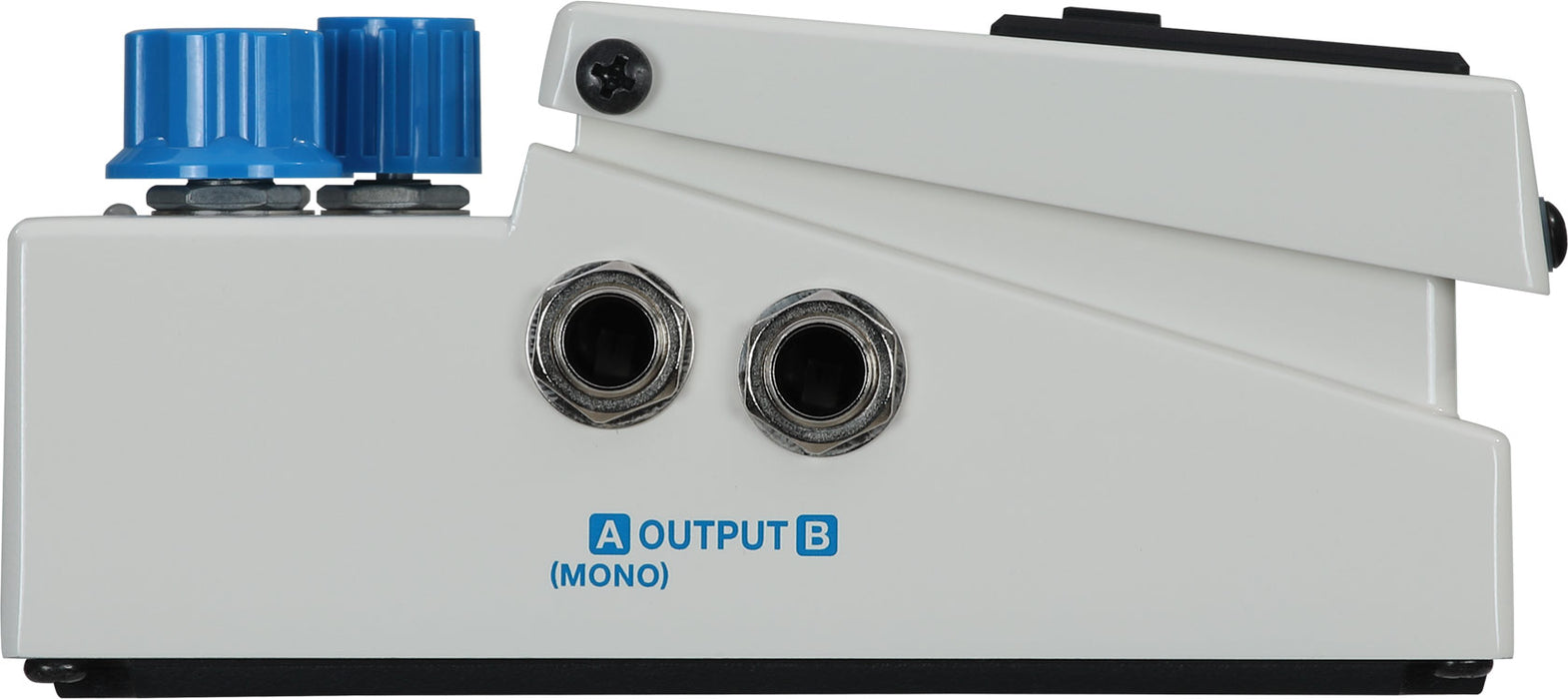

• OUTPUT A (MONO), OUTPUT B: 1/4" phone type

• CTL1,2/EXP jack: 1/4" TRS phone type

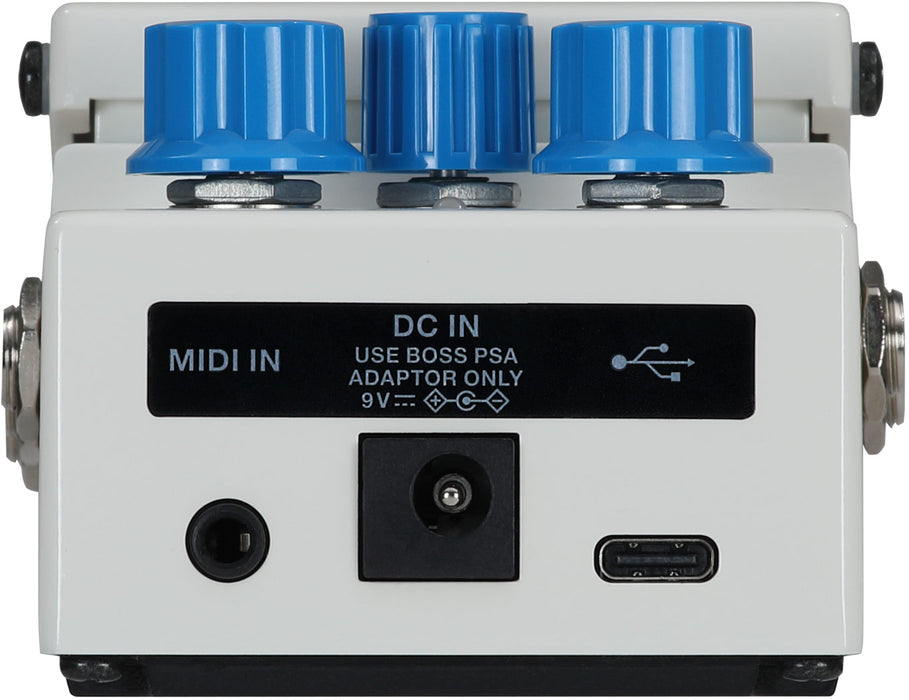

• DC IN jack

• MIDI IN: stereo miniature phone type

• USB COMPUTER port: USB Type-C®

Bluetooth

• Profile Support: GATT (MIDI over Bluetooth Low Energy)

Power Supply & Consumption

• Power Supply: AC adaptor / USB bus power

• Current Draw:

  • 260 mA (AC adaptor)

  • 420 mA (USB)

Accessories (included)

• AC adaptor

• Leaflet ("Using the Unit Safely," "Important Notes," "Information")

• Roland Cloud Activation Card

Options (sold separately)

• Footswitch: FS-5U

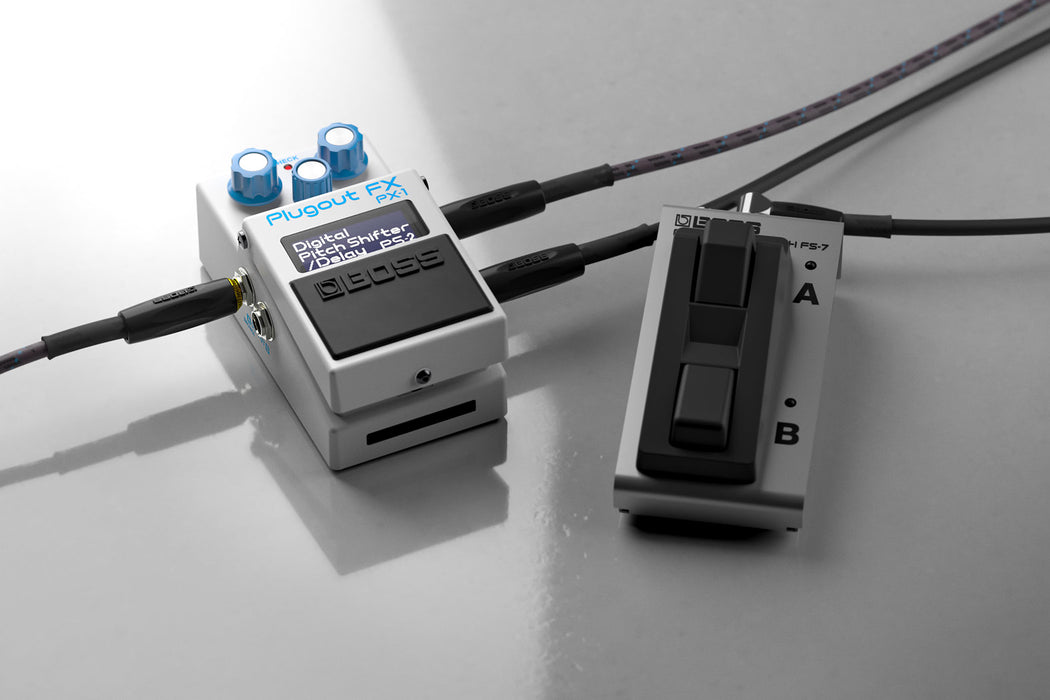

• Dual footswitch: FS-6, FS-7

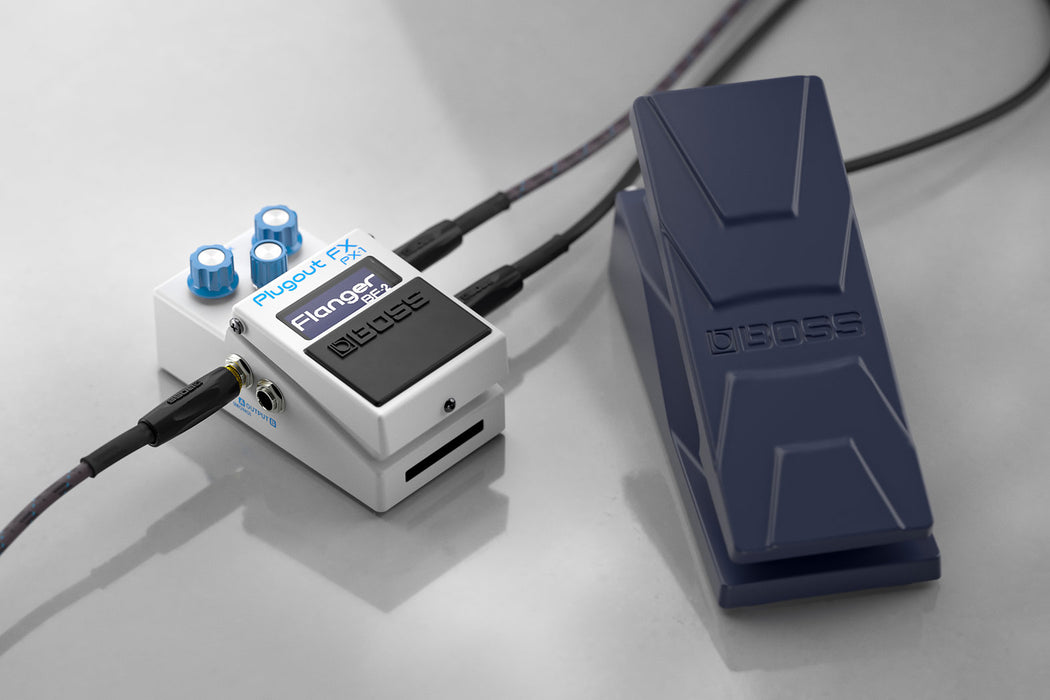

• Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5

• TRS/MIDI connecting cables: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size & Weight

• Width: 73 mm (2-7/8")

• Depth: 125 mm (4-15/16")

• Height: 56 mm (2-1/4")

• Weight (excluding AC adaptor): 400 g (15 oz)
