Charvel American Neo-Classic San Dimas SD1 HH FR, Maple Fingerboard, Robin's Egg Blue

Charvel American Neo-Classic San Dimas SD1 HH FR, Maple Fingerboard, Robin's Egg Blue

UGC 2865031827
by Charvel
$3,949.99 - $3,949.99
$3,949.99
$3,949.99
$3,949.99 - $3,949.99
$3,949.99
Available to order

Délai estimé avant expédition : 10 à 15 jours. En cas de délai supplémentaire, nous vous contacterons rapidement.

Flexiti Financing LogoInterest FREE financing available at checkout

The Charvel American Neo-Classic Series San Dimas® Style 1 delivers the perfect fusion of iconic design and cutting-edge innovation. The alder San Dimas body has been a Charvel staple since the early eighties, providing balanced tonal response and natural resonance with warm midrange punch and crisp high-end clarity that cuts through any mix with authority.

The custom Seymour Duncan® JB/59 pickup combination with parchment bobbins offers ultimate sonic versatility – the neck position ‘59 delivers creamy vintage warmth for expressive leads and rich rhythms, while the bridge JB provides high-output bite for everything from soaring solos to crushing riffs. The one-piece quartersawn maple neck is carefully reproduced from authentic 1980 specifications and enhanced with graphite reinforcement, ensuring legendary feel with unmatched modern stability.

The innovative 12”-16” compound radius fingerboard starts comfortable for chording and opens up dramatically for effortless lead work, while 22 jumbo stainless steel frets provide exceptional note definition. Performance features include the truss rod adjustment wheel at the fingerboard’s end for lightning-fast setup changes, rounded fingerboard edges that feel like a glove, and Luminlay® side-dots for perfect position awareness.

The top-mount Floyd Rose 1000 series double-locking tremolo delivers rock-solid tuning stability with unlimited dive-bomb devastation and soaring flutter effects, while streamlined electronics featuring a single lo-friction volume pot and 5-way blade switch put pure tone at your fingertips. This is your gateway to sonic excellence – authentic 1980 Charvel craftsmanship meets tomorrow’s innovation in one irresistible package.

Features

  • Alder San Dimas body
  • Custom Seymour Duncan® JB/59 pickups with parchment bobbins
  • One-piece quartersawn maple neck with graphite reinforcement
  • 12"-16" compound radius maple fingerboard
  • 22 jumbo frets
  • Truss rod adjustment wheel at fingerboard end
  • Top-mount Floyd Rose 1000 series double-locking tremolo
  • Single volume control with lo-friction pot
  • 3-way toggle switch
  • Luminlay® side-dots
  • Included Foam Core case
SPECIFICATIONS

  • Neck

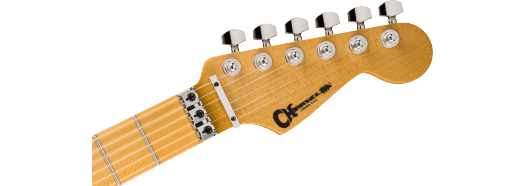

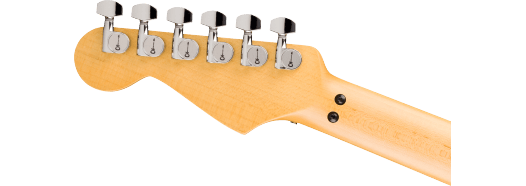

    • Headstock: Licensed Fender® Stratocaster®

    • Neck Material: Quartersawn Maple

    • Neck Finish: Natural Satin

    • Neck Shape: Speed Neck with Rolled Fingerboard Edges

    • Neck Construction: Bolt-On with Graphite Reinforcement

    • Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)

    • Fingerboard Material: Quartersawn Maple

    • Position Inlays: Black Dot

    • Side Dots: Luminlay®

    • Number of Frets: 22

    • Truss Rod: Dual-Action with Wheel

    • Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel

    • String Nut: Floyd Rose® 1000 Series Locking

    • Nut Width: 1.6875" (42.86 mm)

    • Nut Material: Floyd Rose® 1000 Series Locking

    • Fret Size: Jumbo Stainless Steel

    • Scale Length: 25.5" (648 mm)

  • Body

    • Body Material: Alder

    • Body Finish: Gloss

    • Body Shape: San Dimas® Style 1

    • Body Style: Solid Body

  • Hardware

    • Bridge: Floyd Rose® 1000 Series Double-Locking Tremolo (Top-Mount)

    • Pickguard: None

    • Pickup Covers: Parchment

    • Control Knobs: Dome-Style

    • Switch Tip: Parchment

    • Hardware Finish: Chrome

    • Tuning Machines: Charvel®-Branded Die-Cast

    • String Trees: Retainer Bar

    • Strings: Nickel Plated Steel (.009-.042 Gauges)

    • Tremolo Arm: Floyd Rose®

    • Neck Plate: 4-Bolt Serialized

    • Strap Buttons: Standard

  • Electronics

    • Bridge Pickup: Seymour Duncan® JB™ TB-4

    • Neck Pickup: Seymour Duncan® '59™ SH-1N

    • Pickup Configuration: HH

    • Controls: Volume (500K EVH® Bourns® Low Friction Pot)

    • Switching: 5-Position Blade

      • Position 1: Bridge

      • Position 2: Bridge Outer Coil and Neck Inner Coil

      • Position 3: Bridge and Neck

      • Position 4: Bridge Inner Coil and Neck Outer Coil

      • Position 5: Neck

  • Measurements

    • Shipping Dimensions: 6.40 x 17.30 x 44.10 in

    • Shipping Weight: 23.80 lb

    • Shipping Length: 44.10 in

    • Shipping Height: 6.40 in

    • Shipping Width: 17.30 in

  • Miscellaneous

    • Commodity Code: 9207.90.0040

    • Style: 2 Humbucking

    • Unique Features: Luminlay® Side Dots
