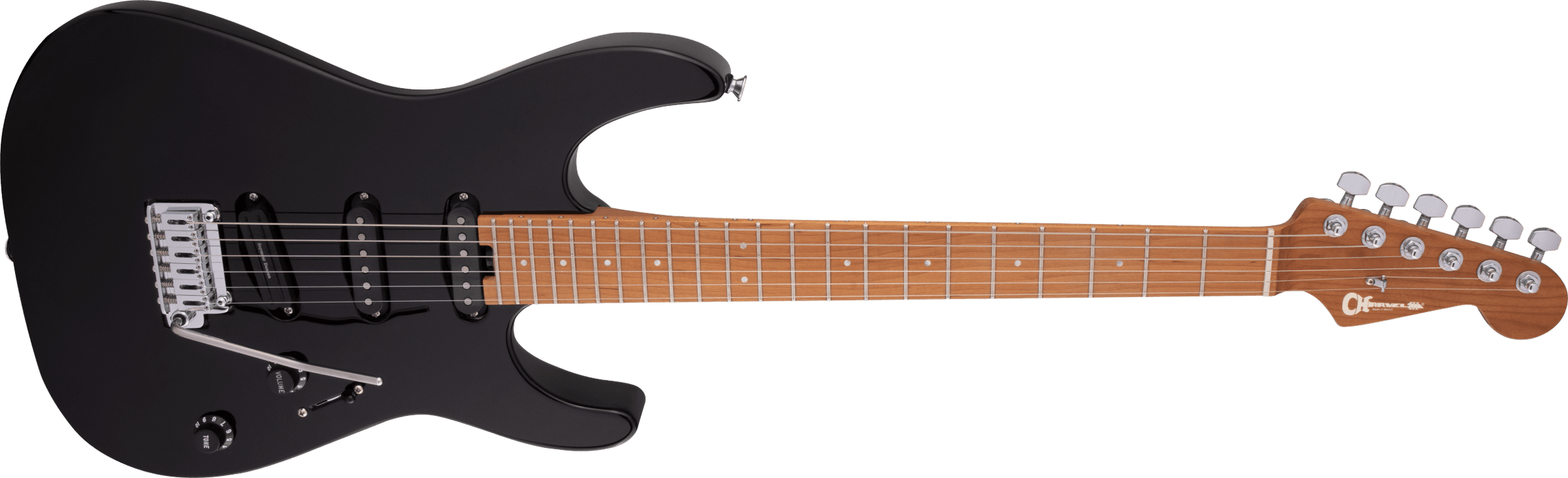

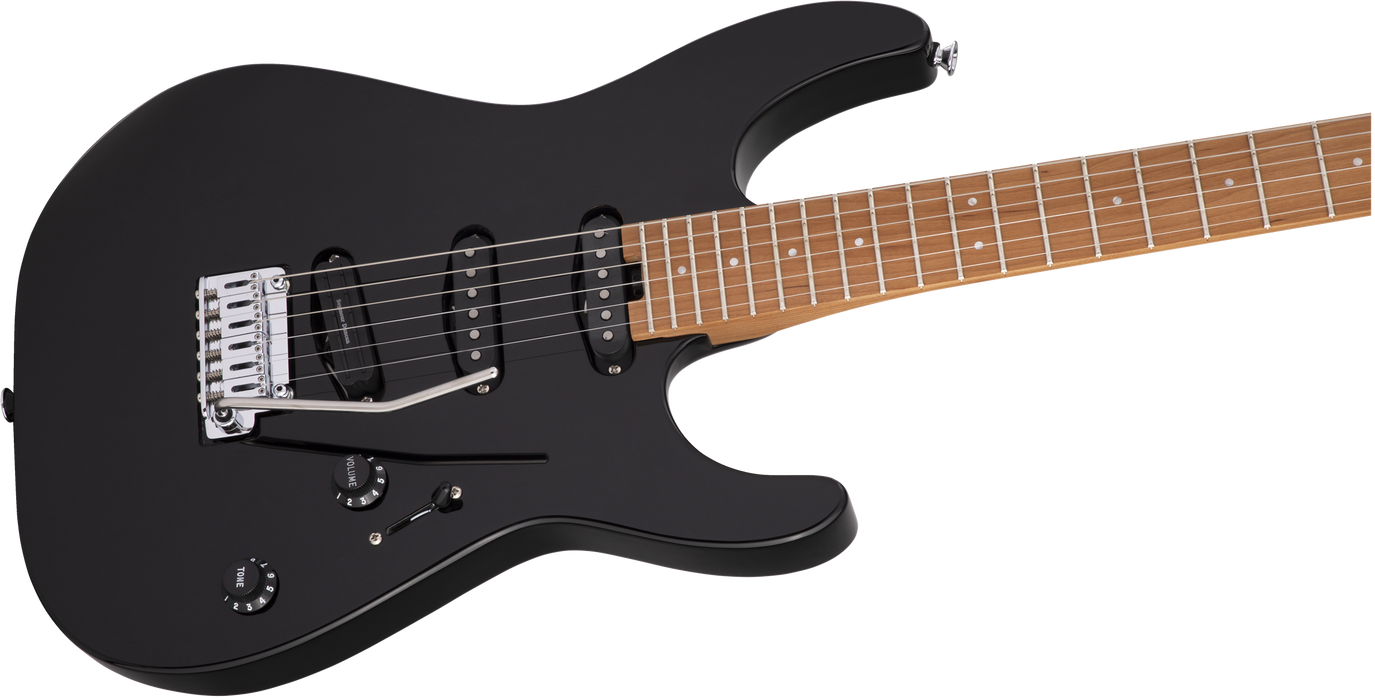

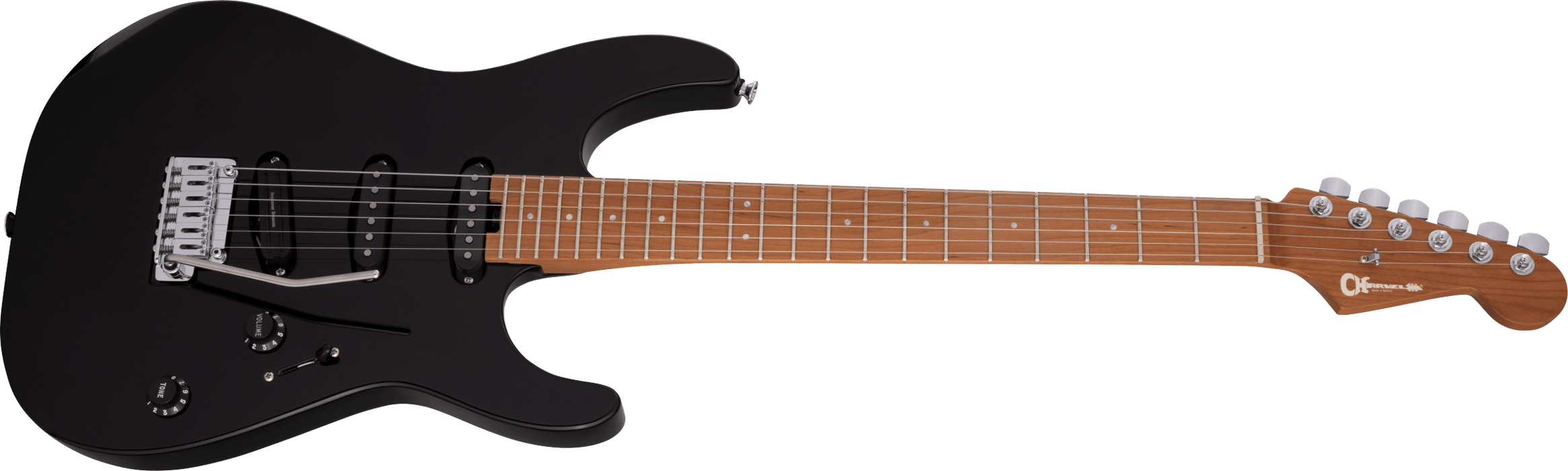

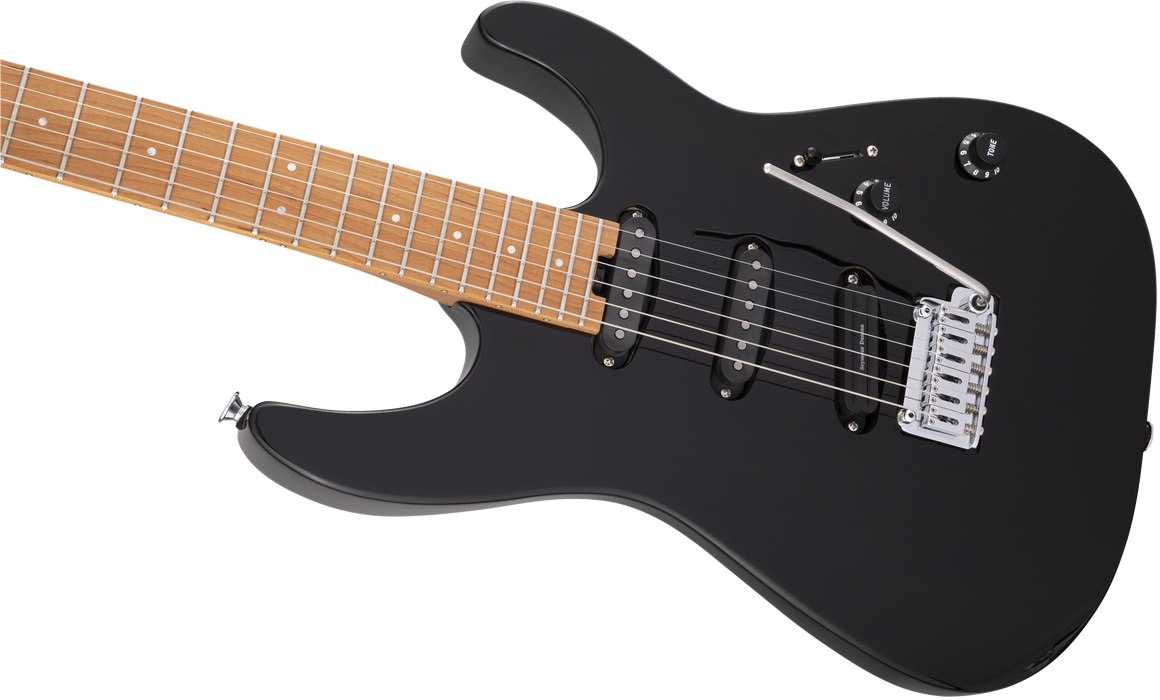

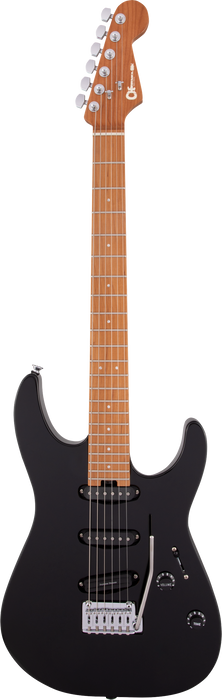

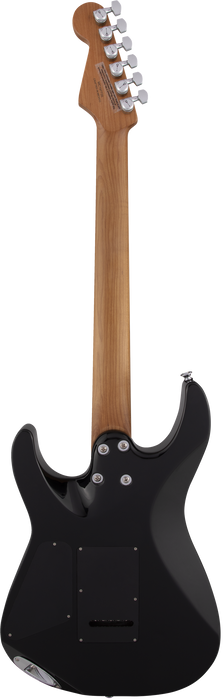

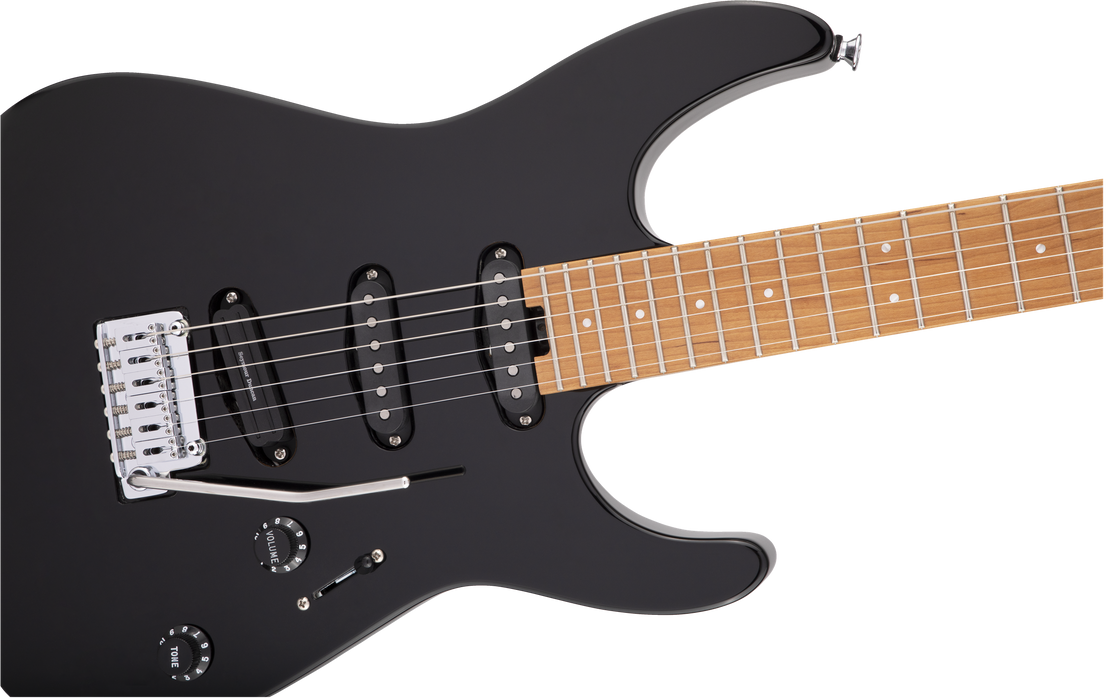

Charvel Pro-Mod DK22 SSS 2PT CM, Caramelized Maple Fingerboard, Gloss Black

Charvel® continues to up the ante for modern high performance combined with standout style and full-spectrum tone with the Pro-Mod DK22 SSS 2PT CM, a sleek new instrument designed especially for a new breed of player whose musical vision and versatility knows no boundaries.

SPECIFICATIONS

• Electronics:

  • Bridge Pickup: Seymour Duncan® Custom Hot Rails® Strat® SHR-1B
  • Middle Pickup: Custom Seymour Duncan® Flat Strat® SSL-6 Single-Coil
  • Neck Pickup: Custom Seymour Duncan® Flat Strat® SSL-6 RWRP Single-Coil
  • Pickup Color: Flat Black
  • Controls:
    • Volume (500K EVH® Bourns® Low Friction Pot)
    • No-Load Tone
  • Pickup Switching (5-Position Blade):
    • Position 1: Full Bridge Pickup
    • Position 2: Bridge Inner Coil and Middle Pickup
    • Position 3: Bridge Outer Coil and Neck Pickup
    • Position 4: Middle and Neck Pickup
    • Position 5: Full Neck Pickup
  • Pickup Configuration: SSS

• Body:

  • Finish: Gloss
  • Shape: Dinky®
  • Material: Alder

• Hardware:

  • Bridge: Gotoh® Custom 510 Tremolo
  • Hardware Finish: Chrome
  • Tremolo Arm: Gotoh®
  • Tuning Machines: Charvel®-Branded Die-Cast Locking
  • Pickguard: None
  • Control Knobs: Stratocaster®-Style Skirt
  • Switch Tip: Black
  • Saddle Height Wrench: Yes

• Neck:

  • Material: Caramelized Maple
  • Construction: Bolt-On with Graphite Reinforcement
  • Finish: Hand-Rubbed Satin Urethane
  • Shape: Speed Neck with Rolled Fingerboard Edges
  • Scale Length: 25.5" (64.77 cm)
  • Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
  • Fingerboard Material: Caramelized Maple
  • Number of Frets: 22
  • Fret Size: Jumbo
  • Nut Material: Graph Tech TUSQ XL
  • Nut Width: 1.6875" (42.86 mm)
  • Position Inlays: 4mm Pearloid Dot
  • Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
  • String Trees: Fender® Standard String Guide

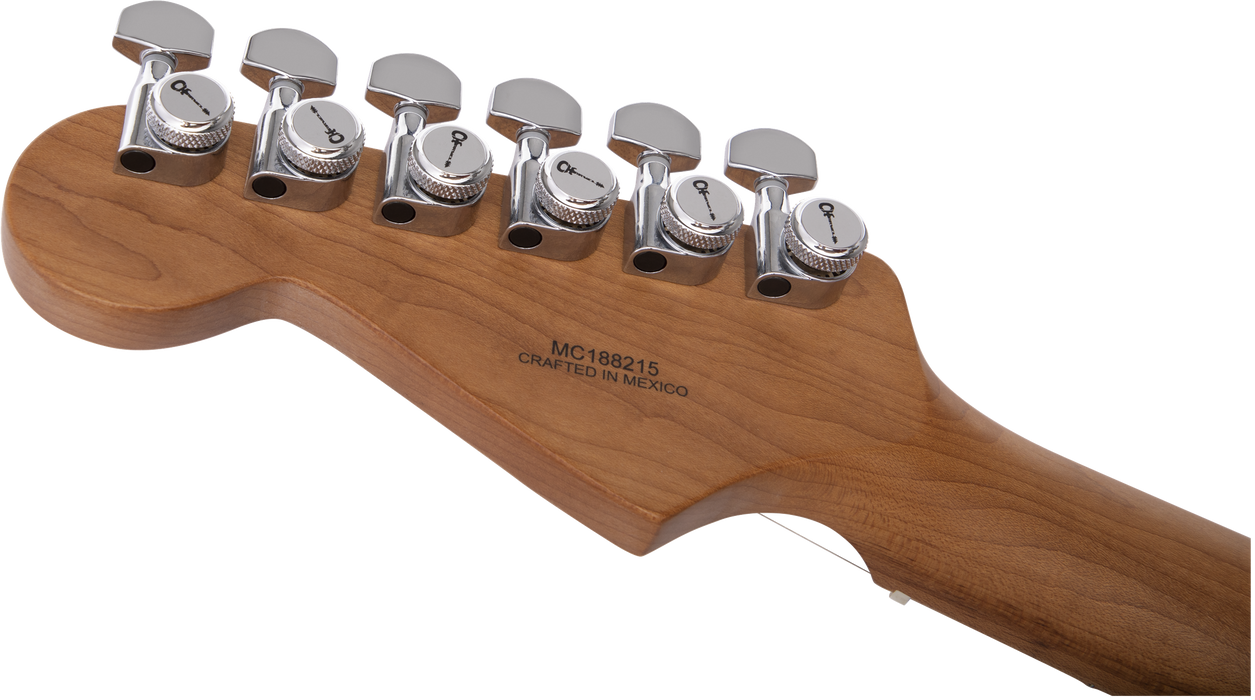

  • Headstock: Licensed Fender® Stratocaster®
  • Neck Plate: None - 4-Bolt Sculpted Heel

• Miscellaneous:

  • Strings: Nickel Plated Steel (.009-.042 Gauges)
  • Strap Buttons: Standard
  • Case/Gig Bag:
    • Optional Charvel® Hardshell (p/n 009-0915-000)
    • Optional Gig Bag (p/n 007-6756-000)
