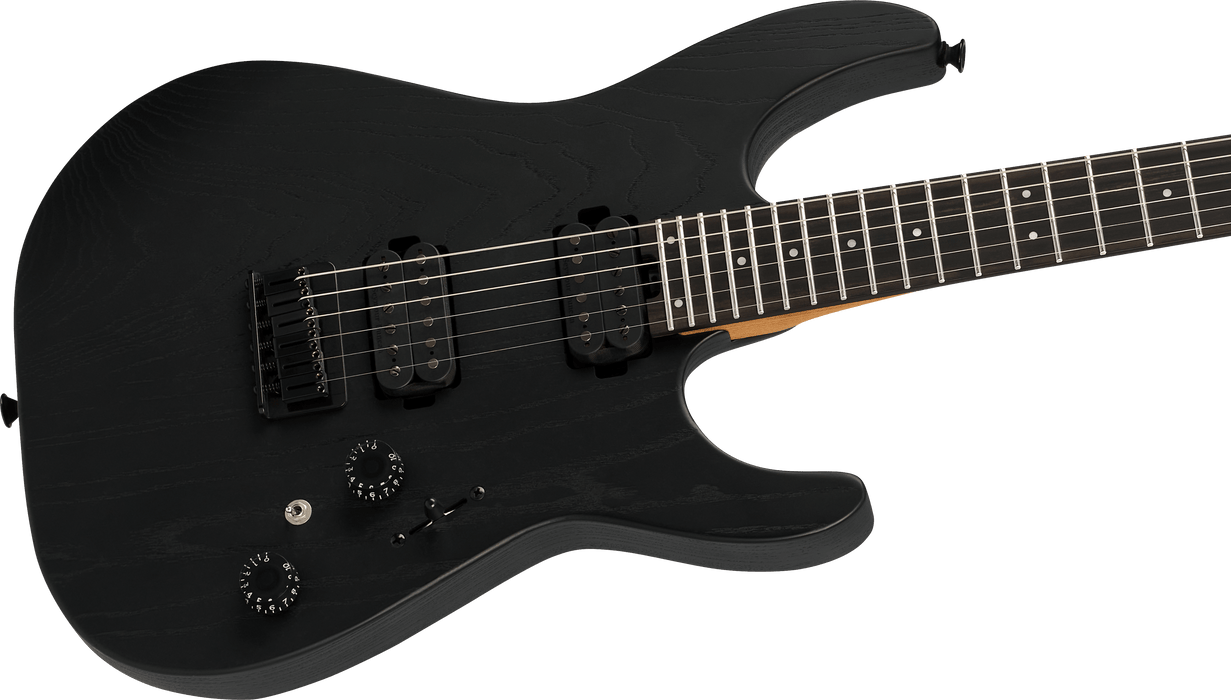

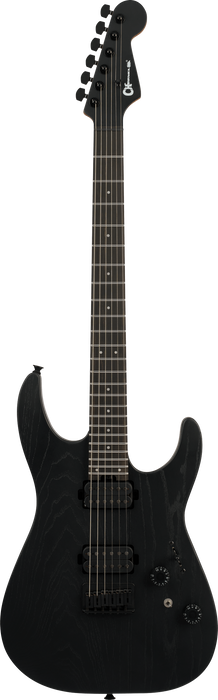

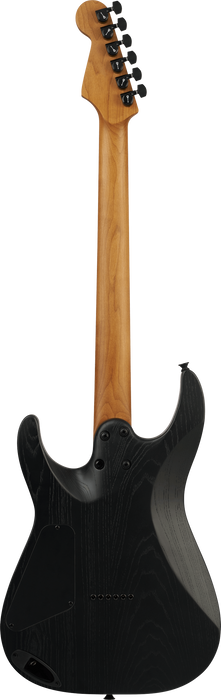

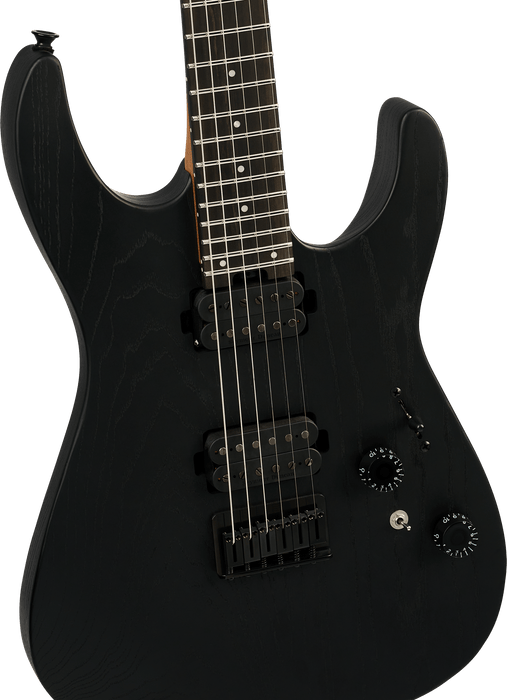

Charvel Pro-Mod Plus Dinky DK24 HH HT EB, touche en ébène, frêne noir

Loaded with premium features, this Pro-Mod Plus Dinky® DK24 HT EB ASH model features a sleek Dinky® body constructed from ash, sculpted shredder's cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt-on caramelized maple neck features graphite reinforcement for rock-solid stability, a satin natural finish on the back of the neck for sublime playability, and a conveniently located heel-mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12"-16" compound radius ebony fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets and Luminlay® side-dots for enhanced visibility in low-light conditions.

This axe features an HH pickup configuration consisting of a direct mount Seymour Duncan® Nazgûl™ bridge pickup and direct mount Seymour Duncan® Sentient™ neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.

Other premium modern features include a five-way blade pickup switch, speed knobs for the volume and no-load tone controls, Charvel® HT6 string-through-body hardtail bridge, Charvel-branded die-cast locking tuners and more.

Blending sophisticated style with assertive tone, the Pro-Mod Plus Dinky® DK24 HT EB ASH delivers premium performance and modern features.

Features

• 25.5" scale length
• Ash Dinky® body
• Scalloped lower back bout
• Bolt-on maple neck with graphite reinforcement
• Sculpted shredder's cut heel
• 12"-16" compound radius ebony fingerboard with 24 jumbo stainless steel frets
• Heel-mount truss rod adjustment wheel
• Direct mount Seymour Duncan® Nazgul™ humbucking bridge and Sentient™ humbucking neck pickups
• Five-way blade switch, volume control and no-load tone control
• Charvel® HT6 string-through-body hardtail bridge

Specifications

General

Series: Pro-Mod Plus
Orientation: Right-Hand
Color: Black Ash
Country Of Origin: Indonesia

Neck

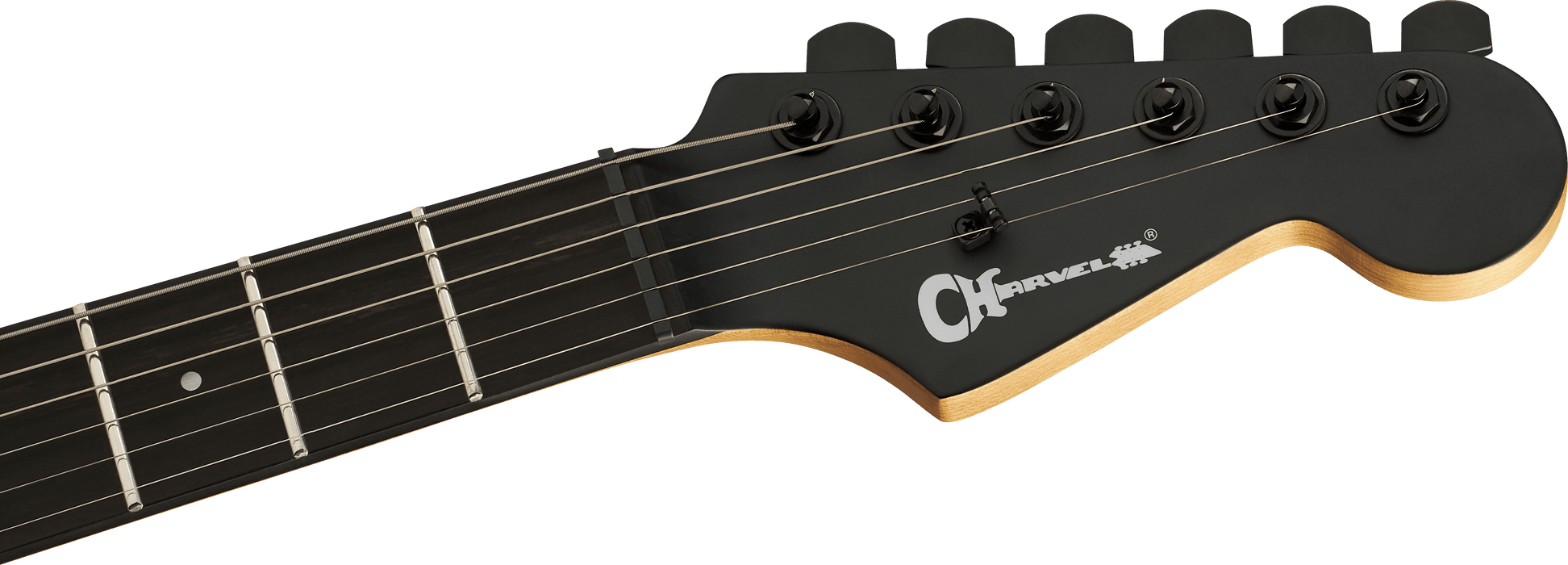

Headstock: Licensed Fender® Stratocaster®
Neck Material: Caramelized Maple
Neck Finish: Natural Satin
Neck Shape: Speed Neck with Rolled Fingerboard Edges
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Ebony
Position Inlays: 4mm Pearloid Dot
Side Dots: Luminlay®
Number of Frets: 24
Truss Rod: Dual-Action with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Graph Tech TUSQ XL
Nut Width: 1.6875" (42.86 mm)
Nut Material: Graph Tech TUSQ XL
Fret Size: Jumbo Stainless Steel
Scale Length: 25.5" (648 mm)

Body

Body: Ash
Body Finish: Gloss
Body Shape: Dinky®
Body Style: Solid Body
Body Material: Ash

Hardware

Bridge: Charvel® HT6 String-Through-Body Hardtail
Pickguard: None
Pickup Covers: Black
Control Knobs: Speed Knob
Switch Tip: Black
Hardware Finish: Black

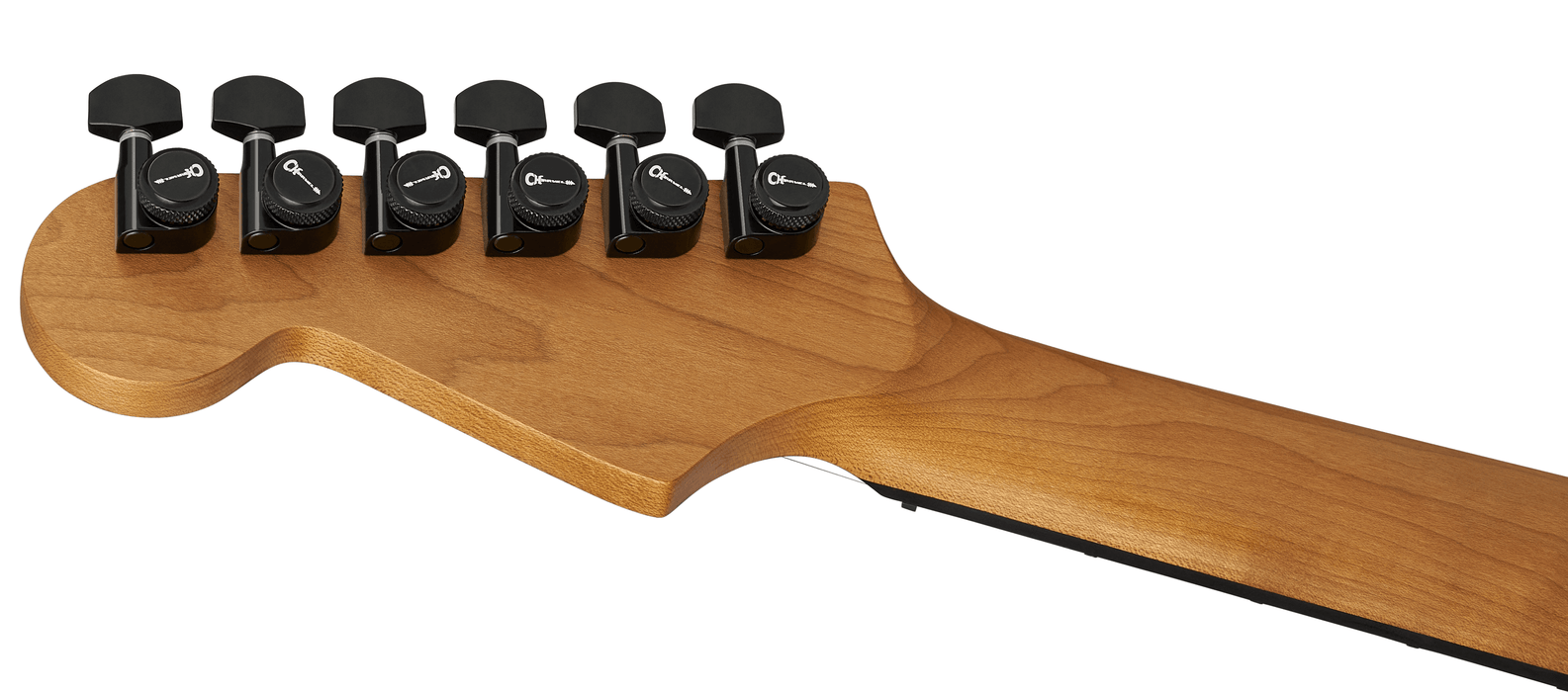

Tuning Machines: Charvel®-Branded Die-Cast Locking
String Trees: Fender® Standard String Guide
Strings: Nickel Plated Steel (.009-.042 Gauges)
Neck Plate: None - 4-Bolt Sculpted Heel
Strap Buttons: Standard

Electronics

Bridge Pickup: Seymour Duncan® Nazgûl
Neck Pickup: Seymour Duncan® Sentient™
Pickup Configuration: HH
Controls: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
Switching: 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil, Position 3. Both Inner Coils, Position 4. Neck Inner Coil, Position 5. Full Neck Pickup
Auxiliary Switching: 2-Position Mini Toggle: Down/All Series, Up/All Parallel
