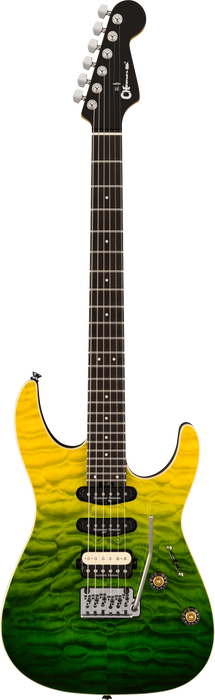

Loaded with premium features, this Pro-Mod Plus Dinky® DK24 2PT HSS EB QM model features a sleek Dinky® body constructed from basswood with a quilt maple top, sculpted shredder’s cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt-on caramelized maple neck features graphite reinforcement for rock-solid stability, a satin natural finish on the back of the neck for sublime playability, and a conveniently located heel-mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12”-16” compound radius ebony fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets and Luminlay® side-dots for enhanced visibility in low-light conditions.
This axe features an HSS pickup configuration consisting of a direct mount Seymour Duncan® Full Shred™ TB-10 bridge pickup and direct mount Seymour Duncan® Custom Flat Strat® SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup ith plenty of focused humbucker grit and springy vintage snap.
Other premium modern features include a five-way blade pickup switch, speed knobs for the volume and no-load tone controls, Wilkinson® recessed tremolo bridge with locking saddles, Charvel-branded die-cast locking tuners and more.
Blending sophisticated style with assertive tone, the Pro-Mod Plus Dinky® DK24 2PT HSS EB QM delivers premium performance and modern features.
Features
- 25.5" scale length
- Basswood Dinky® body with quilt maple top
- Scalloped lower back bout
- Bolt-on maple neck with graphite reinforcement
- Sculpted shredder's cut heel
- 12"-16" compound radius ebony fingerboard with 24 jumbo stainless steel frets
- Heel-mount truss rod adjustment wheel
- Direct mount Seymour Duncan® Full Shred™ TB-10 humbucking bridge and Seymour Duncan Custom Flat Strat® SSL-6 middle and neck single-coil pickups
- Five-way blade switch, volume control and no-load tone control
- Wilkinson® WVS130-2p tremolo bridge with locking saddles
Specifications
General
Series: Pro-Mod Plus
Orientation: Right-Hand
Color: Zombie Fade
Country Of Origin: Indonesia
Neck

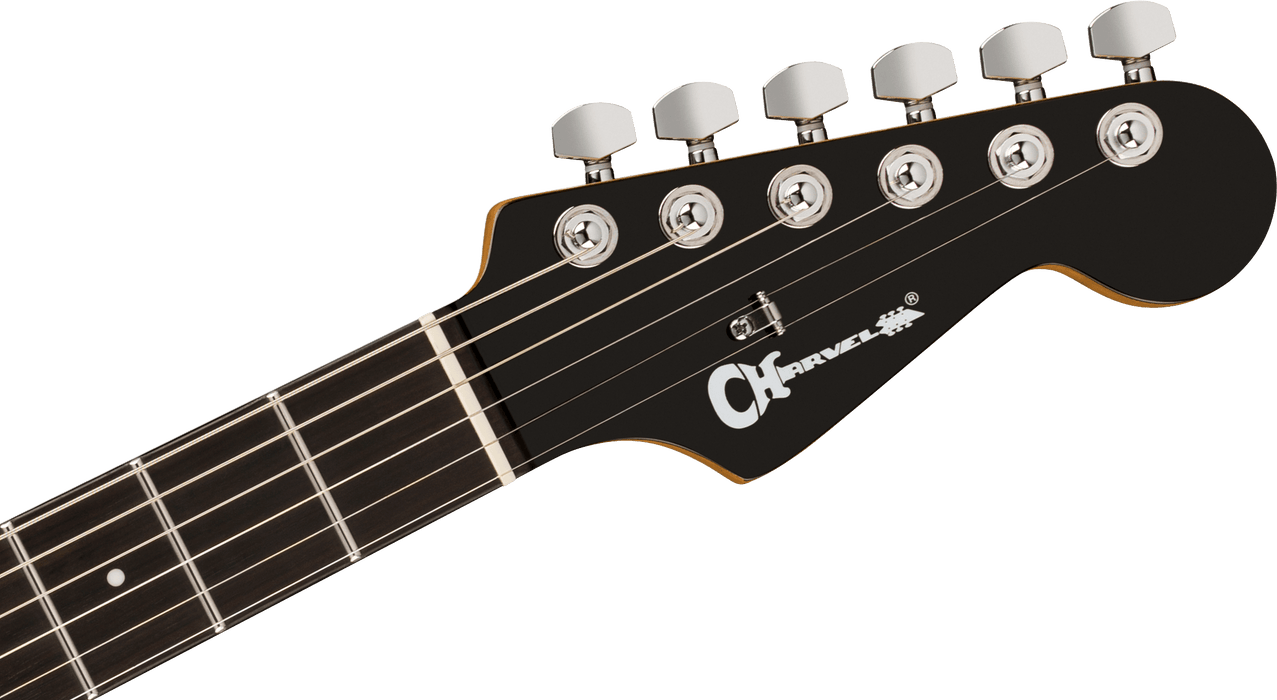

Headstock: Licensed Fender® Stratocaster®
Neck Material: Caramelized Maple
Neck Finish: Natural Satin
Neck Shape: Speed Neck with Rolled Fingerboard Edges
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Ebony
Position Inlays: 4mm Pearloid Dot
Side Dots: Luminlay®
Number of Frets: 24
Truss Rod: Dual-Action with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Graph Tech TUSQ XL
Nut Width: 1.6875" (42.86 mm)
Nut Material: Graph Tech TUSQ XL
Fret Size: Jumbo Stainless Steel
Scale Length: 25.5" (648 mm)
Body
Body: Basswood
Body Finish: Gloss
Body Shape: Dinky®
Body Top: Quilt Maple
Body Style: Solid Body
Body Material: Basswood
Hardware
Bridge: Wilkinson® WVS130-2P Tremolo
Pickguard: None
Pickup Covers: Black/Cream
Control Knobs: Speed Knob
Switch Tip: Black
Hardware Finish: Chrome

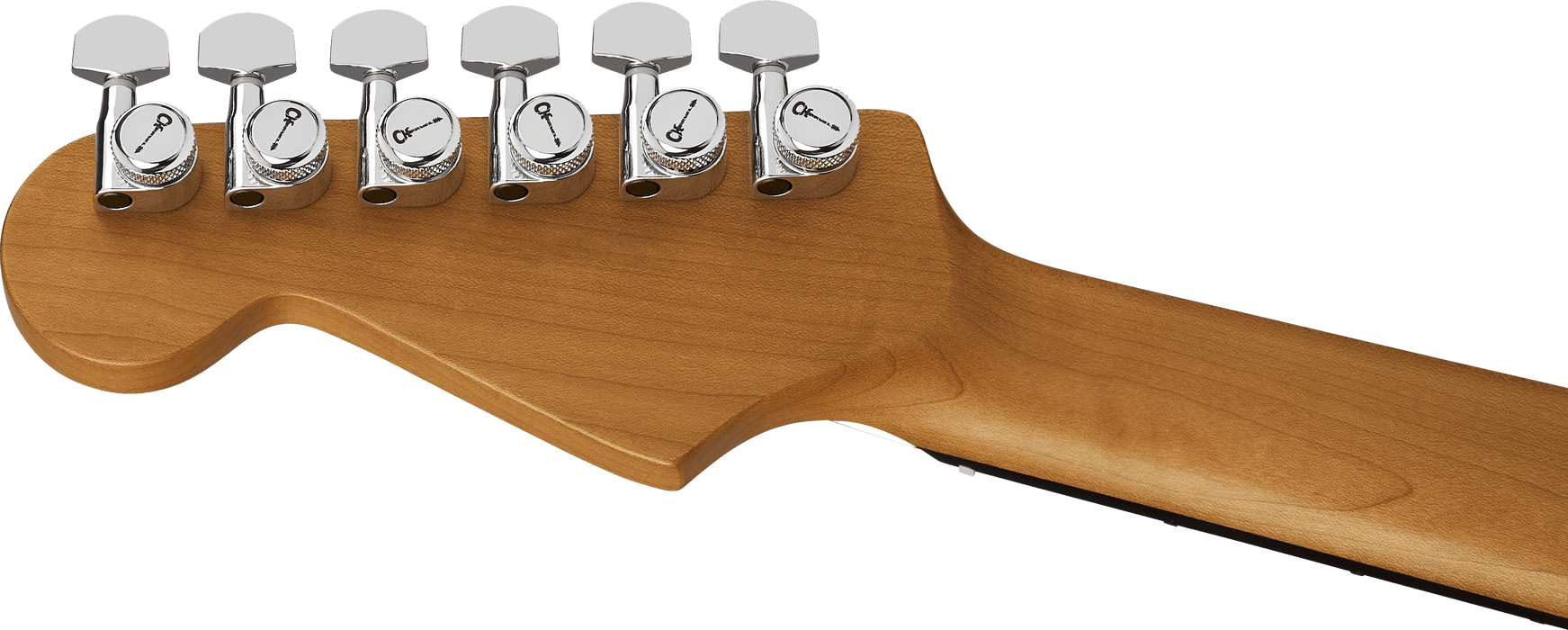

Tuning Machines: Charvel®-Branded Die-Cast Locking
String Trees: Fender® Standard String Guide
Strings: Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Wilkinson®
Neck Plate: None - 4-Bolt Sculpted Heel
Strap Buttons: Standard
Electronics
Bridge Pickup: Seymour Duncan® Full Shred™ TB-10
Middle Pickup: Seymour Duncan® Custom Flat Strat® SSL-6 Single-Coil
Neck Pickup: Seymour Duncan® Custom Flat Strat® SSL-6 RWRP Single-Coil

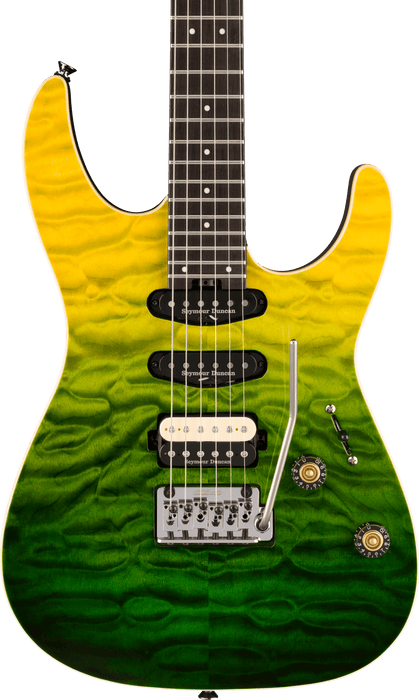

Pickup Configuration: HSS
Controls: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
Switching: 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup
