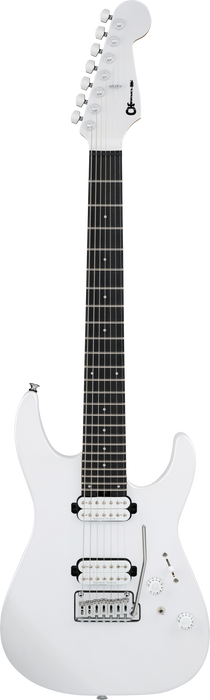

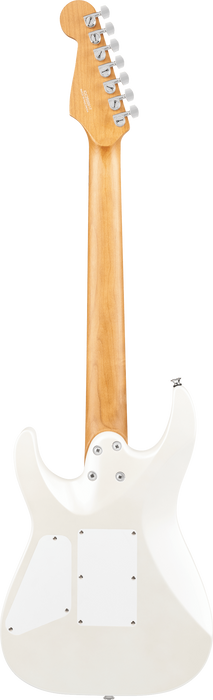

Charvel Pro-Mod Plus DK24-7 HH 2PT EB, Ebony Fingerboard, Celestial Silk

** Only one available, make sure it's yours! **

The bolt-on caramelized maple “speed” neck has graphite reinforcement, silky-smooth hand-rubbed urethane back finish, heel-mount truss rod adjustment wheel and Luminlay® side dots. Its 12”-16” compound radius ebony fingerboard features comfortable rolled edges, 24 jumbo stainless steel frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.

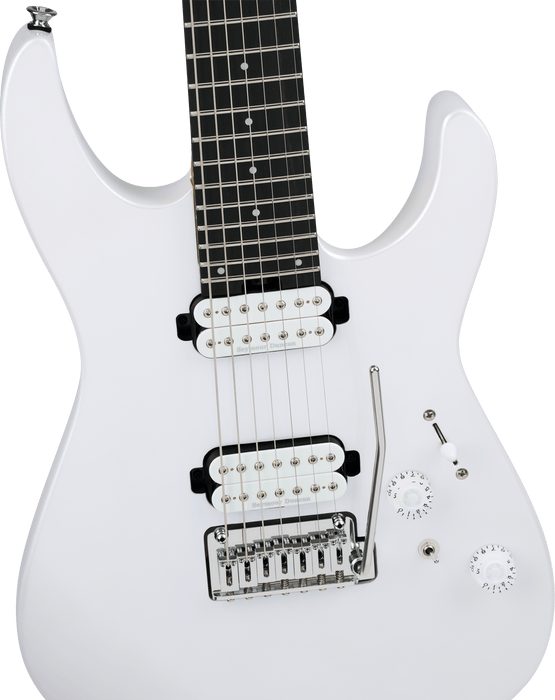

Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this axe features an HH pickup configuration consisting of a direct mount Custom Seymour Duncan® Full Shred TB-10 bridge pickup and direct mount Seymour Duncan® Alnico II Pro APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.
Blending sophisticated style with assertive tone, the DK24-7 HH 2PT EB also offers premium modern features such as a five-way blade pickup switch, speed knobs for the volume (with 500K EVH® Bourns® low-friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge, locking tuners, chrome hardware and more.

Features

• Limited Edition
• Alder Dinky® body
• Bolt-on caramelized maple neck with graphite reinforcement
• 12”-16” compound radius ebony fingerboard with 24 jumbo frets and pearloid dot inlays
• Graph Tech® TUSQ® XL nut
• Heel-mount truss rod adjustment wheel
• Direct mount Seymour Duncan® Custom Full Shred TB-10 bridge pickup and direct mount Seymour Duncan Alnico II Pro APH-1N neck pickup
• Five-way blade switch, Stratocaster®-style skirt knobs for no-load tone control and volume knob (with 500K EVH® Bourns™ low-friction potentiometer)
• Mini two-way toggle switch for parallel and series pickup combinations
• Gotoh® Custom 510 recessed tremolo bridge
• Charvel-branded die-cast locking tuners
• Available in Gloss Black with chrome hardware

Specifications

General
Series: Pro-Mod Plus
Orientation: Right-Hand
Color: Celestial Silk
Country Of Origin: ID

Neck
Headstock: Licensed Fender® Stratocaster®
Neck Material: Caramelized Maple
Neck Finish: Natural Satin
Neck Shape: Speed Neck with Rolled Fingerboard Edges
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Material: Ebony
Fingerboard Radius: 12"–16" Compound Radius (304.8 mm to 406.4 mm)
Position Inlays: 4mm Pearloid Dot
Side Dots: Luminlay®
Number of Frets: 24
Fret Size: Jumbo Stainless Steel
Scale Length: 25.5" (648 mm)
Truss Rod: Dual-Action with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
Nut: Graph Tech TUSQ XL
Nut Width: 1.75" (44.45 mm)
Nut Material: Graph Tech TUSQ XL

Body
Body Shape: Dinky®
Body Style: Solid Body
Body Material: Basswood
Body Finish: Gloss

Hardware
Bridge: Gotoh® Custom 510 Tremolo
Tremolo Arm: Gotoh®
Tuning Machines: Charvel®-Branded Die-Cast Locking
String Trees: Fender® Standard String Guide
Pickguard: None
Pickup Covers: Parchment
Control Knobs: Speed Knob
Switch Tip: Parchment
Hardware Finish: Chrome
Neck Plate: None – 4-Bolt Sculpted Heel
Strap Buttons: Standard
Strings: Nickel Plated Steel (.009–.054 Gauges)

Electronics
Bridge Pickup: Seymour Duncan® Full Shred™ TB-10
Neck Pickup: Seymour Duncan® Alnico II Pro™ APH-1N
Pickup Configuration: HH
Controls: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
Switching: 5-Position Blade (1. Bridge, 2. Both Outer Coils, 3. Bridge & Neck, 4. Both Inside Coils, 5. Neck)
Auxiliary Switching: 2-Position Mini Toggle – Down/All Series, Up/All Parallel

Miscellaneous

Unique Features: Luminlay® Side Dots
