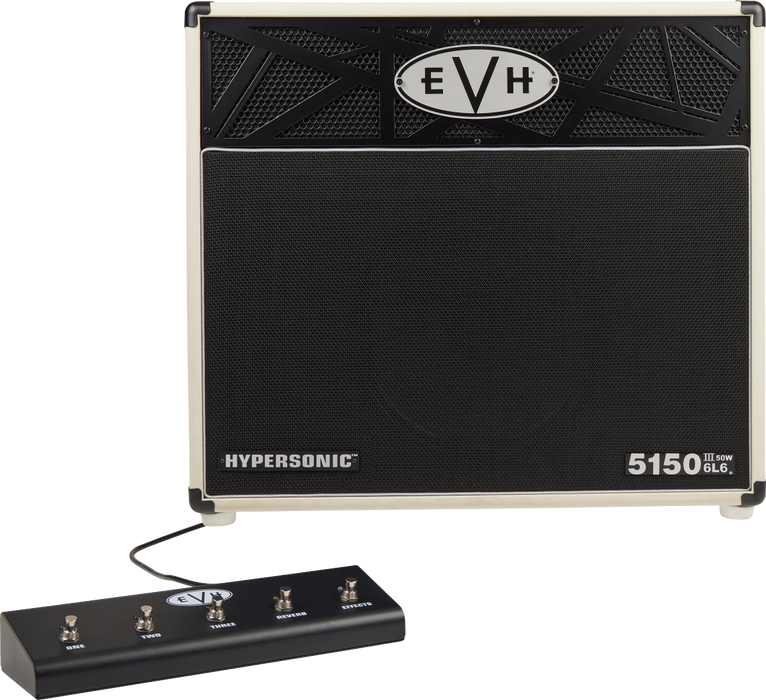

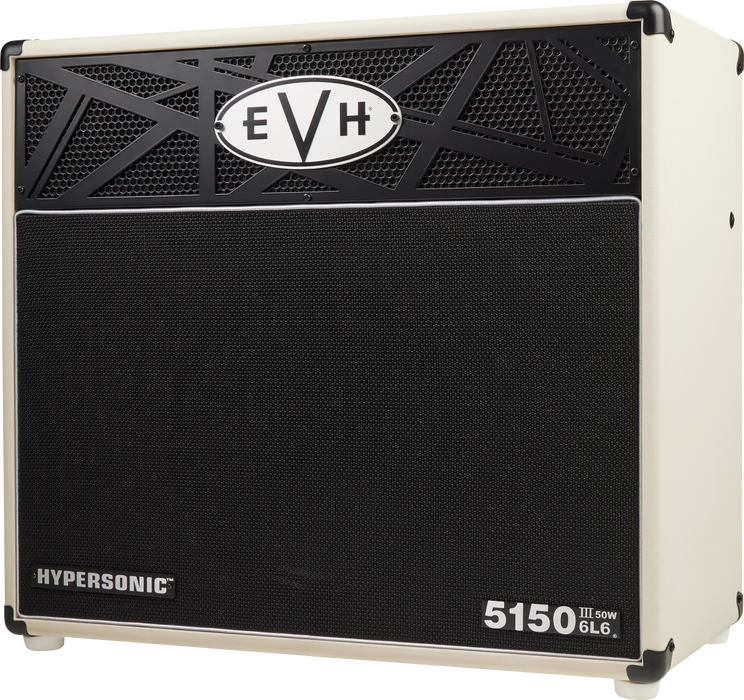

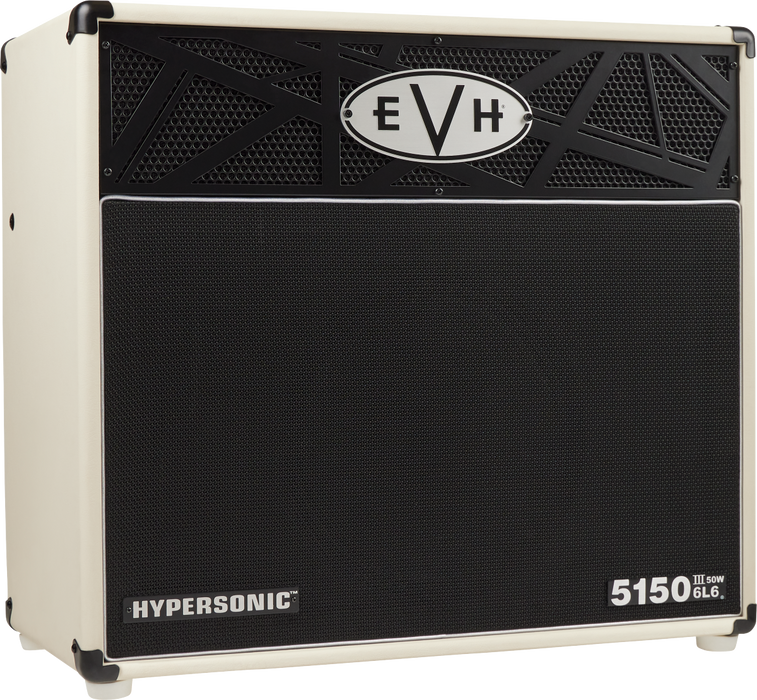

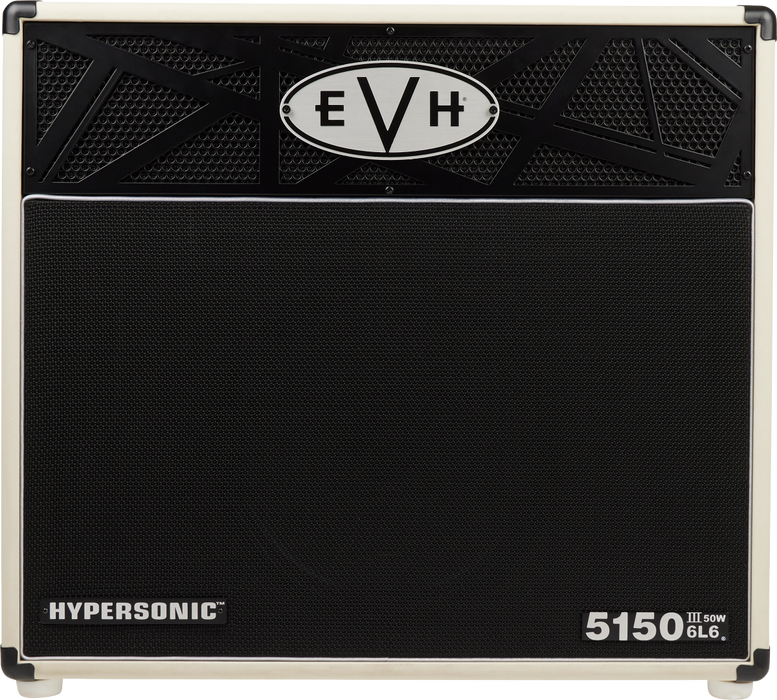

EVH 5150III Hypersonic 6L6 1x12, Ivory

The EVH 5150III® Hypersonic™ 6L6 1x12 combo amp uses massive digital processing power to create a faithful model of the EVH 5150III 6L6 tube combo.

A high-performance digital power amp achieves the headroom and dynamic range of a real tube amp, and when paired with a Celestion® speaker and plywood closed-back cabinetry, the result is EVH tone, volume and dynamics virtually indistinguishable from the all-tube original.

These changes make the 5150III Hypersonic combo weigh substantially less than the all-tube version. Added concentric EQ controls for channels one and two, and independent noise gate controls for each channel, enhance the user experience. The included footswitch has also been updated to allow both reverb and effects loop selection. Other features include a power selector for full power and five attenuated settings, balanced XLR line output with impulse response (IR) cabinet simulations, and a mute switch for silent stage or recording use. The EVH 5150III Hypersonic amps are available in black or ivory vinyl covering.

Specifications

General

• Series: EVH® 5150III® Hypersonic™ Combos

• Color: Ivory

• Amplifier Type: Digital

• Country of Origin: CN

Electronics

• Channels: Three — Clean, Crunch, Lead

• Control Panel:

  • Ch. 1: Gain, Low, Mid, High, Noise Gate Trim, Volume

  • Ch. 2: Gain, Low, Mid, High, Noise Gate Trim, Volume

  • Ch. 3: Gain, Low, Mid, High, Noise Gate Trim, Volume

• Inputs: One 1/4", MIDI (rear)

• Headphone Jack: 1/4" Stereo

• Line Out: One XLR

• Effects: Reverb

• Effects Loop: 1/4" Send/Return

• Connectivity: USB-C® (Recover/Firmware Update), RJ-45

• Voltage: 120V (also available: 100V, 110V, 220V, 230V, 240V)

• Wattage: 50 Watts

Hardware

• Control Knobs: White chicken-head style + Black round inner (Ch. 1/2)

• Amplifier Covering: Vinyl

• Cabinet Material: 11-ply 15 mm plywood

• Grille Cloth: Woven front panel with large EVH® logo

• Handle: Molded plastic top handle

• Casters: Optional (P/N 0994000000)

• Front Panel: White

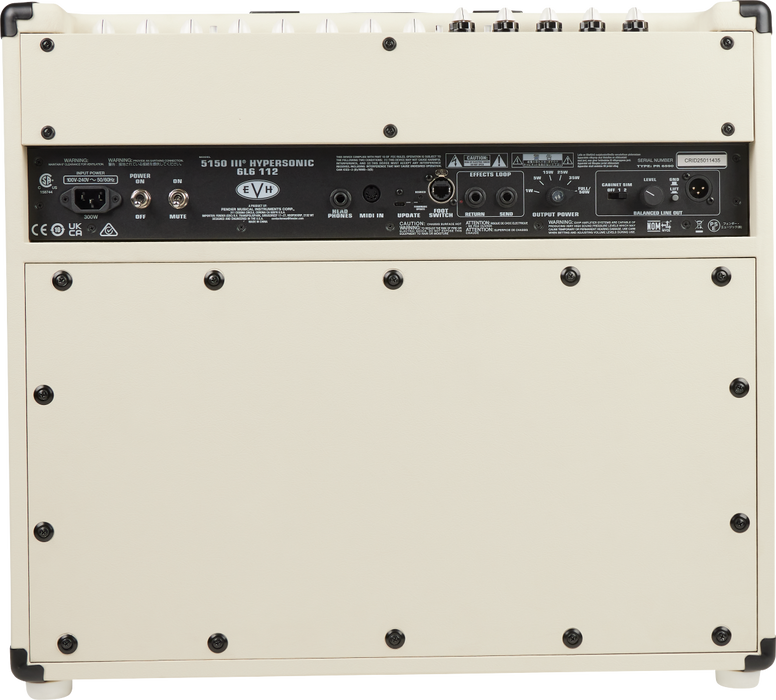

• Rear Control Panel:
  Power Input, Power Switch, Mute Switch, Headphone, MIDI, USB-C (Firmware Update), Footswitch, Effects Loop, Output Power, Cab Sim Selector, Line Out Control, Ground Lift

Speakers

• Speaker: One 12" Celestion® EVH® G12H 30W Anniversary Series

• Speaker Wattage: 30 Watts

• Total Impedance: 16 ohms

Measurements

• Product Depth: 12.25" (31.1 cm)

• Shipping Dimensions: 18.00 × 25.00 × 30.00 in

• Shipping Weight: 60 lb

Accessories

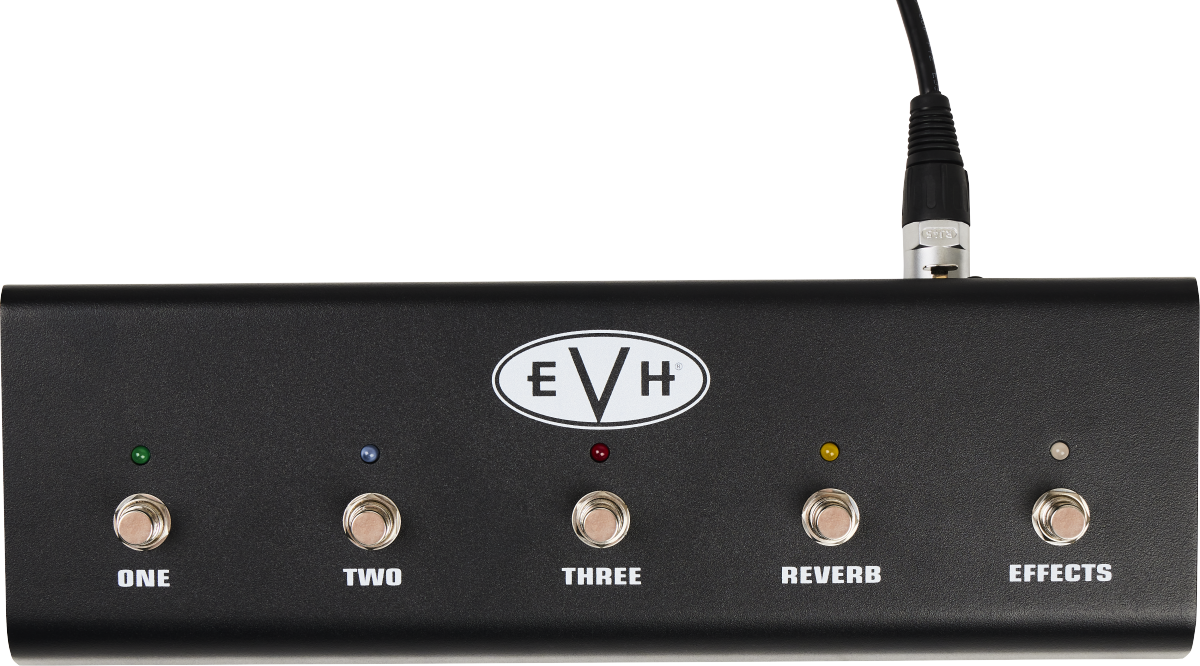

• Included: 5-button footswitch with cable, IEC power cable

• Footswitch: 5-Button Footswitch Included
