This item is currently out of stock but available to order. Delays may vary. We’ll contact you shortly after you’ve ordered this product to inform you about the estimated date of delivery. If you'd like to know the delay before placing your order, please contact us at +1 (450) 987-4370 - info@zedem.ca

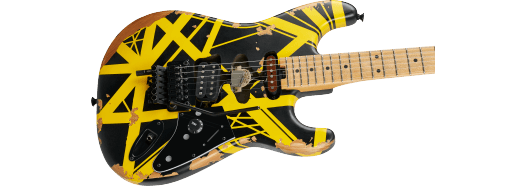

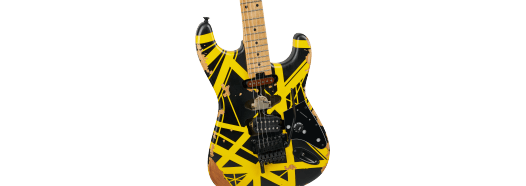

EVH Limited Edition Striped Series Frankenstein Frankie, Maple Fingerboard, Black with Yellow Stripes, Aged

EVH Limited Edition Striped Series Frankenstein Frankie, Maple Fingerboard, Black with Yellow Stripes, Aged

UGC 5107900528
by EVH
$3,099.99 - $3,099.99
$3,099.99
$3,099.99
$3,099.99 - $3,099.99
$3,099.99
Available to order

Délai estimé avant expédition : 10 à 15 jours. En cas de délai supplémentaire, nous vous contacterons rapidement.

Flexiti Financing LogoInterest FREE financing available at checkout

The EVH Limited Edition Frankie Aged Black and Yellow Striped guitar captures the raw spirit and legendary tone that defined a generation of rock music. This meticulously crafted tribute to Eddie Van Halen's most famous instrument delivers authentic EVH performance with the unmistakable visual impact of the Frankie's iconic striped finish.

Sporting Eddie's black and yellow paint job and an aged look, the all-new Frankie features a basswood Stratocaster®-style body paired to a graphite-reinforced quartersawn maple neck. An oiled finish on the back of the neck allows for hours of playing comfort, while the 12"-16" compound radius maple fingerboard with 22 jumbo frets was designed for fast and furious playing styles.

Routed for an HSS pickup configuration just like Eddie's original, Frankie features an EVH Wolfgang® humbucking bridge pickup with a red phenolic bobbin EVH Strat® neck pickup (selectable via push/push volume knob) and a dummy five-way blade housed in the middle position.

A sturdy and dependable EVH-branded Floyd Rose® locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger.

Other unique features include a black skirted Strat-style single push/push volume control knob (labeled "tone"), custom black pickguard, distressed black hardware, oversized strap buttons and EVH neck plate.

Features

  • Specs are: 25.5" scale length
  • Basswood Strat®-style body

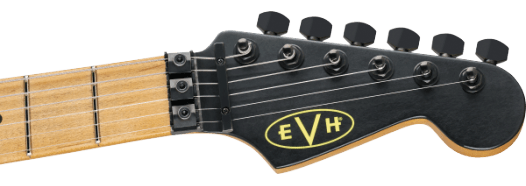

  • Graphite-reinforced bolt-on quartersawn maple neck and licensed Fender® Strat black headstock with yellow EVH decal
    12"-16" compound radius maple fingerboard with 22 jumbo frets and black dot inlays
  • Direct mount EVH® Wolfgang® humbucking bridge pickup, dummy EVH Strat neck pickup (selectable via push/push volume knob) and a dummy five-way blade housed in the middle pickup position
  • EVH-branded Floyd Rose® locking trem and locking nut
  • EVH D-Tuna®
  • Skirted Strat-style black push/push volume knob that reads "tone"
  • EVH-branded neck plate and standard strap buttons
  • Black custom Frankie pickguard
  • Limited and available in an aged black and yellow striped paint finish and distressed black hardware
SPECIFICATIONS

  • Neck

    • Headstock: Licensed Fender® Stratocaster®

    • Neck Material: Quartersawn Maple

    • Neck Finish: Oiled

    • Neck Shape: EVH® Modified "C" Backshape

    • Neck Construction: Bolt-On with Graphite Reinforcement

    • Neck Thickness: .790" at 3rd fret & .825" at 12th fret

    • Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)

    • Fingerboard Material: Maple

    • Position Inlays: Black Dot

    • Number of Frets: 22

    • Truss Rod: Two-Way Adjustable

    • Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel

    • String Nut: Floyd Rose® R3 Locking

    • Nut Width: 1.6875" (42.86 mm)

    • Nut Material: Floyd Rose® R3 Locking

    • Fret Size: Jumbo

    • Scale Length: 25.5" (648 mm)

  • Body

    • Body Material: Basswood

    • Body Finish: Satin Lacquer

    • Body Shape: Stratocaster®

    • Body Style: Solid Body

  • Hardware

    • Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®

    • Tremolo Block: Brass

    • Pickguard: Black Custom Frankie

    • Pickup Covers: Black

    • Control Knobs: Black Stratocaster®-Style Skirt (Labeled "Tone")

    • Hardware Finish: Black

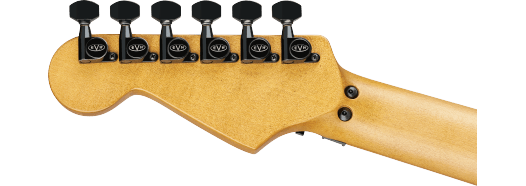

    • Tuning Machines: EVH®-Branded Gotoh®

    • String Trees: Floyd Rose® Retainer Bar

    • Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)

    • Tremolo Arm: Floyd Rose® 1000 Series Locking

    • Neck Plate: 4-Bolt Standard

    • Strap Buttons: Oversized

  • Electronics

    • Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking

    • Middle Pickup: N/A

    • Neck Pickup: Dummy Strat® Pickup

    • Pickup Configuration: HSS

    • Controls: Volume (Push/Push for Pickup Switching)

    • Switching: Push/Push

      • Down = Bridge Pickup

      • Up = Neck Pickup

  • Measurements

    • Shipping Dimensions: 4.40 x 15.30 x 43.00 in

    • Shipping Weight: 10.31 lb

    • Shipping Length: 43.00 in

    • Shipping Height: 4.40 in

    • Shipping Width: 15.30 in

  • Accessories

    • Included Accessories: Tremolo Arm, Hex Keys & User Manual

    • Truss Rod Wrench: 2.5 mm Hex

  • Miscellaneous

    • Commodity Code: 9207.90.0040
