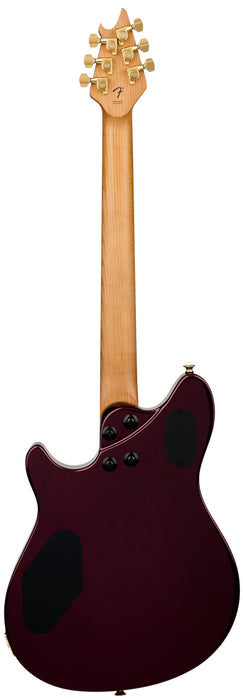

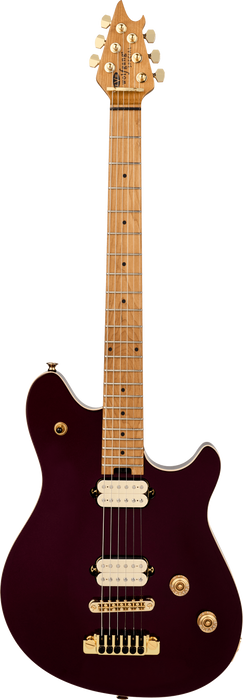

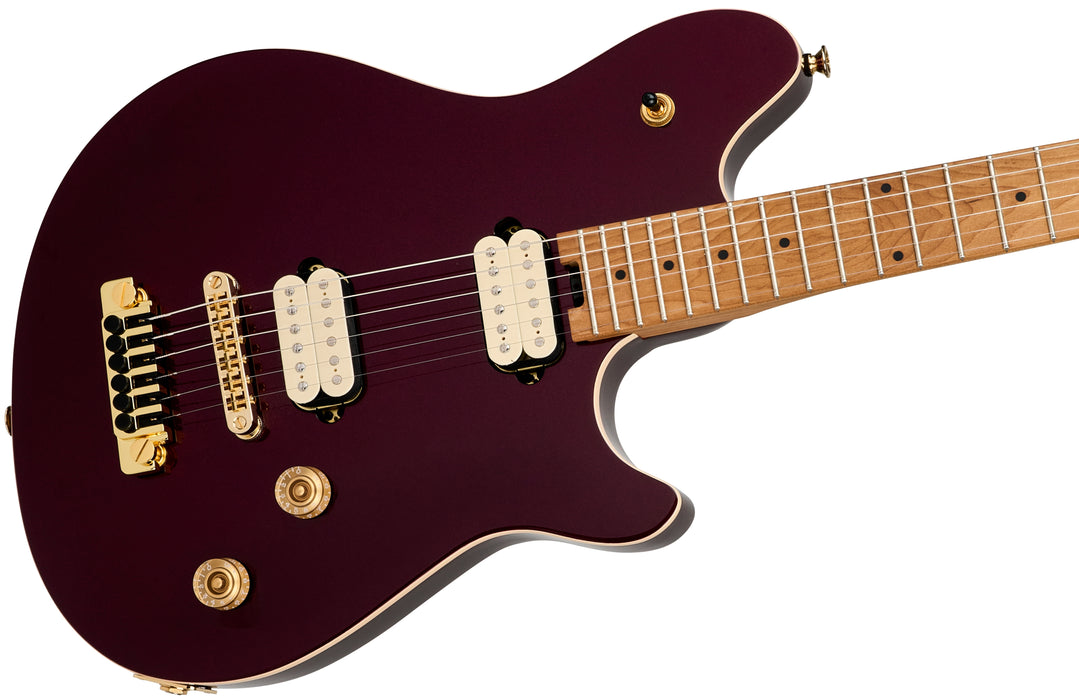

EVH Wolfgang Special TOM, Baked Maple Fingerboard, Oxblood

Road-tested in arenas around the world, the Wolfgang® Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

The Wolfgang Special T.O.M features a basswood body with an arched top and a robust graphite-reinforced bolt-on quartersawn baked maple neck. The neck is carved and rolled to Eddie Van Halen's exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12"-16" compound radius baked maple fingerboard has 22 jumbo frets and black dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.

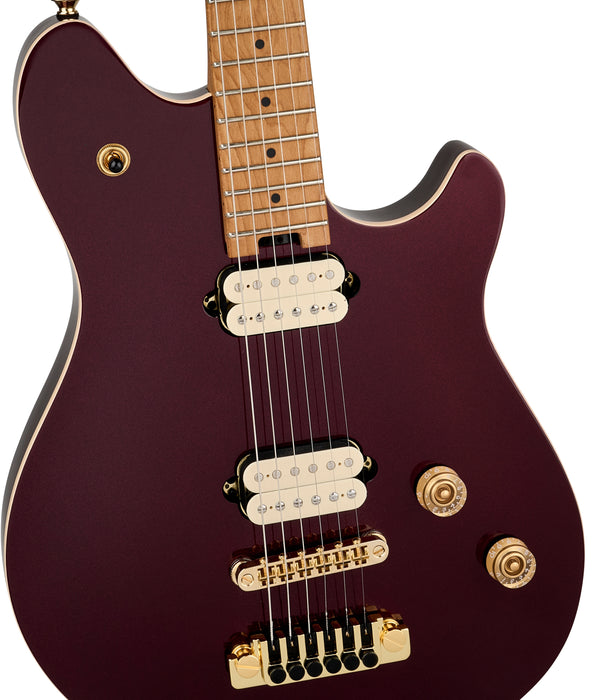

A pair of flagship custom-designed EVH® Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH compensated bridge and tailpeice w/ fine tuners keep you solid and in the mix. The volume knob with treble bleed circuit has a 500K EVH Bourns® low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting.

The EVH Wolfgang Special T.O.M is available in Gloss Black and Husk White with black hardware and Oxblood with gold hardware.

SPECIFICATIONS

General

• Model Number: 5107707539

• Series: Wolfgang® Special

• Color: Oxblood

• Number of Strings: 6

• Orientation: Right-Hand

Body

• Body Material: Basswood

• Body Shape: Wolfgang®

• Body Finish: Gloss Polyester

• Body Binding: 1-Ply Cream

Neck

• Neck Material: Quartersawn Baked Maple

• Neck Construction: Bolt-On with Graphite Reinforcement

• Neck Shape: Wolfgang® Backshape

• Neck Thickness: .805" at 3rd fret, .890" at 12th fret

• Neck Finish: Hand-Rubbed Satin Urethane

• Scale Length: 25.5" (64.77 cm)

• Fingerboard Material: Baked Maple

• Fingerboard Radius: 12"-16" Compound (304.8 mm to 406.4 mm)

• Number of Frets: 22

• Fret Size: Jumbo

• Nut Material: Graph Tech TUSQ XL

• Nut Width: 1.625" (41.3 mm)

• Position Inlays: Black Dot

• Side Dots: Black

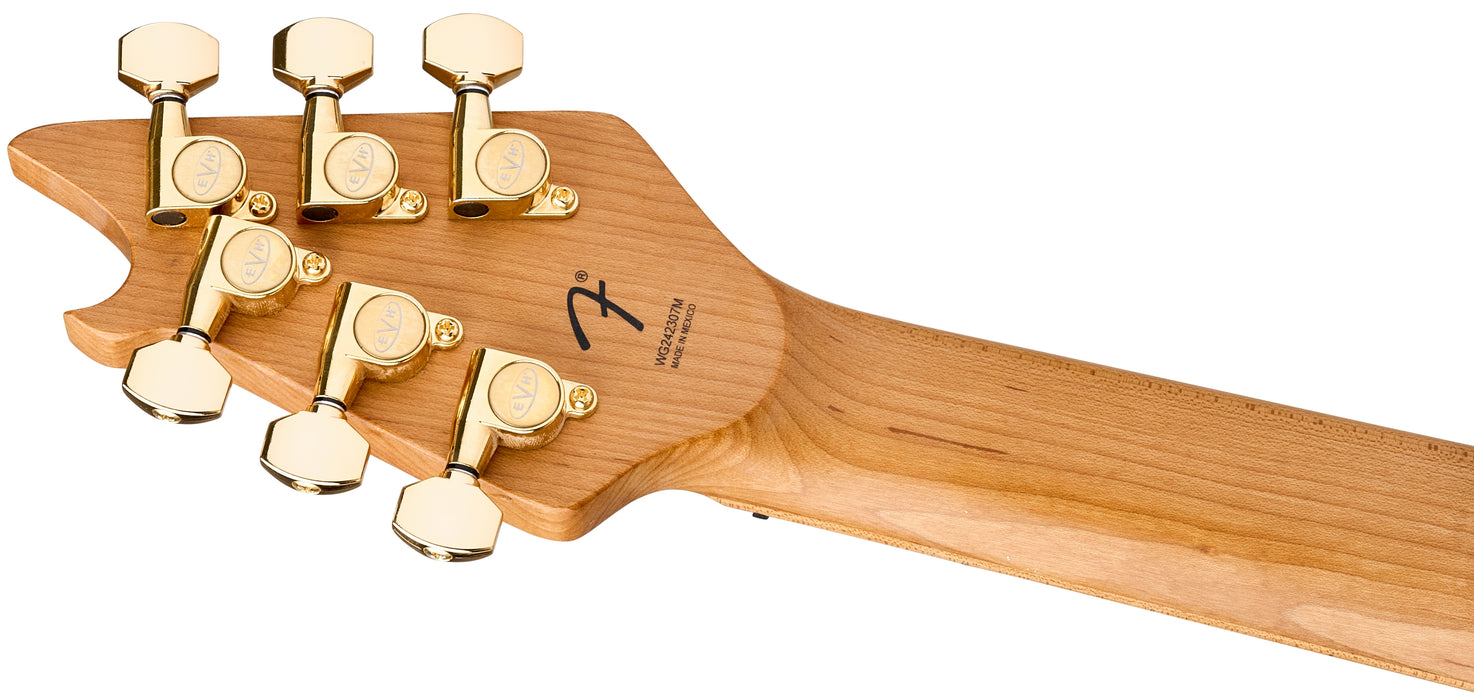

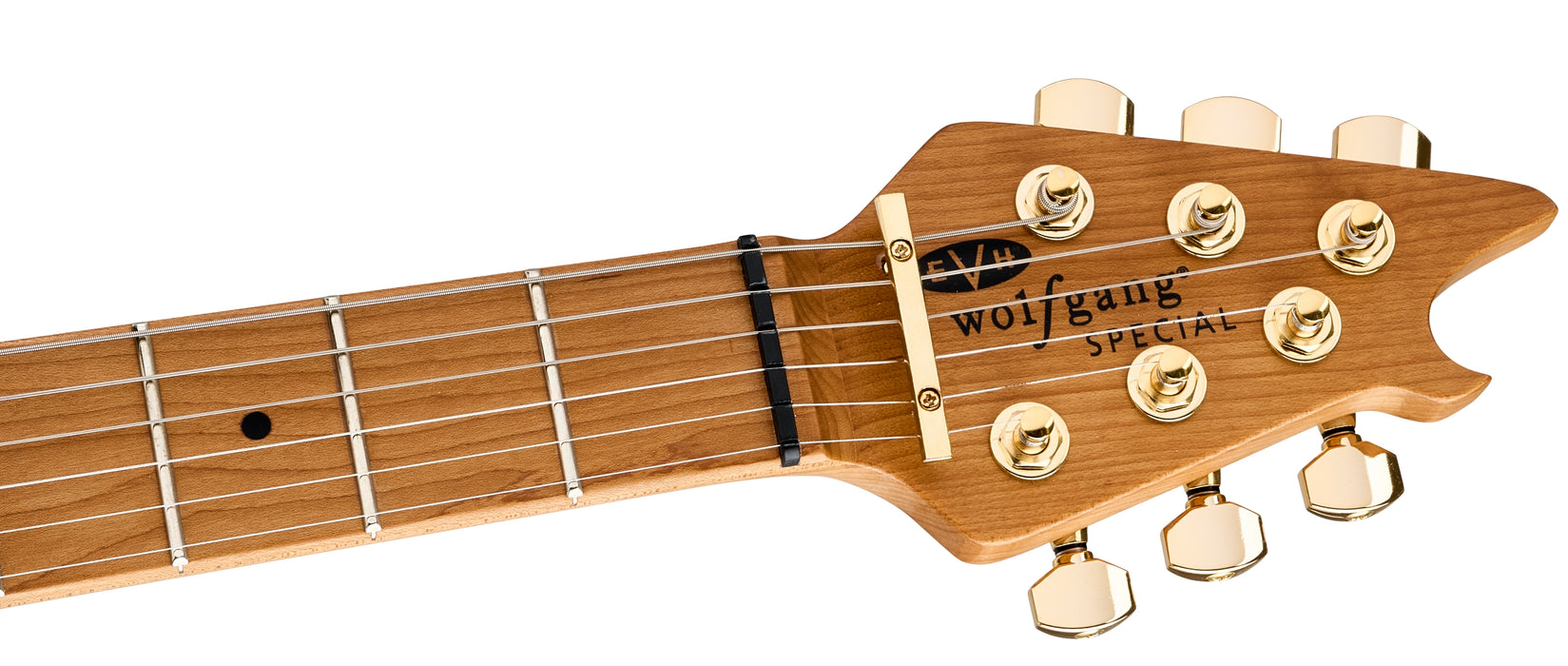

• Headstock: EVH® Wolfgang®

Electronics

• Pickup Configuration: HH

• Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking

• Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking

• Pickup Color: Parchment

• Controls:

  • Volume (500K EVH® Bourns® Low Friction Pot) w/ Treble Bleed

  • Tone (250K EVH® Bourns® High Friction Pot)

• Pickup Switching: 3-Position Toggle

  • Position 1: Bridge Pickup

  • Position 2: Bridge + Neck Pickups

  • Position 3: Neck Pickup

Hardware

• Bridge: Fully Adjustable Compensated Bridge w/ Fine Tuner Tailpiece

• Hardware Finish: Gold

• Tuning Machines: EVH®-Branded

• Control Knobs: Gold Speed

• Switch Tip: Black

Strings

• Factory Strings: EVH® Nickel Plated Steel (.009-.042)

Accessories

• Included: Owner's Manual

• Optional Case:

  • EVH® Wolfgang® Hardshell Case (p/n 009-0916-000)

  • EVH® Black Gig Bag (p/n 022-1512-006)
