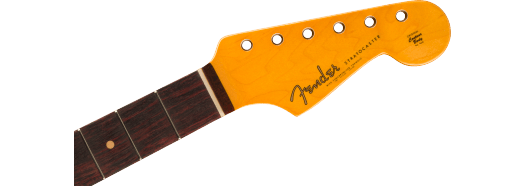

Fender American Vintage II 1961 Stratocaster Neck, 21 Vintage Tall Frets, 7.25" Radius, Rosewood

In vintage years, the shape and thickness of Fender guitar necks varied tremendously. The American Vintage II Series features authentic neck profiles from Fender's past. Crafted at our Corona, Calif. manufacturing facility, this genuine Fender American Vintage II 1961 Stratocaster guitar neck features a medium "C"-shaped profile and 7.25"-radius slab rosewood fingerboard with clay dots and 21 vintage-tall frets.

The bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing and a lacquer finish offers a vintage feel. This replacement neck is the perfect way to give your Strat® an authentically '60s feel.

This replacement neck is for a Fender® or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures.

• Slab rosewood fingerboard with 7.25" radius
• 1961 medium "C" neck profile
• 21 vintage-tall frets
• Bone nut
• Gloss nitrocellulose lacquer finish
• Vintage-style truss rod adjustment

Specifications

• Neck
  • Neck Material: Maple
  • Neck Finish: Gloss Nitrocellulose Lacquer
  • Neck Shape: 1961 "C"
  • Neck Thickness: 1st Fret - .810” (20.57 mm), 12th Fret - .930” (23.62 mm)
  • Neck Mounting: 4-Bolt
  • Fingerboard Radius: 7.25" (184.1 mm)
  • Fingerboard Material: Slab Rosewood
  • Position Inlays: Clay Dot
  • Side Dots: Vintage Clay
  • Number of Frets: 21
  • Truss Rod: Vintage-Style Butt Adjust
  • Truss Rod Nut: Vintage-Style Slotted
  • String Nut: Bone
  • Nut Width: 1.650" (42 mm)
  • Nut Material: Bone
  • Fret Size: Vintage Tall
  • Scale Length: 25.5" (648 mm)
• Hardware
  • Tuner Mounting Config: Vintage-Style 2-Screw
