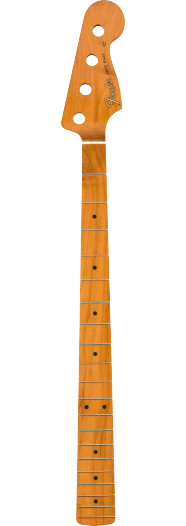

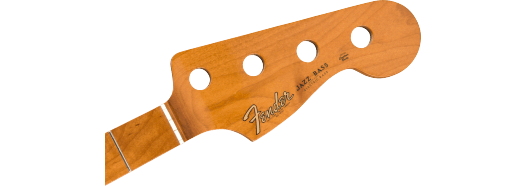

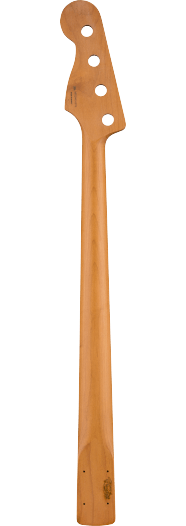

Fender Roasted Maple Vintera '60's Jazz Bass Neck, 20 Vintage Frets, 7.25", "C" Shape

There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice.

This genuine Fender Jazz Bass neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring a "vintage C" neck profile and 7.25"-radius maple fingerboard with 20 vintage frets, for classic playing feel. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots. The perfect way to give your Jazz Bass authentic Fender feel, this replacement neck even sports our famous "spaghetti" logo on the headstock.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures.

• Roasted maple neck
• "Vintage C"-shaped profile; 7.25"-radius maple fingerboard
• 20 vintage frets; pre-slotted synthetic bone nut
• Gloss urethane finish on fingerboard and headstock face; satin finish on back of neck
• Vintage-style truss rod adjustment

Specifications

• Neck
  • Neck Material: Roasted Maple
  • Neck Finish: Satin Urethane Finish on Back, Gloss Urethane Finish on Front
  • Neck Shape: Vintage "C"
  • Neck Thickness:
    • 1st Fret: .815" (20.70 mm)
    • 12th Fret: .1000" (25.40 mm)
  • Neck Mounting: 4-Bolt
  • Fingerboard Radius: 7.25" (184.1 mm)
  • Fingerboard Material: Roasted Maple
  • Position Inlays: Black Dot
  • Number of Frets: 20
  • Truss Rod: Vintage-Style Heel Adjust
  • Truss Rod Nut: Vintage-Style Slotted
  • String Nut: Synthetic Bone
  • Nut Width: 1.5" (38.1 mm)
  • Nut Material: Synthetic Bone
  • Fret Size: Vintage-Style
  • Scale Length: 34" (864 mm)
• Hardware
  • Tuner Mounting Config: Vintage-Style 4-Screw
