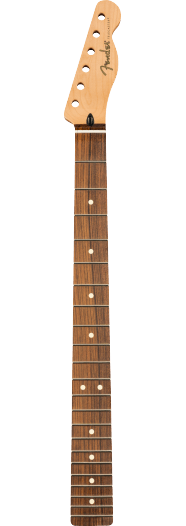

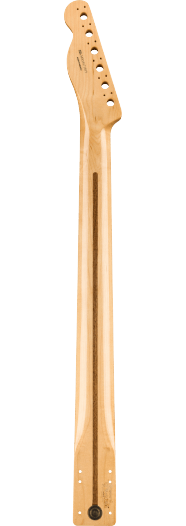

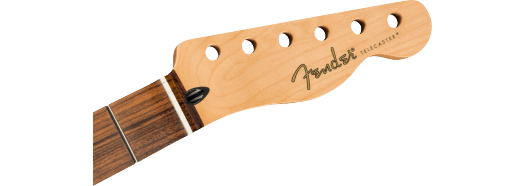

Fender Sub-Sonic Baritone Telecaster Neck, 22 Medium Jumbo Frets, Pau Ferro

Crafted at our Ensenada, Mexico, manufacturing facility, this genuine Fender Baritone Sub-Sonic Telecaster® guitar neck will convert your standard scale length guitar into a 27" scale length baritone! Features a comfortable "modern C" profile and 9.5"-radius pau ferro fingerboard with 22 medium jumbo frets.

The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a gloss urethane finish on the back offers smooth playability.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures.

• Conversion to 27" baritone scale length
• Pau Ferro fingerboard with 9.5" radius
• 22 medium jumbo frets
• Pre-slotted synthetic bone nut
• Standard truss rod
• Six two-guide-pin tuning machine holes

Specifications

• Neck
  • Neck Material: Maple with Walnut Stripe
  • Neck Finish: Gloss Urethane
  • Neck Shape: Modern "C"
  • Neck Thickness:
    • 1st Fret: .830” (21.08 mm)
    • 12th Fret: .900" (22.86 mm)
  • Neck Mounting: 4-Bolt
  • Fingerboard Radius: 9.5" (241 mm)
  • Fingerboard Material: Pau Ferro
  • Position Inlays: White Dot
  • Side Dots: White
  • Number of Frets: 22
  • Truss Rod: Single Action, Head Adjust
  • Truss Rod Nut: 3/16" Hex Adjustment
  • String Nut: Synthetic Bone
  • Nut Width: 1.650" (42 mm)
  • Nut Material: Synthetic Bone
  • Fret Size: Medium Jumbo
  • Scale Length: 27" (686 mm)
• Hardware
  • Tuner Mounting Config: Dual Guide Pin
