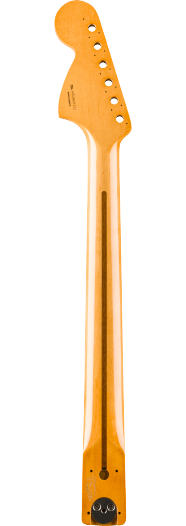

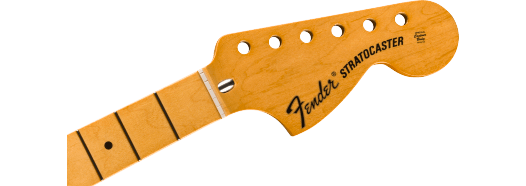

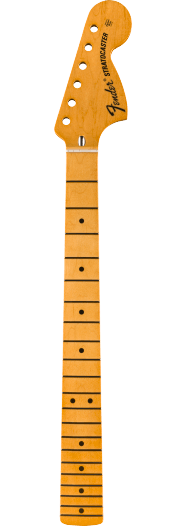

Fender Vintera II 70’s Stratocaster Neck, 21 Vintage Tall Frets, Maple, U Shape

Crafted at our Ensenada, Mexico, manufacturing facility, this genuine Fender Vintera® II Stratocaster® neck features a "U" shape based on the classic '70s profile and offers a remarkably comfy feel. A 7.25" radius fingerboard with vintage-tall frets provides vintage comfort with ample room for big bends and expressive vibrato. Although this neck features a 3-bolt design typical of '70s Strats, only the bottom two neck mounting pilot holes are available, giving you the flexibility to use this neck with many different guitar bodies.

The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a gloss urethane finish offers smooth playability. For true Fender authenticity, it's also serialized and stamped, with genuine "Original Contour Body" headstock decal.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures.

• Maple neck with ‘70’s “U” Shape
• Maple fingerboard with 7.25" radius
• 21 vintage tall frets
• Pre-slotted synthetic bone nut
• Bullet truss rod
• Six tuning machine holes designed to fit 70’s vintage-style two-screw-mount tuning machines

Specifications

• Neck
  • Neck Material: Maple with Walnut Stripe
  • Neck Finish: Gloss Urethane
  • Neck Shape: '70s "U"
  • Neck Thickness:
    • 1st Fret: .835" (21.21 mm)
    • 12th Fret: .900" (22.86 mm)
  • Neck Mounting: 3 or 4-Bolt Configurable (Only two pilot holes drilled)
  • Fingerboard Radius: 7.25" (184.1 mm)
  • Fingerboard Material: Maple
  • Position Inlays: Black Dot
  • Side Dots: Black
  • Number of Frets: 21
  • Truss Rod: Bullet Style
  • Truss Rod Nut: Bullet Style
  • String Nut: Synthetic Bone
  • Nut Width: 1.650" (42 mm)
  • Nut Material: Synthetic Bone
  • Fret Size: Vintage Tall
  • Scale Length: 25.5" (648 mm)
• Hardware
  • Tuner Mounting Config: '70s Vintage-Style 2-Screw
