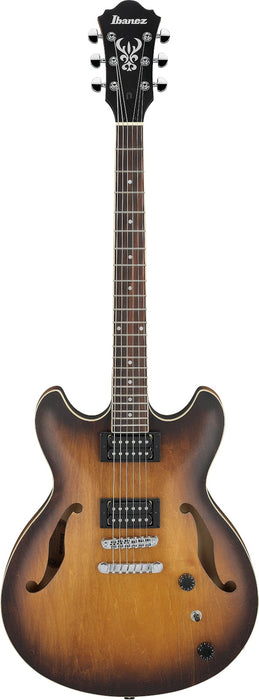

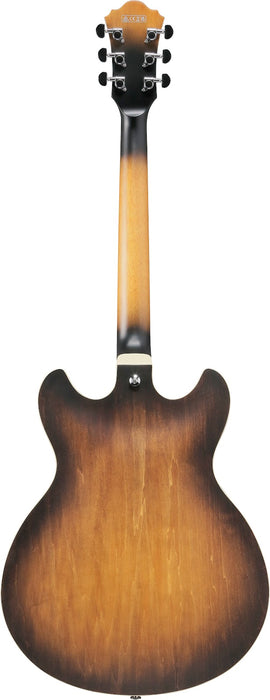

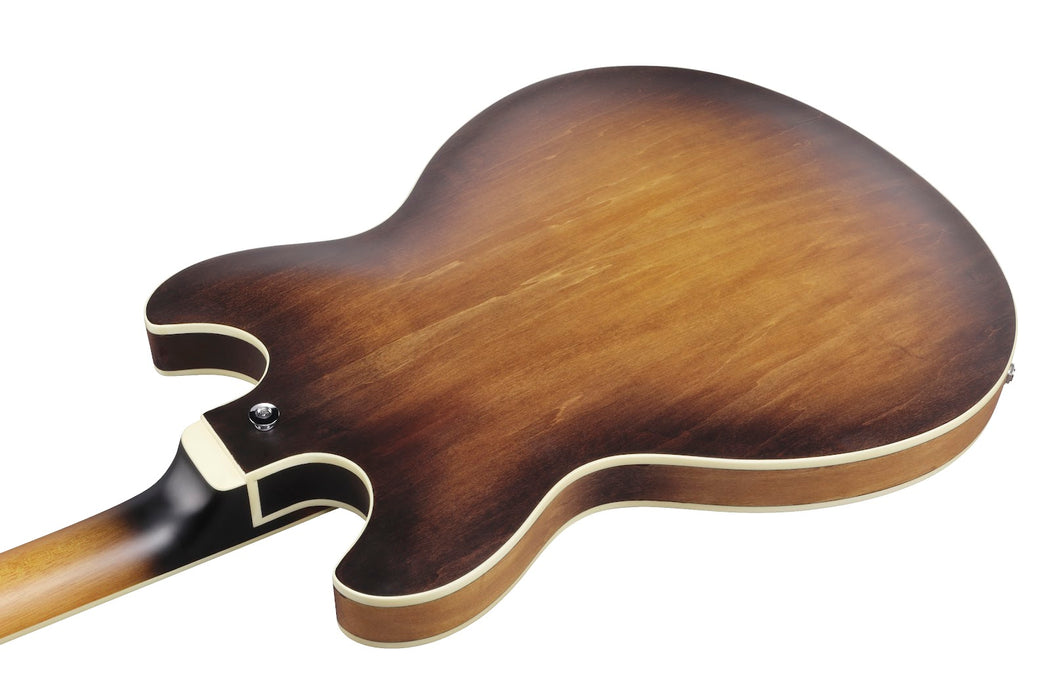

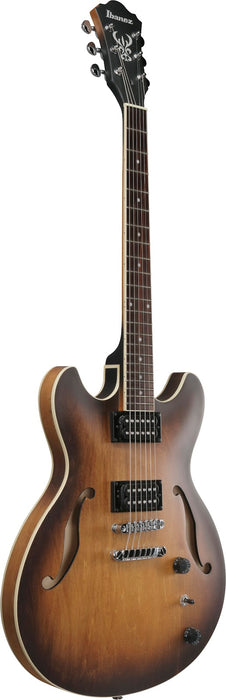

Ibanez AS53 Artcore Semi-Hollow - Tobacco Flat
Interest FREE financing available at checkoutSpecifications
| Neck Type | AS Artcore Nyatoh Set-in neck |
|---|---|

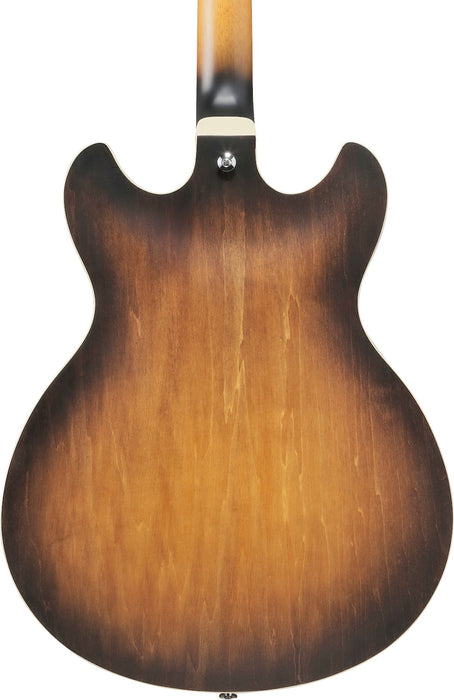

| Top/Back/Side | Linden top, Linden back, Linden sides |

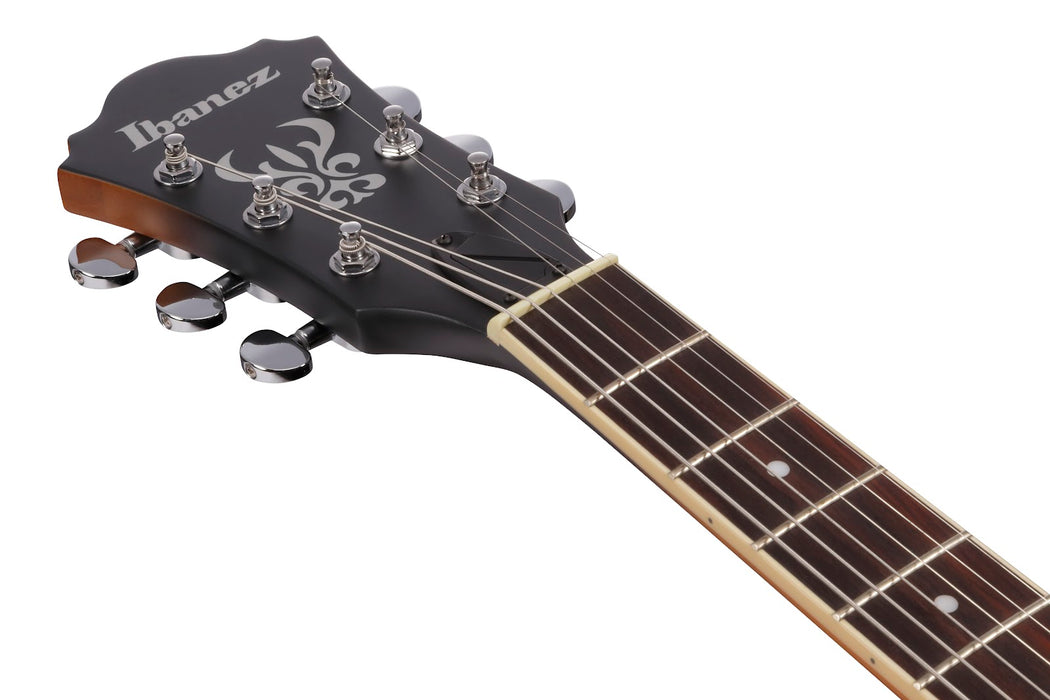

| Fretboard | Bound Walnut fretboard, White dot inlay |
| Fret | Medium frets |
| Number of Frets | 22 |
| Bridge | Gibraltar Performer bridge |
| String Space | 10.5mm |
| Tailpiece | Quik Change III tailpiece |

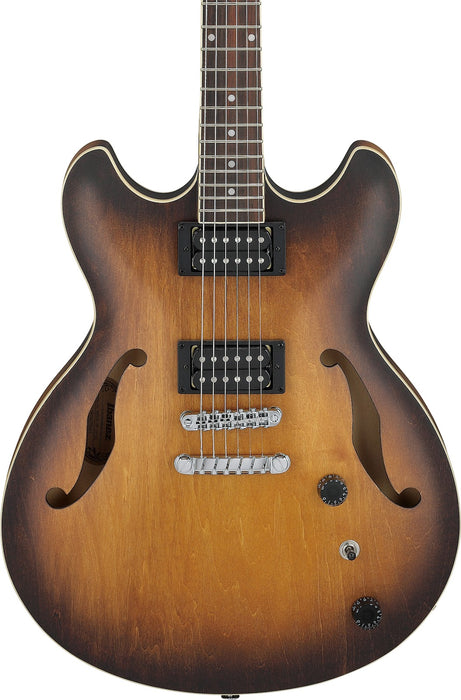

| Neck Pickup | Infinity R (H) neck pickup, Passive/Ceramic |
| Bridge Pickup | Infinity R (H) bridge pickup, Passive/Ceramic |
| Factory Tuning | 1E, 2B, 3G, 4D, 5A, 6E |
| String Gauge | .010/.013/.017/.030/.042/.052 |
| Hardware Color | Chrome |
NECK DIMENSIONS
-
Scale: 628mm
-
a: Width 43mm at NUT
-
b: Width 57mm at 22F
-
c: Thickness 21mm at 1F
-
d: Thickness 24mm at 9F
-
Radius: 305mmR
DESCRIPTION
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
BODY DIMENSIONS
-
a: Length 19 1/4"
-
b: Width 15 3/4"
-
c: Max Depth 2 5/8"
DESCRIPTION
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body

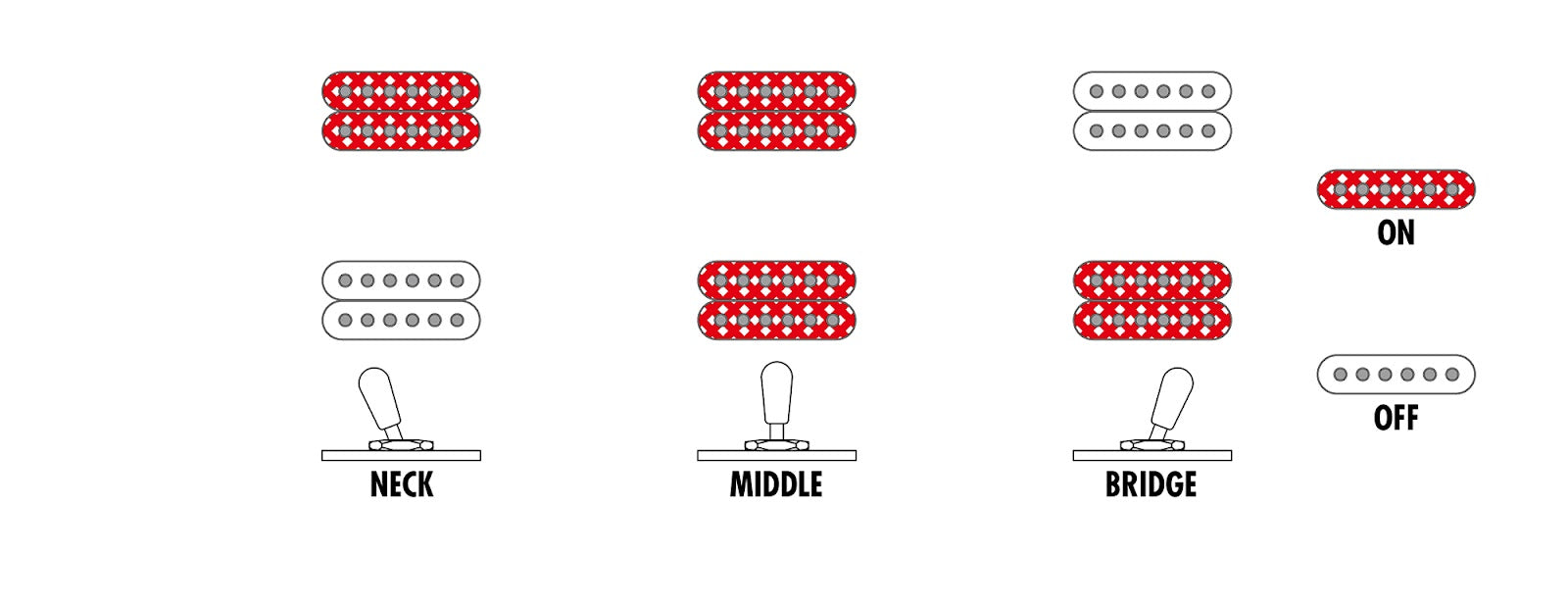

SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

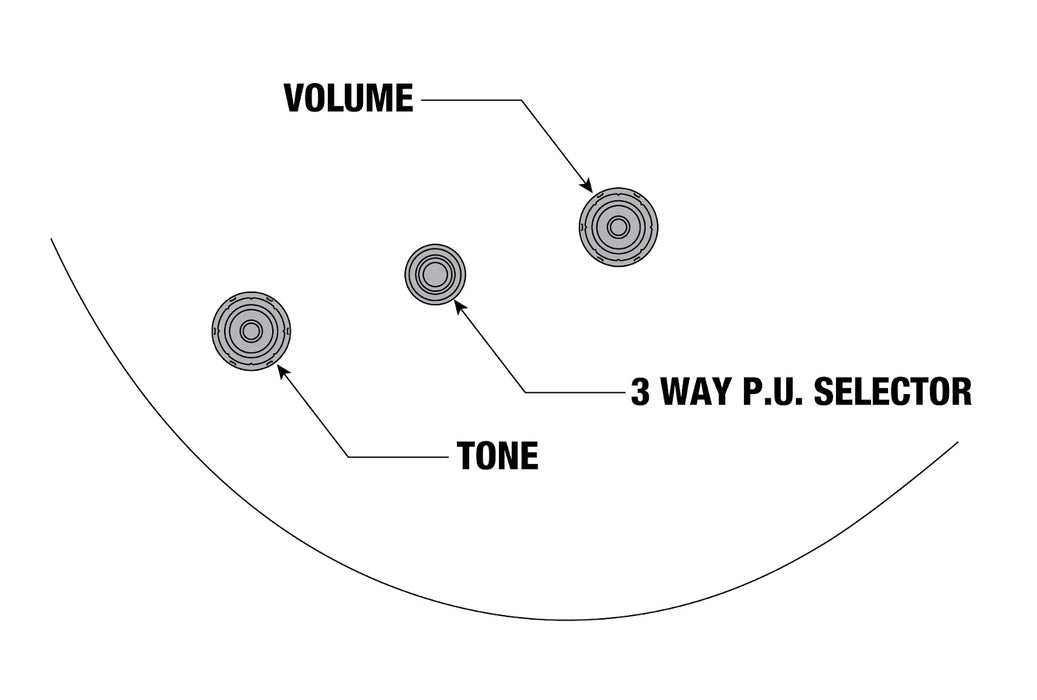

CONTROLS
DESCRIPTION
There are two knobs and one switch on this guitar. The tone knob is located near the edge of the body, and the knob closest to the neck is the volume knob. The switch located between these knobs is a three-way pickup selector switch.
OTHER FEATURES
Recommended Case MS100C
Recommended Bag IHB541-BK
Features
 |
Nyatoh neck The Nyatoh neck provides a rich mid-low end. |
 |

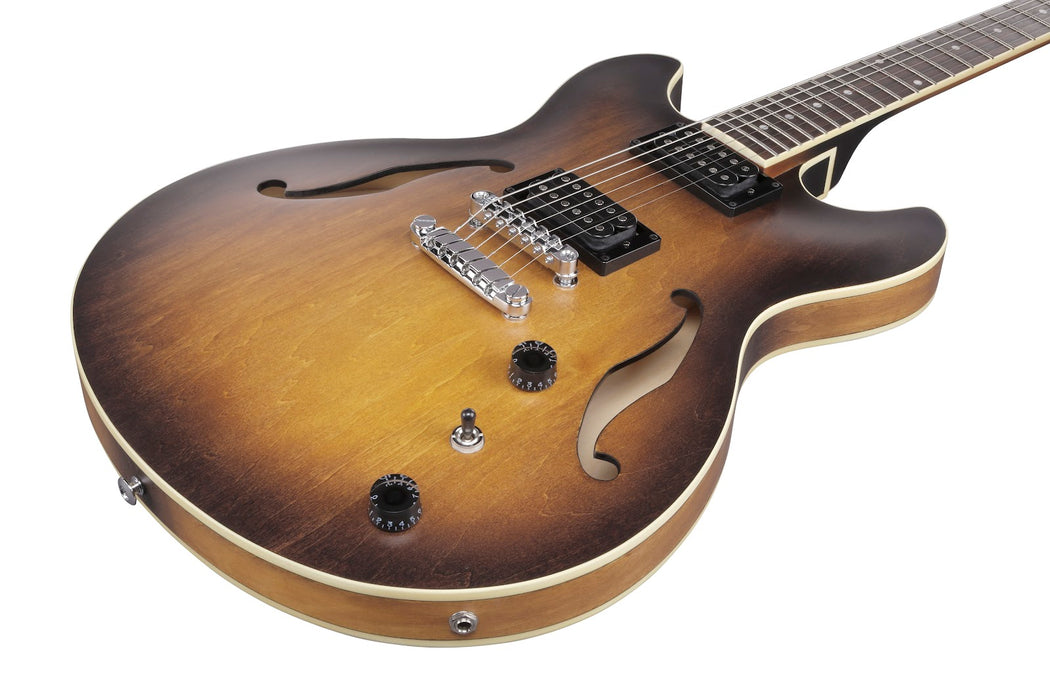

Gibraltar Performer bridge The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability. |
 |
Infinity R H-H pickups Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity. |
 |
Walnut fretboard A Walnut fretboard features a well-balanced tonal character from low to high end. |
 |
Quik Change III Tailpiece The Quik Change III tailpiece enables faster and easier string changing. |
