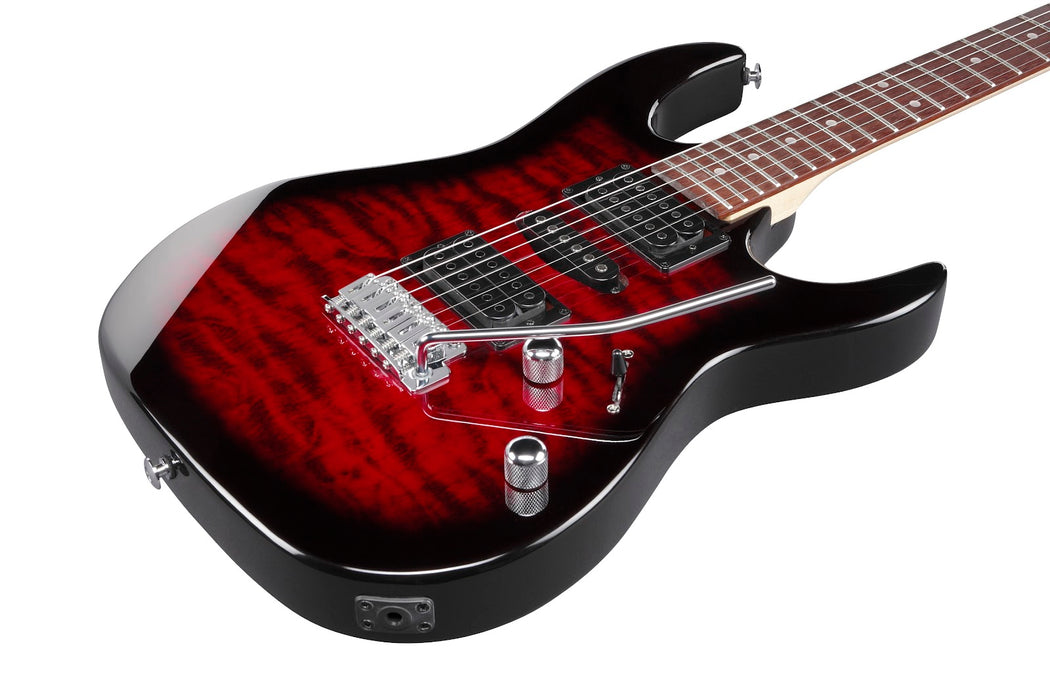

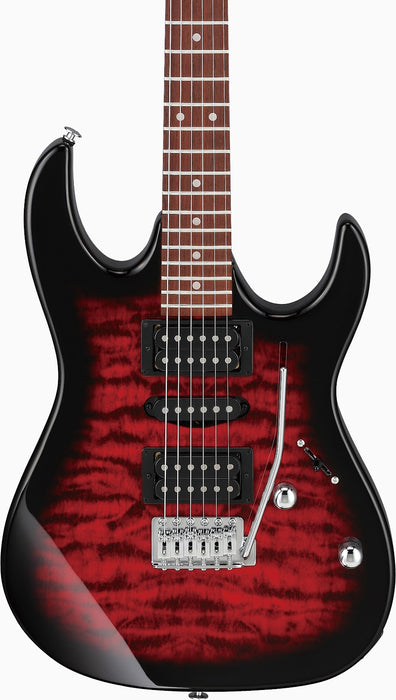

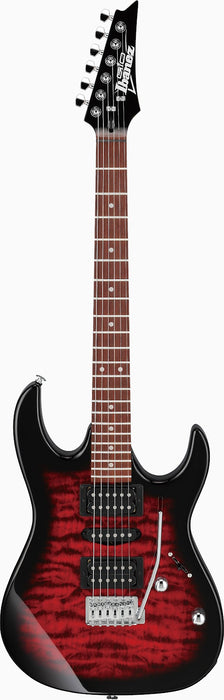

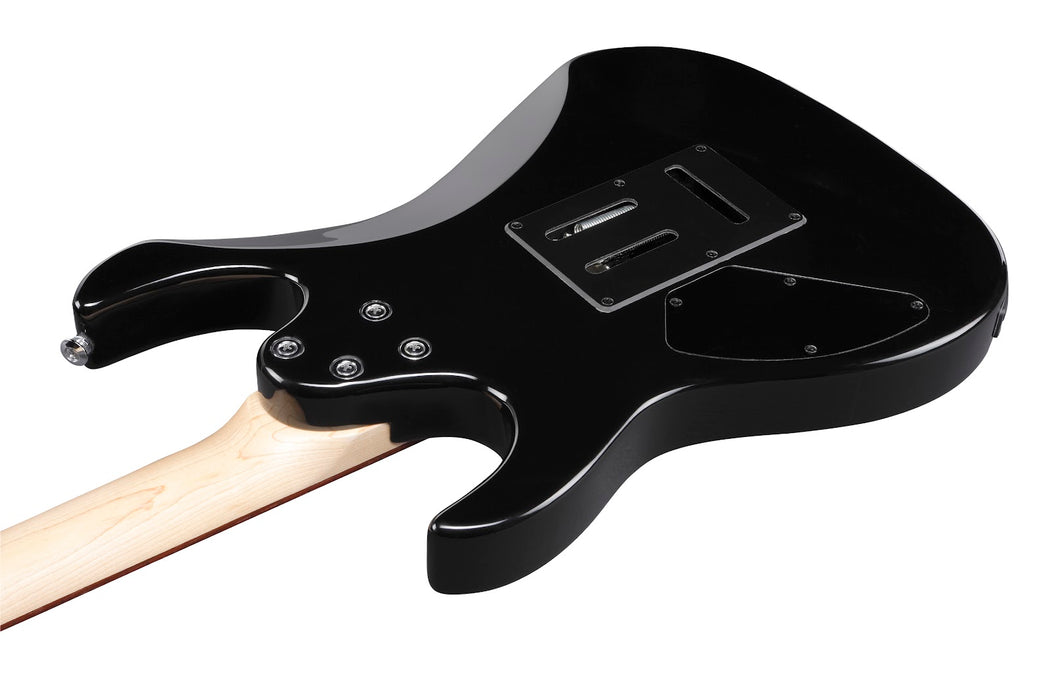

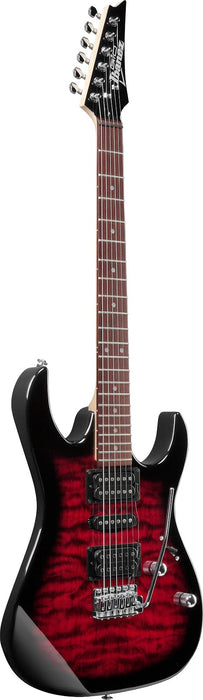

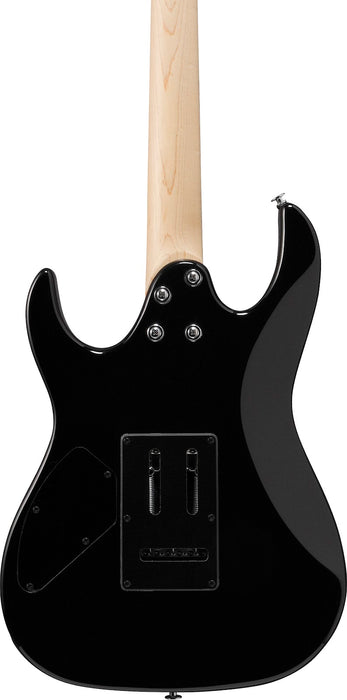

Ibanez GIO Electric - Transparent Red Burst

Features

• Maple neck: Provides stability and bright tonal character.
• T106 tremolo bridge: Features 6 independent saddles for precise height and intonation adjustment of each string.
• Mono-unit output jack: Made of solid, durable material; designed to avoid unwanted movement and loosening, allowing for long-term playing enjoyment and minimal maintenance.
• Infinity R H-H pickups: Deliver an accurate and tight sound with excellent dynamics, maintaining tonal clarity even under heavy settings.
• Jatoba Fretboard: Reddish brown color that produces a rich midrange with a crisp high end.

Specifications

• Neck Type: GRX Maple neck
• Top/Back/Body: Quilted Maple Art Grain (Basswood) top; Poplar body
• Fretboard: Jatoba fretboard; White dot inlay
• Fret: Medium frets
• Number of Frets: 22
• Bridge: T106 bridge
• String Space: 10.5mm
• Neck Pickup: Infinity R (H) neck pickup; Passive/Ceramic
• Middle Pickup: Infinity RS (S) middle pickup; Passive/Ceramic
• Bridge Pickup: Infinity R (H) bridge pickup; Passive/Ceramic
• Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E
• String Gauge: .009/.011/.016/.024/.032/.042
• Hardware Color: Chrome

Neck

Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard

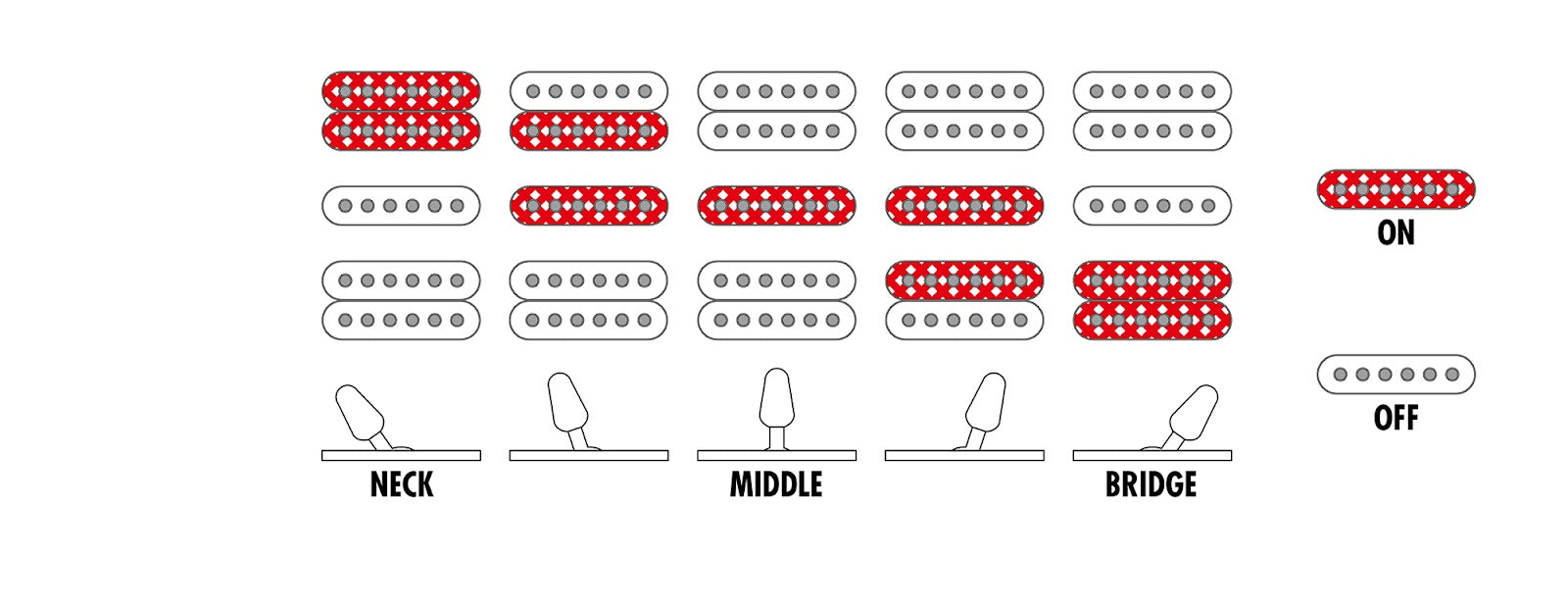

Switching System

When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.

Controls

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
