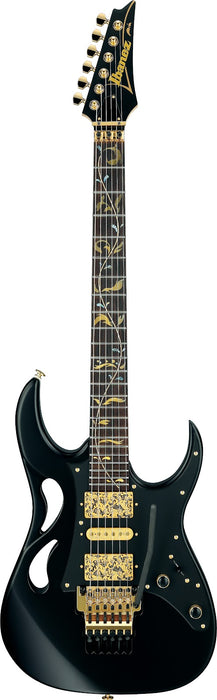

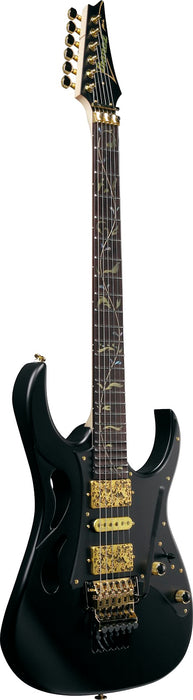

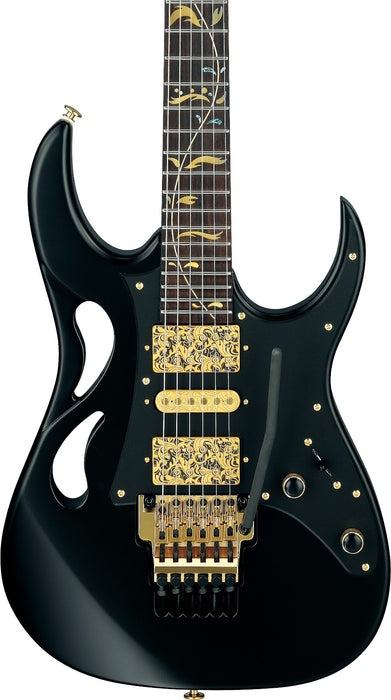

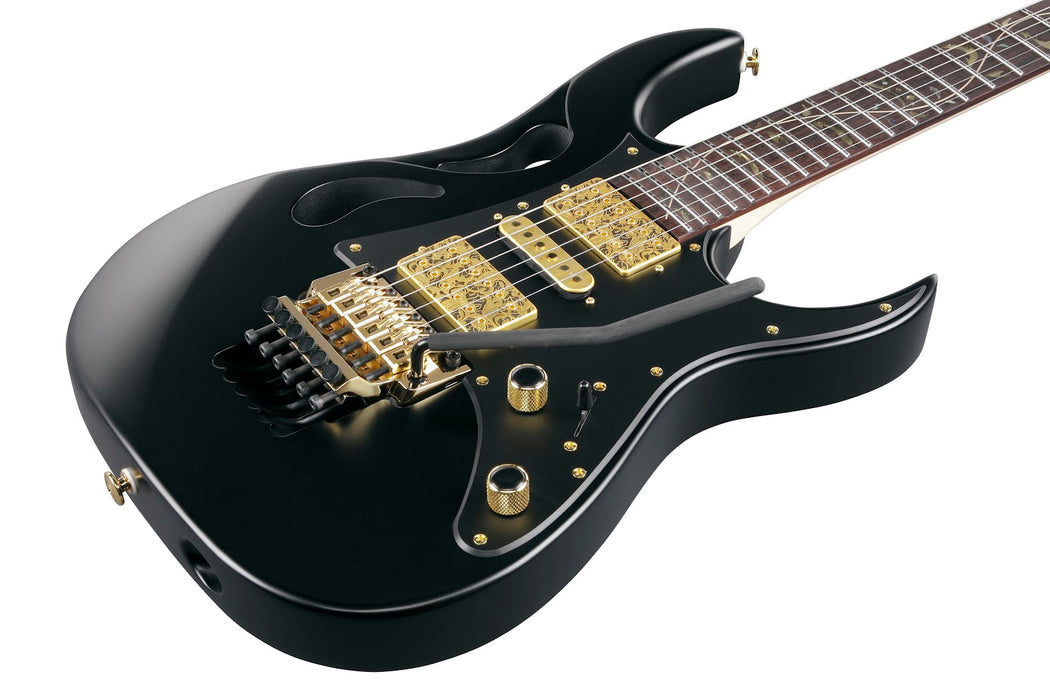

The new PIA3761 from Ibanez showcases Steve Vai's trademark style with a PIA Blossom inlay, a unique Petal Grip, and Dimarzio UtioPIA pickups.

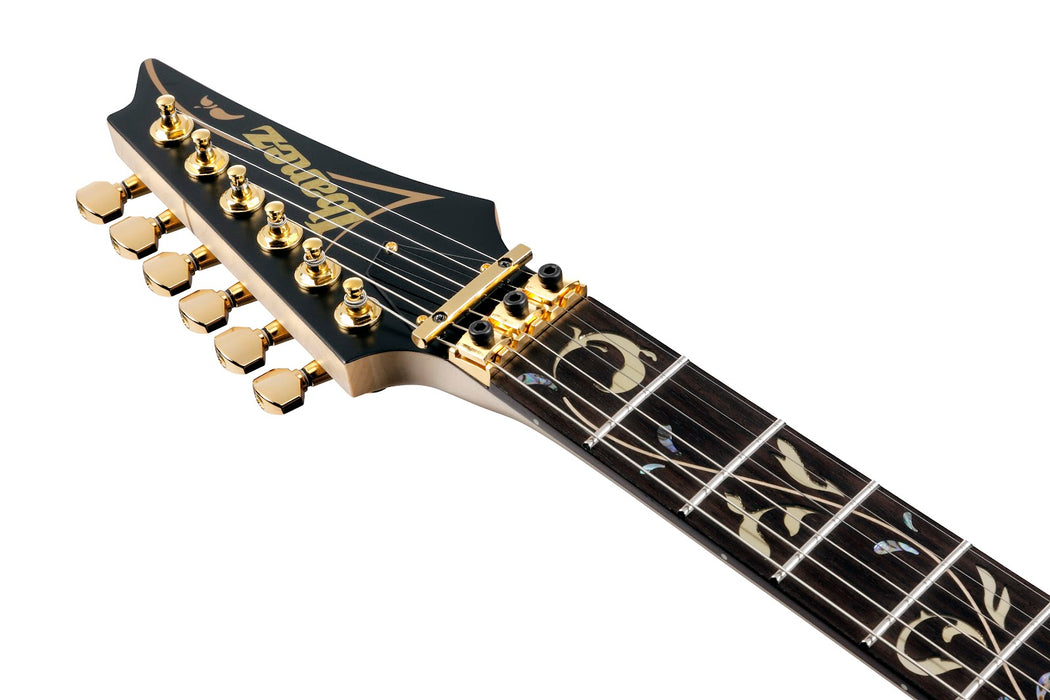

PIA Blossom inlay
The newly designed PIA Blossom inlay is gorgeous, prominent, and elegantly imparts Steve Vai's trademark style and artistic vision.

Petal Grip
Exclusively designed for the PIA, the new Petal Grip offers a balanced, contemporary design aesthetic. It's also meant to symbolize unity, companionship, and interpersonal bonds.

DiMarzio UtoPIA pickups
Based on Steve's latest tonal preferences, DiMarzio UtoPIA pickups are voiced for smoother highs, more scooped mids, and more pronounced low-end. The pickups incorporate beautiful aesthetics and design elements meant to complement the cosmetic features of the guitar.

Edge Tremolo
The Edge tremolo bridge and groundbreaking Lion's Claw tremolo cavity allow for rapidly increasing and lowering pitch with dramatic range and an intense voice.

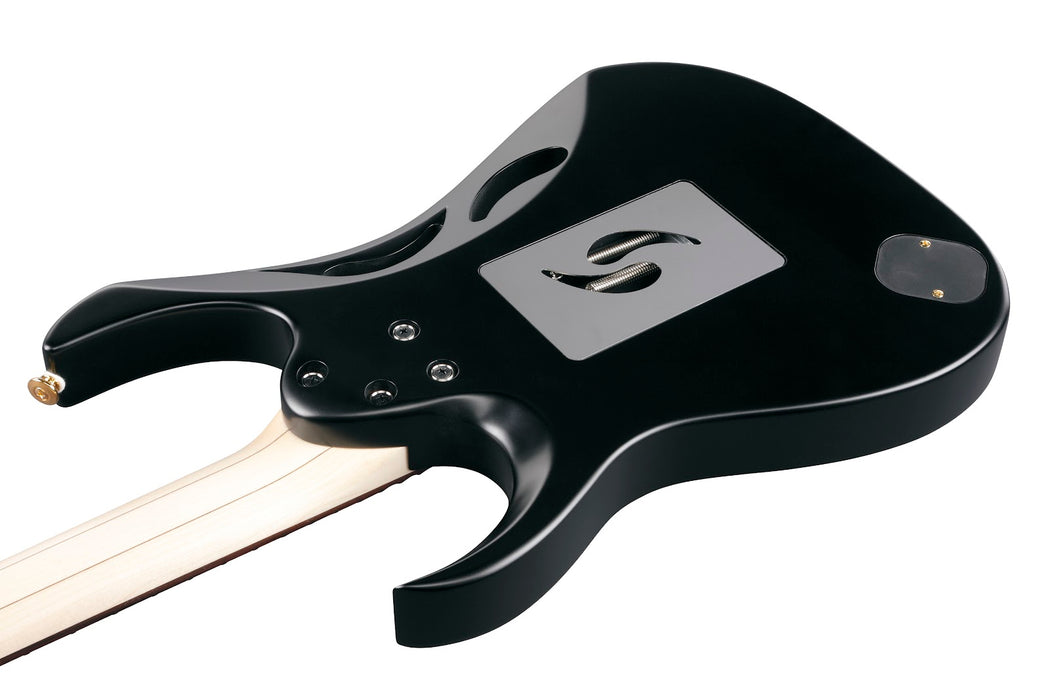

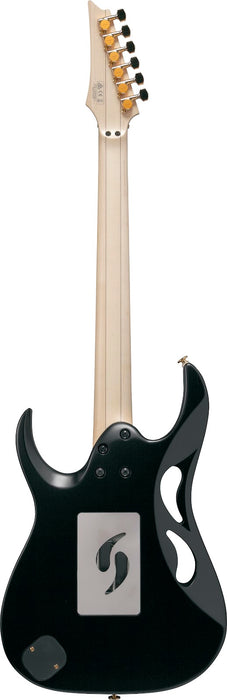

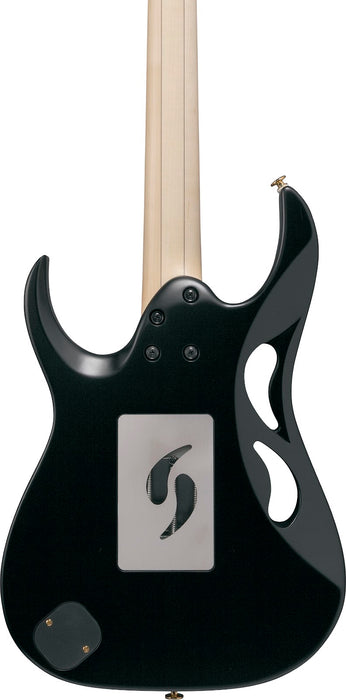

Magnetic Tremolo Cavity Plate
The tremolo cavity plate is held in place magnetically, allowing for quick removal and reinstallation when changing strings or adjusting the tremolo system.

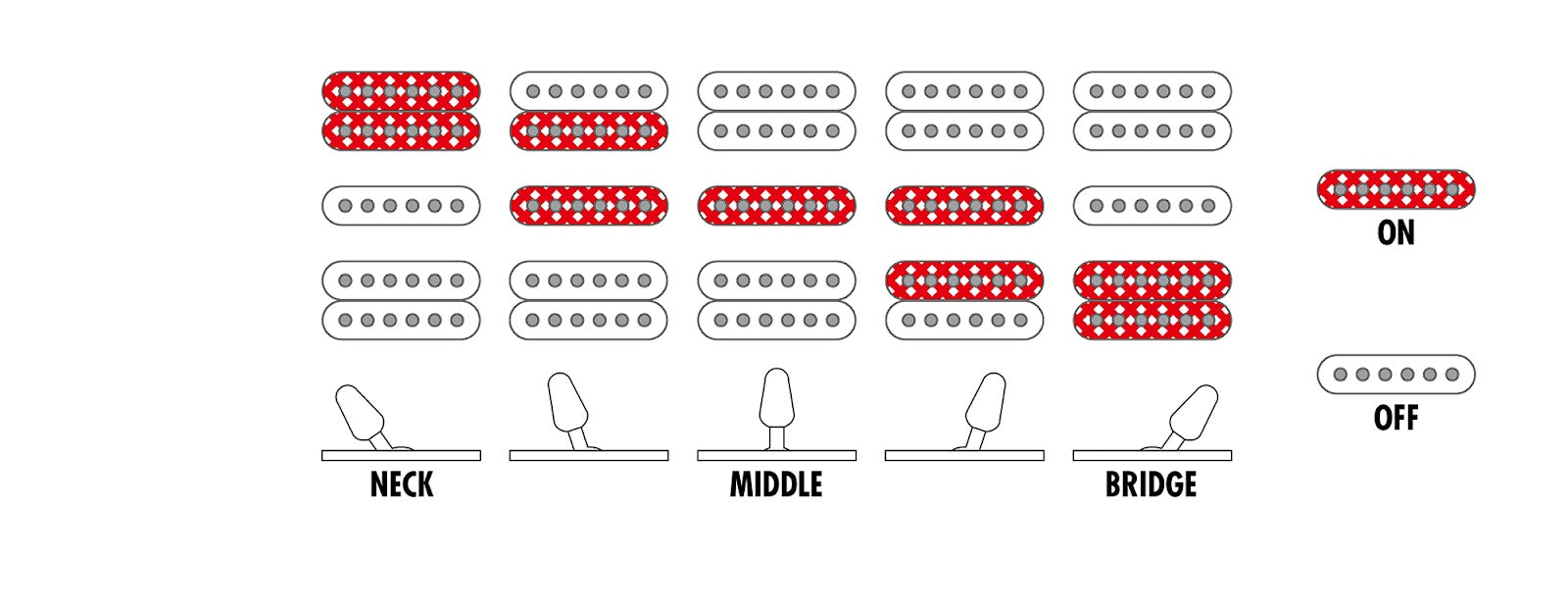

SWITCHING SYSTEM
When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.

CONTROLS

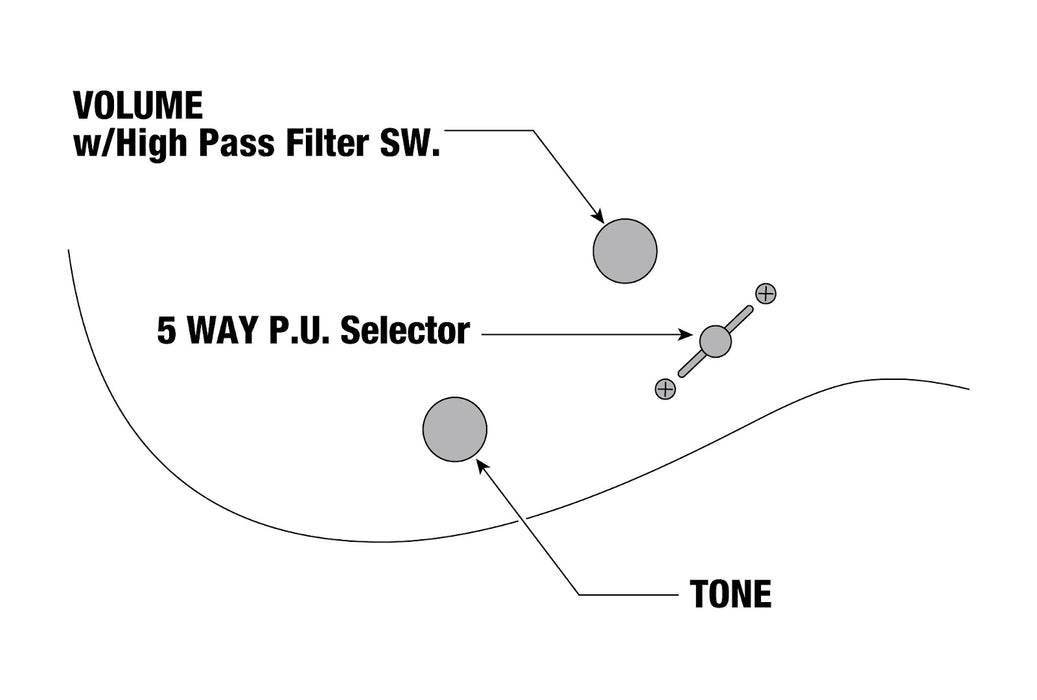

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is a five-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch, and the volume knob also works as a high pass filter switch.

SPECS

• neck type: PIA5pc Maple/Walnut
• top/back/body: Alder body
• fretboard: Rosewood fretboard, PIA Blossom inlay
• fret: Jumbo Stainless Steel frets, Prestige fret edge treatment
• number of frets: 24
• bridge: Edge tremolo bridge
• string space: 10.8mm
• neck pickup: DiMarzio UtoPIA (H) neck pickup, Passive/Ceramic
• middle pickup: DiMarzio UtoPIA (S) middle pickup, Passive/Alnico
• bridge pickup: DiMarzio UtoPIA (H) bridge pickup, Passive/Ceramic
• factory tuning: 1E,2B,3G,4D,5A,6E
• strings: D'Addario EXL120
• string gauge: .009/.011/.016/.024/.032/.042
• nut: Locking nut
• hardware color: Gold

NECK DIMENSIONS

• Scale : 648mm/25.5"
• a : Width 43mm at NUT
• b : Width 58mm at 24F
• c : Thickness 18mm at 1F
• d : Thickness 20mm at 12F
• Radius : 430mmR

OTHER FEATURES

• Recommended Bag IGB724-BK

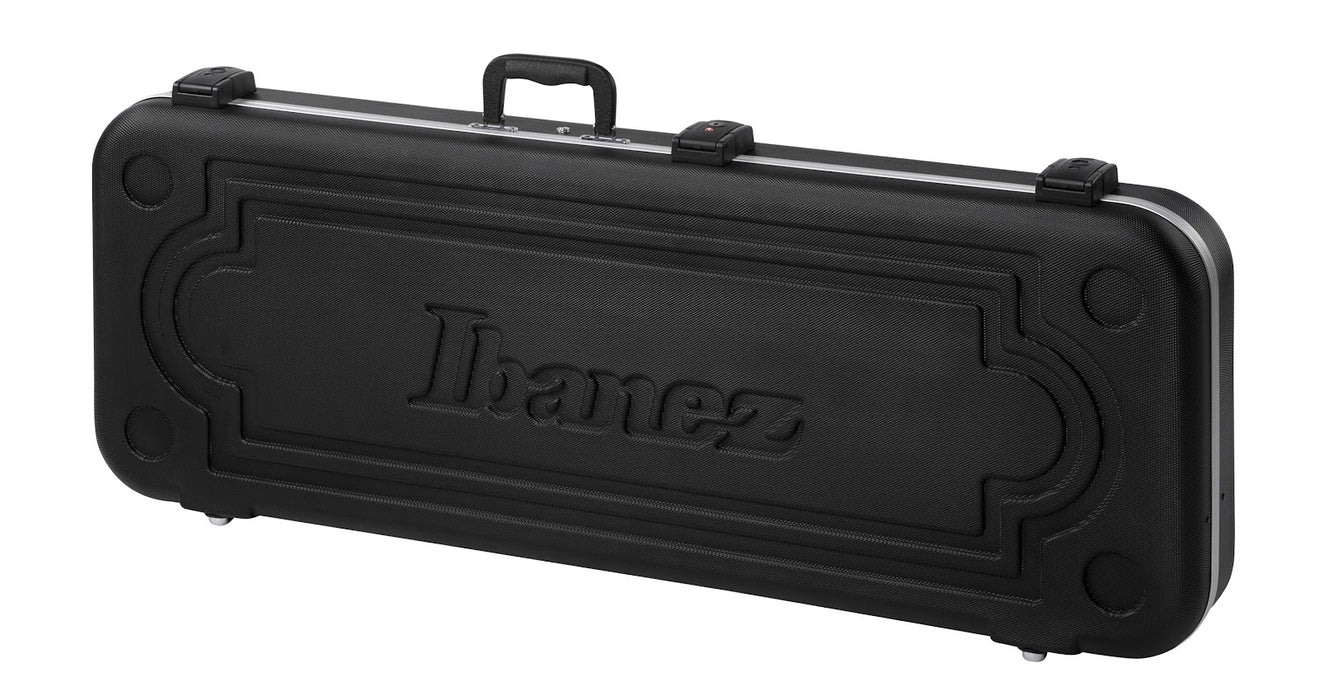

• Hardshell case included

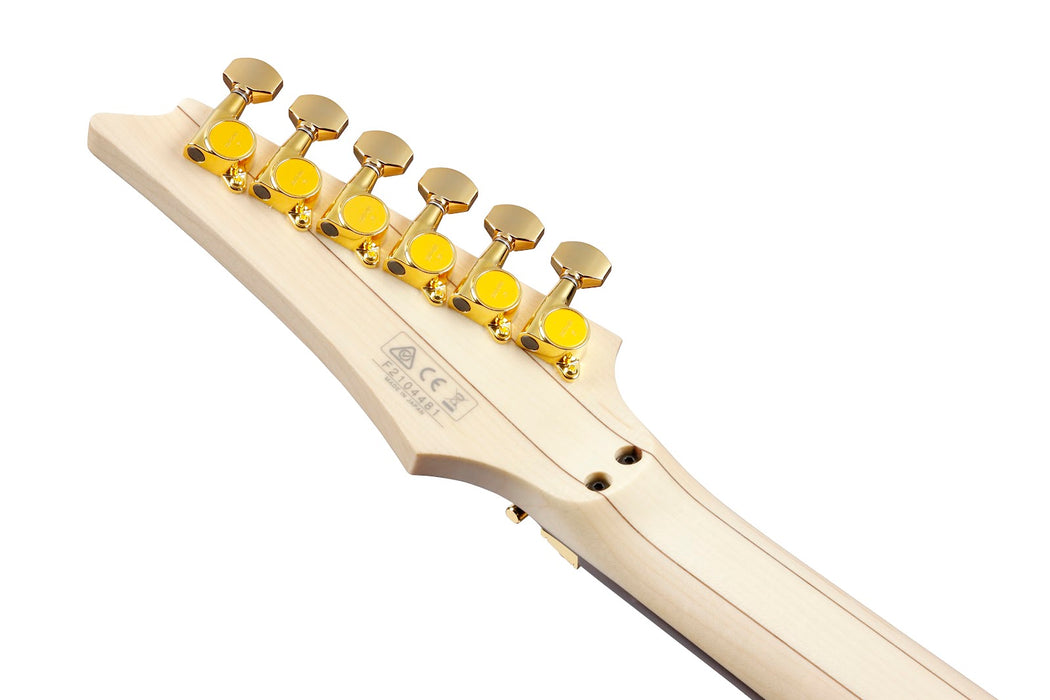

• Gotoh machine heads
• Luminlay side dots
• Scalloped Fingerboard on 21-24 Frets
• Ultralite Tremolo Arm included
