Ibanez Tim Henson TOD10 W/Bag - Metallic Mauve

Features

• Oval C Roasted Maple neck
    - The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance, and tolerance of temperature changes.
  - Ebony fretboard
    - Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.
  - American Basswood body
    - The American Basswood body delivers a natural and flat tone.
  - Fishman® Fluence™ Tim Henson Signature Series pickups
    - Tim's signature Fishman® Fluence™ pickups span the entire range of aggressive lead and rhythm tones to the cleanest of clean single coil combinations, even touching on sounds Tim was previously only able to produce with his acoustic guitars.
    - Neck Pickup Voice 1: Thick and smooth neck humbucker / Voice 2: Hyper-clean, nylon string surrogate / Voice 3: Tim's fluid neck single coil
    - Bridge Pickup Voice 1: Based on Fishman®'s hot-rodded Classic voice, the quintessential lead tone of generation / Voice 2: Combination of Tim's favorite bridge humbuckers / Voice 3: Tim's ideal single coil combination tone when used in conjunction with neck coil
  - Gotoh® T1502 tremolo
    - The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.
  - Fishman® Fluence™ Voicing switch on tone control (push/pull) for Tim Henson Signature Series pickups
    - The Voicing switch allows the pickups to switch between three musically complementary voices.

Specifications

• Neck type: AZ Oval C Roasted Maple neck
  - Top/Back/Body: American Basswood body
  - Fretboard: Ebony fretboard, Tree of Death inlay
  - Frets: Jumbo Stainless Steel frets
  - Number of frets: 24
  - Bridge: Gotoh® T1502 tremolo bridge
  - String space: 10.5mm
  - Neck pickup: Fishman® Fluence™ Tim Henson Signature Series (H) neck pickup, Active/Alnico
  - Bridge pickup: Fishman® Fluence™ Tim Henson Signature Series (H) bridge pickup, Active/Alnico
  - Factory tuning: 1E, 2B, 3G, 4D, 5A, 6E
  - Strings: D'Addario® EXL110
  - String gauge: .010/.013/.017/.026/.036/.046
  - Nut: Graph Tech®
  - Hardware color: Chrome

Neck

• Scale: 648mm/25.5"
  - Width: 42mm at nut
  - Width: 57mm at 24th fret
  - Thickness: 20.5mm at 1st fret
  - Thickness: 22.5mm at 12th fret
  - Radius: 305mm
• Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard

Switching System

When the pickup selector is in the neck position and the tone knob is pushed in, the full neck humbucker is activated and in Voice 1. When the pickup selector is between the neck and middle position, only the outer coil of the neck pickup is activated and is in Voice 3. When the pickup selector is in the middle position, both humbuckers are fully activated and in Voice 1. When the pickup selector is between the middle and bridge position, the outer coil of the front pickup and the inner coil of the bridge pickup are activated and in Voice 3. When the pickup selector is in the bridge position, the full bridge humbucker is activated and in Voice 1. When the pickup selector is in the neck position with the tone knob pulled up, the neck humbucker is fully activated and in Voice 2. When the pickup selector is between the neck and middle positions, only the outer coil of the neck pickup is activated and in Voice 3. When the pickup selector is in the middle position, the outer coil of the front pickup and the inner coil of the bridge pickup are each activated and in Voice 3. When the pickup selector is between the middle and bridge position, the outer coil of the front pickup and the inner coil of the bridge pickup are activated and in Voice 3, (same setting as when middle is selected). When the pickup selector is in the bridge position, the full bridge humbucker is activated and in Voice 2.

Controls

With the guitar held in the playing position, there is a five-way pickup selector switch near the knee cutout on the lower part of the body. The knob in front of it, towards the neck, is the volume knob, and the knob closer to the end of the body is the tone knob, which also serves as the Fishman Fluence Voicing switch. The Fishman Fluence Voicing switch changes the tone of the pickups via an electronic circuit. When the tone knob is pushed in, Voice 1 and Voice 3 are active, and when the tone knob is pulled out, Voice 2 and Voice 3 are active. The mix of voicings in use is based on the pickup combination selected via the 5-way switch.

Other features:

    Recommended Case MR500C

    Fishman® Fluence™ Voicing switch on tone control (push/pull) for Tim Henson Signature Series pickups

    Gotoh® MG-T locking machine heads

    Luminescent side dot inlay

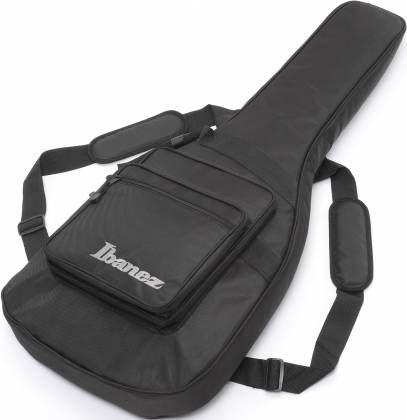

    Gig bag included
