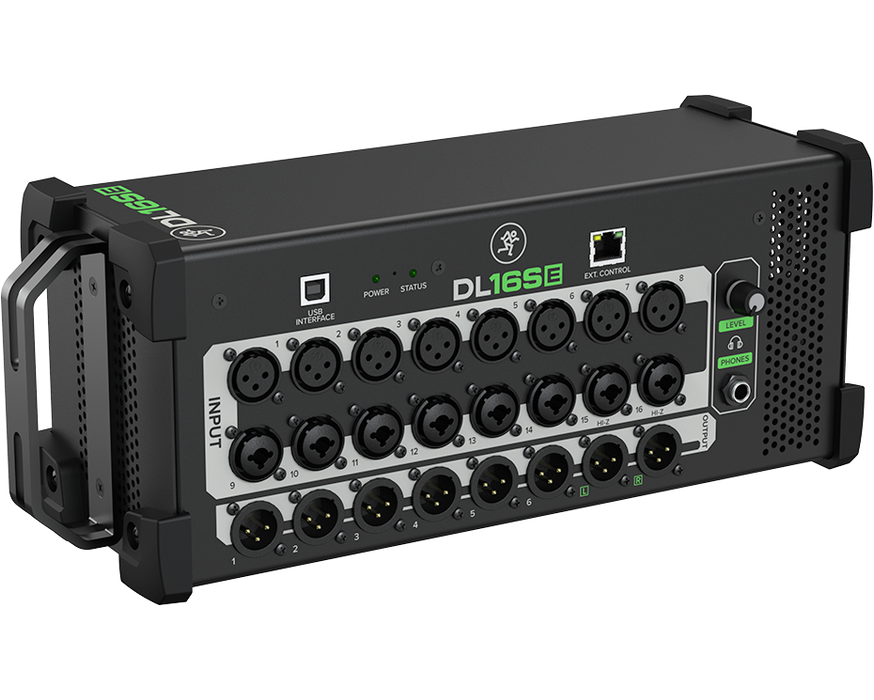

Mackie 16-Channel Wireless Digital Rack Mixer

The Mackie DL16SE digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in a stage-friendly, rack-mountable design. Just connect to your wireless router and take total control with the intuitive Master Fader SE app.

MAIN FEATURES

• Convenient stagebox/rack design with built-in handle
• 16 input channels with Onyx+ preamps (8 XLR, 8 XLR/TRS combo with 2 Hi-Z)
• 8 fully assignable XLR outputs plus headphone output
• Connect to your wireless router and control with Master Fader SE app
• Per-channel EQ, filters, gate, compression and RTA/Spectrograph
• 4 stereo FX busses with studio-quality reverbs, delays, chorus and more
• Multitrack 16x16 USB audio interface for recording and playback
• Waveform OEM professional software and plugins included

WIRELESS MIXING

• Take complete control via iOS, Android, macOS or Windows devices
• No set FOH position — mix from anywhere
• Control from up to 20 separate devices at once
• Access Limiting allows performers to control their own monitor mixes without giving access to critical mixer functionality
• Universal Ethernet connection supports your wireless router of choice

POWERFUL PROCESSING & ROUTING

• 16 preamps with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph
• 16 stereo-linkable input channels plus stereo return channel
• 8 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph
• 6 stereo-linkable aux sends
• 6 stereo-linkable subgroups
• Main L/R bus
• 6 VCAs and 6 mute groups
• 4 stereo FX processors featuring studio-quality reverbs, delays, choruses, flangers and many more with dedicated sends and returns
• Full I/O routing with A/B sources per channel
• Assignable oscillator including pink/white noise and sine waves
• Modern and Vintage options for comp/gate and EQ

MULTITRACK RECORDING & PLAYBACK

• 16x16 USB 2.0 audio interface for Mac or PC
• Record the show for later mixdown
• Perform a virtual sound check
• Play intermission music, backing tracks and more directly into a dedicated stereo return channel
• Flexible, low-cost studio recording solution
• Utilize Mac or PC audio plug-ins in a live environment

MASTER FADER SE CONTROL APP

• Intuitive and easy to master
• Fast navigation with view groups and overview
• Quick setup with tons of factory and user-definable presets
• Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users
• Quickly access channel processing, signal routing and a massive suite of great sounding effects with presets to get you started
• Export presets, shows and complete system backups via Dropbox, email and more
• Set up the show before you arrive at the venue with offline show creation
• Available on iOS, Android, macOS and Windows

RECORD & PRODUCE LIKE A PRO

• Waveform™ OEM professional software and plugin packages included
• The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equalizer, Compressor, Reverber8 and Limiter
