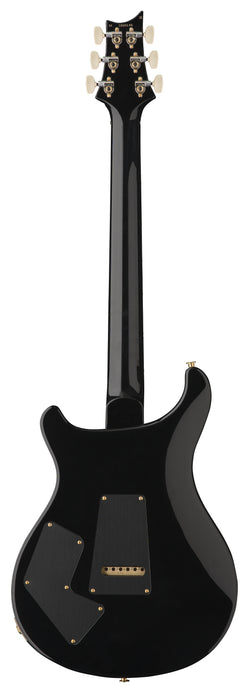

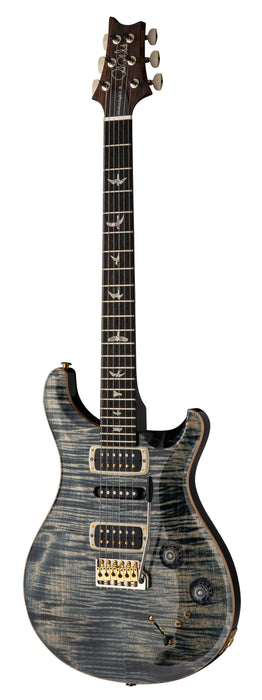

PRS Modern Eagle V, Faded Whale Blue

“Modern Eagle models have always been built to stand up to history while celebrating tonewoods and the discovery of new tones. The Modern Eagle V is a sophisticated instrument not only in its craftsmanship but in its electronic and mechanical design,” said Paul Reed Smith.

The Modern Eagle V offers highly musical tones for both recording and playing live. A mix of classic and modern, the Modern Eagle V is built on a tried-and-true foundation of a maple top and mahogany back, a 22 fret, 25” scale length, Pattern mahogany neck with rosewood fretboard, bone nut, PRS Phase III Tuners, and the PRS patented Gen III tremolo. Its innovative pickup and electronics configuration puts a wide range of tones at your fingertips.

Utilizing a hum/single/hum (five-coil) pickup layout and unique electronics configuration, the Modern Eagle V gives players a vast array of tones in one guitar. The 5-way blade switch selects the pickups in intuitive groupings: treble, treble and middle, middle, middle and bass, and bass. There is a single volume and a push/pull tone control that activates both humbuckers when engaged; this allows players to access all three pickups simultaneously. Finally, the dual EQ mini-toggle switches act as tuned high-pass filters when engaged (in the up position), removing shelved low-end and allowing the high frequencies through for more clarity and musical highs.

• Body

  • Body Construction: Solidbody

  • Top Wood: Maple

  • Back Wood: Mahogany

  • Top Carve: Violin

• Neck

  • Number of Frets: 22

  • Fret Wire: PRS Vintage Fret Wire

  • Width of Fret Crown: .110"

  • Height of Fret Crown: .050"

  • Scale Length: 25"

  • Neck Wood: Mahogany

  • Neck Construction: One-Piece

  • Truss Rod: PRS Double-Acting

  • Neck Shape: Pattern

  • Neck Depth at the 1/2 Fret: 7/8"

  • Neck Depth at the 12 1/2 Fret: 61/64"

  • Neck Width at the Nut: 1 11/16"

  • Neck Width at the Body: 2 1/4"

  • Fretboard Wood: Rosewood

  • Fretboard Radius: 10"

  • Fretboard Inlay: Birds

  • Headstock Logo: Signature, Inlaid

• Neck/Body Assembly

  • Neck/Body Assembly Type: Set

• Finish

  • Finish Type: High-Gloss Nitro

• Hardware

  • Bridge: PRS Patented Tremolo, Gen III

  • Tuners: PRS Phase III Locking Tuners with Wing Buttons

  • Hardware Type: Nickel

  • Nut: Bone

  • Truss Rod Cover: "Modern Eagle V"

• Electronics

  • Treble Pickup: TCI

  • Middle Pickup: NS-01

  • Bass Pickup: TCI

  • Controls: Volume and Push/Pull Tone Controls with 5-Way Blade Pickup Switch and Two Mini-Toggle EQ Switches

• Additional Info

  • Strings: PRS Signature 10–46

  • Tuning: Standard (6 String): E, A, D, G, B, E

  • Case: Hardshell Case
