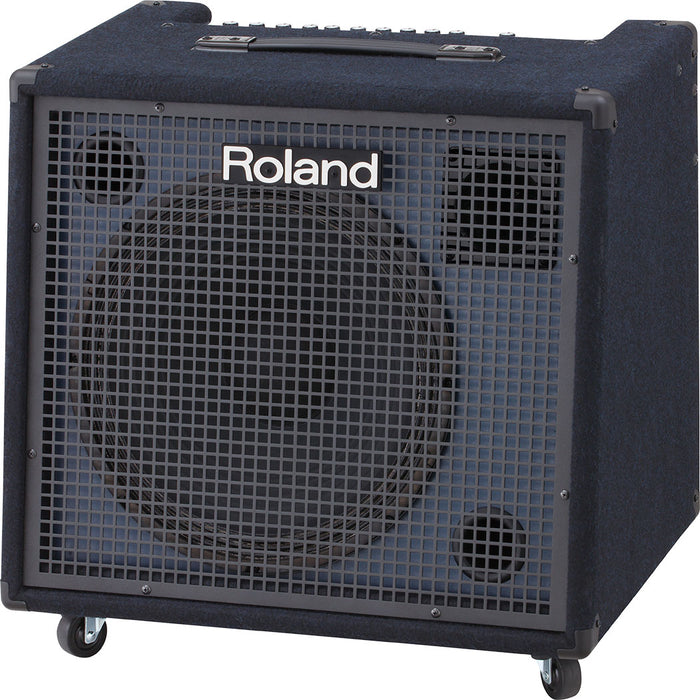

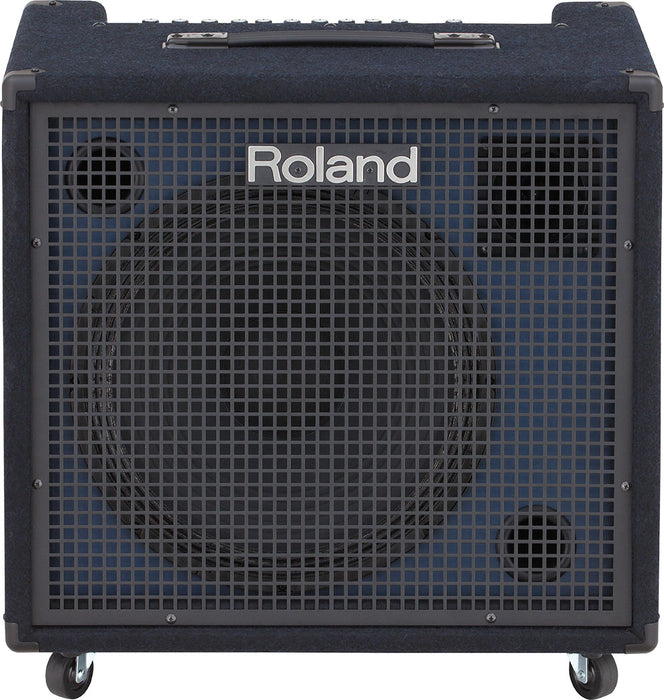

Roland KC-600 Keyboard Amplifier

For over two decades, keyboard players everywhere have relied on Roland’s KC amps for their powerful high-fidelity sound, onboard mixing features, versatile connectivity, and lasting durability. The latest generation carries on the time-honored KC benchmark of quality while offering new enhancements tuned for the needs of today’s working musicians. With a KC amp by your side, you’re in complete control of your stage rig, so you’ll always sound great and play your best. And that’s worth it every time.

Packed with many new design features, the KC-600 updates the previous-generation KC-550, Roland’s top-selling keyboard amp. The power has been increased to 200 watts, and the two-way speaker system features a newly designed 15-inch custom woofer for improved sound quality. In addition, the power section has been completely redesigned for better stability, enhanced bass reproduction, and reduced weight. With the KC-600’s built-in mixer, you’re able to connect a variety of stereo keyboards and instruments, plus an XLR vocal mic. And via the Stereo Link function, you can easily chain a second KC-600 for more inputs and true stereo amplification on stage.

Features:

• Compact and versatile keyboard amplifier with 200 watts of power
• Redesigned power amp and universal power supply provide increased stability, improved bass reproduction, and reduced weight
• Custom two-way speaker system with newly developed 15-inch woofer and horn tweeter
• Onboard mixer with four stereo input channels, stereo auxiliary input, and master EQ with Shape switch
• Output Select function on Channel 4 for monitoring click and guide tracks
• XLR mic input, XLR and ¼-inch line outputs, headphones output, and sub output
• Chain another KC-600 with the Stereo Link function for more inputs and true stereo sound on stage
• Metal jacks for increased durability
• Removable casters included

Specifications

• Rated Power Output

  • 200 W

• Nominal Input Level (1 kHz)

  • CH1 (BALANCED, L/MONO, R): -50 to -20 dBu

  • CH2 (L/MONO, R): -20 dBu

  • CH3 (L/MONO, R): -20 dBu

  • CH4/MONITOR IN (L/MONO, R): -20 dBu

  • AUX IN (L, R, STEREO): -10 dBu

  • STEREO LINK (IN): 0 dBu

• Nominal Output Level (1 kHz)

  • LINE OUT (L/MONO, R): +4 dBu

  • LINE OUT (BALANCED L, R): +4 dBu

  • STEREO LINK (OUT): 0 dBu

  • SUB OUT: +4 dBu

• Speakers

  • 38 cm (15-inch) woofer × 1

  • Horn tweeter × 1

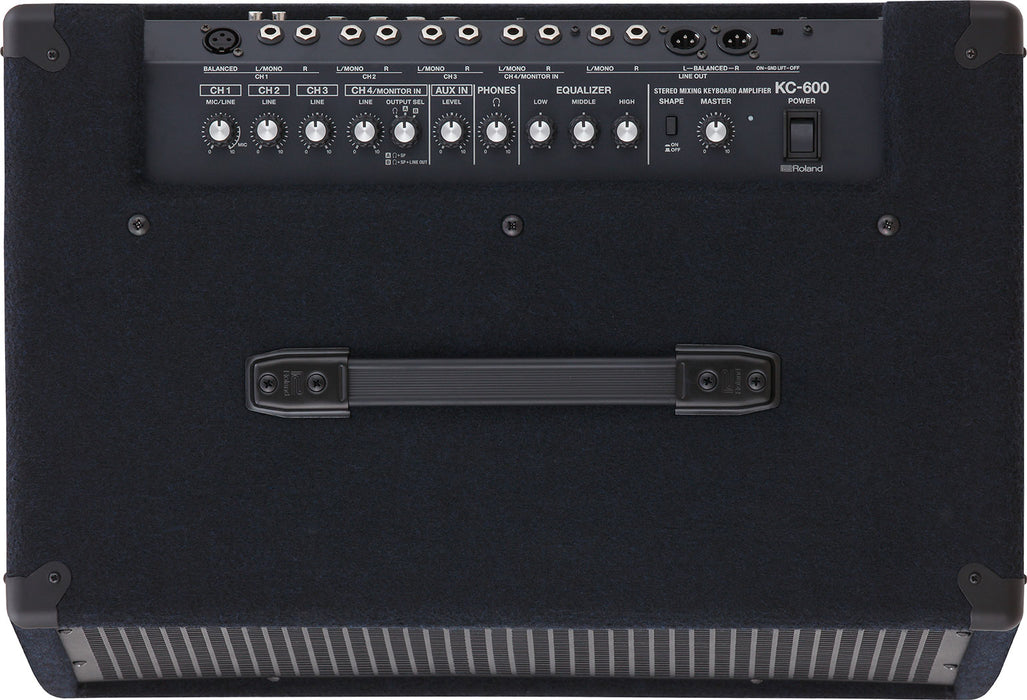

• Controls

  • SHAPE button

  • POWER switch

  • GND LIFT switch

  • CH1

    • MIC/LINE knob

  • CH2

    • LINE knob

  • CH3

    • LINE knob

  • CH4

    • LINE knob

    • OUTPUT SEL knob

  • AUX IN

    • LEVEL knob

  • PHONES

    • VOLUME knob

  • EQUALIZER

    • LOW knob

    • MIDDLE knob

    • HIGH knob

  • MASTER knob

• Indicator

  • Power

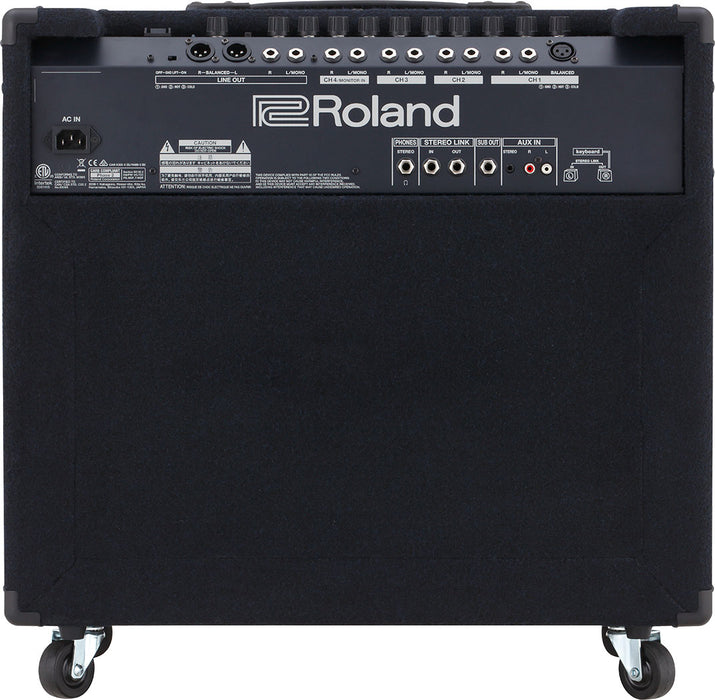

• Connectors

  • CH1 (BALANCED) jack: XLR type

  • CH1 (L/MONO, R) jacks: 1/4-inch phone type

  • CH2 (L/MONO, R) jacks: 1/4-inch phone type

  • CH3 (L/MONO, R) jacks: 1/4-inch phone type

  • CH4/MONITOR IN (L/MONO, R) jacks: 1/4-inch phone type

  • LINE OUT (L/MONO, R) jacks: 1/4-inch phone type

  • LINE OUT (BALANCED L, R) jacks: XLR type

  • AUX IN (L, R) jacks: RCA phono type

  • AUX IN (STEREO) jacks: Stereo miniature phone type

  • SUB OUT jack: 1/4-inch phone type

  • STEREO LINK (IN, OUT) jacks: 1/4-inch phone type

  • PHONES jack: Stereo 1/4-inch TRS phone type

    • Mono signal output

• Power Consumption

  • 50 W

• Accessories

  • Owner's Manual

  • Caster × 4

• Size and Weight

  • Width: 590 mm (23-1/4 inches)

  • Depth: 445 mm (17-9/16 inches)

  • Height with casters: 590 mm (23-1/4 inches)

  • Height without casters: 536 mm (21-1/8 inches)

  • Weight: 29 kg (63 lbs 15 oz)
