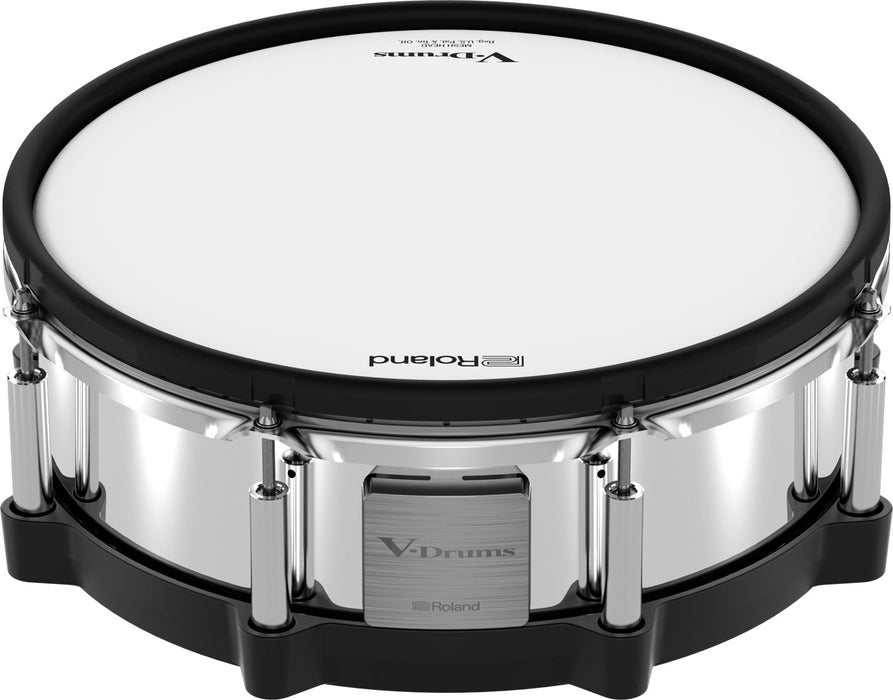

Roland PD-140DS V-Pad Digital Snare

Combining snare tradition with highly advanced triggering and ultra-detailed sensitivity, the PD-140DS delivers an exceptional playing experience when paired with the V71, V51, V31, and other Roland modules that feature digital pad inputs.

A three-layer mesh head is fitted to a standard 14-inch shell, providing natural rebound and feel that’s instantly familiar to play. Thanks to our multi-element sensor system, your strokes across every area of the pad are tracked with stunning accuracy, and playing dynamics are captured in minute detail. Traditional cross-stick techniques are automatically detected as the pad senses your hand position and adjusts accordingly.

Features:

• High-resolution sound triggering with accurate positional detection
• Play traditional cross-stick techniques with no need to adjust settings inside the module
• Three-ply mesh head provides natural rebound, playing feel, and response
• Standard acoustic-style 14-inch diameter offers a familiar look, presence, and playability
• Reflective steel shell makes a visual impression on the stage
• Designed for use with Roland modules such as the V71, V51, and V31
• Also works with the TD-27 and legacy TD-50X modules

Specifications

• Pad Size

  • 14 inches

• Shell Depth

  • 4.3 inches

• Tension Rods

  • 8

• Head

  • 3-ply mesh head

  • Floating mid-layer structure

• Available Playing Methods (Triggers)

  • Head shot

    • High-resolution positional detection

    • Wide dynamic range

  • Rim shot

    • Depth detection

    • Wide dynamic range

  • Cross stick

    • Automatic switching

  • Brush sweep

• Sensor System

  • Multi-element sensor system

  • Head sensor

  • Position sensors × 3

  • Rim sensor

  • Cross-stick sensors × 3

  • Built-in sensing processor

• Supported Covering Size

  • 98 mm (width) × 1,060 mm (length)

  • Thickness: 1 mm or less

• Connector

  • DIGITAL TRIGGER OUT plug

  • Compatible with Roland drum sound modules equipped with a DIGITAL TRIGGER IN port

• Power Supply

  • Supplied from DIGITAL TRIGGER IN port

  • DC 5 V

• Current Draw

  • 90 mA

• Accessories

  • Owner's Manual

  • Connection cable

  • Drum key

• Size and Weight

  • Width: 380 mm (15 inches)

  • Depth: 380 mm (15 inches)

  • Height: 160 mm (6-5/16 inches)

  • Weight: 4.9 kg (10 lbs 13 oz)
