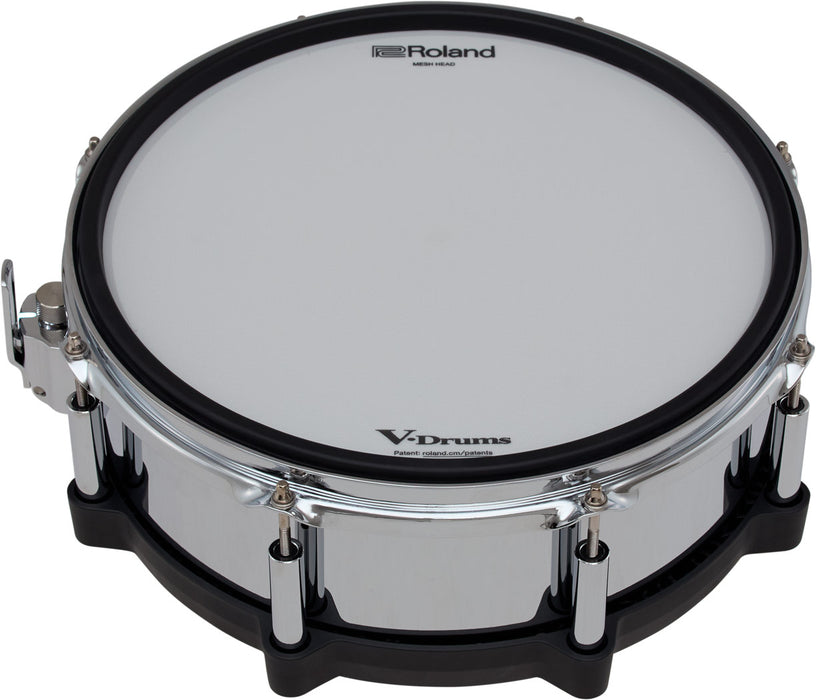

Caisse claire numérique Roland PD-14DSX 14"

The PD-14DSX offers the most natural playing experience in electronic drumming. When paired with the deep capabilities of the V71, V51, and V31 modules, this advanced snare pad delivers ultra-detailed positional sensing and over 16,000 velocity variations across the entire pad surface. The multi-sensor trigger system and high-speed digital communication translate every nuance, from hard hits to the softest articulations. Hand position is automatically detected for seamless transitions between headshots, rimshots, and cross-stick playing.

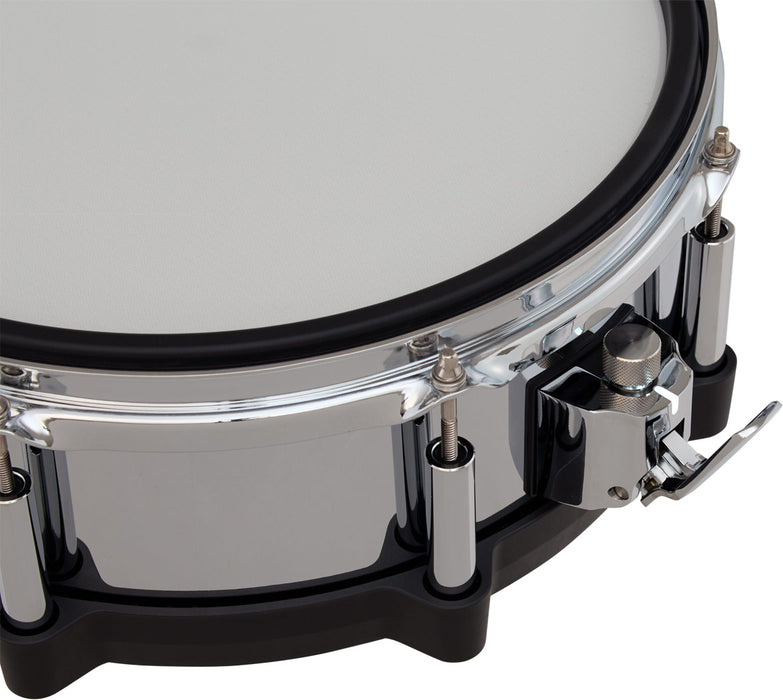

A newly designed pad structure provides a natural look and feel, with a triple-flange hoop and rim height like a standard acoustic snare. The PD-14DSX is also fitted with a throw-off mechanism that turns the virtual snares on or off with the quick flip of a lever, while the strainer knob enables you to dial in snare tension with a twist. Additionally, the knob includes a button to control assignable functions in the module.

Features:

• High-performance 14-inch digital snare with advanced Roland technology
• Multiple sensors for high-resolution triggering and positional detection
• Automatic hand detection for seamless transitions between snare techniques
• Throw-off lever to turn snares on/off, with an LED status indicator that syncs with the module
• Knurled knob for snare tension adjustment and remote control of assignable functions
• Triple-flange hoop with the same rim height as a standard acoustic snare drum
• Three-ply mesh head provides natural rebound, playing feel, and response
• Designed for use with the V71, V51, and V31 sound modules
• Included with TD716, VAD716, TD713, and VAD516 kits
• Performance upgrade for kits such as the TD516, TD513, TD316, TD313, and VAD316
• Also works with the legacy TD-50X module (some functions are not supported; visit the Support tab for details)

Specifications

• Pad Size

  • 14 inches

• Shell Depth

  • 4.3 inches

• Tension Rods

  • 8

• Head

  • 3-ply mesh head

  • Floating mid-layer structure

• Available Playing Methods (Triggers)

  • Head shot

    • High-resolution positional detection

  • Rim shot

    • Depth detection

  • Cross stick

    • Automatic switching

  • Brush sweep

• Sensor System

  • Multi-element sensor system

  • Head sensor

  • Position sensors × 3

  • Rim sensor

  • Cross-stick sensors × 3

  • Built-in sensing processor

• Strainer (Throw-Off)

  • Strainer lever

  • Strainer knob

  • Strainer switch

  • Strainer indicator

• Connector

  • DIGITAL TRIGGER OUT plug

  • Compatible with Roland drum sound modules equipped with a DIGITAL TRIGGER IN port

• Power Supply

  • Supplied from DIGITAL TRIGGER IN port

  • DC 5 V

• Current Draw

  • 120 mA

• Accessories

  • Owner's Manual

  • Connection cable

  • Drum key

• Size and Weight

  • Width: 410 mm (16-3/16 inches)

  • Depth: 378 mm (14-15/16 inches)

  • Height: 150 mm (5-15/16 inches)

  • Weight: 5.0 kg
