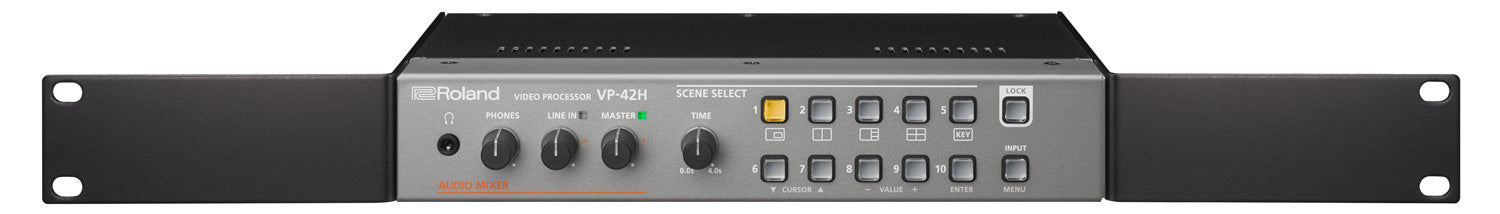

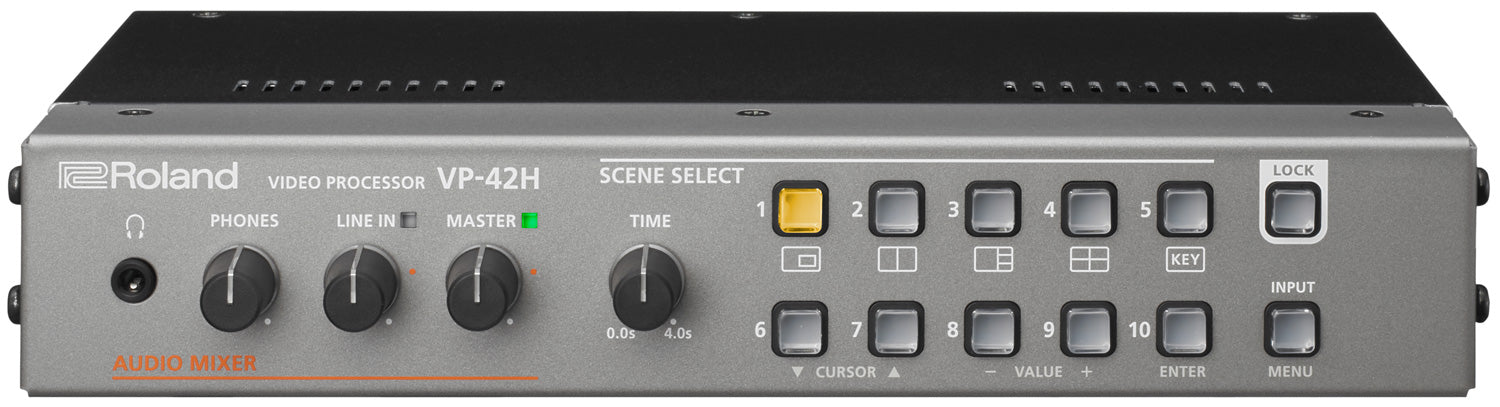

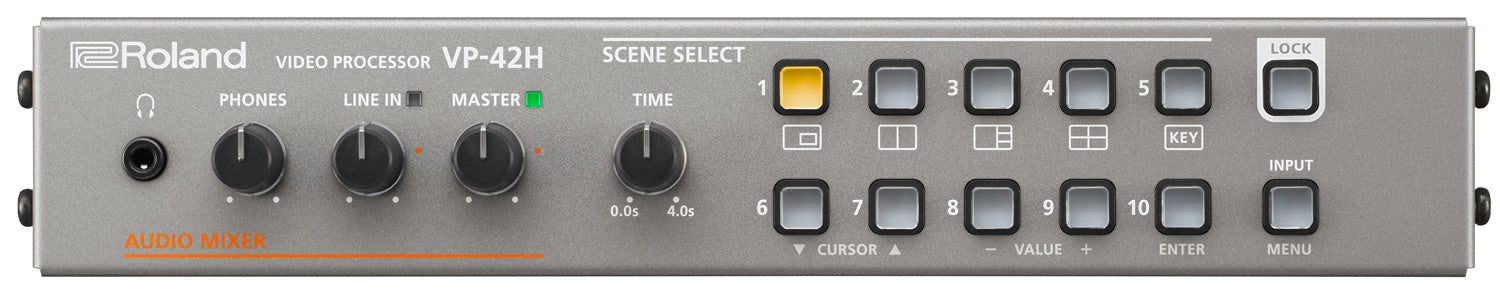

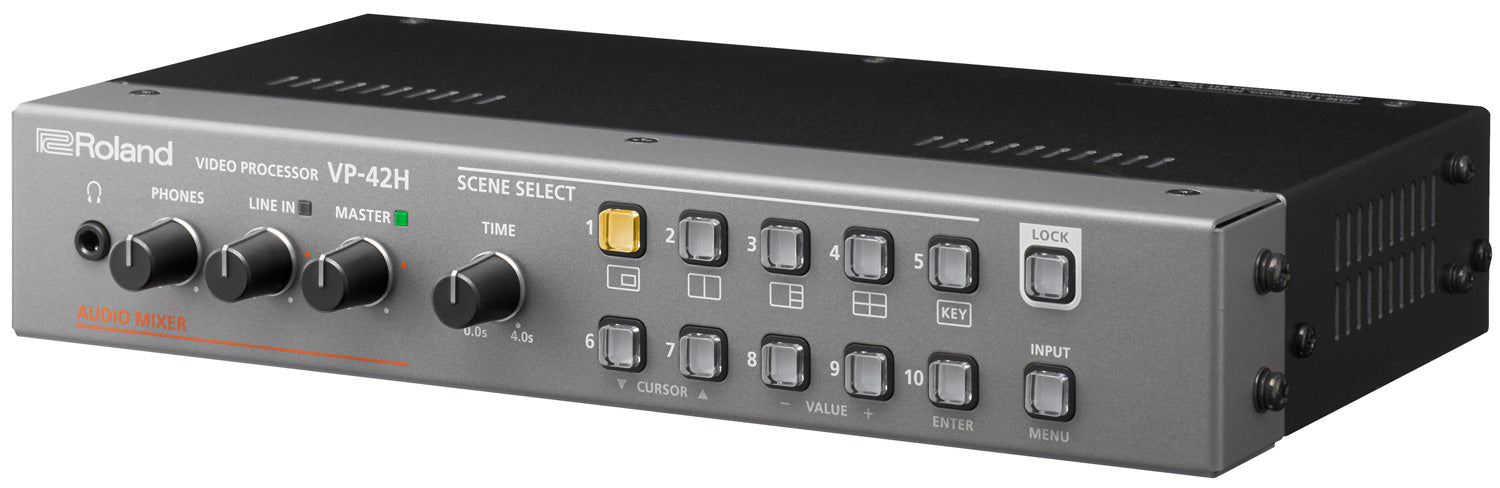

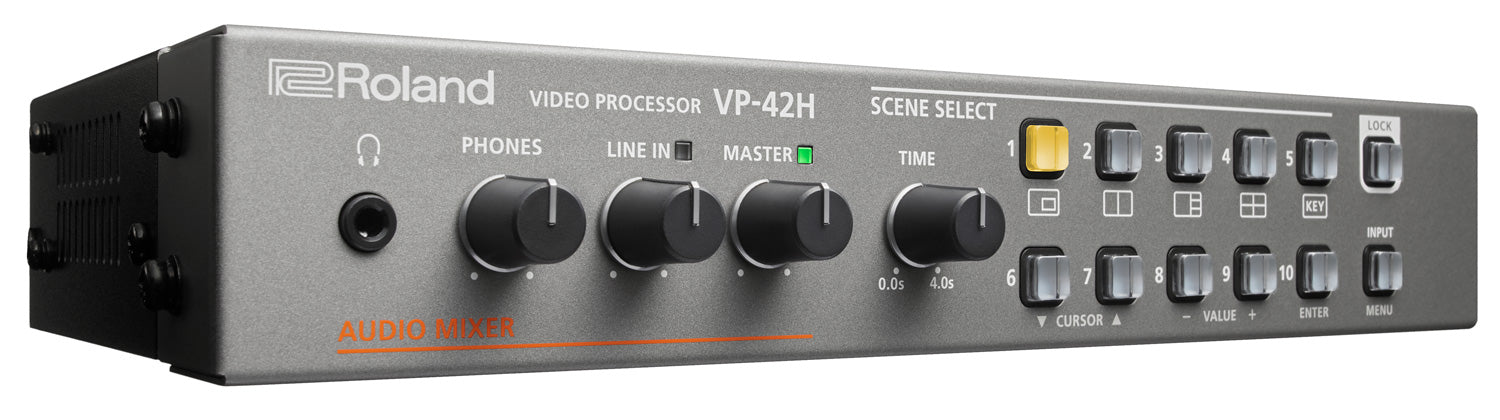

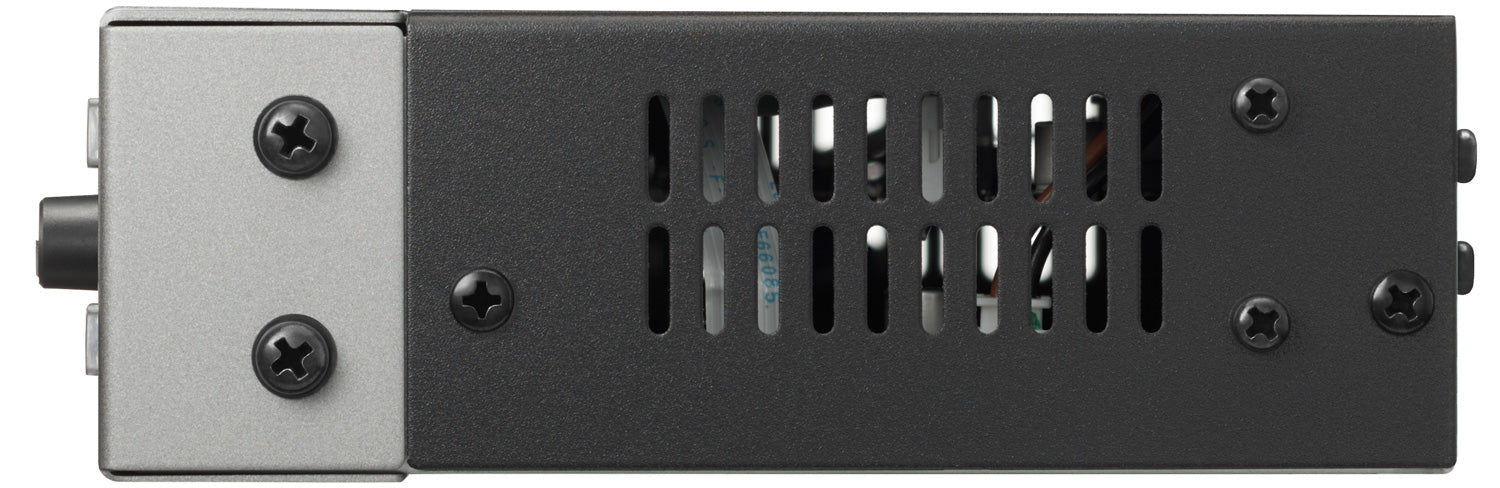

Roland VP-42H Video Processor

The Roland VP-42H Video Processor layers and arranges multiple video sources to a single screen with dynamic transitions for effective and engaging presentations,
digital signage and meeting applications.

Features:

• Combine up to four HDMI video sources on to a single output
• Simple set-up and remote switching with browser-based network control
• Connect and switch multiple resolutions simultaneously
• Audio management and connection to external audio devices
• Motion Scene Switching for fluid transitions between complex screen sets
• Keyer function for overlays and advanced compositions

Specifications

• Video

  • Processing

    • 4:4:4 (Y/Pb/Pr, RGB) / 10 bits

    • 4:2:2 (Y/Pb/Pr) / 10 bits

  • Input Connectors

    • HDMI: HDMI Type A × 4 (HDMI INPUT 1–4)

    • HDCP supported

  • Output Connectors

    • HDMI: HDMI Type A × 2 (HDMI OUTPUT 1–2)

    • HDCP supported

  • Formats

    • 480/59.94i (*1)

    • 576/50i (*1)

    • 480/59.94p (*1)

    • 576/50p (*1)

    • 720/59.94p

    • 720/50p

    • 1080/59.94i

    • 1080/50i

    • 1080/59.94p

    • 1080/50p

    • 800 × 600/60 (*1)

    • 1024 × 768/60 (*2)

    • 1280 × 720/60 (*2)

    • 1280 × 800/60 (*2)

    • 1366 × 768/60 (*2)

    • 1280 × 1024/60 (*2)

    • 1400 × 1050/60 (*2)

    • 1600 × 1200/60

    • 1920 × 1080/60

    • 1920 × 1200/60 RB

    • Conforms to CEA-861-E and VESA DMT Version 1.0 Revision 11

    • Frame rate: 59.94 Hz (NTSC) or 50 Hz (PAL)

    • *1 Input only

    • *2 Output refresh rate is 75 Hz when frame rate is set to 50 Hz

  • Composition

    • 4 layers

    • Picture in Picture × 4

    • Layer 1: Picture in Picture with Keyer

  • Transition

    • Black-insert

    • Mix

    • Cut

    • Motion

  • Still Image

    • Internal memory: 1 image

    • Maximum size: 1920 × 1200 pixels

    • Format: Windows Bitmap File (.bmp)

    • 24 bits per pixel

    • Uncompressed

• Audio

  • Sample Rate

    • 48 kHz, 24 bits

  • Input Connectors

    • HDMI: HDMI Type A × 4

    • AUDIO INPUT: RCA pin type

  • Output Connectors

    • HDMI: HDMI Type A × 2

      • Both outputs carry the same audio

    • AUDIO OUTPUT: RCA pin type

    • PHONES: Stereo mini type

  • Input Level

    • AUDIO INPUT: -10 dBu

    • Maximum: +8 dBu

  • Input Impedance

    • AUDIO INPUT: 15 kΩ

  • Output Level

    • AUDIO OUTPUT: -10 dBu

    • Maximum: +8 dBu

    • PHONES: 72 mW + 72 mW (32 Ω)

  • Output Impedance

    • AUDIO OUTPUT: 1 kΩ

    • PHONES: 10 Ω

  • Formats

    • HDMI: Linear PCM, 24 bits, 48 kHz, 2 channels

  • Processing

    • Mixer: 4 channels

    • Delay: Maximum 250 ms

• Other

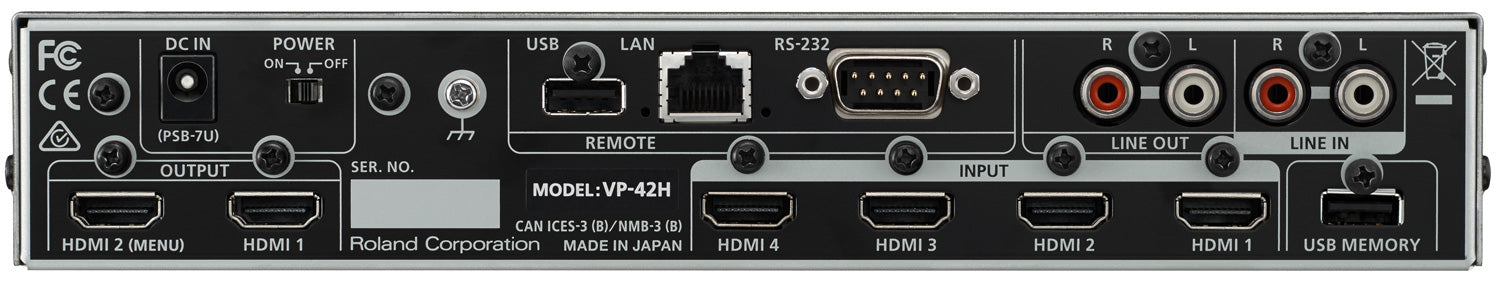

  • External Connectors

    • REMOTE:

      • RS-232: DB-9 type (Male) × 1

      • LAN: RJ45 × 1

      • USB: USB Type A × 1

        • For future expansion

      • USB MEMORY: USB Type A × 1

        • For USB memory

  • Functions

    • Scene Memory: 10

    • Test Pattern Generator

    • Test Tone Generator

    • EDID Emulator

• Power Supply

  • AC adaptor

• Current Draw

  • 2.1 A

• Power Consumption

  • 25 W

• Operating Temperature

  • 0 to +40 °C

  • +32 to +104 °F

• Dimensions

  • Width: 242 mm (9-9/16 inches)

  • Depth: 125 mm (4-15/16 inches)

  • Height: 44 mm (1-3/4 inches)

• Weight

  • 1.2 kg (2 lbs 11 oz)

• Accessories

  • Owner’s Manual

  • Leaflet: “USING THE UNIT SAFELY”

  • AC adaptor

  • Power cord

  • Rubber feet × 4

  • Rack mount angle set
