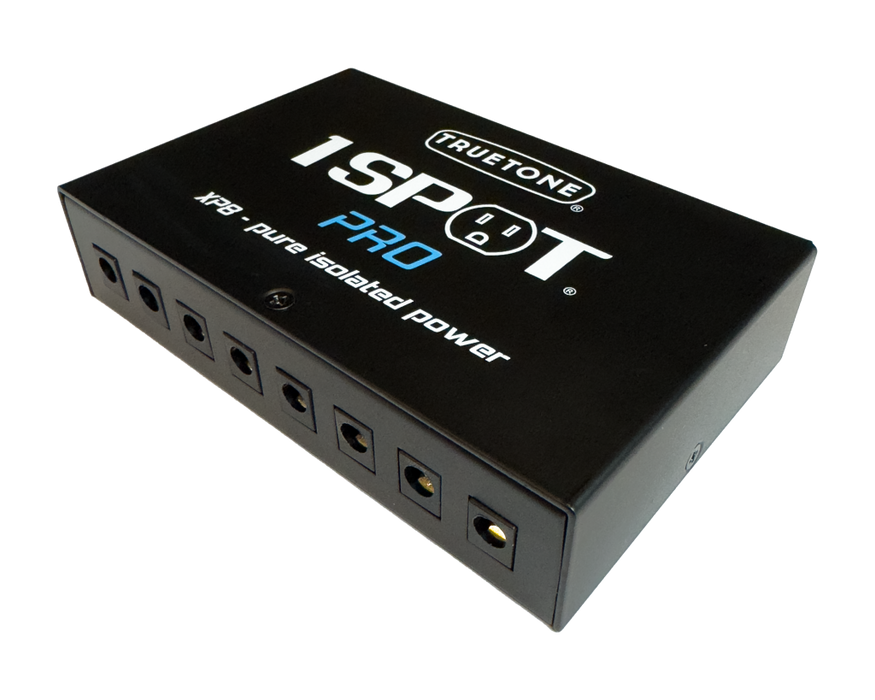

TrueTone XP8-PS - 8 output expansion box w/power supply
Délais estimé avant expédition à confirmer une fois la commande placée.
“A lot of people over the years had told us that we should make a power brick. Even some of my own staff urged me to do it, but I didn’t want to for two reasons. First, I knew the 1 SPOT could power just about every pedal out there, so I didn’t see the need. Second, I didn’t want to make just another knock-off of someone else’s power brick. If we were going to make one, we were going to do it our way and have features that nobody else could offer. As pedal designs changed and it became more common for digital pedals to require isolation and for others to need something other than 9Vdc, I finally saw a reason for us to design a power brick.”
“It took 3 years and lots of experimentation, but we were finally able to design a 1 SPOT Pro, using our own proprietary technology to give musicians all the features they need for today’s pedalboards. The original 1 SPOT still works great for most musicians, but for those who need more power and versatility, the 1 SPOT Pro fills the need perfectly.” - Bob Weil (Founder & President - Truetone)
Specifications
Dimensions
133 x 88 x 30mm (5.24 x 3.46 x 1.18”); 488 grams (1.075 lbs.) - weight and dimensions of power supply only, not including cables or packaging.

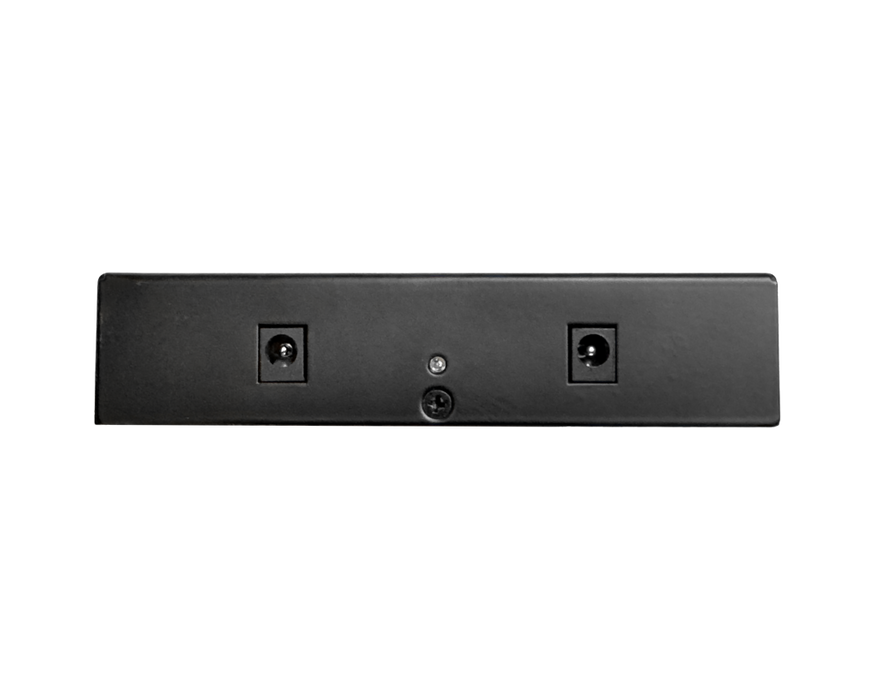

Input Voltage
12Vdc 4.0A. External power supply (included with XP8-PS) must have a 5.5x2.1mm barrel plug, center pin positive. The XP8 is also designed to be powered directly from the output on the back of a 1 SPOT Pro CS11, provided the total current load connected to the XP8 is 2.5A or less.
Cables
The 1 SPOT Pro XP8-PS includes an assortment of DC cables. The cables are of various lengths, color-coded for easy cable management and with right angle plugs on the pedal end.
Power cables (all are center pin negative polarity):
(2) DC26 (5.5x2.1mm barrel plugs; 26” (660mm) – Purple
(4) DC18 (5.5x2.1mm barrel plugs; 18” (457mm) – White
(2) DC12 (5.5x2.1mm barrel plugs; 12” (305mm) – Yellow

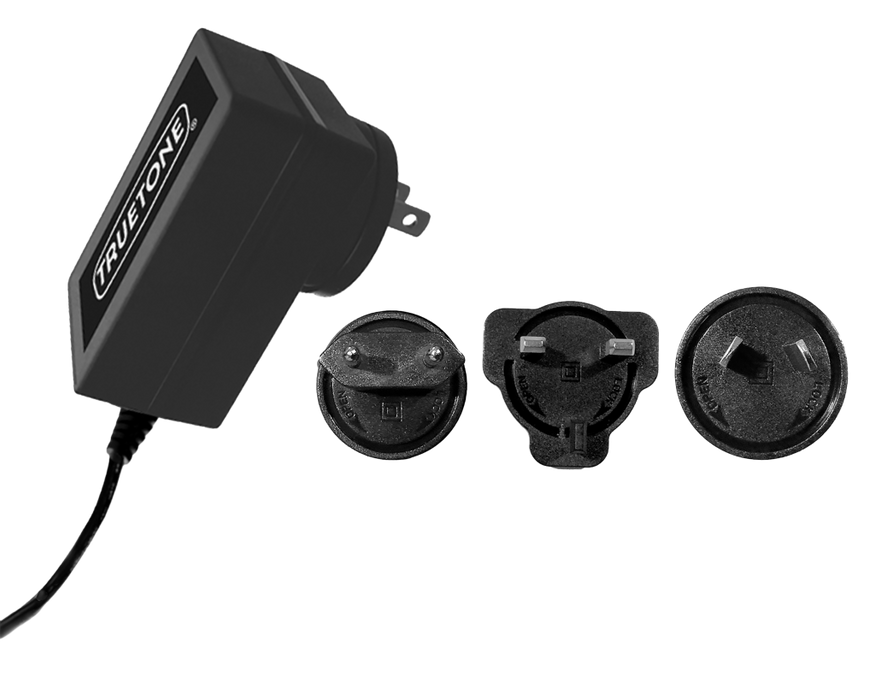

International Adapter
The XP8-PS comes with a 12Vdc, 4.0A external power adapter. This adapter has 4 interchangeable plugs for use in most regions of the world. Instructions on how to change the plugs is included in the user manual.

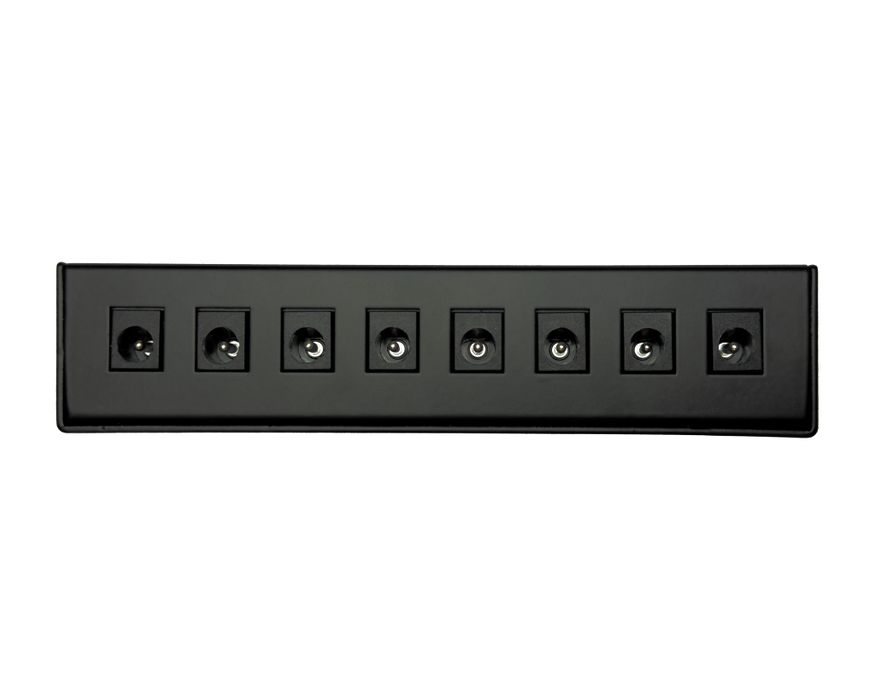

Available Output Voltages
All outputs are 9Vdc, 500mA.
