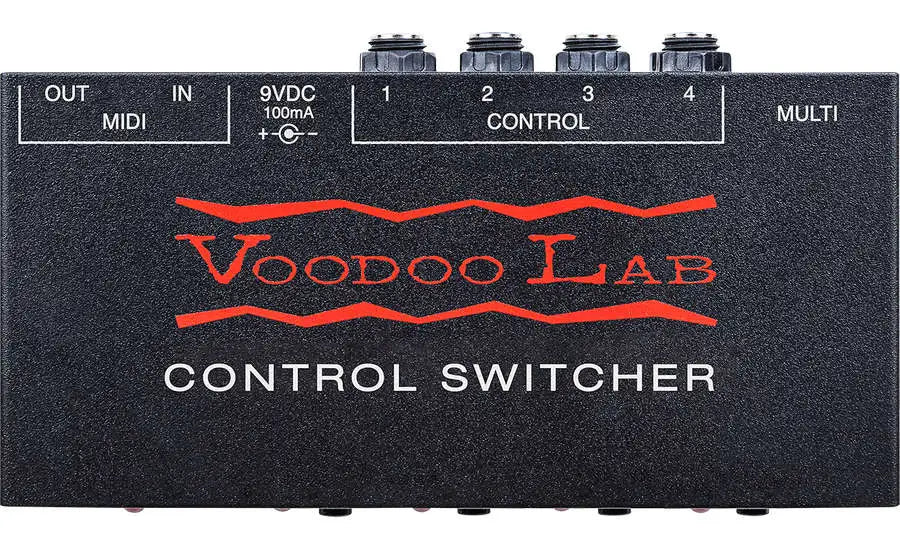

Voodoo Lab Control Switcher MIDI Amp Commander

Add MIDI Automation to Channel Switching Amps!

Switch channels on multiple amps and easily automate any non-MIDI functions with Control Switcher. Using a Voodoo Lab Ground Control Pro or any standard MIDI-capable foot controller, Voodoo Lab’s Control Switcher gives you instant MIDI programmability for controlling all footswitchable amp functions including channel switching, reverb, boost, EQ, loop and more.

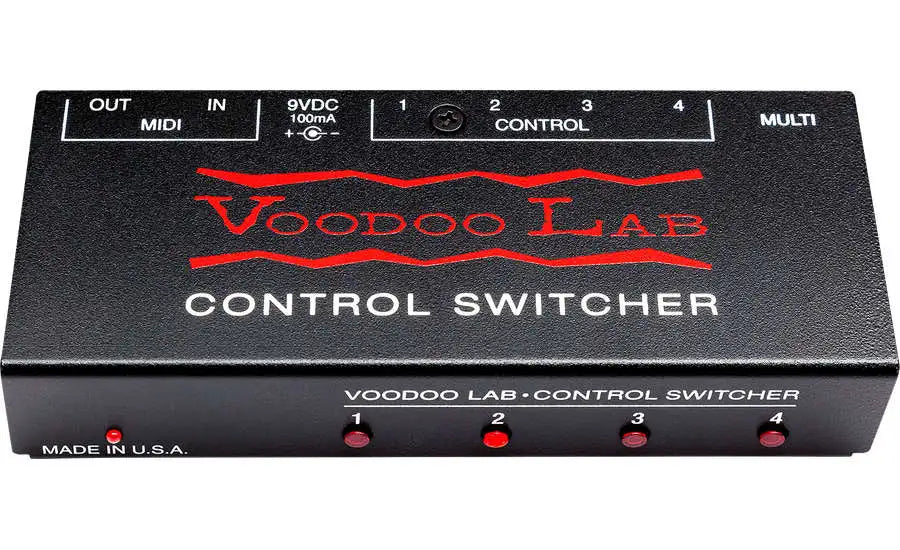

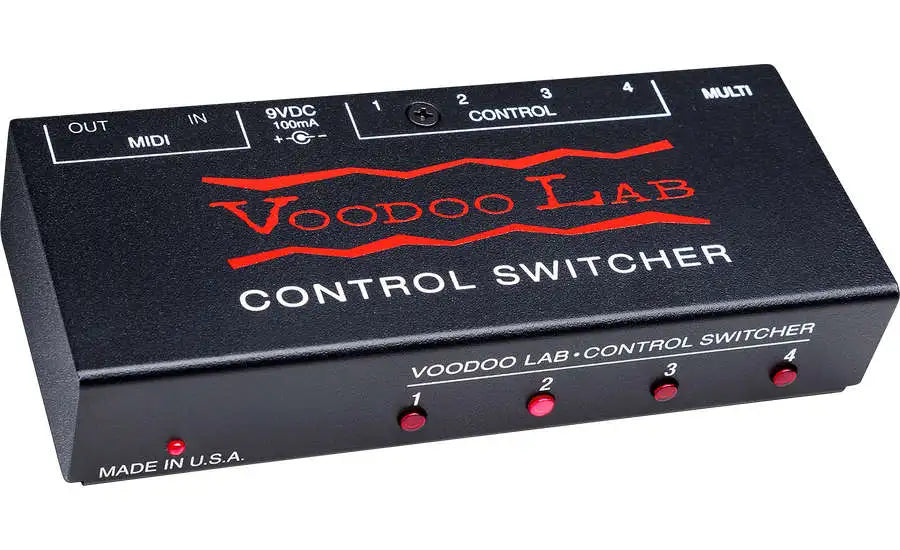

Control Switcher Features 4 completely isolated relays with front panel instant access buttons, separate 1/4” mono outputs and a multi-DIN connector. Runs off a standard 9V power supply and is compact enough to mount behind an amp, inside a rack, or on a pedalboard.

FEATURES

• 4 isolated relay controls
• Front panel instant access buttons
• Separate 1/4" mono jacks
• Multi-DIN connector for modern amps
• Controls any footswitch function
• Compatible with Ground Control Pro or any MIDI controller
• Phantom powered by GCX or Pedal Switcher via MIDI cable
• Conveniently power from any Pedal Power 9VDC output
• AC adapter included
• Hand-built in the U.S.A.

Control Switcher MULTI Connector Cable (Part# CXC)
Connects Voodoo Lab Control Switcher to an amplifier multi-pin footswitch jack.
Each cable is custom-made-to-order for your specific amp model.

SPECIFICATIONS

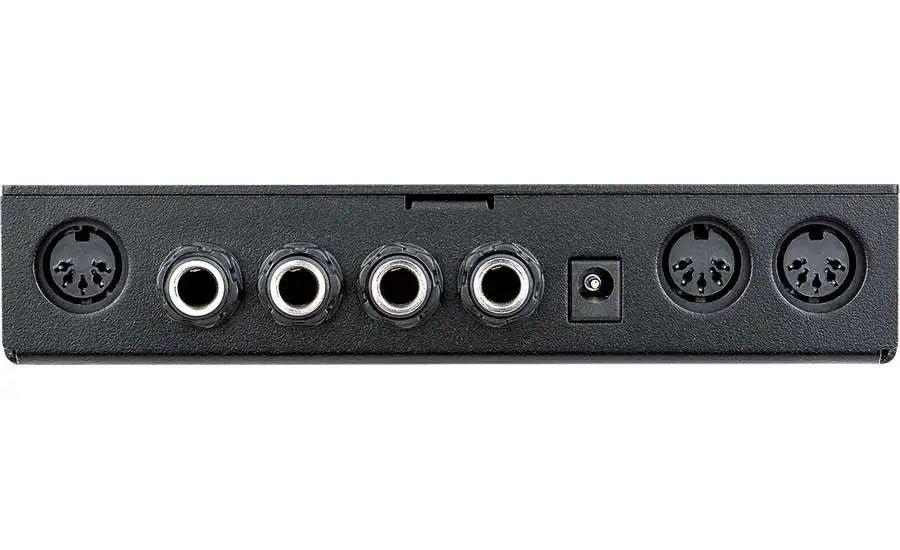

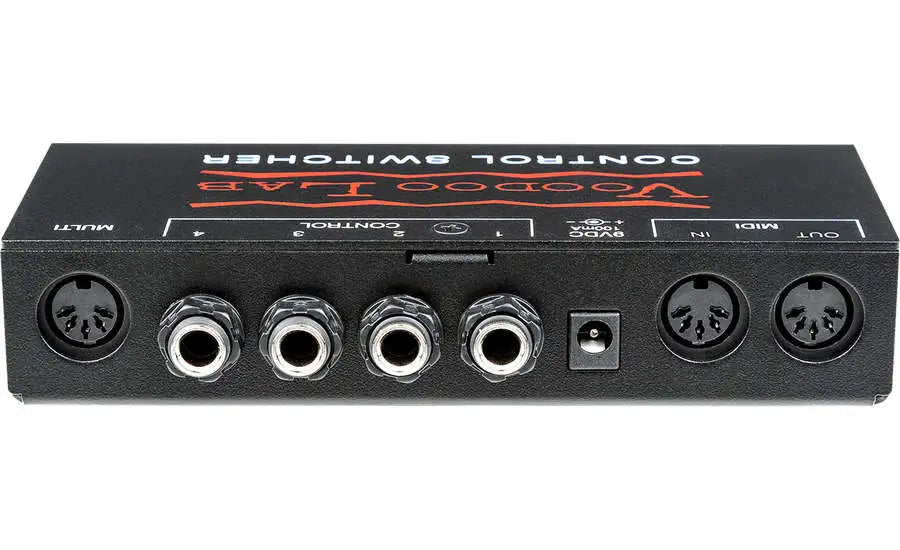

Inputs / Outputs

• 1/4” Control Jacks (x4): Accesses amp switch functions

• 5-Pin MULTI DIN Connector: For amps with multi-pin cable control jacks

MIDI

• MIDI In: Accepts MIDI commands and provides phantom power

• MIDI Out: Passes MIDI commands to other MIDI devices

Controls / Switches

• LED Function Buttons (x4):

  • Switches functions on/off

  • Saves programs

Power Requirements

• Voltage: 9–12V DC or 9V AC at 100mA

• Connector: 5.5mm x 2.1mm barrel, center-negative polarity

Physical

• Dimensions: 6.2" x 3.1" x 1.2" (157 x 79 x 30 mm)

• Weight: 9.6 oz. (272 g)

Warranty

• 5-year warranty in North America

• For other regions, contact your country's distributor for warranty details
