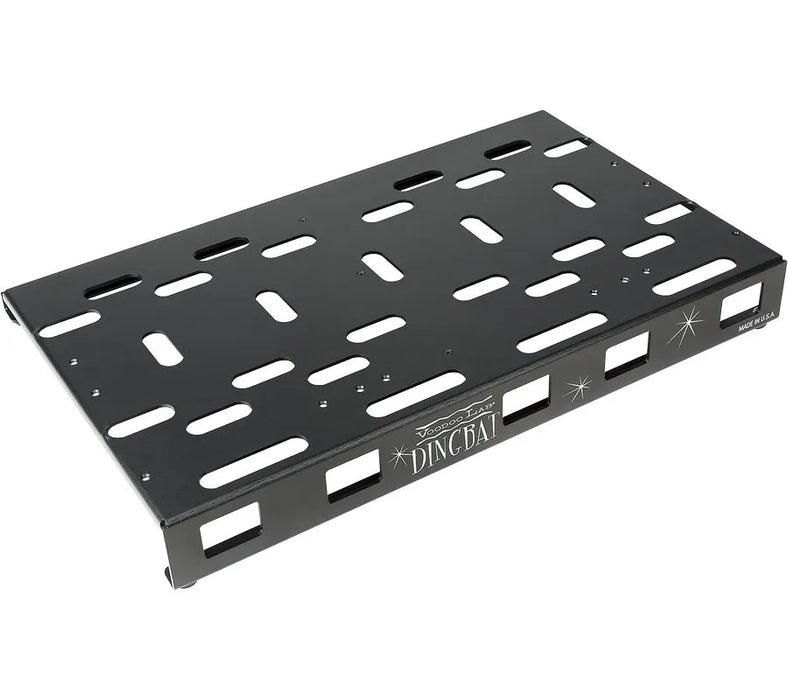

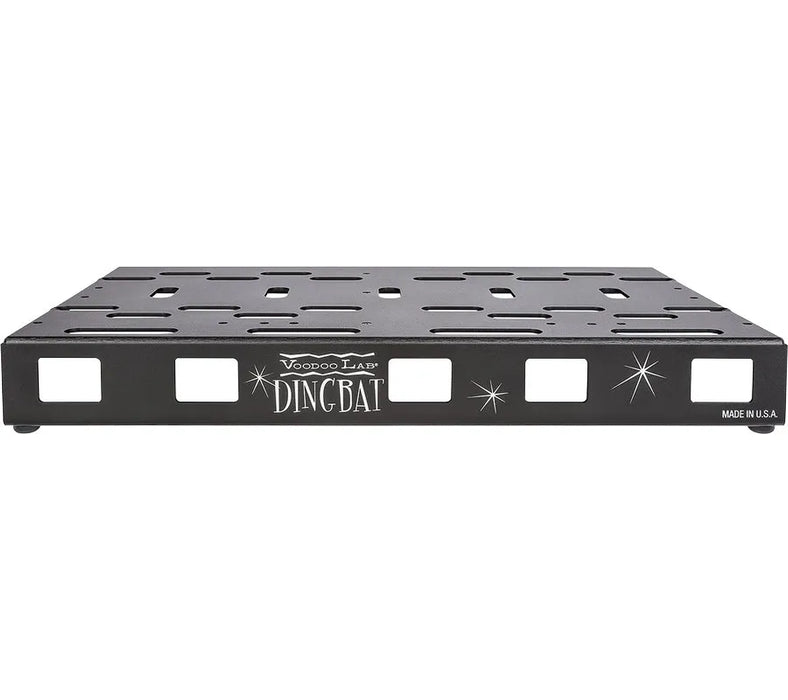

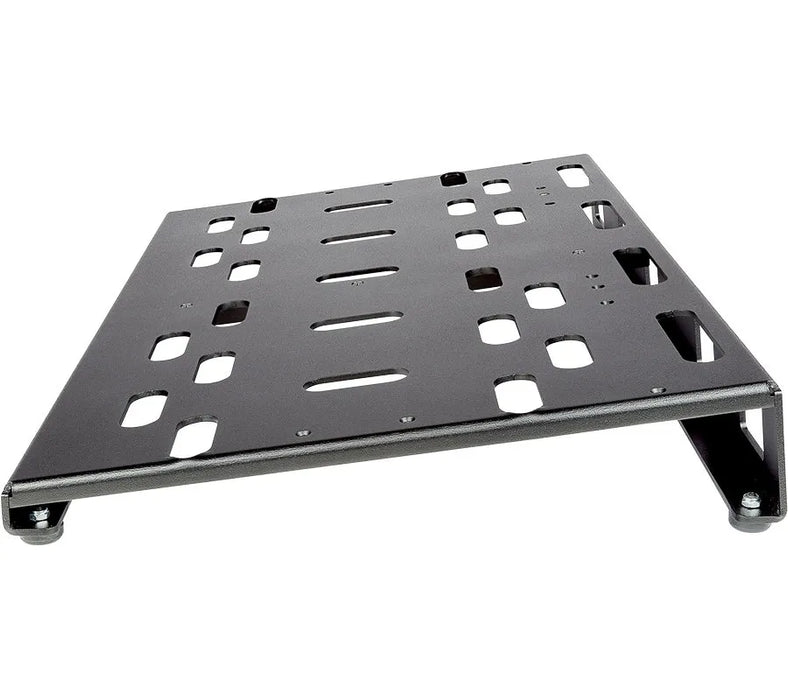

Voodoo Lab Dingbat Medium Pedalboard

DINGBAT MEDIUM is ideal for assembling a typical-size board with room for 6 to 10 effects. Installing Pedal Power® with the included mounting hardware is quick and easy using only a screwdriver. Dingbat Medium also features a dedicated position for a second Pedal Power that can be quickly installed with optional mounting brackets. Hook-and-loop tape is provided to attach pedals, as well as zip ties and 4-way tie mounts to secure cabling underneath.

ORGANIZE
A key element in executing a flawless performance is a clean, organized pedalboard, and Dingbat’s innovative patented design helps you set up your rig like a pro. All supplies needed for securing pedals and cabling to the board are included.

PROTECT

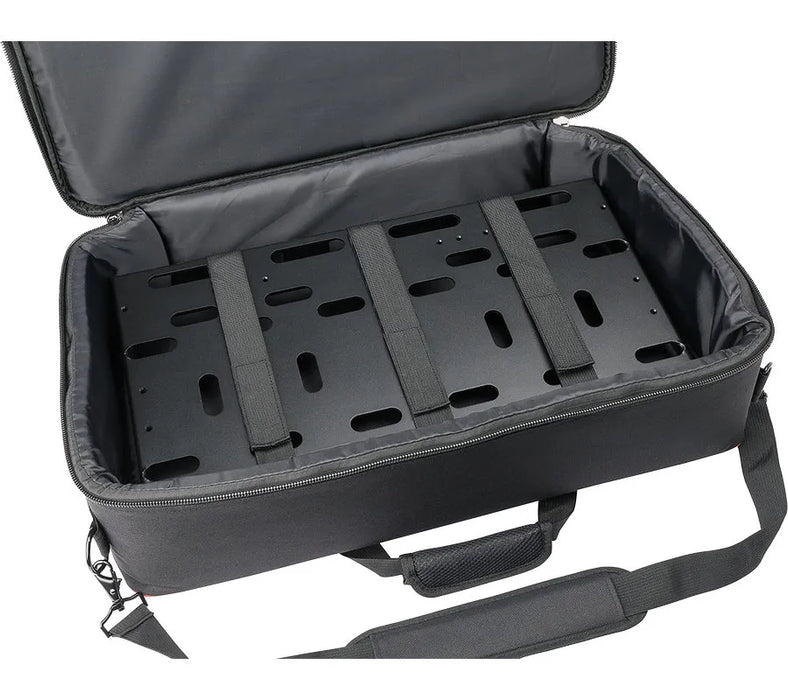

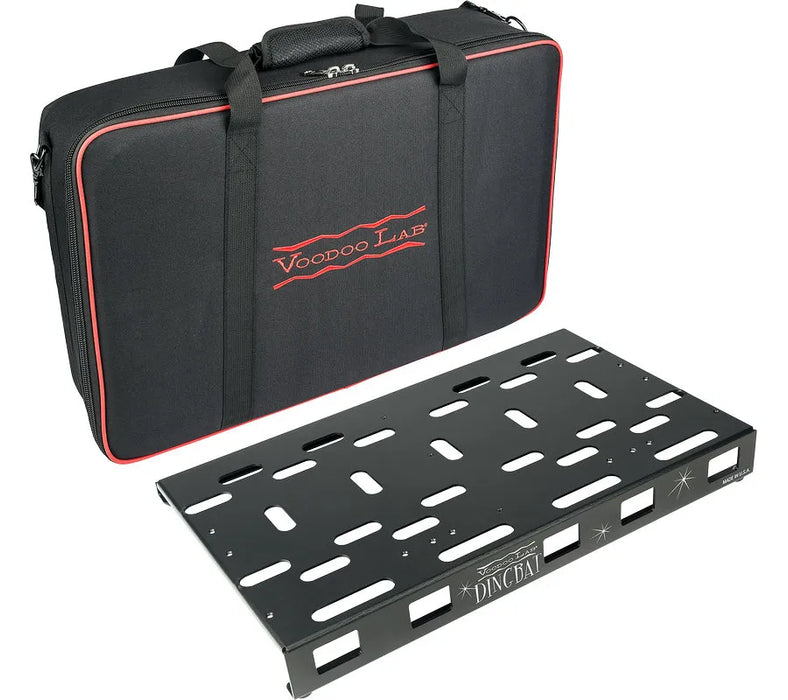

Dingbat MEDIUM includes a heavy-duty tour-grade soft case. Premium materials and construction ensure superior performance and long-lasting protection for your pedalboard. A removable shoulder strap and stowable backpack straps are included for easy transportation.

POWER
Dingbat Power Packages offer the convenience and added value of a factory-installed Voodoo Lab isolated power supply. Just add pedals and audio cables and you are ready to go. In addition to convenience, a factory-installed Pedal Power ensures any pedal will sound and perform its best. Even under poor AC line conditions, you can always count on Pedal Power to consistently deliver the cleanest most reliable power possible. Bundle-priced Power Package options for Dingbat MEDIUM include Pedal Power 2 PLUS, Pedal Power 3, or Pedal Power 3 PLUS.

FEATURES

• Innovative patented design
• Crafted from lightweight 6061-T6 aircraft-grade aluminum

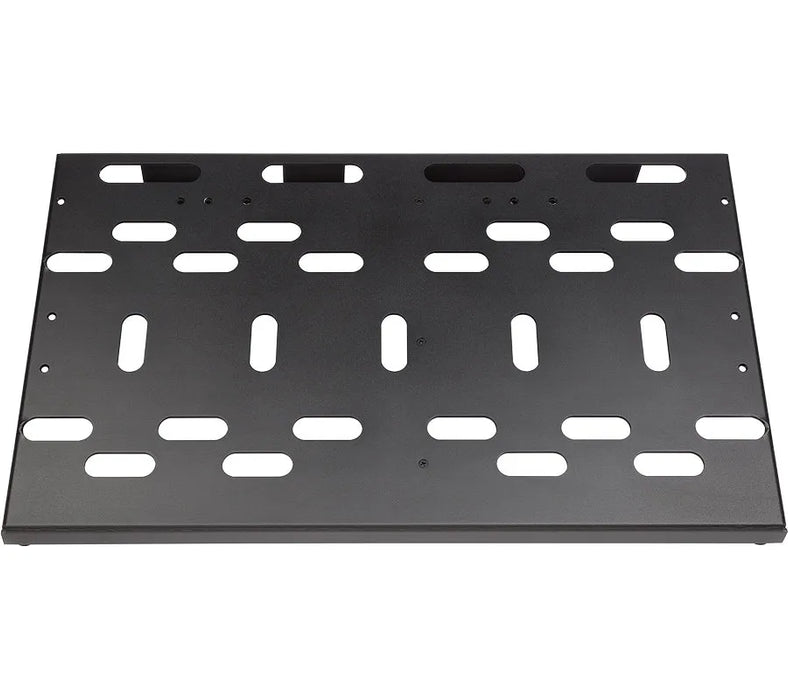

• Pedalboard surface size: 22” x 13.25” (559 x 337mm)
• Mounting brackets included for easy Pedal Power installation

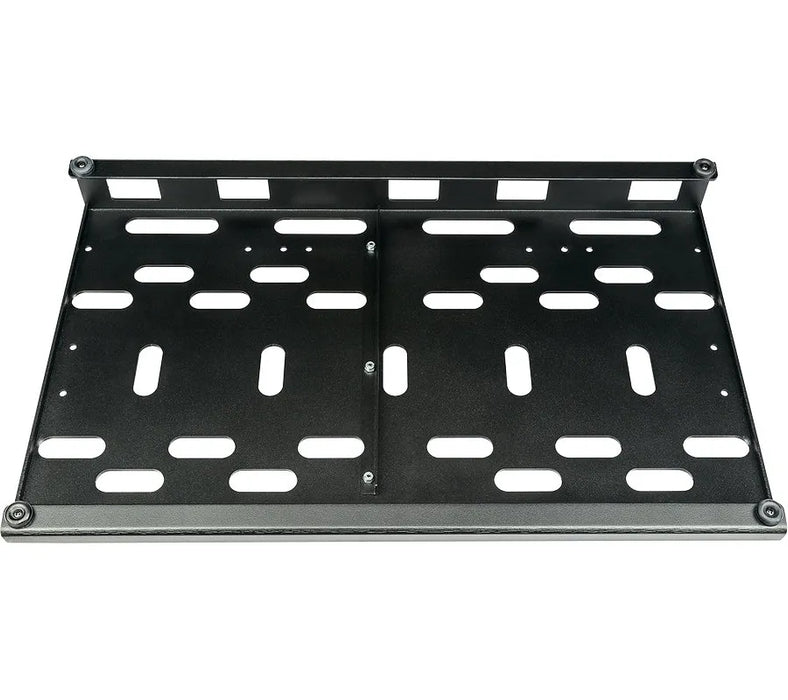

• Space for mounting up to two Pedal Power units below pedalboard
• Adhesive-backed hook-and-loop pedal mounting tape
• UV-resistant cable ties and 4-way tie mounts
• Professional tour-grade soft case with premium YKK zipper hardware, padded shoulder strap, and backpack straps
• Power Package options with factory-installed Pedal Power isolated power supply
• Power Package only: Includes cables for powering pedals
• Made in the U.S.A.

SPECIFICATIONS

Physical

• Dimensions: 22" x 13.25" x 2.75" (457 x 337 x 70 mm)

• Weight: 4.4 lbs. (2 kg)

Soft Case

• Dimensions: 25" x 15.5" x 7" (635 x 394 x 178 mm)

• Weight: 3.45 lbs. (1.6 kg)

Power Package Options

• Pedal Power 2 PLUS: 8 isolated outputs

• Pedal Power 3: 8 isolated outputs + Expansion capability

• Pedal Power 3 PLUS: 12 isolated outputs + Expansion capability

Warranty

• 5-year warranty in North America

• For other regions, contact your country's distributor for warranty details

Compatible Power Supplies

• Pedal Power ISO-5

• Pedal Power Digital

• Pedal Power 2 PLUS

• Pedal Power 4X4

• Pedal Power 3

• Pedal Power 3 PLUS

• Pedal Power MONDO
