Voodoo Lab Dingbat Small EX Pedalboard

DINGBAT SMALL-EX is the “Goldilocks” pedalboard size. Large enough for a typical 6 to 8 pedal setup but compact enough to stow in the overhead compartment of any commercial aircraft. With its 10” depth, SMALL-EX accommodates a full-size wah, volume, or expression pedal. Installing Pedal Power with the included mounting hardware is quick and easy using only a screwdriver. Hook-and-loop tape is provided to attach pedals, as well as zip ties and 4-way tie mounts to secure cabling underneath.

ORGANIZE
A key element in executing a flawless performance is a clean, organized pedalboard, and Dingbat’s innovative patented design helps you set up your rig like a pro. All supplies needed for securing pedals and cabling to the board are included.

PROTECT

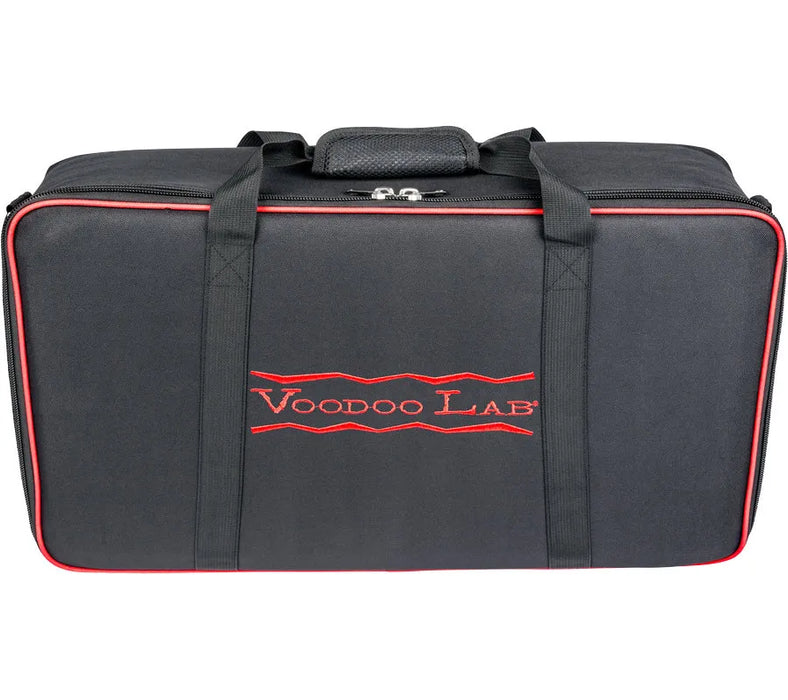

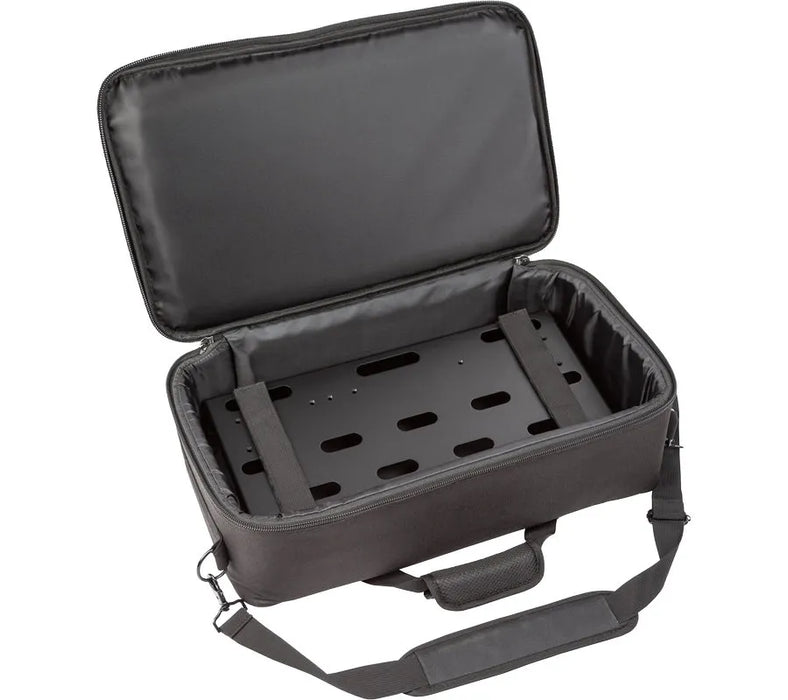

Dingbat SMALL-EX includes a heavy-duty tour-grade soft case that meets carry-on requirements for all commercial airlines. No bag checking required. Premium materials and construction ensure superior performance and long-lasting protection for your pedalboard. A removable shoulder strap is included for easy transportation.

POWER
Dingbat Power Packages offer the convenience and added value of a factory-installed Voodoo Lab isolated power supply. Just add pedals and audio cables and you are ready to go. In addition to convenience, a factory-installed Pedal Power ensures any pedal will sound and perform its best. Even under poor AC line conditions, you can always count on Pedal Power to consistently deliver the cleanest most reliable power possible. Bundle-priced Power Package options for Dingbat SMALL-EX include Pedal Power X8, Pedal Power 2 PLUS, or Pedal Power 3.

FEATURES

• Innovative patented design
• Crafted from lightweight 6061-T6 aircraft-grade aluminum

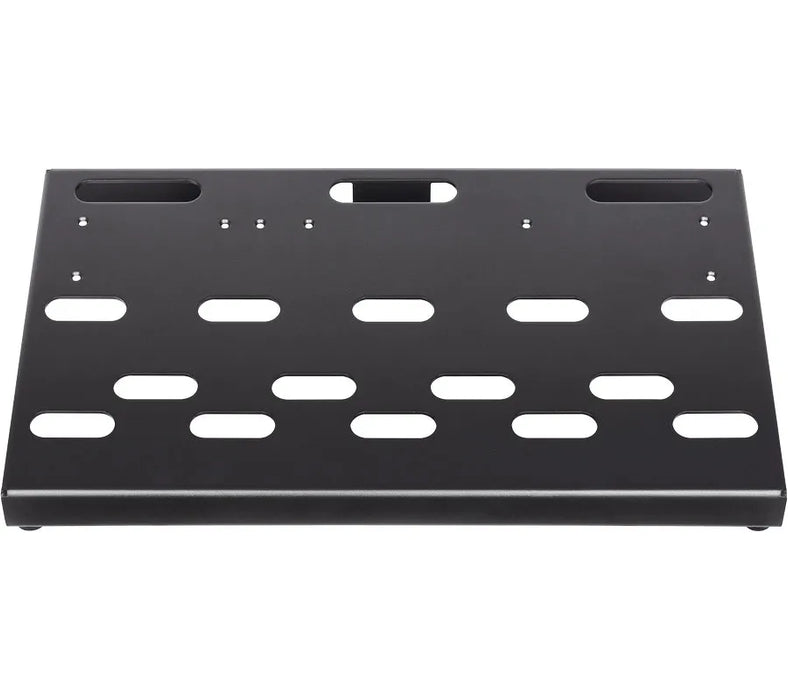

• Pedalboard surface size: 18” x 10” (457 x 254mm)
• Mounting brackets included for easy Pedal Power installation
• Adhesive-backed hook-and-loop pedal mounting tape
• UV-resistant cable ties and 4-way tie mounts
• Professional tour-grade soft case with premium YKK zipper hardware
• Power Package options with factory-installed Pedal Power isolated power supply
• Power Package only: Includes cables for powering pedals
• Made in the U.S.A.

SPECIFICATIONS

• Physical

  • Dimensions: 18" x 10" x 2.75" (457 x 254 x 70 mm)

  • Weight: 3.2 lbs. (1.42 kg)

• Soft Case

  • Dimensions: 21” x 13” x 6.5” (533 x 330 x 165 mm)

  • Weight: 2.2 lbs. (1 kg)

• Power Package Options

  • Pedal Power X8 (8 isolated outputs)

  • Pedal Power 2 PLUS (8 isolated outputs)

  • Pedal Power 3 (8 isolated outputs + expansion capability)

• Warranty

  • 5-year warranty in North America

  • For other regions, contact your country’s distributor for warranty details

• Compatible Power Supplies

  • Pedal Power ISO-5

  • Pedal Power Digital

  • Pedal Power 2 PLUS

  • Pedal Power 4X4

  • Pedal Power 3

  • Pedal Power 3 PLUS
