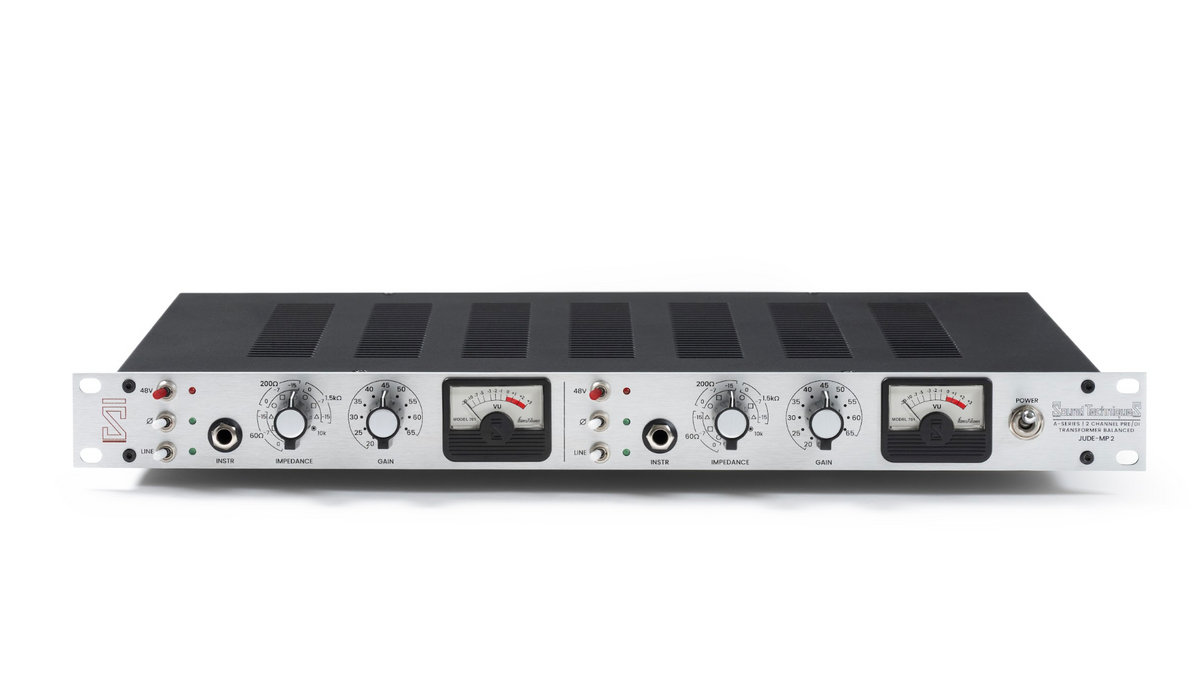

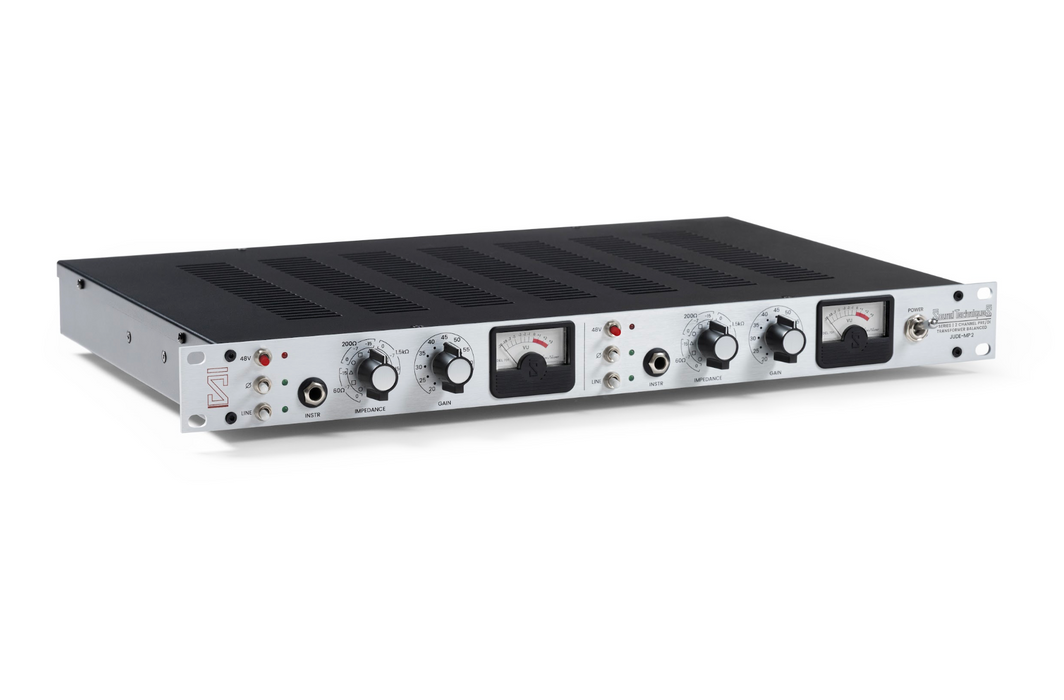

Warm Audio JUDE-MP2 Dual-Channel Microphone Preamp
Délais estimé avant expédition à confirmer une fois la commande placée.
Interest FREE financing available at checkout
Retour 30 jours
Livraison rapide et sécurisée
Conseils d'experts, service humain
Garantie du plus bas prix
Created in official collaboration with legendary console builder Sound Techniques, the Warm Audio JUDE-MP2 brings two channels of the original Sound Techniques A-Range microphone preamp circuit to the modern studio. Each channel features a dual-discrete 3035 Class-A amplifier, custom CineMag transformers, and a 9-position Z-Match impedance control, providing the depth, punch, and musical character associated with classic British console recordings.
Key Features
- Dual-channel dual-discrete console microphone preamp
- Original Sound Techniques A-Range preamp circuit
- Dual-discrete 3035 Class-A amplifier architecture
- Custom-wound CineMag input and output transformers
- Independent 9-position Z-Match impedance control for each channel
- Variable microphone input impedance: 60 ohms, 200 ohms, and 1.5 kohms
- 48 V phantom power, polarity switch, and line-level switch
- VU meter level indication
Specifications
Audio
Channels: 2
Preamp Gain: 65–76 dB with 40-ohm source impedance
Microphone Input Impedance: 60 ohms / 200 ohms / 1.5 kohms
Equivalent Input Noise: -128 dBu A-weighted
Self-Noise: -99 dBu A-weighted
THD: 0.008%
Frequency Response: 10 Hz–25 kHz, ±2 dB
Connections & Controls

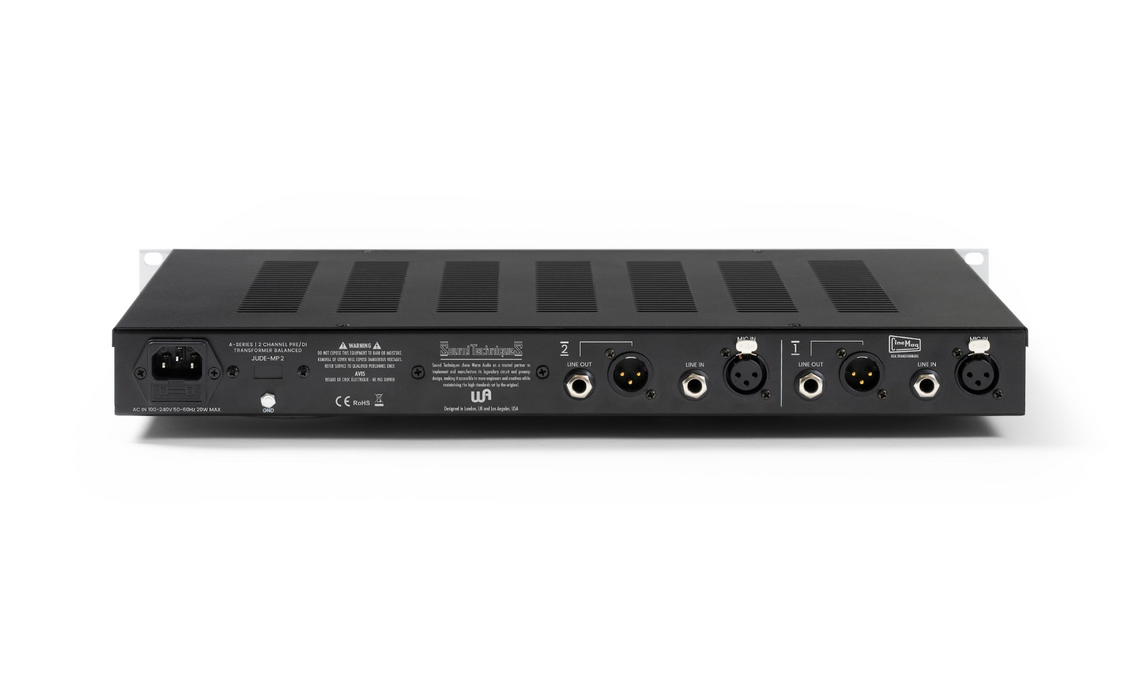

Inputs: XLR microphone and 1/4-inch TS/TRS
Outputs: XLR and 1/4-inch TRS line-level
Phantom Power: 48 V
Additional Controls: Polarity, line-level, 9-position Z-Match
Construction
Faceplate: Aluminum
Chassis: Steel
Level Metering: VU meters
