Yamaha Stagepas 200 Portable PA System with Lithium-Ion Battery

Stagepas 200 BTR from Yamaha is a portable PA system equipped with a 180 W Class D amplifier, coaxial compression driver with 1.4" voice coil HF and 8" cone LF, and a 5-channel digital mixer. Each input channel is equipped with a 1-knob EQ/preset and 1-knob Effect controls - a function proprietary to Yamaha. Together with the 'Mode' compressor on the main outputs, users can easily and intuitively create the sound they want.

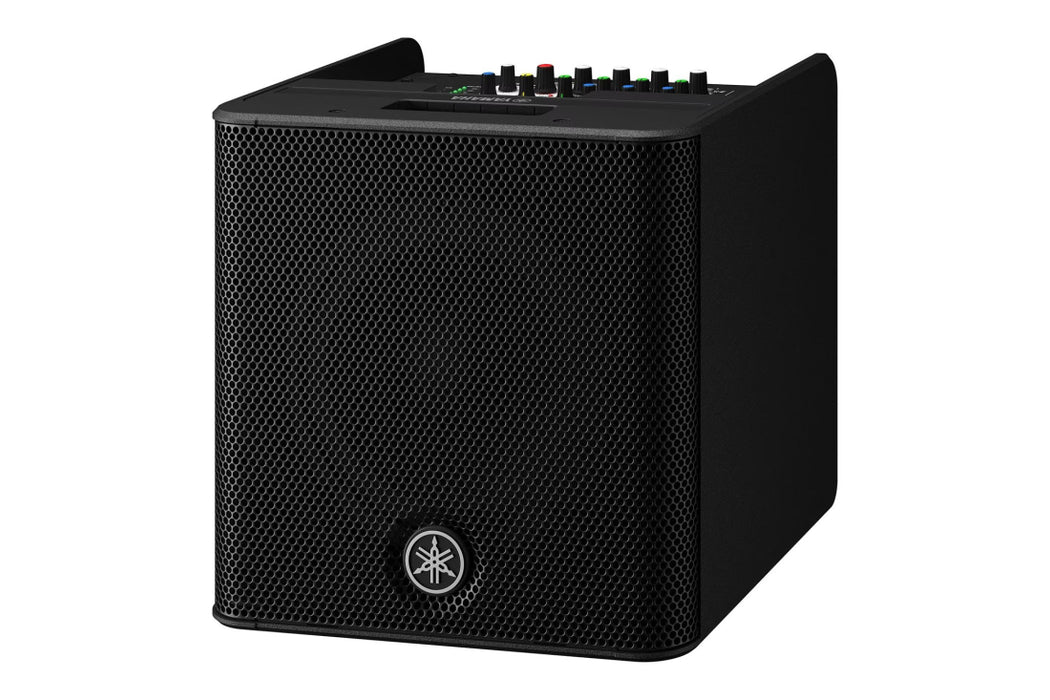

STAGEPAS 200 provides all the features of a high-quality portable PA system in a remarkably compact 12" cube-shaped enclosure. Alongside its portability and sound quality, it offers ample functionality and mixing capacity, intuitive operation and support for Bluetooth audio streaming and remote control. Available with an optional battery pack, STAGEPAS 200 is suitable for a wide range of applications, from street performances to events, parties and speeches.

The system is very easy to operate. As well as onboard controls, the Yamaha iOS/Android STAGEPAS Controller app provides realtime, precise remote control of volume, EQ and effects including reverb, compression, microphone simulator, ducker and feedback suppressor. Settings can be saved and recalled, greatly reducing setup time, ensuring consistent sound and allowing users to concentrate solely on their performance.

The system's flexibility is enhanced by a rubber stand which can tilt the unit at a 30° or 60° angle, for use either as an audience fill speaker or as a floor monitor for performers. The base of the cabinet also houses a 35 mm pole mount socket, allowing it to be mounted on a speaker stand or with a subwoofer using a distance rod.

Features

• 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
• 1.4" HF + 8" LF high-quality coaxial compression driver

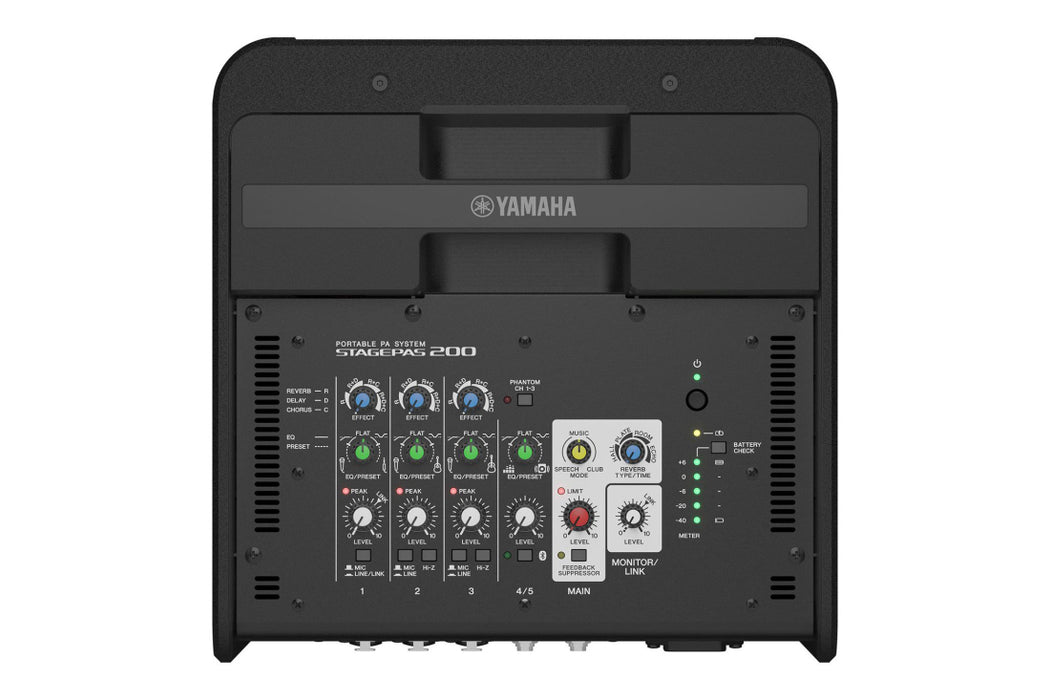

• 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
• Main output multi-band compressor "MODE"
• 1-knob EQ/preset for each channel
• High-grade SPX digital reverb (4 program, parameter control), delay, chorus
• Hi-Z input
• Equipped with link-out/monitor out
• Supplied rubber stand allows inclining at 30 or 60 degrees
• Compatible with audio streaming via Bluetooth
• Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
• Includes one BTR-STP200 Lithium-ion battery
• Optional CASE-STP200 carry case for convenient carrying

Specifications

Type: 2-way Bi-amp Powered Speaker with mixer

MIXING CAPABILITY
Mixing channels: 5 (Mono x3 + Stereo x1)
Input channel functions: Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
Output channel functions: MODE (SPEECH/MUSIC/CLUB)

I/O
Inputs: Mono x3 (mic/line) + Stereo/Mono x1 (line)
Outputs: Monitor/Link out x1
Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
Control and others: STAGEPAS Controller (iOS/Android app)

ON-BOARD PROCESSORS
DSP: SPX digital reverb (4 program, parameter control), delay, chorus

GENERAL SPECIFICATIONS
Speaker type: Coaxial speaker with compression driver
Frequency range (-10dB): 60 Hz 20 kHz
Coverage area: H90° x V90°
Crossover: 2.0 kHz
Maximum output level (1m; on axis): 125 dB SPL

COMPONENETS
LF: 8" Cone, 2.0" voice coil
HF: 1" throat compression driver, 1.4" voice coil
Amplifier class: Class-D

POWER RATING
Dynamic: 180 W (LF: 150 W, HF: 30 W)
Cooling: Natural convection (no fan)

Power consumption: 10 W (Idle), 20 W (1/8 power)
Power requirements: 100-240 V 50/60 Hz, or 29.6 Vdc

Battery
Type: Rechargeable Lithium ion battery pack
Capacity: 79.92 Wh (2700 mAh, 29.6 V)
Operating Time: Maximum 10 hours, 1/16 power continuous 8 hours
Charging Time: Approx. 4 hours

Cabinet material: Plastic (ABS)
Handle: Top x1
Pole socket: dia. 35 mm x1 (Side)
Floor Monitor Angle: 30° or 60°

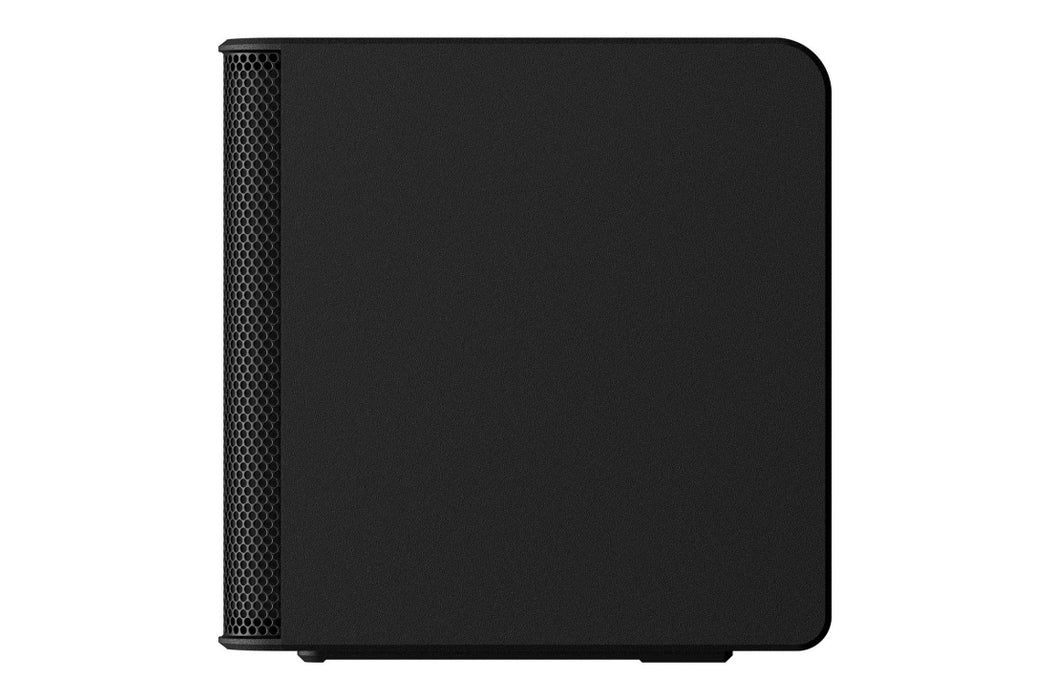

Dimensions (W x H x D): 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
Weight (including battery): 12.5 kg (27.6 lbs)

Included Accessories: Power cord x 1, Battery x 1
