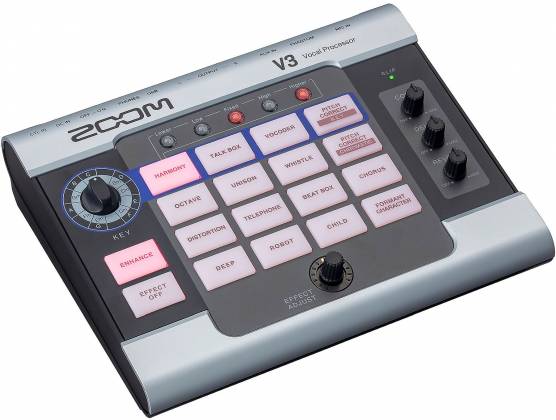

Zoom V3 Vocal Effects Processor

Whether you're streaming, recording, or collaborating online, the Zoom V3 is packed with effects, harmonizing options, pitch correction and more.

Features

• V3 offers 16 creative voice effects plus compression, reverb, delay and enhance
• Add up to two voices to create 3-part harmonies across a full octave
• Independent compression, reverb and delay controls
• Built-in Enhancer for increased sound clarity
• 48V phantom power for condenser microphones
• USB 2.0 audio interface capable of recording up to 16/24/32-bit, 44.1 kHz
• Line outputs for connecting to PA systems or mixing consoles
• Headphone output with dedicated volume control
• Auxiliary input

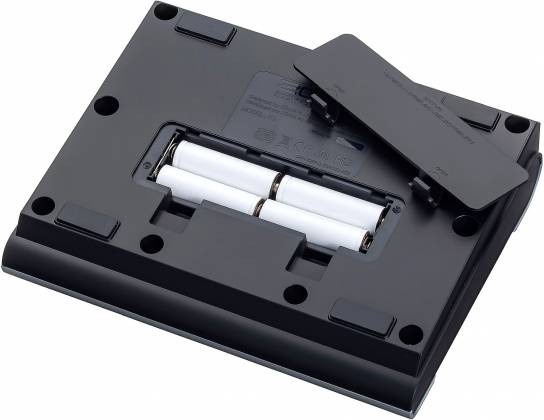

• Operates for 3.5 hours on 4 AA batteries or with Zoom AD-16 AC adapter

Specifications

• Effects: 16 types
• Concurrent Effects: 5
• Sampling Frequency: 44.1 kHz
• A/D Conversion: 24-bit 128× oversampling
• D/A Conversion: 24-bit 128× oversampling
• Signal Processing: 32-bit
• Frequency Response: 20 Hz-20 kHz (+1 dB/−3 dB) (10 kΩ load)

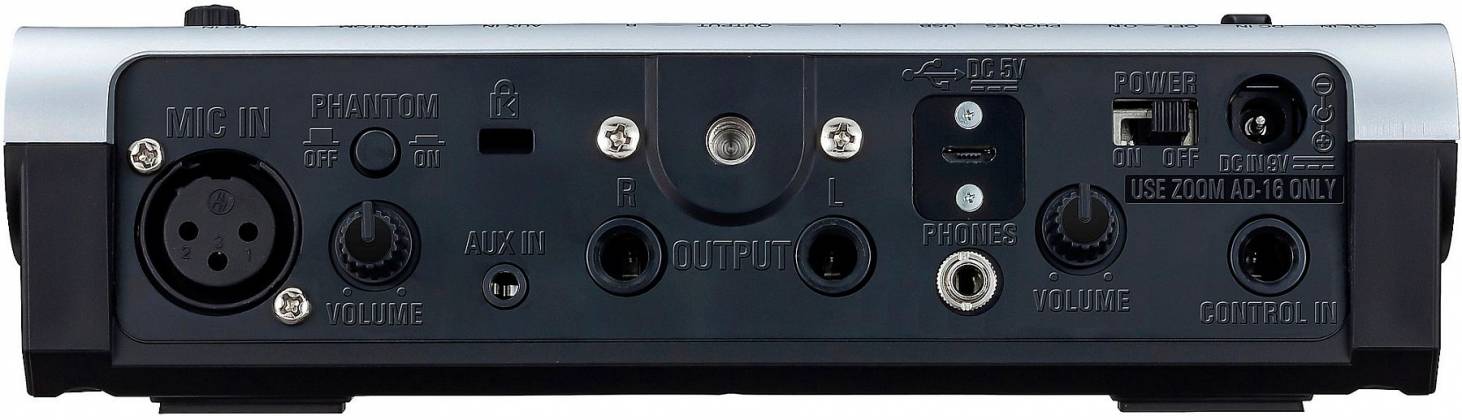

• Mic In: XLR jack
• Input Gain: +3 - +40 dB
• Maximum Input Level: +4 dBu
• Input Impedance: 3 kΩ or higher (1 kHz)
• Phantom Power: +48 V
• Aux In: Stereo mini jack
• Rated Input Levek: −10 dBu
• Input Impedance (Line): 22 kΩ
• L/R Out: Unbalanced TS jacks
• Maximum Output Level: +6 dBu
• Output Impedance: 100 Ω
• Phones: Stereo mini jack
• Maximum Output Level: 20 mW + 20 mW (into 32 Ω load)
• Equivalent Input Noise (When Phantom Power is Off): -125 dBu or less (A-weighted, 150 Ω input, +40 dB input gain)
• Noise Floor (Residual Noise): -75 dBu
• Control Input: FS01/FP02M input
• Power: AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16) 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries)
• USB Connector: Micro USB
• Audio Interface Operation: 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit
