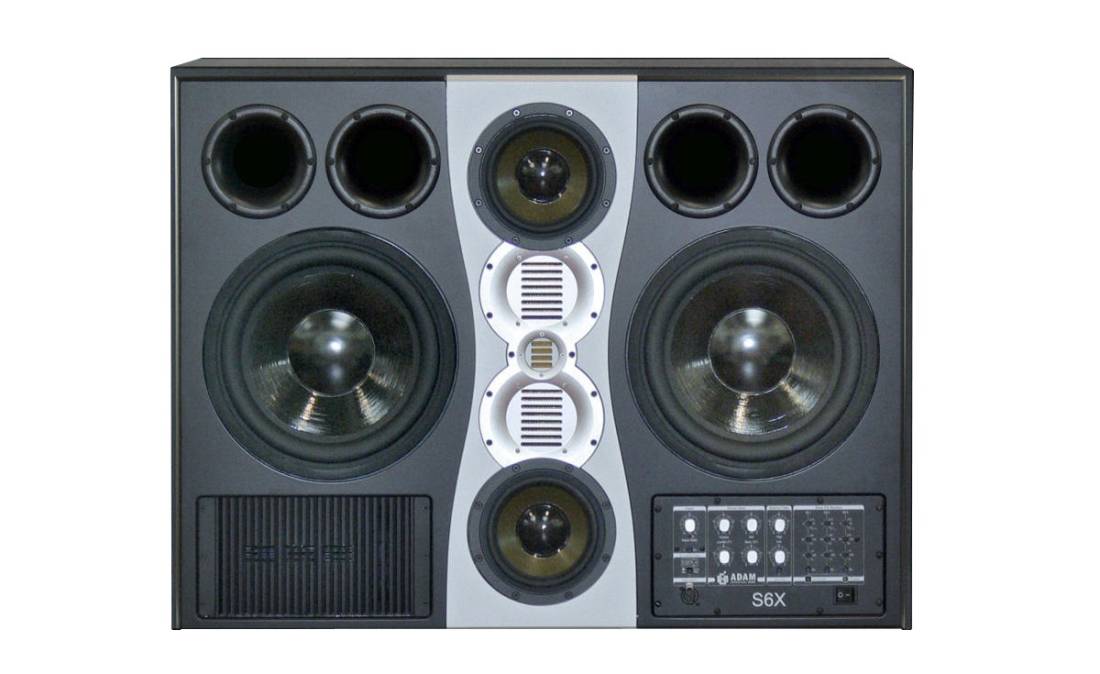

Adam Audio S6X Active Studio Monitor

The S6X and S7A Mk2 main monitors are designed for large control rooms and film studios. They use a symmetrical concept to increase the realistic reproduction of ADAM monitors to higher sound pressure levels. ADAM has avoided the typical overloading of the bass range that can often be found in main monitors. A wide horizontal radiation characteristic and moderate vertical beaming are crucial factors to minimize the impact of ceiling and floor reflections and achieve neutral sound reproduction at high volumes.

• German Handmade X-ART Tweeter & 2 x X-ART Midrange
• 2 x 12" and 2 x 7.5" Woofer (HexaCone)
• Amp. Power RMS / Music: 2250 W / 3150 W
• Frequency Response: 23Hz - 50 kHz
• Max. SPL per pair at 1 m: ≥133 dB

Specifications

WOOFER
Number: 2
Basket dia: 12" (305 mm)
Voice Coil dia: 3" (75 mm)
Cone Material: HexaCone

MIDRANGE (CONE)
Number: 2
Basket dia: 7.5" (186 mm)
Voice Coil dia: 2" (50 mm)
Cone Material: HexaCone

MIDRANGE
Number: 2
Type: X-ART
Diaphragm Area: 2 x 26 inch (16800 mm)
Equiv. Diaphragm dia: 2 x 5.5" (146 mm)
Velocity Transform Ratio: 3.5:1
Diaphragm Weight: 0.7 g

TWEETER
Number: 1
Type: X-ART
Diaphragm Area: 4 inch (2420 mm)
Equiv. Diaphragm dia: 2" (56 mm)
Velocity Transform Ratio: 4:1
Diaphragm Weight: 0.17 g

BUILT-IN AMPLIFIERS
Woofer: 2
Type: PWM
Amp. Power RMS / Music: 500 W / 700 W
Midrange (cone): 2
Type: PWM
Amp. Power RMS / Music: 250 W / 350 W
Midrange: 2
Type: PWM
Amp. Power RMS / Music: 250 W / 350 W
Tweeter: 1
Type: PWM
Amp. Power RMS / Music: 250 W / 350 W

CONTROL PANEL
Input Sensitivity: +/-10 dB
EQ 80 Hz (Q / Hz / Level): 3 x 0.2 - 20 / 20 - 200 / +/-12 dB
High Shelf EQ > 6 kHz: +/-6 dB
Low Shelf EQ < 150 Hz: +/-6 dB
Sub Gain: +/-4 dB
Mid-Woofer Level: +/-2 dB
Mid Level: +/-2 dB
Tweeter Gain: +/-4 dB

INPUT CONNECTORS
Analog: XLR

GENERAL DATA
Panel: Front
X-Curve Filter: Yes
Frequency Response: 23 Hz - 50 kHz
THD 90 dB / 1 m > 100 Hz: ≤0.5 %
Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m: ≥123 dB
Max. SPL per pair at 1 m: ≥133 dB
Crossover Frequencies: 85 / 800 / 3100 Hz
Input Impedance: 10 kOhm
Weight: 213.8 lb (97 kg)
Magnetically Shielded: No
Height x Width x Depth: 28.5" (720 mm) x 37" (940 mm) x 19.5" (490 mm)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Power cord, manual
