Austrian Audio OC818 Large Diaphragm Condenser Microphone with Multiple Polar Patterns, Dual Set Plus

Engineered and manufactured in Austria, The OC818 is Austrian Audio's premier, professional, large diaphragm microphone. Its high sensitivity, low self-noise and ability to handle everything from a whisper to extreme SPLs make it the most advanced microphone for studio, broadcast and live applications. As the unique ceramic capsule design is so consistent, any OC818 is match-paired with any other OC818, and when in cardioid mode, it can also be match-paired with any OC18, its affordable, smaller sibling.

Features

• Handmade CKR12 ceramic capsule
• Multiple polar patterns
• Microprocessor control of polarisation voltages
• Two different analogue high-pass filters with three settings
• Two different types of analogue pads
• Dual outputs

Specifications

Directional characteristics: Multi
Impedance: 275 Ω (symmetrical)
Polar pattern: Cardioid, omnidirectional, figure-8, hypercardioid & custom programmable
Load impedance: > 1 kΩ
Frequency range: 20 Hz - 20 kHz
Supply voltage: 48 V (< 4mA, typical 2.1mA)
Sensitivity (all directions): 13mV/Pa
Main Connector: XLR 3 pin
Equivalent noise level: 9 dB SPL (A)
Remote: Mini XLR 5 pin Connector for back membrane
Max SPL: 148 dB SPL (158 dB SPL)
Dimensions: 157 x 63 x 35 mm
Switchable pad: -10 dB, -20 dB
Weight: 360g
Analog Low Cut filter: 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below)

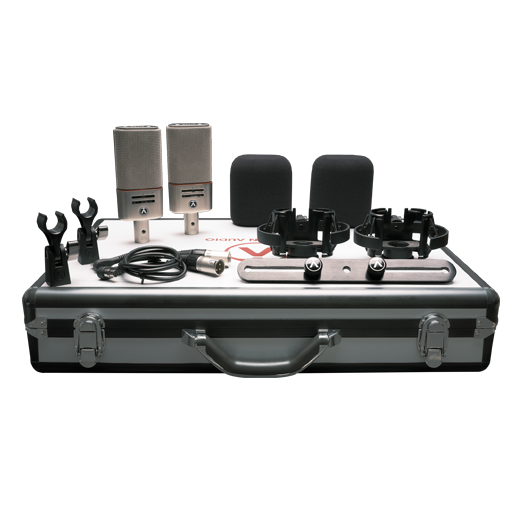

Includes

- 2 OC818 large diaphragm condenser microphones
- 2 Microphone clips
- 2 spider shockmounts
- 2 XLR cables
- 2 wind screens
- 1 stereo mounting bar
- 1 carrying case
