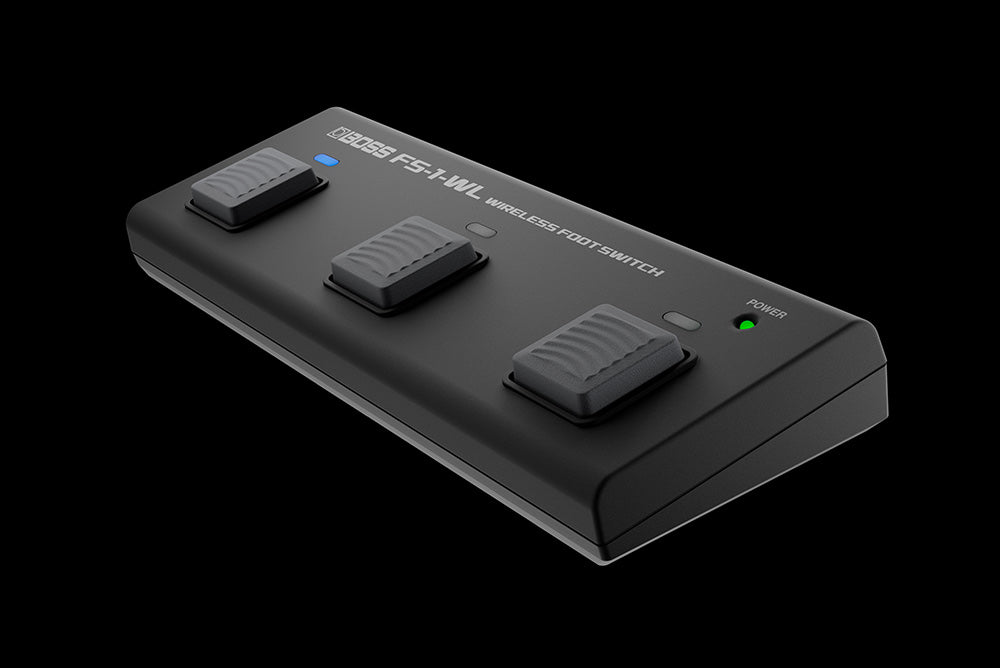

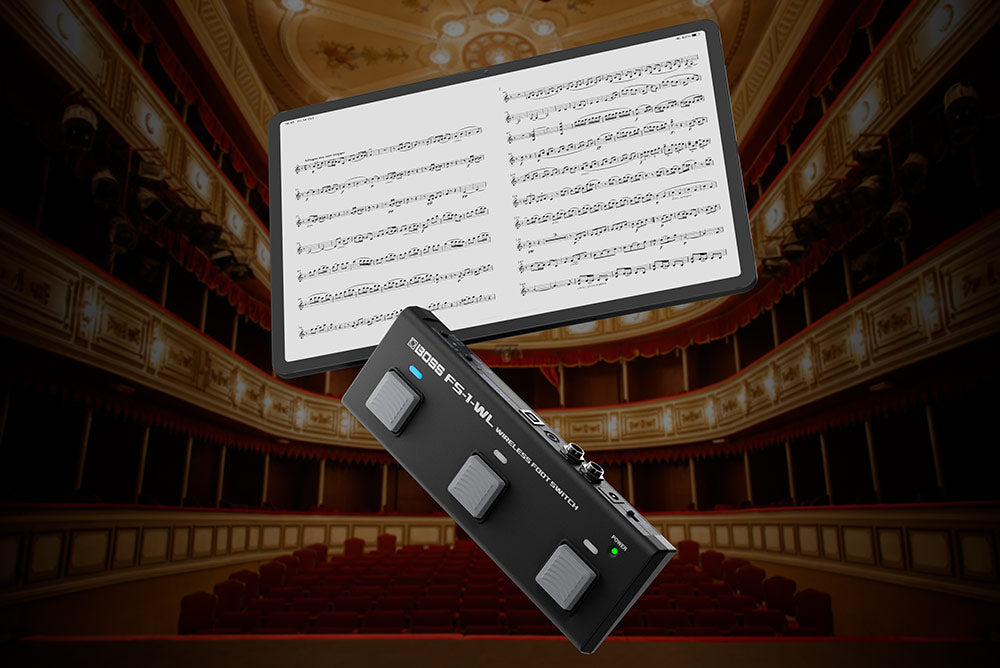

Boss FS-1-WL Wireless Instrument Pedal

Wireless Foot Control for Digital Music Scores, YouTube, DAWs, Instruments, and Beyond

Ultra-compact and customizable, the FS-1-WL is an essential hands-free partner for all your creative needs. Control digital music score apps, YouTube videos, DAWs, and supported BOSS and Roland gear wirelessly over Bluetooth®. Or connect a MIDI cable to operate multi-effect processors, pedals, and other hardware. Expand your setup with external footswitches and an expression pedal. And use the dedicated editor/librarian to assign keyboard commands and a variety of MIDI messages to control nearly any software application or MIDI device.

Features

• Versatile wireless foot controller for software applications and MIDI hardware
• Control devices wirelessly over Bluetooth or connect to MIDI hardware with a BOSS TRS MIDI cable
• Rear-panel switch for selecting MIDI mode or HID mode (three onboard setups available in HID mode)
• HID mode sends keyboard commands for controlling software on computers and mobile devices
• MIDI mode sends PC/CC messages for controlling MIDI devices
• USB port for use as a class-compliant MIDI input device (HID mode not supported over USB)
• Dedicated editor (macOS/Windows/iOS/Android) to customize footswitch assignments and save setups for different applications

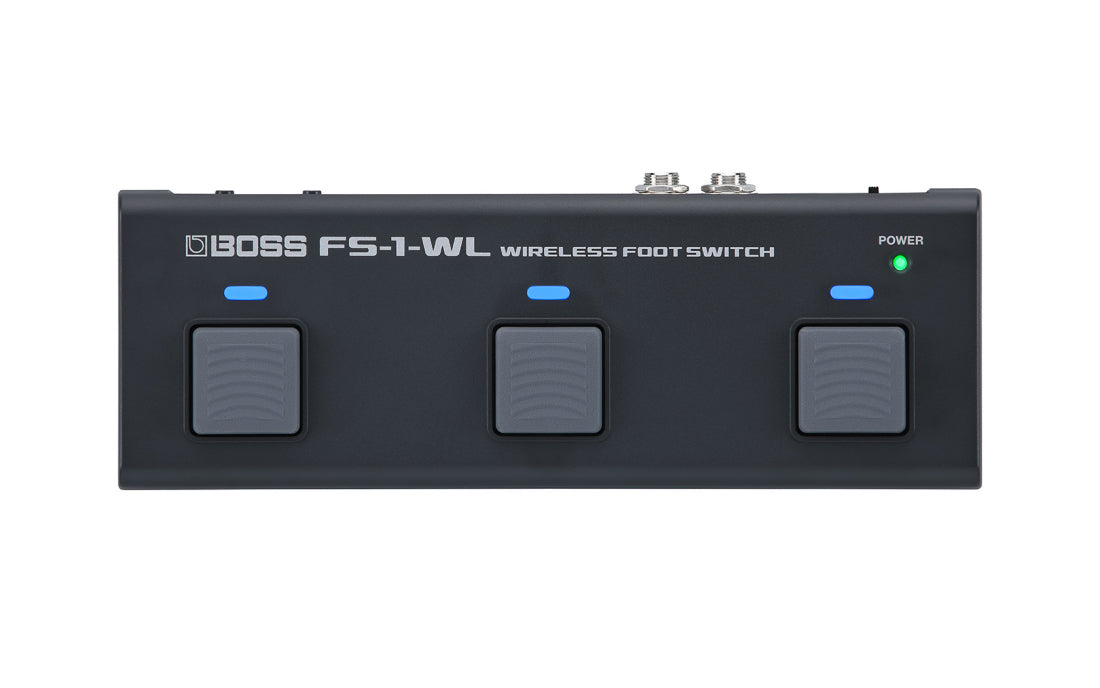

• Three rugged footswitches with smooth and quiet operation

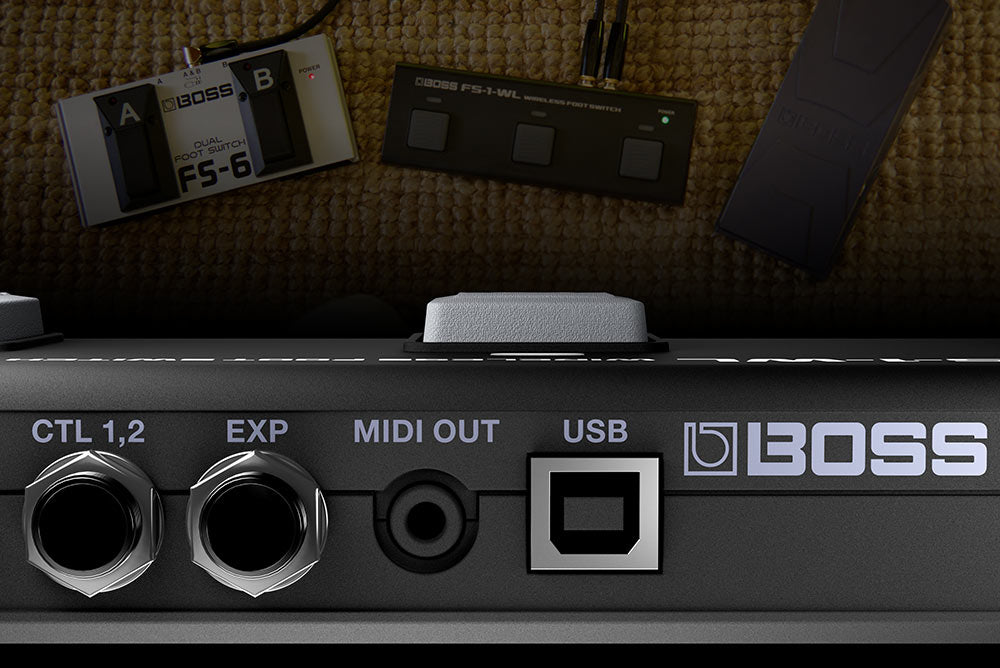

• Jacks for up to two external footswitches and an expression pedal
• Runs on two AAA batteries or an optional PSA-series adaptor

Specifications

Controls

• POWER switch

• Bluetooth button (INSTRUMENT)

• Bluetooth button (Smartphone/PC)

• Pedal switches: Left (L), Center (C), Right (R)

Indicators

• POWER indicator

• Bluetooth indicator (INSTRUMENT)

• Bluetooth indicator (Smartphone/PC)

• Pedal indicators: L, C, R

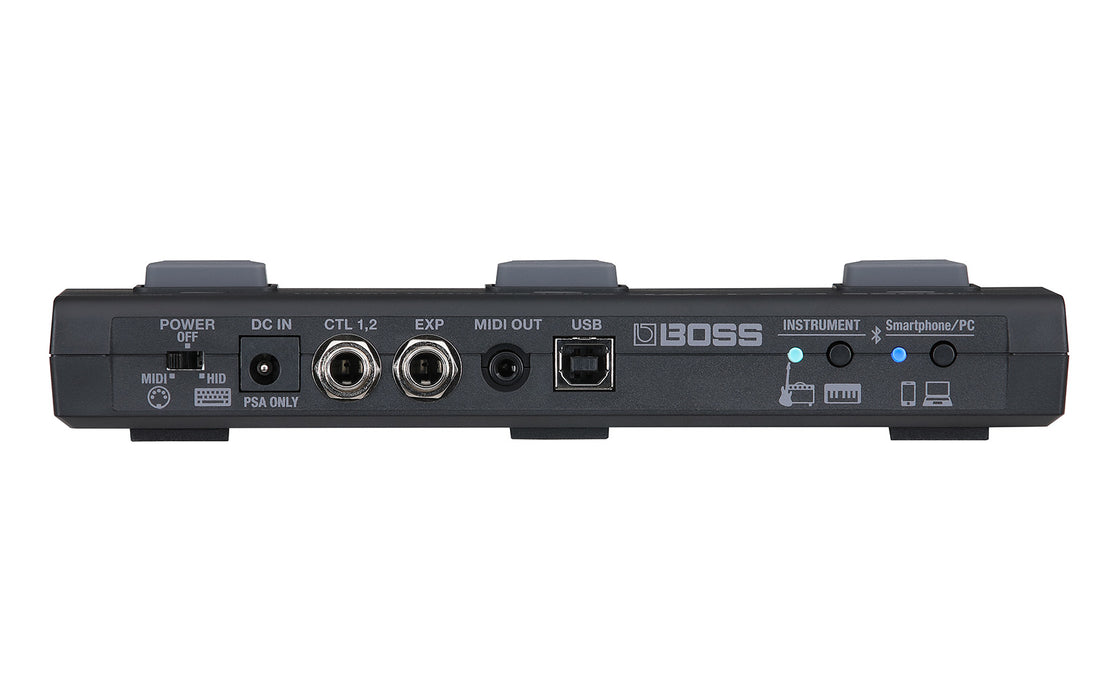

Connectors

• DC IN jack

• CTL 1, 2 jack: 1/4-inch TRS phone type

• EXP jack: 1/4-inch TRS phone type

• MIDI OUT jack: Stereo miniature phone type

• USB port: USB B type

Power Supply

• Batteries: Alkaline AAA (LR03) x 2

• AC adaptor: Sold separately (PSA series)

• Current draw: 65 mA

• Battery life (continuous use): Approx. 14 hours (varies by conditions)

Included Accessories

• Owner's Manual

• Leaflet: "USING THE UNIT SAFELY"

• Alkaline batteries (AAA, LR03) x 2

Optional Accessories (sold separately)

• AC adaptor: PSA series

• Footswitch: FS-5U

• Dual footswitch: FS-6, FS-7

• TRS/MIDI cables: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size and Weight

• Width: 207 mm (8-3/16 inches)

• Depth: 77 mm (3-1/16 inches)

• Height: 32 mm (1-5/16 inches)

• Weight: 258 g (10 oz.)
