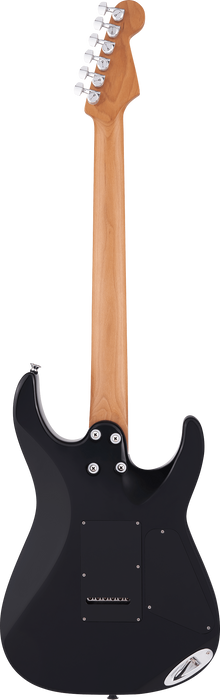

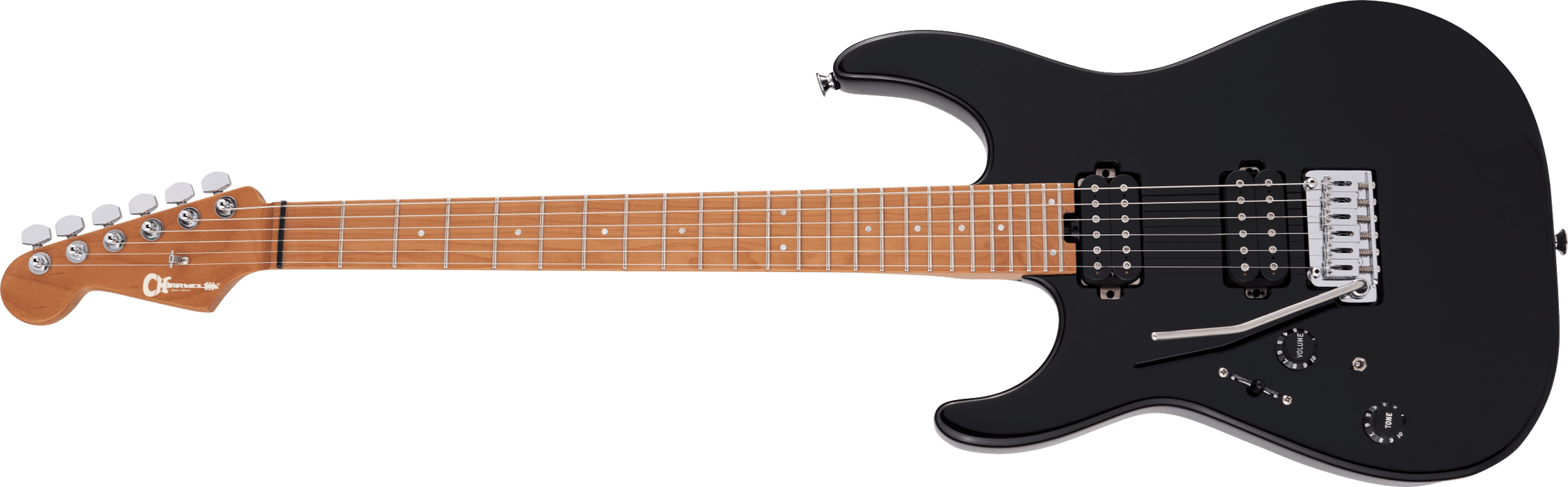

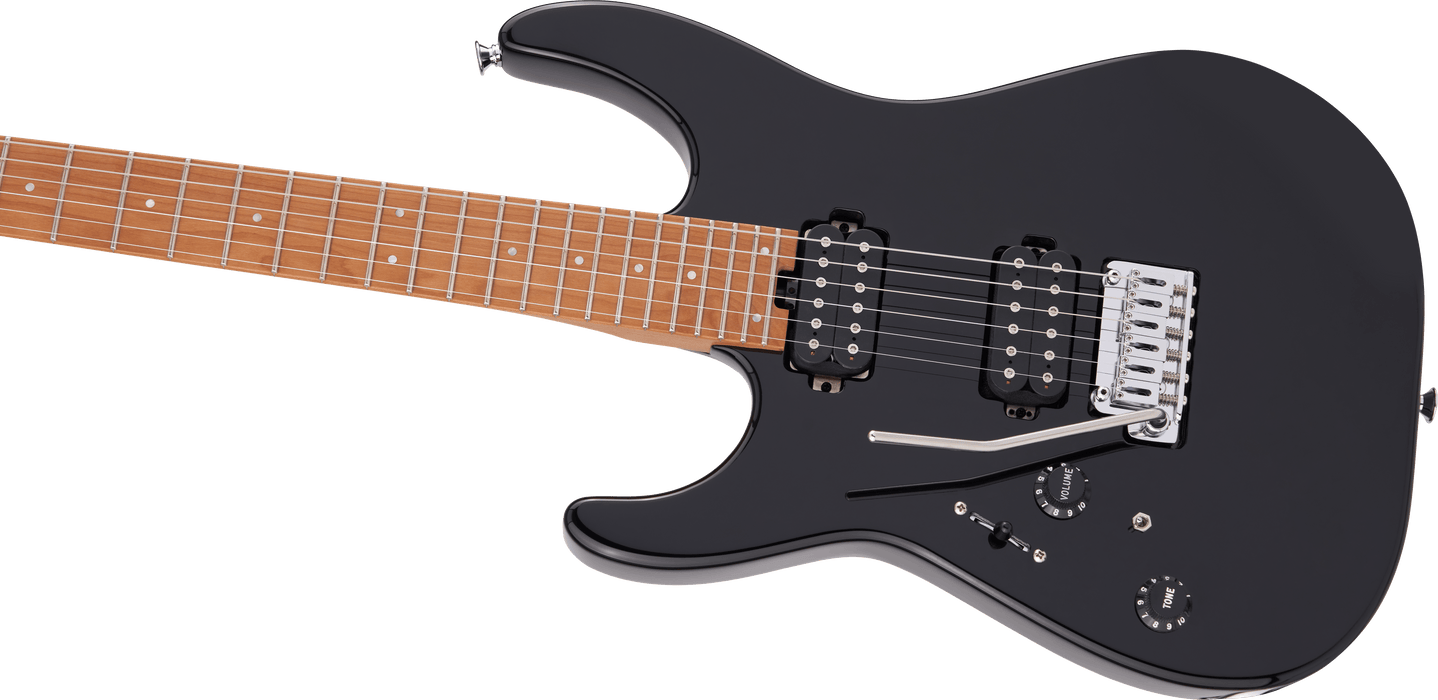

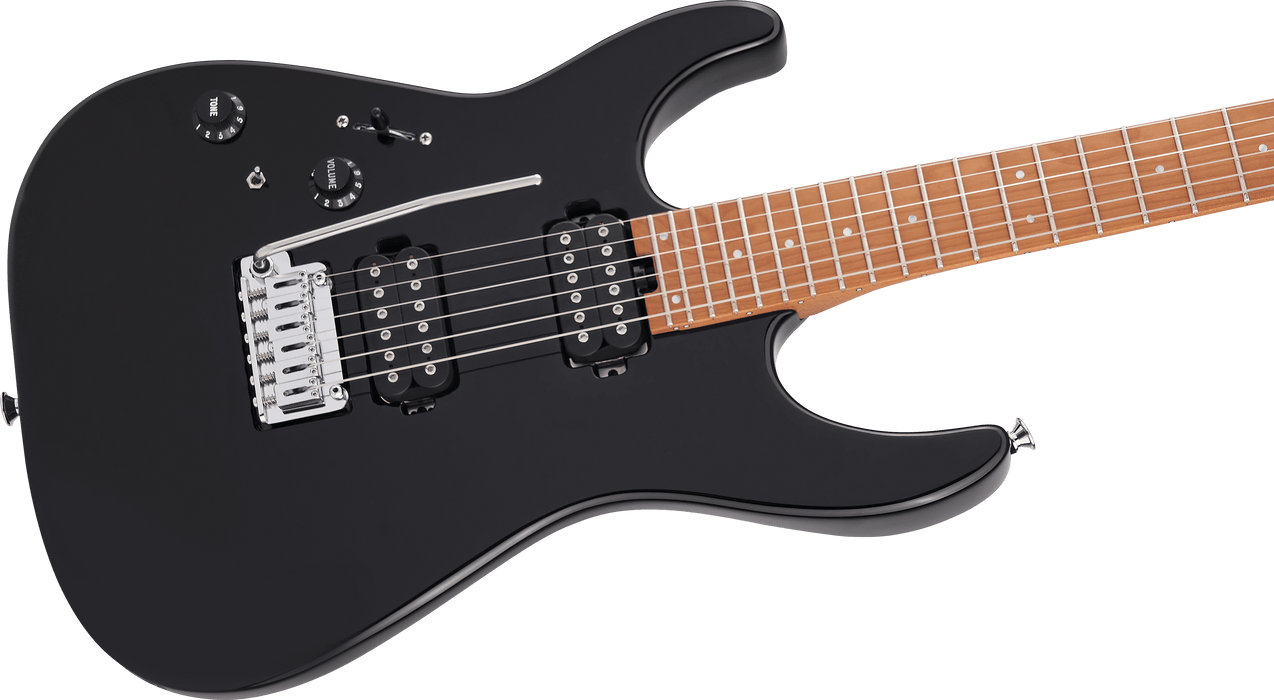

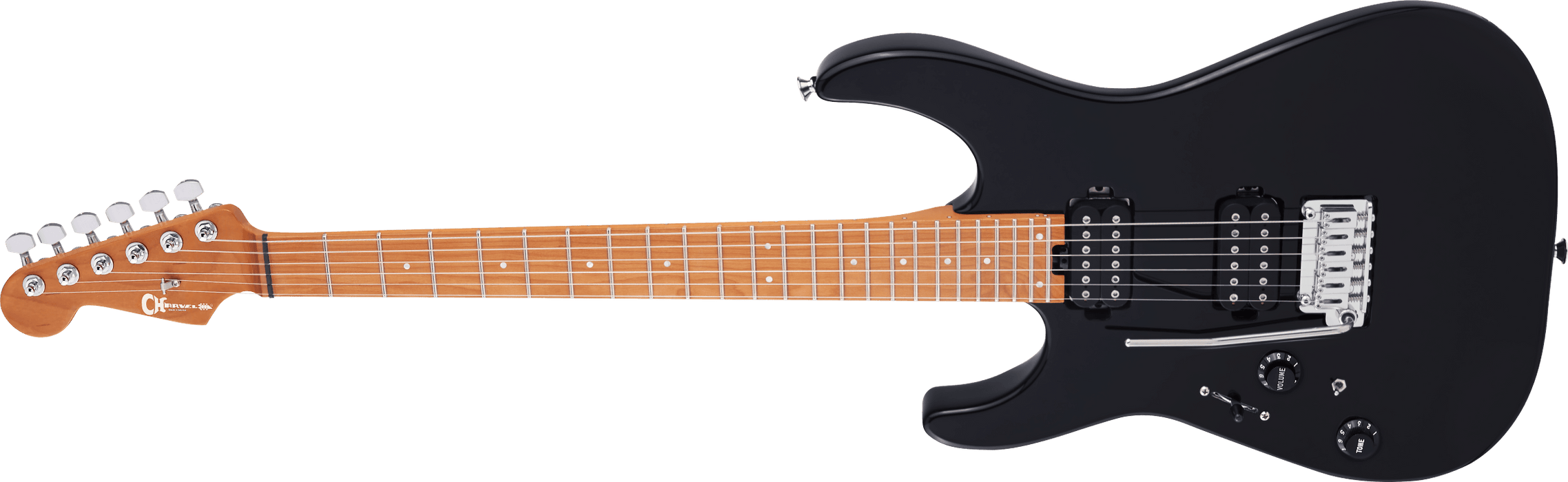

Charvel Pro-Mod DK24 HH 2PT CM LH, Caramelized Fingerboard, Gloss Black

Charvel® turns modern high performance on its head with the new Pro-Mod DK24 HH 2PT CM LH, a brazen instrument for the progressive left-handed guitarist searching for an unparalleled spectrum of sound.

SPECIFICATIONS

Electronics

• Bridge Pickup: Seymour Duncan® Full Shred™ TB-10
• Neck Pickup: Custom Seymour Duncan® Alnico II Pro™ APH-1N
• Pickup Color: Black
• Controls: Volume (with 500K EVH® Bourns® Low Friction Potentiometer), No-Load Tone
• Pickup Switching:
  • Position 1: Full Bridge Pickup
  • Position 2: Both Outer Coils
  • Position 3: Bridge and Neck Pickup
  • Position 4: Both Inside Coils
  • Position 5: Full Neck Pickup
• Special Electronics: 2-Way Mini Toggle (Down - Series / Up - Parallel)
• Pickup Configuration: HH

Body

• Body Finish: Gloss
• Body Shape: Dinky®
• Body Material: Alder

Hardware

• Bridge: Gotoh® Custom 510 Tremolo
• Hardware Finish: Chrome
• Tremolo Arm: Gotoh®
• Tremolo Block: Steel
• Tuning Machines: Charvel®-Branded Die-Cast Locking
• Control Knobs: Stratocaster®-Style Skirt
• Switch Tip: Black
• Saddle Height Wrench: Yes

Neck

• Neck Material: Caramelized Maple
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Neck Binding: None - Rolled Fingerboard Edges
• Scale Length: 25.5" (64.77 cm)
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Caramelized Maple
• Number of Frets: 24
• Fret Size: Jumbo
• Nut Material: Graph Tech TUSQ XL
• Nut Width: 1.6875" (42.86 mm)
• Position Inlays: 4mm Pearloid Dot
• Side Dots: Luminlay®
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• Truss Rod Wrench: Yes
• String Trees: Fender® Standard String Guide
• Headstock: Licensed Fender® Stratocaster®
• Neck Plate: None - 4-Bolt Sculpted Heel

Miscellaneous

• Strings: Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons: Standard
• Case/Gig Bag: Optional Gig Bag (p/n 007-6756-000)
