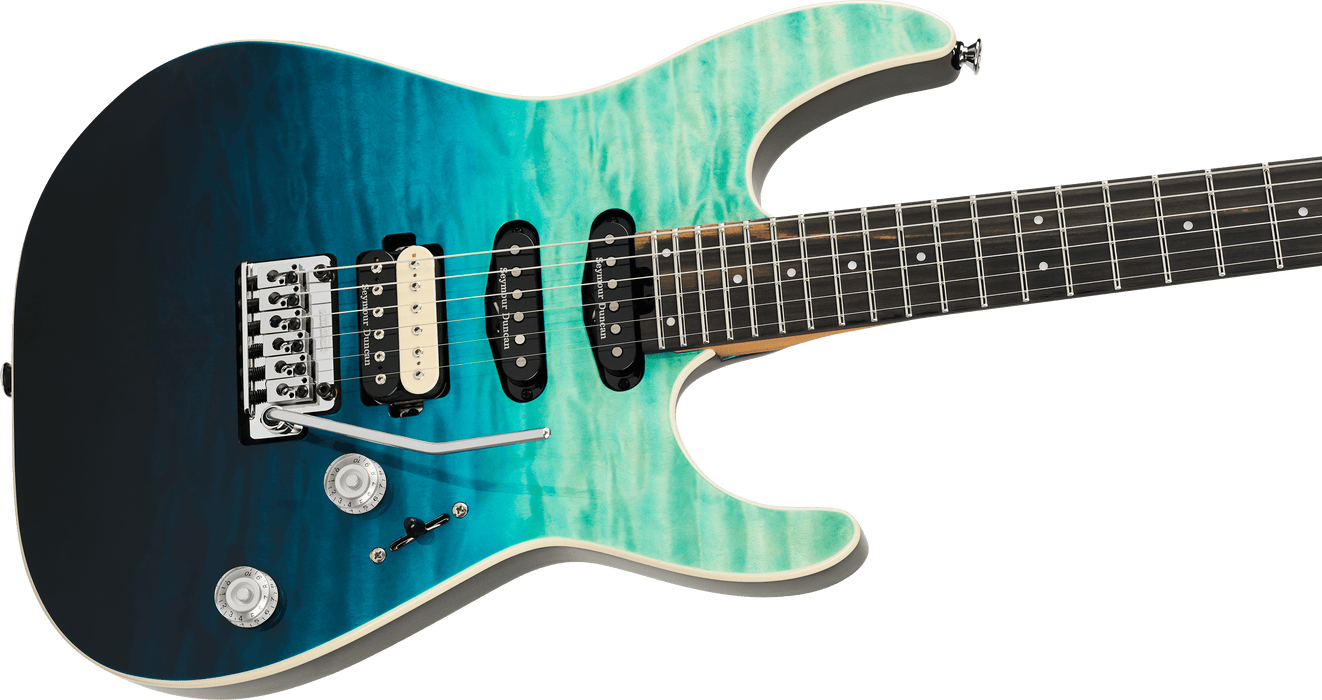

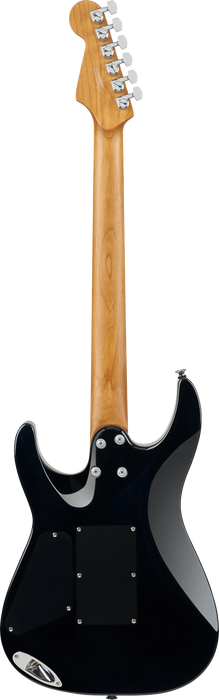

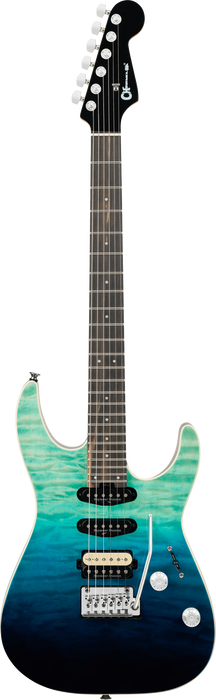

Charvel Pro-Mod Plus Dinky DK24 HSS 2PT EB QM, Ebony Fingerboard, Blue Curaçao

Loaded with premium features, this Pro-Mod Plus Dinky® DK24 2PT HSS E QM model features a sleek Dinky® body constructed from basswood with a quilt maple top, sculpted shredder’s cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt-on caramelized maple neck features graphite reinforcement for rock-solid stability, a satin natural finish on the back of the neck for sublime playability, and a conveniently located heel-mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12”-16” compound radius ebony fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets and Luminlay® side-dots for enhanced visibility in low-light conditions.
This axe features an HSS pickup configuration consisting of a direct mount Seymour Duncan® Full Shred™ TB-10 bridge pickup and direct mount Seymour Duncan® Custom Flat Strat® SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup ith plenty of focused humbucker grit and springy vintage snap.
Other premium modern features include a five-way blade pickup switch, speed knobs for the volume and no-load tone controls, Wilkinson® recessed tremolo bridge with locking saddles, Charvel-branded die-cast locking tuners and more.
Blending sophisticated style with assertive tone, the Pro-Mod Plus Dinky® DK24 2PT HSS E QM delivers premium performance and modern features.

Features

• 25.5" scale length
• Basswood Dinky® body with quilt maple top
• Scalloped lower back bout
• Bolt-on maple neck with graphite reinforcement
• Sculpted shredder's cut heel
• 12"-16" compound radius ebony fingerboard with 24 jumbo stainless steel frets
• Heel-mount truss rod adjustment wheel
• Direct mount Seymour Duncan® Full Shred™ TB-10 humbucking bridge and Seymour Duncan Custom Flat Strat® SSL-6 middle and neck single-coil pickups
• Five-way blade switch, volume control and no-load tone control
• Wilkinson® WVS130-2p tremolo bridge with locking saddles
• Charvel-branded die-cast locking tuners
• Included deluxe gig bag

Specifications

General
Series: Pro-Mod Plus
Orientation: Right-Hand
Color: Blue Curaçao
Country Of Origin: ID

Neck
Headstock: Licensed Fender® Stratocaster®
Neck Material: Caramelized Maple
Neck Finish: Natural Satin
Neck Shape: Speed Neck with Rolled Fingerboard Edges
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Material: Ebony
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Position Inlays: 4mm Pearloid Dot
Side Dots: Luminlay®
Number of Frets: 24
Fret Size: Jumbo Stainless Steel
Scale Length: 25.5" (648 mm)
Truss Rod: Dual-Action with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
Nut: Graph Tech TUSQ XL
Nut Width: 1.6875" (42.86 mm)
Nut Material: Graph Tech TUSQ XL

Body
Body Shape: Dinky®
Body Style: Solid Body
Body Material: Basswood
Body Top: Quilt Maple
Body Finish: Gloss

Hardware
Bridge: Wilkinson® WVS130-2P Tremolo
Tremolo Arm: Wilkinson®
Tuning Machines: Charvel®-Branded Die-Cast Locking
String Trees: Fender® Standard String Guide
Pickguard: None
Pickup Covers: Black/Cream
Control Knobs: Speed Knob
Switch Tip: Black
Hardware Finish: Chrome
Neck Plate: None – 4-Bolt Sculpted Heel
Strap Buttons: Standard
Strings: Nickel Plated Steel (.009–.042 Gauges)

Electronics
Bridge Pickup: Seymour Duncan® Full Shred™ TB-10
Middle Pickup: Seymour Duncan® Custom Flat Strat® SSL-6 Single-Coil
Neck Pickup: Seymour Duncan® Custom Flat Strat® SSL-6 RWRP Single-Coil
Pickup Configuration: HSS
Controls: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
Switching: 5-Position Blade (1. Full Bridge, 2. Bridge Inner Coil + Middle, 3. Bridge Outer Coil + Neck, 4. Middle + Neck, 5. Full Neck)

Miscellaneous
Unique Features: Luminlay® Side Dots
