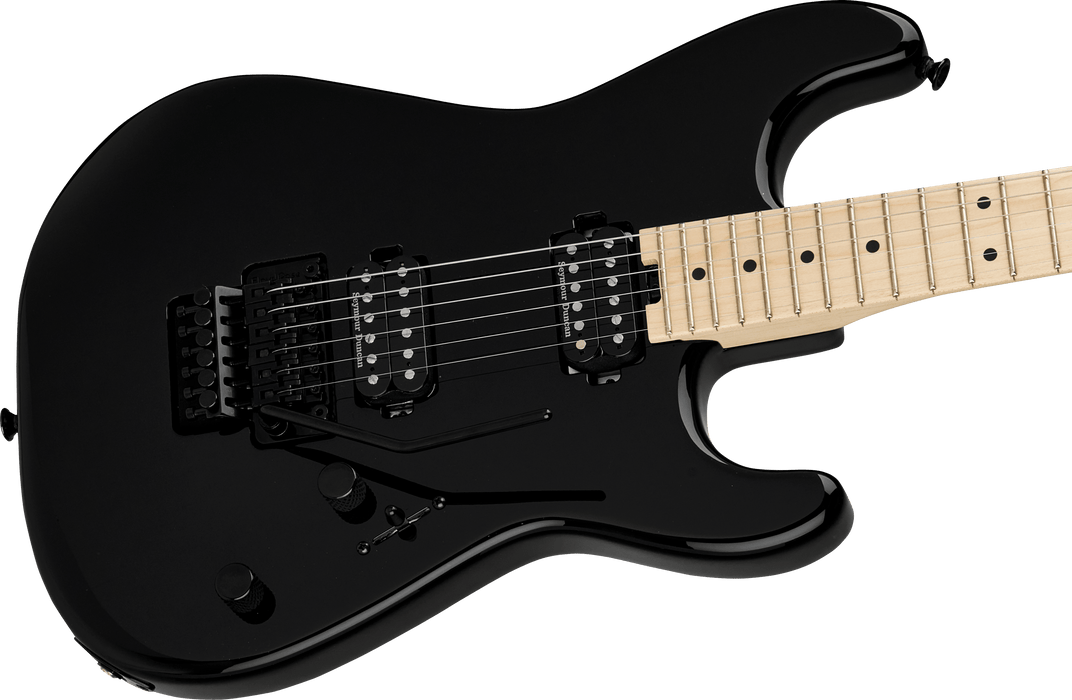

Charvel Pro-Mod San Dimas Style 1 HH FR MPL, Maple Fingerboard, Gloss Black

Description

Crafted from alder, the body is coupled with a bolt-on maple neck featuring a pair of graphite reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning-fast playing and completely unhindered position shifts, while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go.

Perfect for faster tempos, the 12"-16" compound radius maple fingerboard hosts 22 jumbo frets and white dot inlays. For regularly touring musicians, a heel-mount truss rod adjust thumbwheel is a must, allowing for quick and convenient neck relief tweaks.

High-output Seymour Duncan® JB™ and Seymour Duncan '59™ humbucking pickups are directly mounted to the body, cranking out high-octane rock 'n' roll tone with plenty of sweet overtones. The volume control conceals a push/pull coil split for additional tonal variations, while the no-load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for a transparent sound that lets the full natural voice of the guitar shine through.

Dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning with the Floyd Rose® 1000 Series double-locking tremolo bridge system.

Features

• 25.5" scale length
• Alder body
• Bolt-on maple neck with graphite reinforcement rods
• 12"-16" compound radius maple fingerboard
• 22 jumbo frets
• Heel-mount truss rod adjust thumbwheel
• Seymour Duncan® JB™ TB-4 bridge pickup and Seymour Duncan '59™ SH-1N neck pickup
• Volume control with push/pull coil split and no-load tone
• 3-position blade switch for versatile pickup configurations
• Recessed Floyd Rose® 1000 Series double-locking tremolo bridge
• Charvel®-branded sealed die-cast tuning machines

Specifications

General

Series: Pro-Mod
Orientation: Right-Hand
Color: Gloss Black
Country of Origin: MX

Neck

Headstock: Licensed Fender® Stratocaster®
Neck Material: Maple
Neck Finish: Hand-Rubbed Satin Urethane
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Maple
Position Inlays: Black Dot
Number of Frets: 22
Truss Rod: Dual-Action with Wheel
String Nut: Floyd Rose® 1000 Series Locking
Nut Width: 1.6875" (42.86 mm)
Nut Material: Floyd Rose® 1000 Series Locking

Body

Body: Alder
Body Finish: Gloss
Body Shape: San Dimas®
Body Material: Alder

Hardware

Bridge: Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
Pickguard: None
Pickup Covers: Black
Control Knobs: Knurled Flat-Top
Switch Tip: Barrel Style
Hardware Finish: Black
Tuning Machines: Charvel®-Branded Die-Cast
Strings: Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Floyd Rose® FRT O1000 Locking
Neck Plate: Charvel®
Strap Buttons: Standard

Electronics

Bridge Pickup: Seymour Duncan® JB™ TB-4
Neck Pickup: Seymour Duncan® '59™ SH-1N
Pickup Configuration: HH
Controls: Volume (Push/Pull Coil Split), No-Load Tone
Switching:

• Position 1: Bridge Pickup
• Position 2: Both Inner Coils
• Position 3: Neck Pickup
• (Split Engaged)
  • Position 1: Bridge Outer Coil
  • Position 2: Both Outer Coils
  • Position 3: Neck Outer Coil

Measurements

Fret Size: Jumbo
Scale Length: 25.5" (64.77 cm)
