Charvel USA Select San Dimas Style 1 HSS FR, Maple Fingerboard, Satin Plum

Charvel's flagship USA Select Series taps straight into original-era Charvel DNA for sleek, ferocious models with "old-school throwback" specs our high-performance players have been clamoring for, such as '80s-style body perimeters, finely shaped neck profiles, fast compound radius fingerboards with rolled edges, non-recessed Floyd Rose® bridges, and more.

SPECIFICATIONS

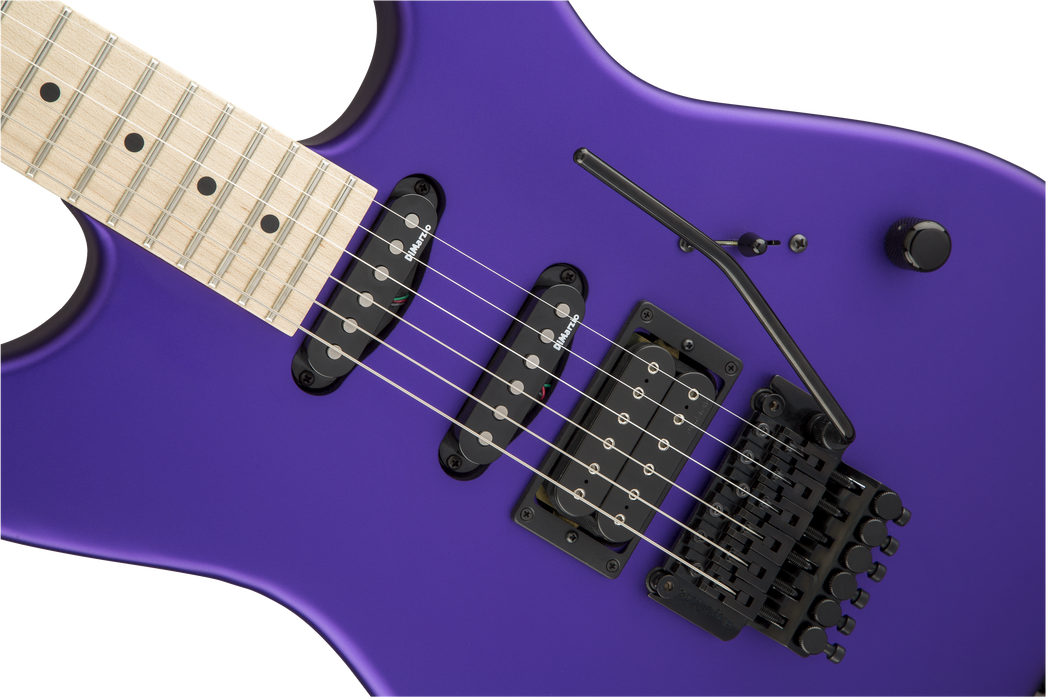

Electronics

• Bridge Pickup: DiMarzio® Super Distortion® DP100
• Middle Pickup: DiMarzio® HS-2™ DP116
• Neck Pickup: DiMarzio® HS-2™ DP116
• Pickup Color: Black
• Controls: Volume
• Pickup Switching: 5-Position Blade:
  • Position 1: Bridge Only
  • Position 2: Bridge Inner Coil and Middle Pickup
  • Position 3: Neck Pickup and Bridge Inner Coil
  • Position 4: Middle Pickup and Bridge Outer Coil
  • Position 5: Neck Pickup Only
• Pickup Configuration: HSS (Humbucker at bridge, Single-Coils at neck and middle)

Body

• Body Finish: Gloss
• Body Shape: San Dimas® Style 1
• Body Material: Alder

Hardware

• Bridge: Floyd Rose® Original Double-Locking 2-Point Tremolo
• Hardware Finish: Black
• Tremolo Arm: Floyd Rose® Original
• Tuning Machines: Charvel®-Branded Die-Cast
• Pickguard: None
• Control Knobs: Dome-Style
• Switch Tip: Black

Neck

• Neck Material: Quartersawn Maple
• Neck Construction: Bolt-On
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Scale Length: 25.5" (64.77 cm)
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Maple
• Number of Frets: 22
• Fret Size: Jumbo
• Nut Material: Floyd Rose® Original Locking
• Nut Width: 1.6875" (42.86 mm)
• Position Inlays: Black Dot
• Truss Rod Nut: Truss Rod Adjustment at Nut
• String Trees: Floyd Rose® Retainer Bar

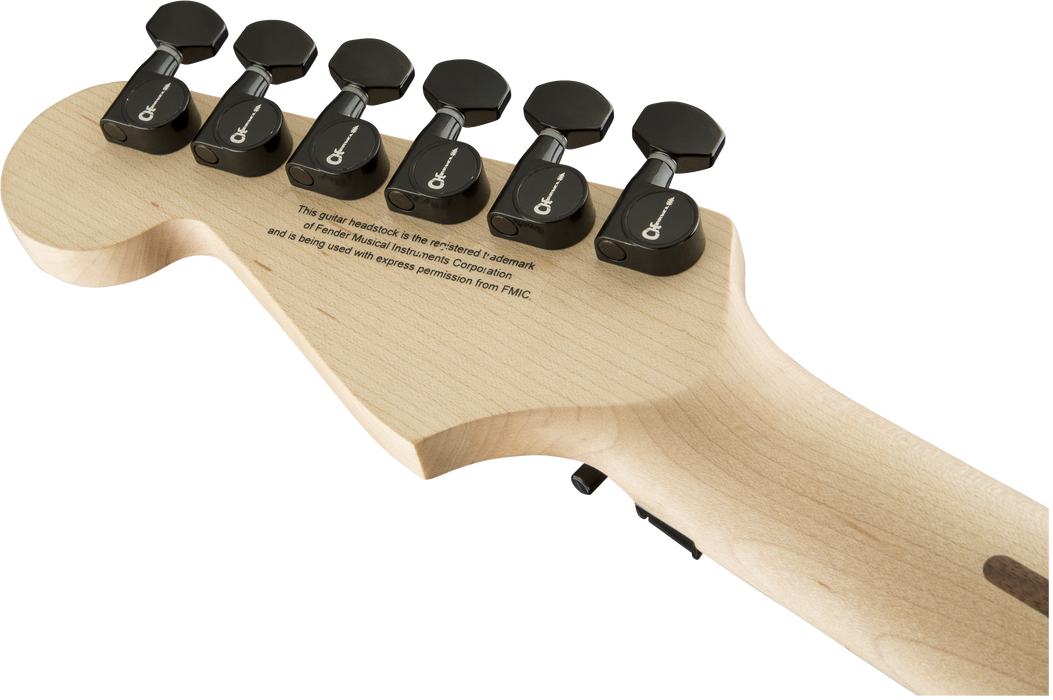

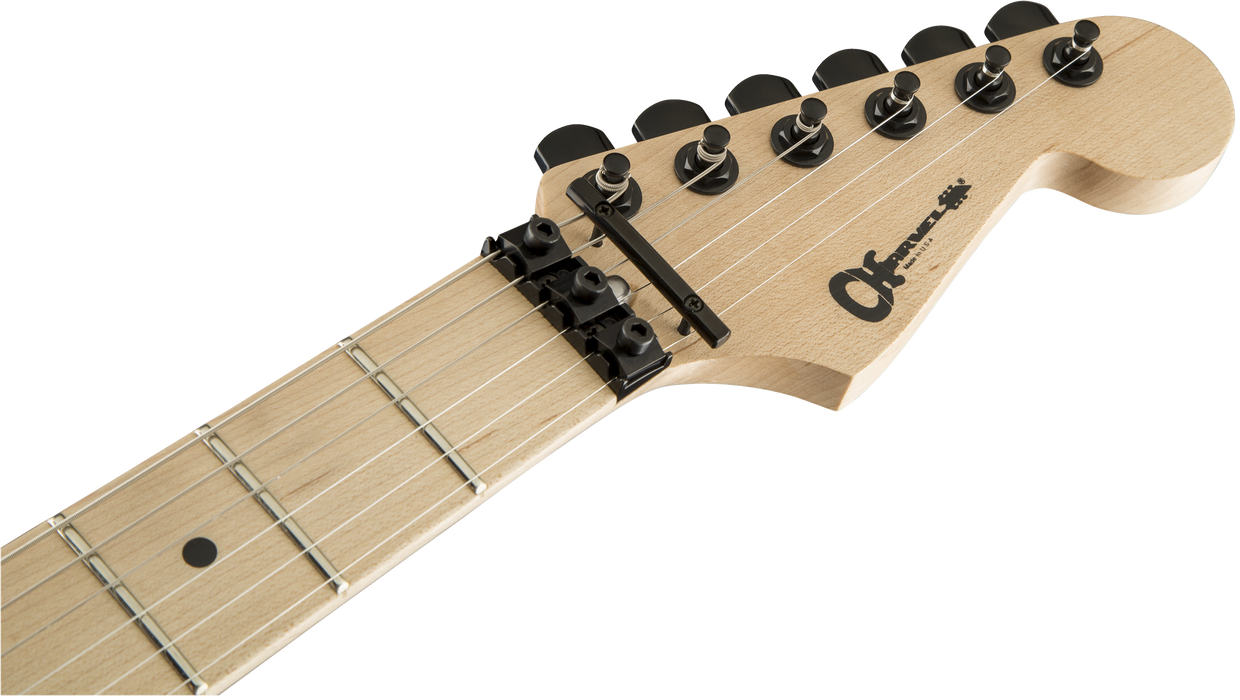

• Headstock: Licensed Fender® Stratocaster®
• Neck Plate: 4-Bolt Serialized

Miscellaneous

• Strings: Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons: Standard
• Case/Gig Bag: Included Charvel® Hardshell (p/n 009-0915-000); Optional Gig Bag (p/n 299-1414-006)
