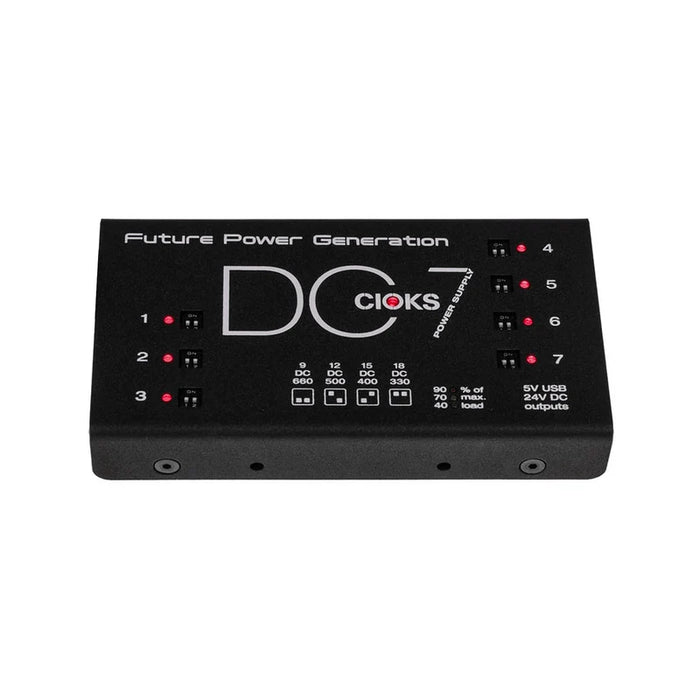

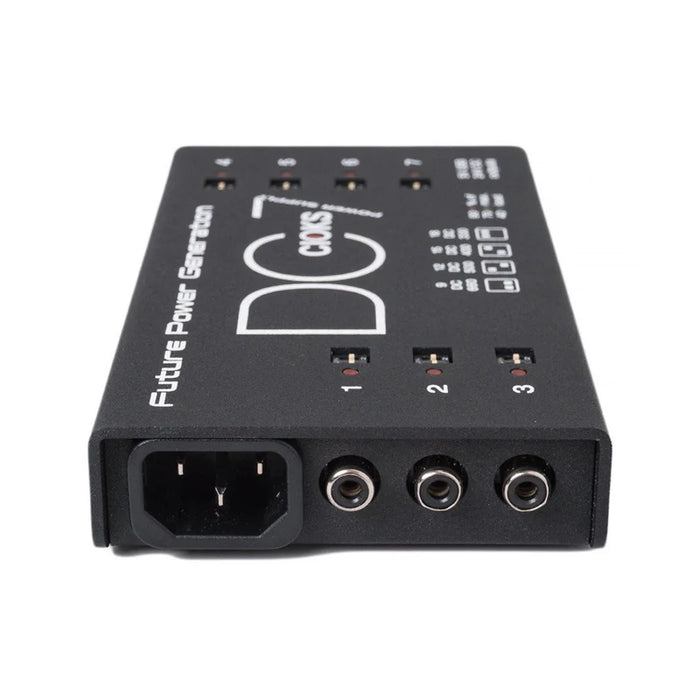

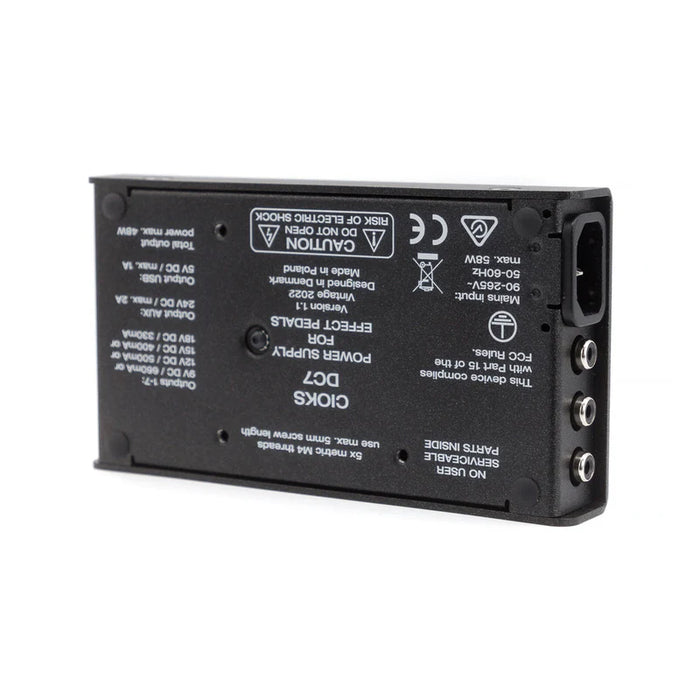

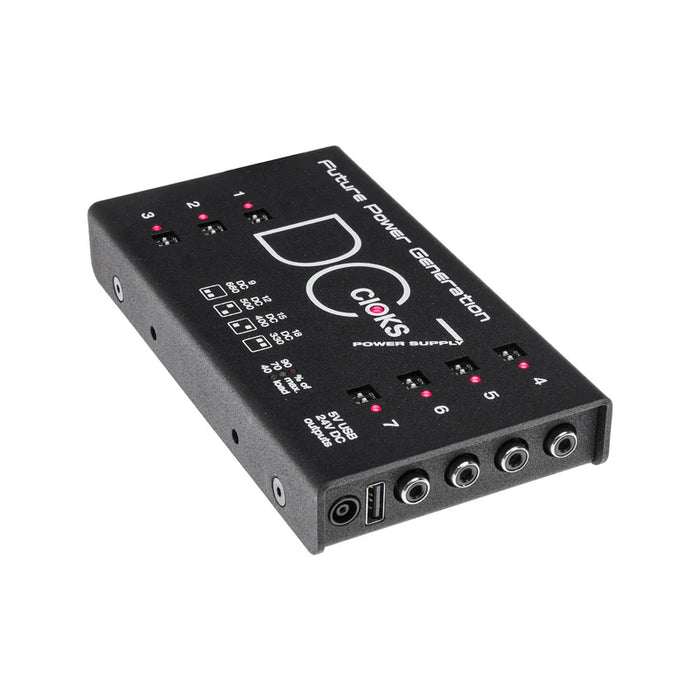

Cioks DC7 Power Supply

The thinnest and most flexible CIOKS power supply

The CIOKS DC7 is one of the most advanced and flexible pedalboard power supplies available today. With an ultra-slim 1-inch profile, it fits easily under most pedalboards while still delivering the power and flexibility required by modern effects.

Thanks to its two-stage switch-mode power supply design, the DC7 remains exceptionally compact while delivering up to 48 watts of clean, isolated power across seven outlets. Each output can deliver up to 660 mA at 9V, making it ideal for high-current digital pedals from brands such as Eventide, Strymon, and Effectrode.

Each outlet offers four selectable voltages (9V, 12V, 15V, or 18V), allowing the DC7 to power a wide range of pedals from vintage analog effects to modern digital processors.

Beyond its seven isolated outputs, the DC7 also includes a 5V USB outlet for powering accessories and a 24V auxiliary outlet that allows you to expand the system with additional CIOKS power units such as the CIOKS 4 or CIOKS 8.

With its ultra-low noise design, flexible voltage options, and expandable architecture, the DC7 has become a go-to solution for musicians building compact yet powerful pedalboards.

CIOKS DC7 Power Supply Features

• Ultra-low profile design: 1 inch

• 7 isolated DC outlets

• Up to 660 mA per outlet at 9V

• Selectable voltages per outlet: 9V / 12V / 15V / 18V

• 5V USB output (1000 mA)

• 24V auxiliary outlet (2000 mA) for system expansion

• Ultra-low noise thanks to multi-stage filtering

• Built-in power meter displaying total load

• Individual power-limit LEDs on each output

• Universal mains input: 90–265V AC

• Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards

• Expandable with CIOKS 4 or CIOKS 8 expansion units

• Weight: 1.1 lbs

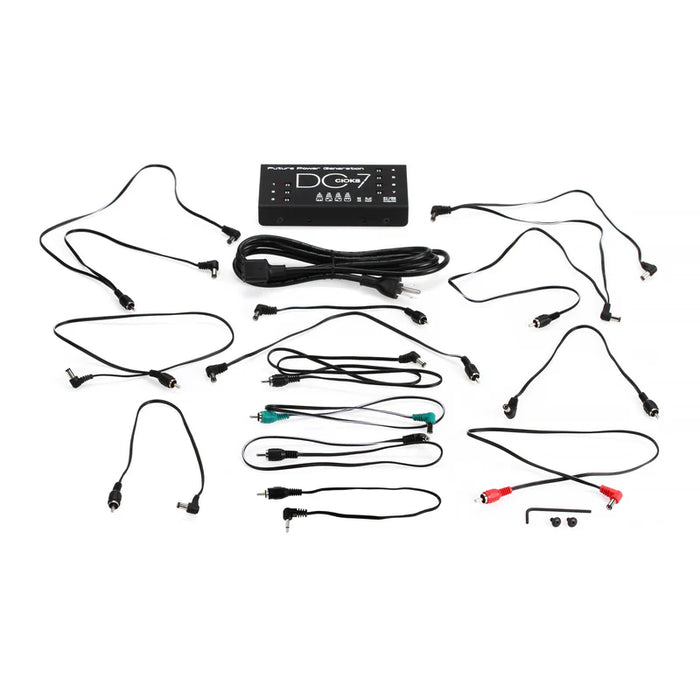

Included with the CIOKS DC7

• 12 CIOKS Flex cables

• Mounting hardware: 2 screws and a hex-key

• Power cord
