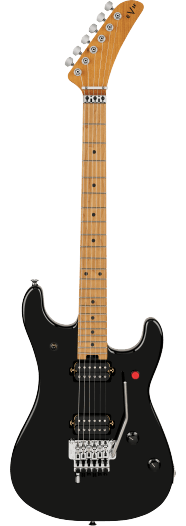

EVH 5150 Series Deluxe, Baked Maple, Black

EVH 5150 Series Deluxe, Baked Maple, Black

SKU 5108300303
by EVH
$1,969.99 - $1,969.99
$1,969.99
$1,969.99
$1,969.99 - $1,969.99
$1,969.99
Available to order

Estimated time before shipping: 10 to 15 days. If there are any additional delays, we will contact you promptly.

Flexiti Financing LogoInterest FREE financing available at checkout

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150® Series DX is an iconic blast from the past that blends both throwback and modernized features.

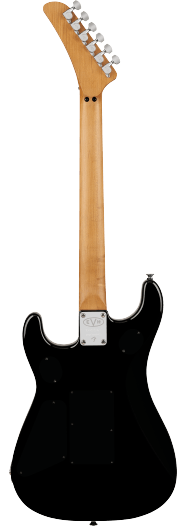

Like its predecessor, the 5150 DX features a modified Strat®-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn baked maple neck features a comfortable modified "C" profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and "hockey stick" headstock with EVH® logo decal. Built for smooth and speedy playability, the 12"-16" compound radius baked maple fingerboard has 22 jumbo frets and black dot inlays.

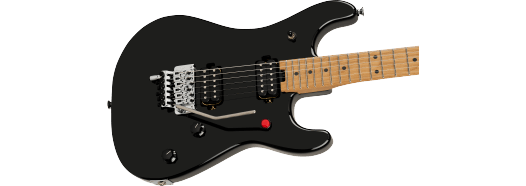

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects - think "You Really Got Me."

Decked out with a "dive-bomb" certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

Features

  • 25.5" scale length
  • Modified Strat®-style basswood body with deeper upper body curve
  • Graphite-reinforced bolt-on quartersawn baked maple neck
  • Neck is carved and rolled to Eddie Van Halen's specifications with hand-rubbed satin urethane back finish
  • 12"-16" compound radius baked maple fingerboard with 22 jumbo frets and black dot inlays
  • Convenient heel-mount truss rod adjustment spoke wheel
  • Direct mount EVH® Wolfgang® bridge and neck humbucking pickups
  • Top-mount EVH-branded Floyd Rose® bridge and R3 locking nut
  • EVH D-Tuna®
  • Three-way toggle switch, kill switch, volume control (500K EVH Bourns® Low Friction Pot) with treble bleed circuit and tone control (250K EVH Bourns® High Friction Pot)
  • Available in Gloss Black and Candy Apple Red Metallic with hockey stick headstock and all-chrome hardware, including the EVH-branded Gotoh® tuning machines
SPECIFICATIONS

  • Neck

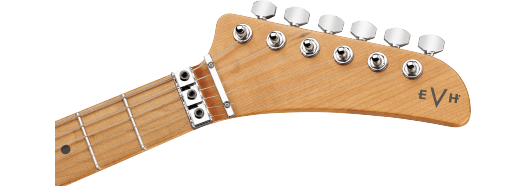

    • Headstock: EVH® Hockey Stick

    • Neck Material: Quartersawn Baked Maple

    • Neck Finish: Hand-Rubbed Satin Urethane

    • Neck Shape: EVH® Modified "C" Backshape

    • Neck Construction: Bolt-On with Graphite Reinforcement

    • Neck Thickness: .790" at 3rd Fret & .810" at 12th Fret

    • Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)

    • Fingerboard Material: Baked Maple

    • Position Inlays: Black Dot

    • Side Dots: Black

    • Number of Frets: 22

    • Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel

    • String Nut: Floyd Rose® R3 Locking

    • Nut Width: 1.685" (42.8 mm)

    • Nut Material: Floyd Rose® R3 Locking

    • Fret Size: Jumbo

    • Scale Length: 25.5" (648 mm)

  • Body

    • Body Material: Basswood

    • Body Finish: Gloss Urethane

    • Body Shape: 5150™

  • Hardware

    • Bridge: Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®

    • Tremolo Block: Brass

    • Pickup Covers: Black

    • Control Knobs: Black Knurled with White Indicator

    • Switch Tip: Black

    • Hardware Finish: Chrome

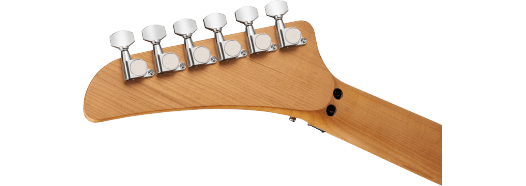

    • Tuning Machines: EVH®-Branded Gotoh®

    • String Trees: Floyd Rose® Retainer Bar

    • Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)

    • Tremolo Arm: Floyd Rose® 1000 Series Locking

    • Neck Plate: 4-Bolt Standard

    • Strap Buttons: Oversized

  • Electronics

    • Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking

    • Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking

    • Pickup Configuration: HH

    • Controls:

      • Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit

      • Tone (250K EVH® Bourns® High Friction Pot)

    • Switching: 3-Position Toggle

      • Position 1: Bridge Pickup

      • Position 2: Bridge and Neck Pickups

      • Position 3: Neck Pickup

    • Auxiliary Switching: Kill Switch

  • Measurements

    • Shipping Dimensions: 4.40 x 15.30 x 42.00 in

    • Shipping Weight: 10.31 lb

    • Shipping Length: 42.00 in

    • Shipping Height: 4.40 in

    • Shipping Width: 15.30 in

  • Accessories

    • Included Accessories: Tremolo Arm, Hex Keys & User Manual

    • Truss Rod Wrench: 2.5 mm Hex

  • Miscellaneous

    • Commodity Code: 9207.90.0040
