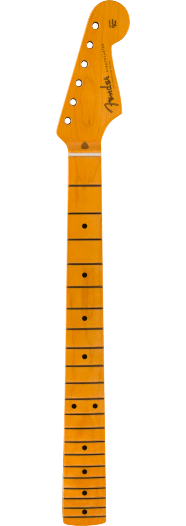

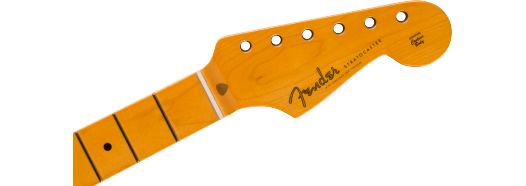

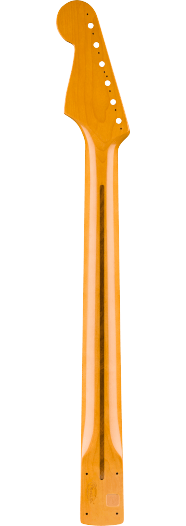

Fender American Vintage II 1957 Stratocaster Neck, 21 Vintage Tall Frets, 7.25" Radius, Maple

In vintage years, the shape and thickness of Fender guitar necks varied tremendously. The American Vintage II Series features authentic neck profiles from Fender's past. Crafted at our Corona, Calif. manufacturing facility, this genuine Fender American Vintage II 1957 Stratocaster 1-piece maple neck features a "V"-shaped profile and 7.25"-radius fingerboard with 21 vintage-tall frets.

The bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing and a lacquer finish offers a vintage feel. This replacement neck is the perfect way to give your Strat® an authentically '50s feel.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures.

• Maple fingerboard with 7.25" radius
• 1957 "V" neck profile
• 21 vintage-tall frets
• Bone nut
• Gloss nitrocellulose lacquer finish
• Vintage-style truss rod adjustment

Specifications

• Neck
  • Neck Material: Maple with Walnut Stripe
  • Neck Finish: Gloss Nitrocellulose Lacquer
  • Neck Shape: 1957 "V"
  • Neck Thickness: 1st Fret - .875" (22.22 mm), 12th Fret - .985" (25.02 mm)
  • Neck Mounting: 4-Bolt
  • Fingerboard Radius: 7.25" (184.1 mm)
  • Fingerboard Material: Maple
  • Position Inlays: Black Dot
  • Side Dots: Black
  • Number of Frets: 21
  • Truss Rod: Vintage-Style Butt Adjust
  • Truss Rod Nut: Vintage-Style Slotted
  • String Nut: Bone
  • Nut Width: 1.650" (42 mm)
  • Nut Material: Bone
  • Fret Size: Vintage Tall
  • Scale Length: 25.5" (648 mm)
• Hardware
  • Tuner Mounting Config: Vintage-Style 2-Screw
