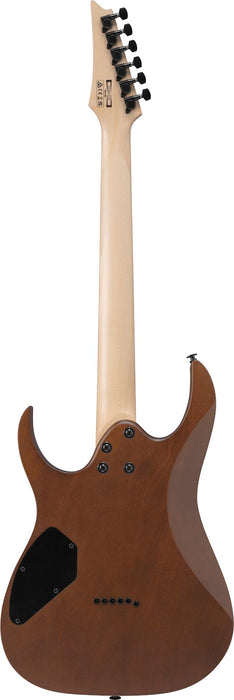

Ibanez GRG121DX GIO RG Electric - Walnut Flat

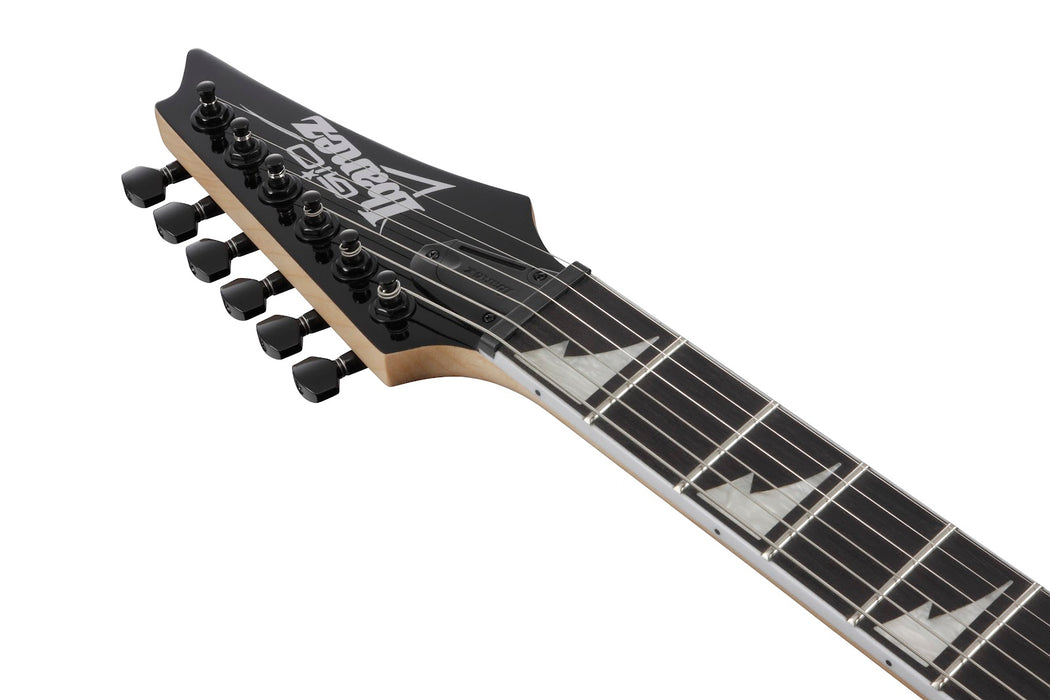

|Bound Purpleheart fretboard with White Sharktooth inlay
|Number of Frets
|IBZ-6 (H) neck pickup - Passive/Ceramic
|IBZ-6 (H) bridge pickup - Passive/Ceramic
|1E, 2B, 3G, 4D, 5A, 6E
- Scale: 648mm/25.5"
- a: Width 43mm at NUT
- b: Width 58mm at 24F
- c: Thickness 19.5mm at 1F
- d: Thickness 21.5mm at 12F
- Radius: 400mmR
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard

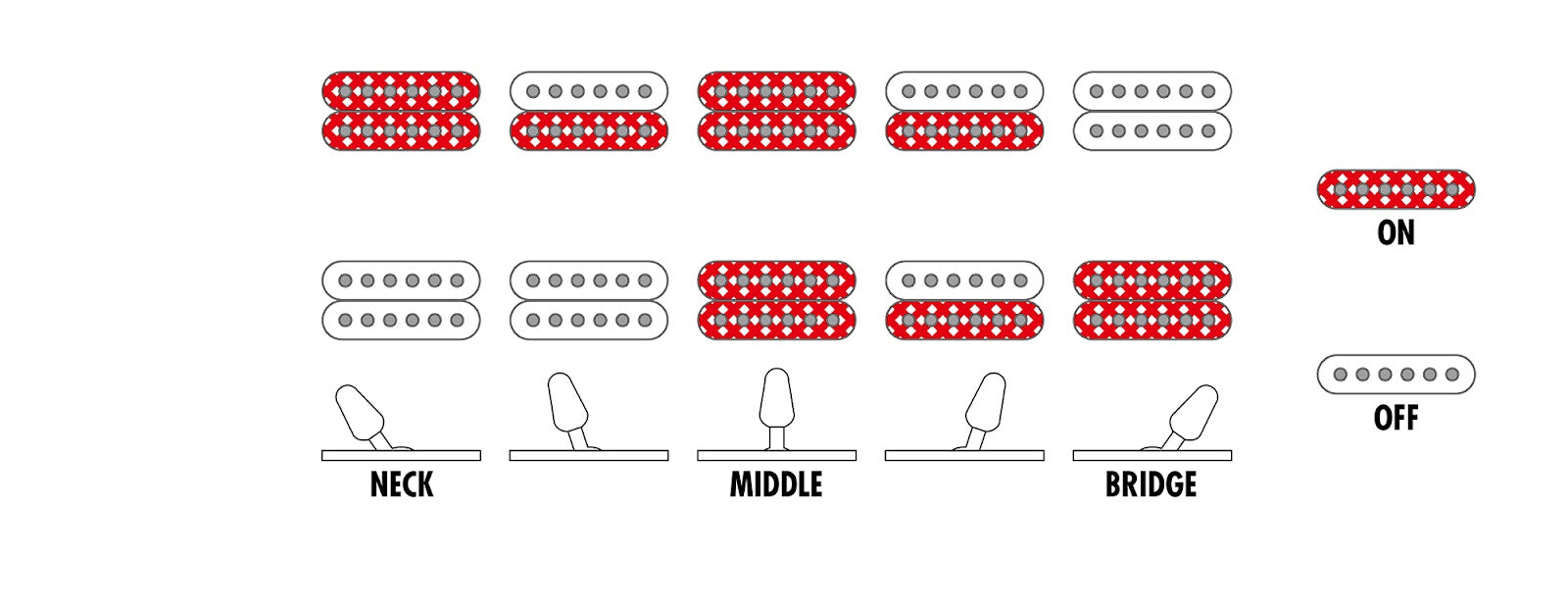

GRG121DX's Switching system diagram
When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in between the neck and center position, the bridge side of the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in between the center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in the bridge position, the bridge pickup is selected.

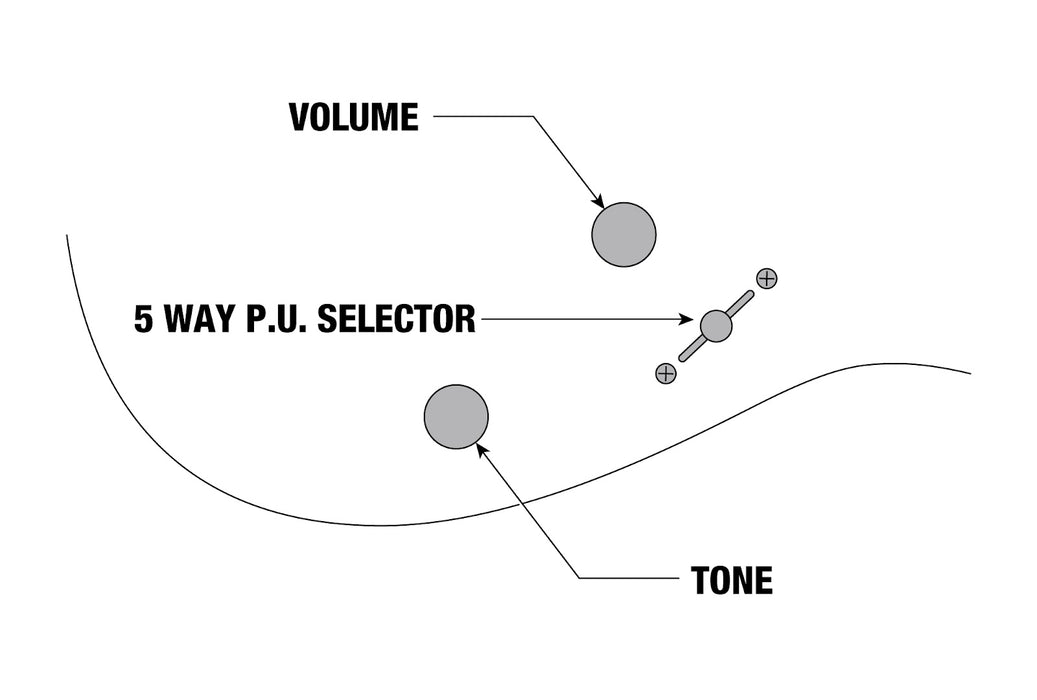

GRG121DX's control diagram
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
- Recommended Case: M300C
- Recommended Bag: IGB540-BK
|The Maple neck provides stability and bright tonal character.
|The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.
|Mono-unit Output Jack
|The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long-term playing enjoyment and minimal maintenance.
|The F106 bridge enriches sustain. String height adjustment can be done easily and independently.
