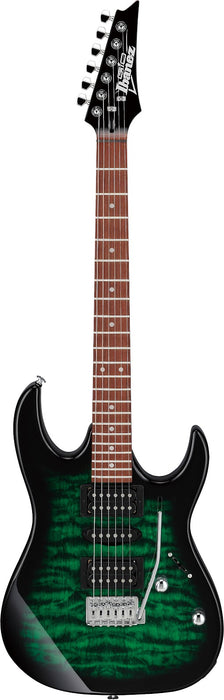

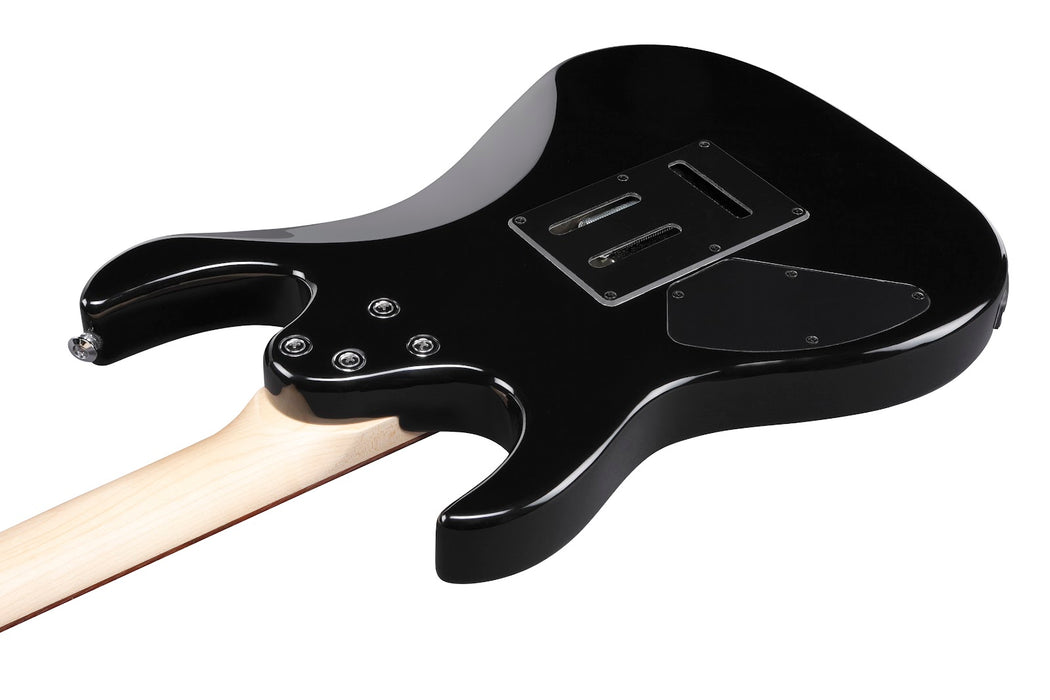

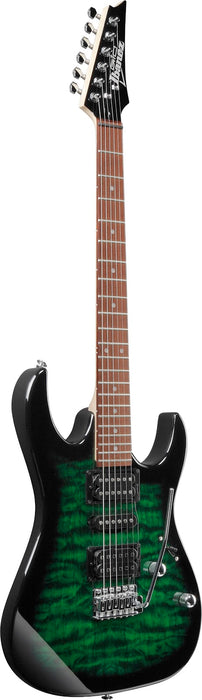

Ibanez GRX70QA GIO Electric - Transparent Emerald Burst
SKU GRX70QATEB
by Ibanez
Original price
$279.99
-
Original price
$279.99
Original price
$279.99
$279.99
$279.99
-
$279.99
Current price
$279.99
Interest FREE financing available at checkoutSpecifications
| Neck Type | GRXMaple neck |
| Top/Back/Body | Quilted Maple Art Grain topPoplar body |
| Fretboard | Jatoba fretboardWhite dot inlay |
| Fret | Medium frets |
| Number of Frets | 22 |
| Bridge | T106 bridge |
| String Space | 10.5mm |
| Neck Pickup | Infinity R (H) neck pickupPassive/Ceramic |
| Middle Pickup | Infinity RS (S) middle pickupPassive/Ceramic |
| Bridge Pickup | Infinity R (H) bridge pickupPassive/Ceramic |
| Factory Tuning | 1E,2B,3G,4D,5A,6E |
| String Gauge | .009/.011/.016/.024/.032/.042 |
| Hardware Color | Chrome |
Neck Dimensions
| Scale | 648mm/25.5" |
| a: Width | 42mm at NUT |
| b: Width | 57mm at 22F |
| c: Thickness | 19.5mm at 1F |
| d: Thickness | 21.5mm at 12F |
| Radius | 305mmR |
Description
| Guitar Neck Diagram | a: Width of the neck at the nut b: Width of the neck at the fret position specified by the neck dimension c: Thickness of the neck at the first fret d: Thickness of the neck at the fret position specified by the neck dimension Radius: Radius of the fingerboard |
Switching System

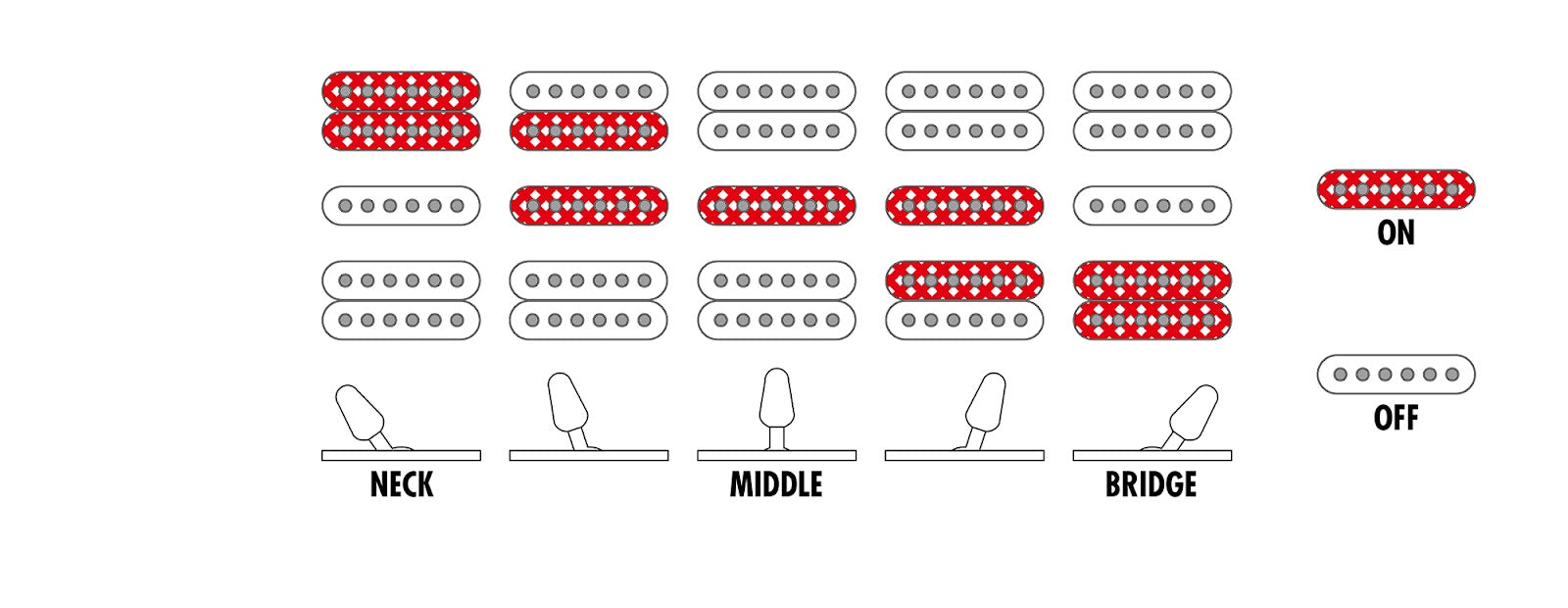

| GRX70QA's Switching System Diagram |  |
| Description | When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected. |
Controls

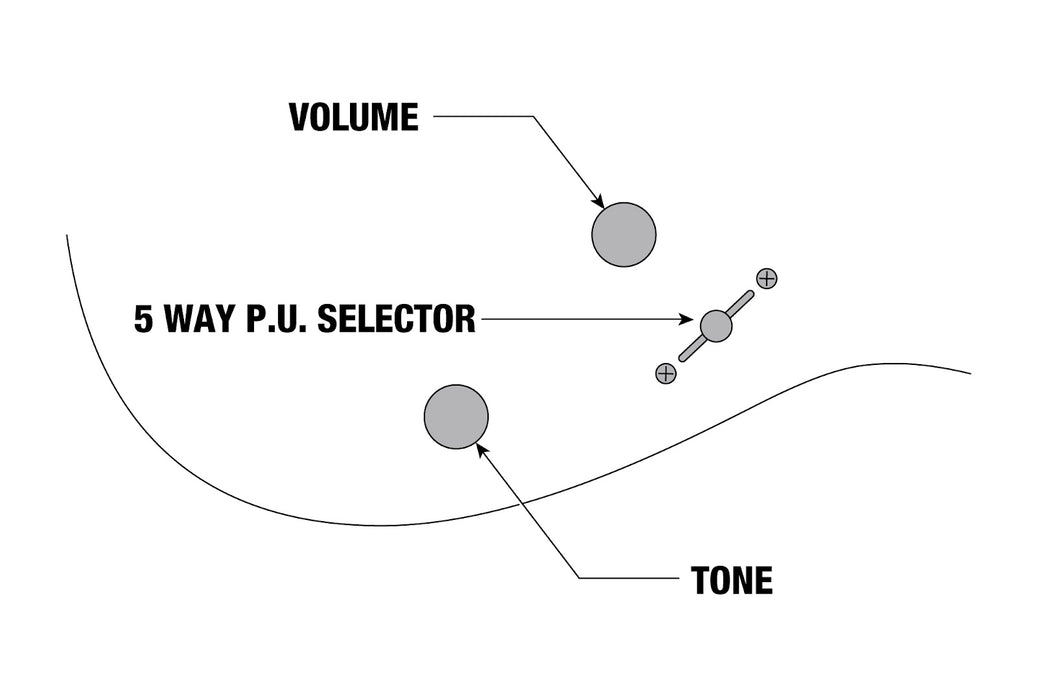

| GRX70QA's Control Diagram |  |
| Description | With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch. |
Other Features
| Recommended Case | M300C |
Features
| Maple Neck | The Maple neck provides stability and bright tonal character. |  |
| T106 Tremolo Bridge | The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy. |  |
| Mono-unit Output Jack | The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance. |  |
| Infinity R H-H Pickups | Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity. |  |
| Jatoba Fretboard | Jatoba has a reddish brown color which produces a rich mid range with a crisp high end. |  |
