Misha Mansoor is acclaimed for his masterful guitar work in fashioning the progressive metal of Periphery, and Jackson is proud to have collaborated so closely with the esteemed Djent-leman on the USA Signature Misha Mansoor Juggernaut HT7, a seven-string model like nothing else Jackson has ever seen - or heard - before.

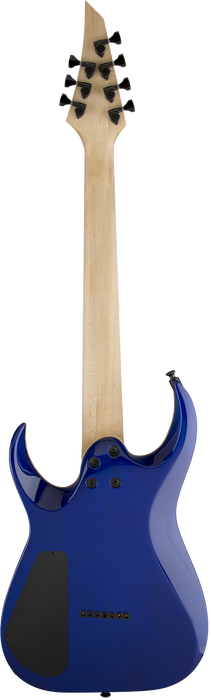

The instrument is crafted with a distinctive Jackson body shape inspired by the Dinky®, with sleekly scalloped horns, a comfortably contoured neck heel. The bolt-on quartersawn maple neck is sculpted with Mansoor's own custom profile, and features graphite reinforcement, ivoroid binding and heel-mounted truss rod adjustment wheel.
The 20-radius ebony fingerboard is crafted with 24 stainless steel jumbo frets, piranha inlays and Luminlay fluorescent side dots. The guitar's tonally versatile sound comes from Mansoor's dual direct-mount signature Bare Knuckle "Juggernaut" humbucking pickups with black covers, five-way switching and a push-pull (on/off) master tone knob.
Other premium features include a Jackson AT1 headstock with Hipshot open-gear locking tuners (three on one side, four on the other), Hipshot hardtail seven-string bridge, single volume control knob, black hardware and more. Includes custom black Jackson case with blue edges and Mansoor's "Bulb" logo.
Specifications
GENERAL
Series: Artist Signature
Orientation: Right-Hand
Color: Laguna Burst
Country Of Origin: US
NECK
Neck Material: 1-Piece Bolt-On Quartersawn Maple with Graphite Reinforcement and Scarf Joint
Neck Finish: Hand-Rubbed Satin Urethane
Neck Construction: Bolt-On
Neck Shape: Juggernaut Style (implied by body)
Number of Frets: 24
Fingerboard Material: Ebony
Fingerboard Radius: 20" (508 mm)
Position Inlays: Mother of Pearl Piranha Tooth
Truss Rod: Dual-Action with Wheel
Truss Rod Adjustment: Heel-Mount Truss Rod Adjustment Wheel
Nut Width: 1.75" (44.45 mm)
Nut Material: Graph Tech® TUSQ®
Fret Size: Jumbo
Scale Length: 26.5" (673 mm)
Headstock Logo: Jackson® AT-1 4x3 (4 Over/3 Under)
String Nut: Graph Tech® TUSQ®
BODY
Body Material: Alder with Quilt Maple Top
Body Finish: Gloss Polyurethane
Body Shape: Juggernaut
Body Binding: Wood
HARDWARE
Bridge: Hipshot® 7 - Fixed .175
Pickguard: None
Pickup Covers: Black
Control Knobs: Hipshot® O-ring
Switch Tip: Black
Hardware Finish: Black
Tuning Machines: Hipshot® Open-Gear Locking
Strings: D'Addario® Nickel Plated Steel (.011-.052 + .064 Gauges)
Neck Plate: 4-Bolt (recessed screws)
Strap Buttons: Dunlop® Dual-Locking
ELECTRONICS
Bridge Pickup: Direct Mount Bare Knuckle Juggernaut 7-String Humbucker
Neck Pickup: Direct Mount Bare Knuckle Juggernaut 7-String Humbucker
Pickup Configuration: HH
Controls: Volume, Tone (with Push/Pull Select Feature)
Switching: 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Coils, Position 3. Both Full Humbucking Pickups, Position 4. Two Outer Coils, Position 5. Full Neck Pickup
ACCESSORIES
Saddle Height Wrench: Yes
Truss Rod Wrench: Yes
