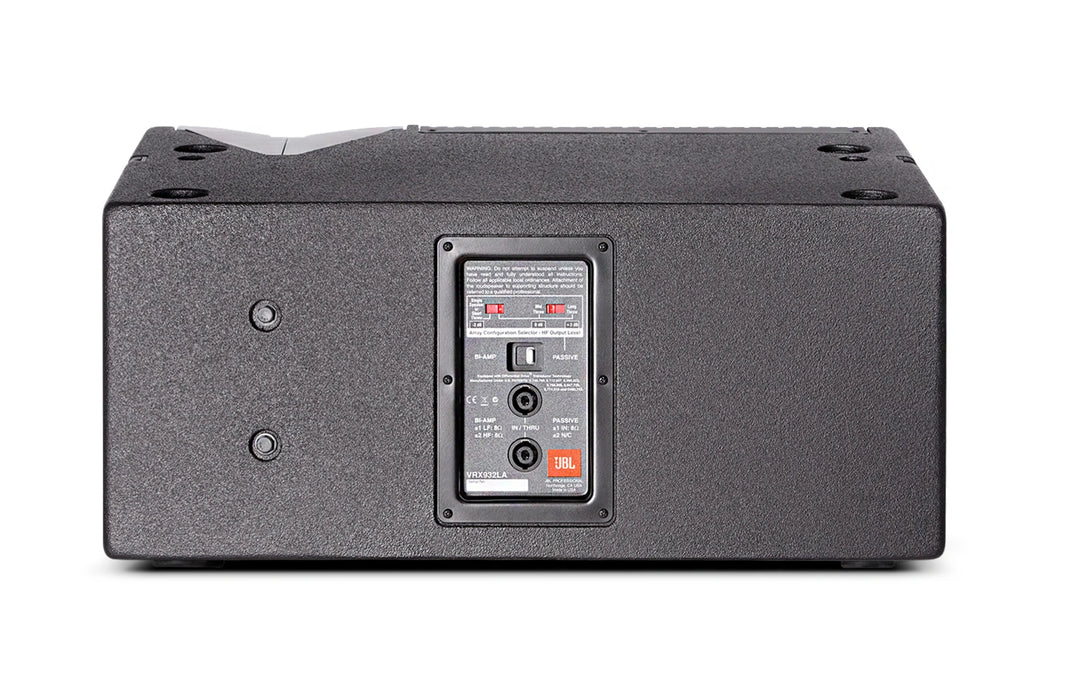

JBL 12" 2-Way Bi-Ampable Line Array System P.A. Speaker, Black
Estimated time before shipping: 3 to 5 days. If there are any additional delays, we will contact you promptly.
Interest FREE financing available at checkoutThe JBL VRX-932LA-1 (Black) is a lightweight, compact, passive and bi-ampable two-way line array speaker system, with an 800-watt continuous passive program power handling capacity, designed for use in arrays of up to six units. The VRX-932LA-1 is equipped with a 12" dual voice coil woofer and a trio of 1" Neodymium compression drivers, and offers a worthy solution when line array performance is desired in a smaller venue, but the very long-throw characteristics of a larger line array is not needed. The VRX-932LA-1 uses amplitude shading technology to shape the coverage of the array. Switches on the input plate allow the upper box in an array to reach a distant balcony, while the lower HF section is attenuated to reduce excessive level at the front of the listening area. One or two VRX-932LA-1 units may also be used on a tripod or over subwoofers, and up to six may be suspended in a single array for a nominal vertical coverage of up to 90°.
Features
- JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
- VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or
tripod stand. - Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
- Array Configuration Selector permits “array shading” in passive mode.
Specifications
General
-
System Type: Constant Curvature 12" Two-Way Line Array System
-
Coverage Pattern (Nominal): 100° × 15°
-
Frequency Range (-10 dB): 57 Hz – 20 kHz
-
Frequency Response (±3 dB): 75 Hz – 20 kHz
-
Maximum SPL (Peak): 130 dB SPL (Passive mode)
-
LF: 130 dB
-
HF: 139 dB
-
-
Sensitivity:
-
Passive: 95 dB SPL
-
Bi-amp LF: 95 dB SPL
-
Bi-amp HF: 114 dB SPL
-
-
Nominal Impedance:
-
Passive: 8 Ohms
-
Bi-amp LF: 8 Ohms
-
Bi-amp HF: 8 Ohms
-
-
Power Rating (Continuous / Peak): 800 W / 3200 W
-
Crossover Modes: Bi-amp / Passive, externally switchable
-
Crossover Frequency: 1.2 kHz
-
Active Tunings: Available at www.jblpro.com
Transducers
-
LF Driver: 1 × JBL 2262H, 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps
-
HF Driver: 3 × JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
Enclosure & Construction
-
Enclosure: 18 mm, 11-ply birch plywood
-
Finish: Black DuraFlex™ finish
-
Grille: Powder-coated, black, 16-gauge perforated steel with acoustically transparent foam
-
Suspension / Mounting: Optional VRX932LA-AF line array frame kit
Connectivity
-
Inputs: Neutrik® Speakon® NL-4 (×2)
-
Outputs: 1 × XLR
Dimensions & Weight
-
Height: 343 mm (13.5 in)
-
Width: 597 mm (23.5 in)
-
Depth: 376 mm (14.8 in)
-
Net Weight: 21 kg (46 lb)
Optional Accessories
-
VRX932LA-AF: Suspension array frame
-
SS2-BK: Tripod speaker stand
-
SS3-BK: Satellite speaker pole (41 in / 1041 mm)
-
SS4-BK: Adjustable satellite speaker pole (for use with SRX718S only)
