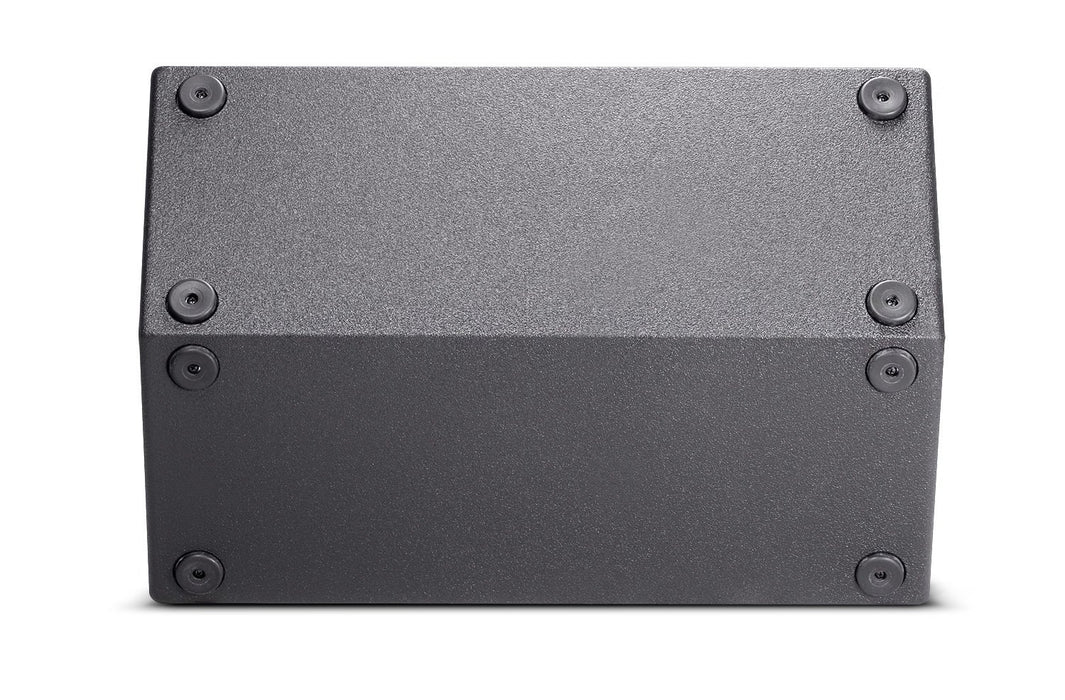

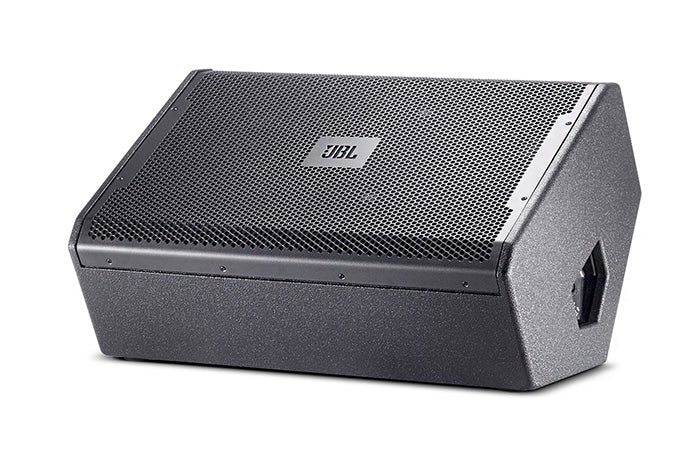

JBL 15-Inch Two-Way Stage Monitor Speaker
Estimated time before shipping: 3 to 5 days. If there are any additional delays, we will contact you promptly.
Interest FREE financing available at checkoutNext time you go on tour, make sure you have someVRX915M 15" 2-Way Stage Monitors from JBL on the floor. This lightweight, compact monitor can be bi-amped or used as a full-range passive monitor with a nominal coverage of 50 x 90°. The VRX915M utilizes the JBL Differential Drive 15" woofer containing a neodymium magnet saving on weight but not on power. Crystal clear highs are provided by the 4" compression driver also using a neodymium magnet.
Features
- Compact and low-profile for minimal obstruction of audience sightlines
- 50° x 90° nominal coverage
- Bi-amplified or full-range passive operation
- Differential Drive® woofer with neodymium magnet for high power capacity and very light weight
- 4" (voice coil) diameter compression driver with neodymium magnet
Specifications
Power
-
Power Rating: 800 W / 1600 W / 3200 W
-
Maximum SPL (1m): 127 dB SPL continuous (133 dB SPL peak)
-
Sensitivity: 98 dB SPL
-
Nominal Impedance: 8 Ohms
Frequency & Coverage
-
Frequency Range (-10 dB): 60 Hz – 20 kHz
-
Coverage Pattern (-6 dB): 50° x 90° nominal
-
Crossover Modes: Passive / Bi-amp
-
Crossover Frequency: 1.1 kHz
-
Active Tunings: Available at jblpro.com
Drivers
-
LF Driver: 1 × JBL 2265H 380 mm (15 in) Differential Drive® woofer, 8 Ohms
-
HF Driver: 1 × JBL 2453H-SL, 38 mm (1.5 in) exit compression driver, 100 mm (4 in) voice coil, neodymium magnet
Enclosure
-
Enclosure Type: Symmetrical stage monitor, 15/18 mm plywood
-
Finish: Black DuraFlex™ finish
-
Grille: Powder-coated 16-gauge perforated steel with acoustically transparent black screen backing
Connectivity
-
Inputs: Neutrik® Speakon® NL-4 (×2), one on each end
-
Outputs: 1 × XLR
Dimensions & Weight
-
Dimensions (H × W × D):
-
629 mm × 432 mm × 324 mm (375 mm stage height)
-
24.75 in × 17 in × 12.75 in (14.75 in stage height)
-
-
Net Weight (each): 21 kg (46.0 lb)
