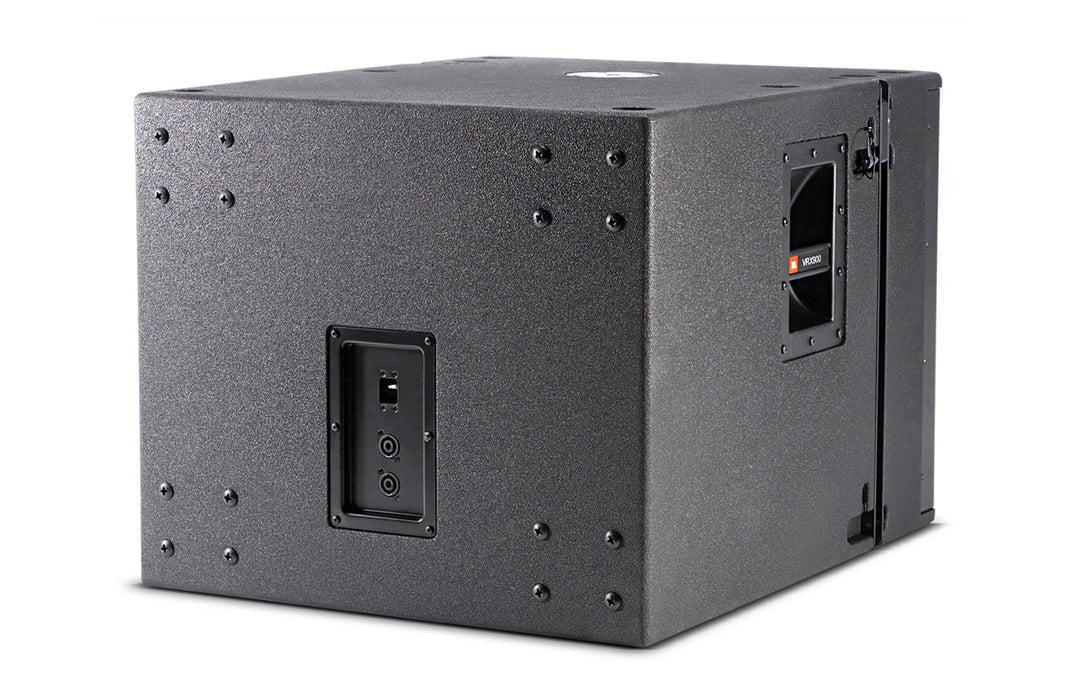

JBL 18-Inch High Power Passive Flying Subwoofer, Black
Estimated time before shipping: 3 to 5 days. If there are any additional delays, we will contact you promptly.
Interest FREE financing available at checkoutThe VRX918S is a compact, high power suspendable subwoofer system containing a 2268H neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure.
Features
- Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame.
- 18 inch, 2268H Differential Drive® woofer for extended low-frequency output
- Large port area for reduced distortion
- 20 mm threaded pole socket for solid, secure satellite speaker mounting
Specifications
Power
-
Power Rating: 800 W / 1600 W / 3200 W
-
System Maximum SPL: 130 dB SPL peak
-
System Sensitivity (1 W @ 1 m): 95 dB SPL
-
Nominal Impedance: 8 Ohms
Frequency
-
Frequency Range: 31 Hz – 220 Hz
-
Frequency Range (-10 dB): 31 Hz – 220 Hz
-
Recommended Crossover Frequencies: 80 Hz, 24 dB/octave HPF; 80 Hz, 24 dB/octave LPF
Driver
-
LF Driver: 1 × JBL 2268H 457 mm (18 in) Differential Drive® woofer
Enclosure
-
Material: Rectangular, 18 mm, 13-ply birch plywood
-
Finish: Black DuraFlex™ finish
-
Grille: Powder-coated, black, 16-gauge perforated steel with acoustically transparent charcoal foam backing
Connectivity
-
Inputs: Neutrik® Speakon® NL-4 (×2)
-
Outputs: 1 × XLR
Suspension / Mounting
-
Optional VRX932LA-AF line array frame kit or 10 mm eyebolt
Dimensions & Weight
-
Dimensions (H × W × D):
-
508 mm × 597 mm × 749 mm
-
20.0 in × 23.5 in × 29.5 in
-
-
Net Weight (each): 37 kg (81 lb)
Optional Accessories
-
SRX718S-CVR: Pull-over padded cover
-
SS4-BK: Adjustable heavy-duty pole, M20 thread to 35 mm
-
WK-4: Caster kit
-
VRX-AF: Array frame kit
-
M-10 eyebolt kit
