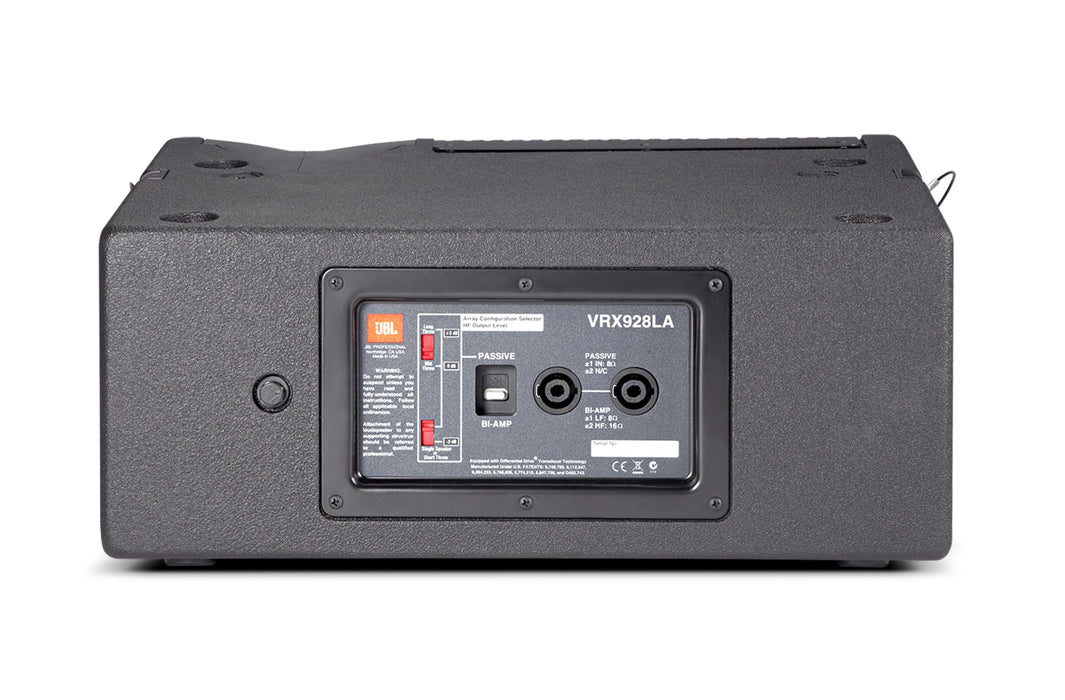

JBL 8" 2-Way Line Array Loudspeaker System, Black
Estimated time before shipping: 3 to 5 days. If there are any additional delays, we will contact you promptly.
Interest FREE financing available at checkoutThe JBL VRX-928LA is an 8" 2-Way Line Array Loudspeaker System is a lightweight, compact, two-way line array speaker system designed for use in arrays of up to six units. The VRX-928LA is equipped with JBL's exclusive neodymium magnet Differential Driver woofer for high power. There are also two patent-pending, high-frequency neodymium compression drivers. The Constant Curvature waveguide mounts two compression speakers on a continuous arc. Adding additional speakers does not alter the arc, so all drivers work together as though they would be one single driver on a long waveguide. With amplitude shading you get the perfect shape to your array. The VRX-928LA can be mounted on a tripod, over the VRX915S, or use the integral rigging system. In fact, up to six VRX-928LA speakers can be mounted together in the same array for a nominal vertical coverage of up to 90°. High Power Capacity This speaker takes advantage of JBL's exclusive neodymium magnet Differential Drive woofer so you get high power capacity in a surprisingly lightweight package. Array Coherence You get unprecedented array coherence with JBL's Constant Curvature waveguide. Mounting Options Built-in dual-angle pole socket gives you aiming flexibility when pole mounting and the integral rigging hardware provides simplified connection of enclosures and optional array frame.
Features
- Constant Curvature Array - The waveguide mounts two compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.
- Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.
- Suspension and Rigging.
- Dual Angle Pole Socket - JBL's dual angle pole sockets allow great flexibility in aiming the enclosure (not on - WH version)
- Differential Drive® Woofer.
Specifications
General
-
System Type: Constant Curvature 8" Two-Way Line Array System
-
Power Rating: 400 W / 800 W / 1600 W
-
Frequency Range (-10 dB): 70 Hz – 20 kHz
-
Frequency Response (±3 dB): 85 Hz – 19 kHz
-
Maximum SPL (1 m): 122 dB SPL Peak (Passive Mode)
-
LF: 122 dB (Bi-Amp Mode)
-
HF: 128 dB (Bi-Amp Mode)
-
-
Nominal Impedance:
-
Passive: 8 Ohms
-
Bi-Amp LF: 8 Ohms
-
Bi-Amp HF: 16 Ohms
-
-
Coverage Pattern: 100° × 15° nominal
-
Crossover Modes: Bi-Amp / Passive
-
Crossover Frequency: 2.0 kHz
Transducers
-
LF Driver: 1 × 200 mm (8 in) Differential Drive® woofer
-
HF Driver: 2 × 25 mm (1.0 in) neodymium compression drivers
Enclosure & Mounting
-
Enclosure: DuraFlex™ coated plywood
-
Suspension / Mounting: Dual 36 mm pole socket included. Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts.
Connectivity
-
Inputs: 2 × Neutrik® Speakon® NL-4
-
Outputs: 1 × XLR
Dimensions & Weight
-
Height: 230 mm (9.0 in)
-
Width: 420 mm (16.5 in)
-
Depth: 270 mm (10.5 in)
-
Net Weight: 12.7 kg (28 lb)
