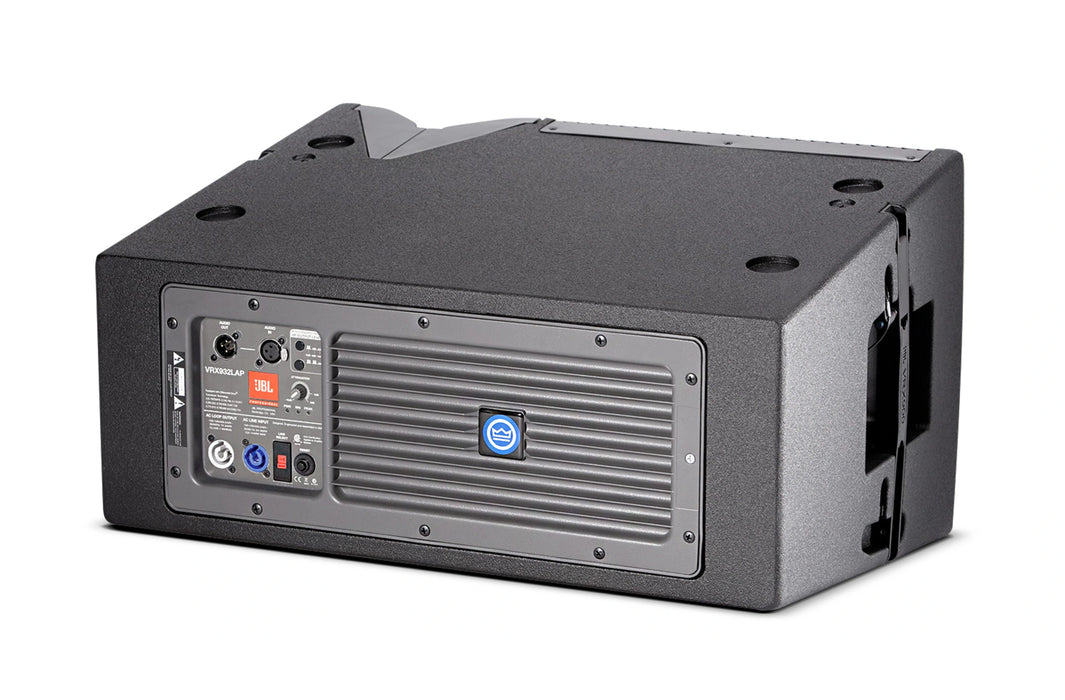

JBL Powered 12-Inch Line Array Speaker
Estimated time before shipping: 3 to 5 days. If there are any additional delays, we will contact you promptly.
Interest FREE financing available at checkoutThe JBL VRX932LAP 12" 2-Way Line Array Loudspeaker System in black is designed for playback and sound reinforcement in small to mid sized venues. The built-in JBL DrivePack DPC-2 amplifier module by Crown provides a whopping 1750W of peak power while the DSP-based resident input module provides system optimization and EQ. The Differential Drive woofer gives you high power while still maintaining a lightweight profile. Three 2408J annular ring diaphragm HF drivers incorporate the latest in JBL Professional compression driver design. The VRX932LAP can be used in arrays of up to five units and works perfectly for entertainers and A/V professionals. If you're in a venue that requires a line array but not very long-throw characteristics, then this fast and easy setup is perfect for your presentation.
Features
- Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
- JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
- VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
- Array Configuration Selector permits "array shading".
Specifications
General
-
System Type: Constant Curvature 12" Two-Way Powered Line Array System
-
Coverage Pattern (Nominal): 100° × 15°
-
Frequency Range (-10 dB): 57 Hz – 20 kHz
-
Frequency Response (±3 dB): 75 Hz – 20 kHz
-
Maximum SPL (Peak): 136 dB SPL
-
Power Rating:
-
Peak: 1750 W
-
Continuous: 875 W
-
DPC-2 Output (Continuous IED pink noise into rated load):
-
LF: 750 W
-
HF: 125 W
-
-
-
Amplification: Integrated (no external impedance rating)
-
Amplifier Topology: Dual-Bridged Technology™, Class D
-
Signal Processing: DSP-based, resident in input module
-
User Controls: Input attenuator (0–16 dB)
-
AC Power Operating Range: 90–132 VAC or 216–264 VAC, 50/60 Hz
-
AC Current Requirements: 6 A per system at 120 V, 3 A per system at 240 V
Transducers
-
LF Driver: 1 × JBL 2262FF, 305 mm (12 in) woofer, neodymium magnet
-
HF Driver: 3 × JBL 2408J, 38 mm (1.5 in) neodymium compression driver
Enclosure & Construction
-
Enclosure: 25/15 mm, 11-ply birch plywood
-
Finish: Black DuraFlex™ finish
-
Grille: Powder-coated, black, 16-gauge perforated steel with acoustically transparent foam
-
Suspension / Mounting: Optional VRX-AF line array frame kit, 10 mm forged eyebolts, or internal dual-angle 36 mm pole mount cup for pole/tripod use
Connectivity
-
Inputs: XLR with loop through
-
Outputs: 1 × XLR
-
AC Input Connector: Neutrik PowerCon (NAC 3MPA)
-
AC Loop Through Connector: Neutrik PowerCon (NAC 3MPB)
Dimensions & Weight
-
Height: 349 mm (13.75 in)
-
Width: 597 mm (23.5 in)
-
Depth: 444 mm (17.5 in)
-
Net Weight: 24 kg (52 lb)
Optional Accessories
-
VRX-AF: Suspension array frame
