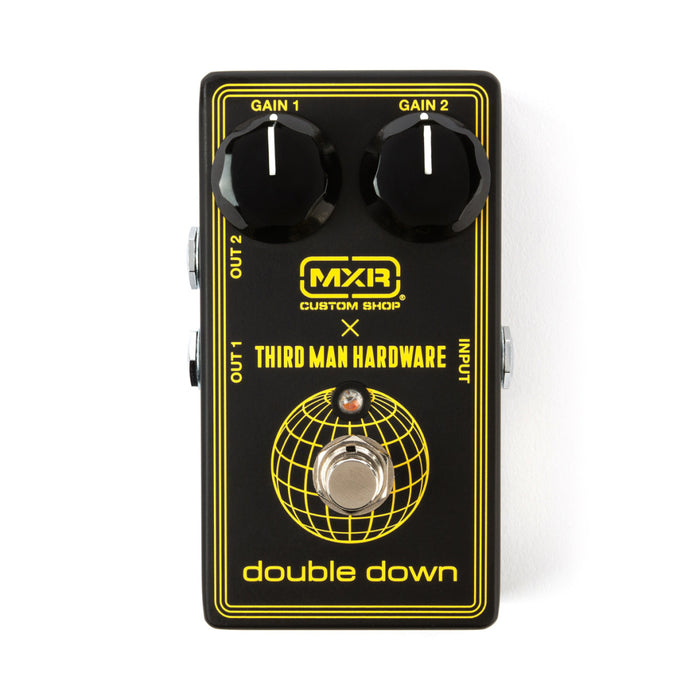

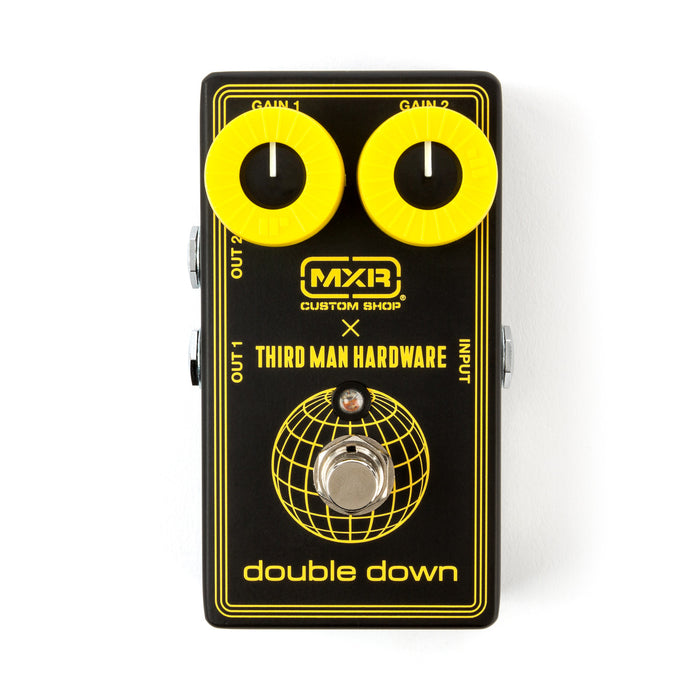

MXR CSP042 X Third Man Hardware Double Down Pedal
Estimated time before shipping to be confirmed after you place your order.
Interest FREE financing available at checkoutMXR and Third Man Hardware have teamed up to create the perfect booster for gigging guitar players - this pedal combines two separate MXR Micro Amp circuits into a single box so that you can heat up two separate signal chains with just the right amount of classic Micro Amp bump.

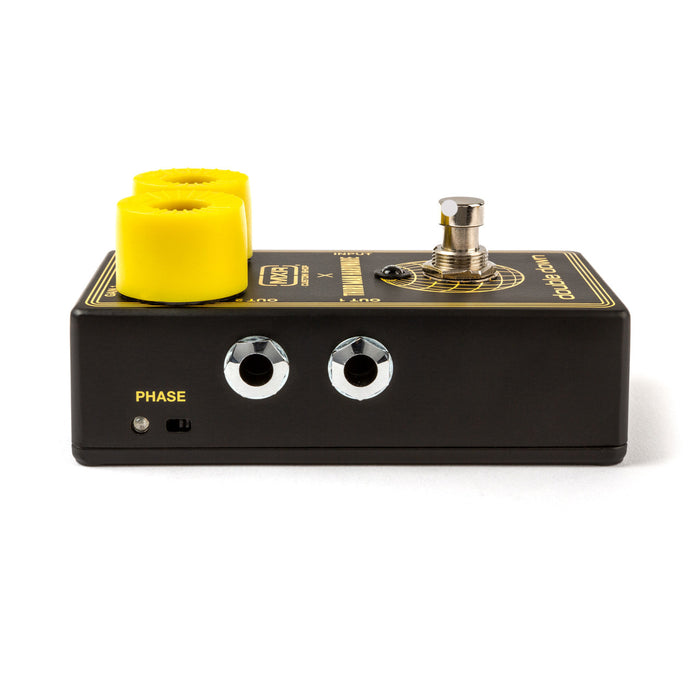

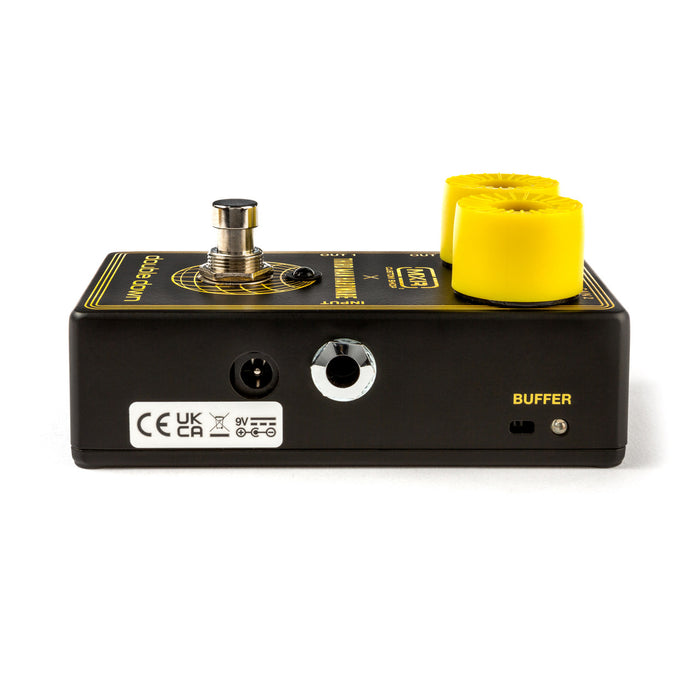

The Double Down Pedal's single input jack splits your signal to two separate outputs, each with its own Gain control for up to +26dB of signal-boosting power. On the left side of the housing is a Phase switch that adds a pronounced stereophonic effect by inverting the phase of the second output signal. On the right side of the pedal is a Buffer switch so that you can choose between true bypass - for the purists - and buffered bypass switching to keep your sound intact when driving two signal chains.
This pedal is powered by one 9-volt battery (remove bottom plate to install), a 9-volt AC adapter such as the Dunlop ECB003/ ECB003EU, or an MXR® Brick™ Series power supply.
Specifications
Input Impedance:
• Buffer OFF > 450 kΩ
• Buffer ON > 700 kΩ
Output Impedance < 1 kΩ
Bypass: Buffered/True Bypass
Current Draw: 11 mA
Power Supply: 9 volts DC
